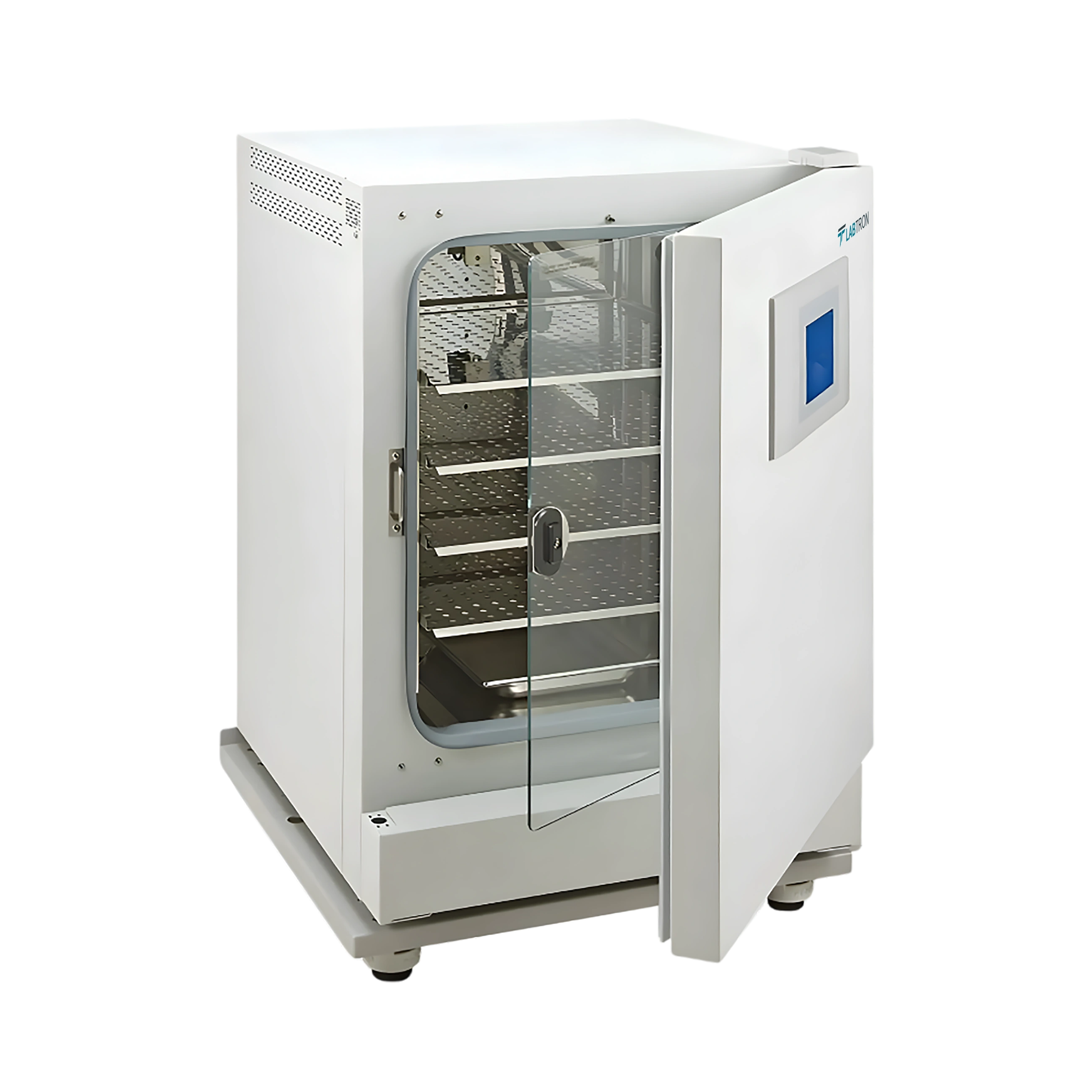

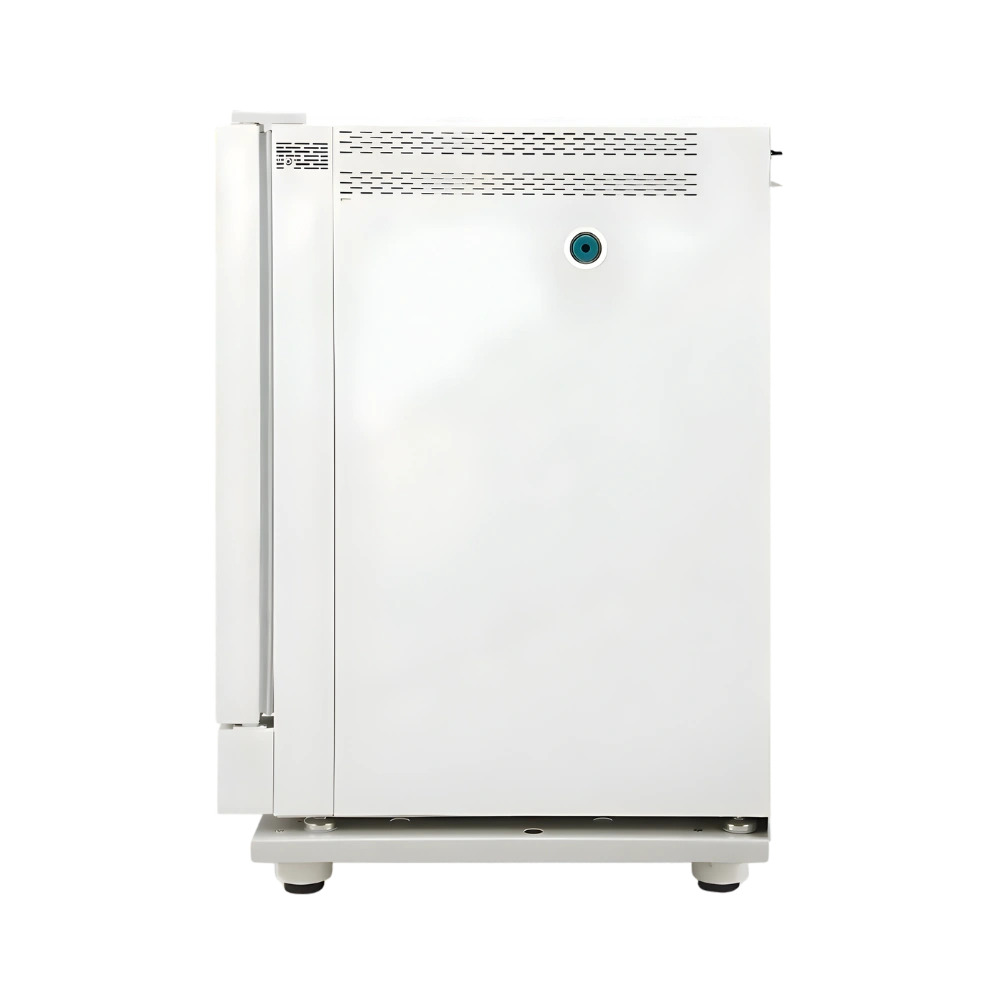

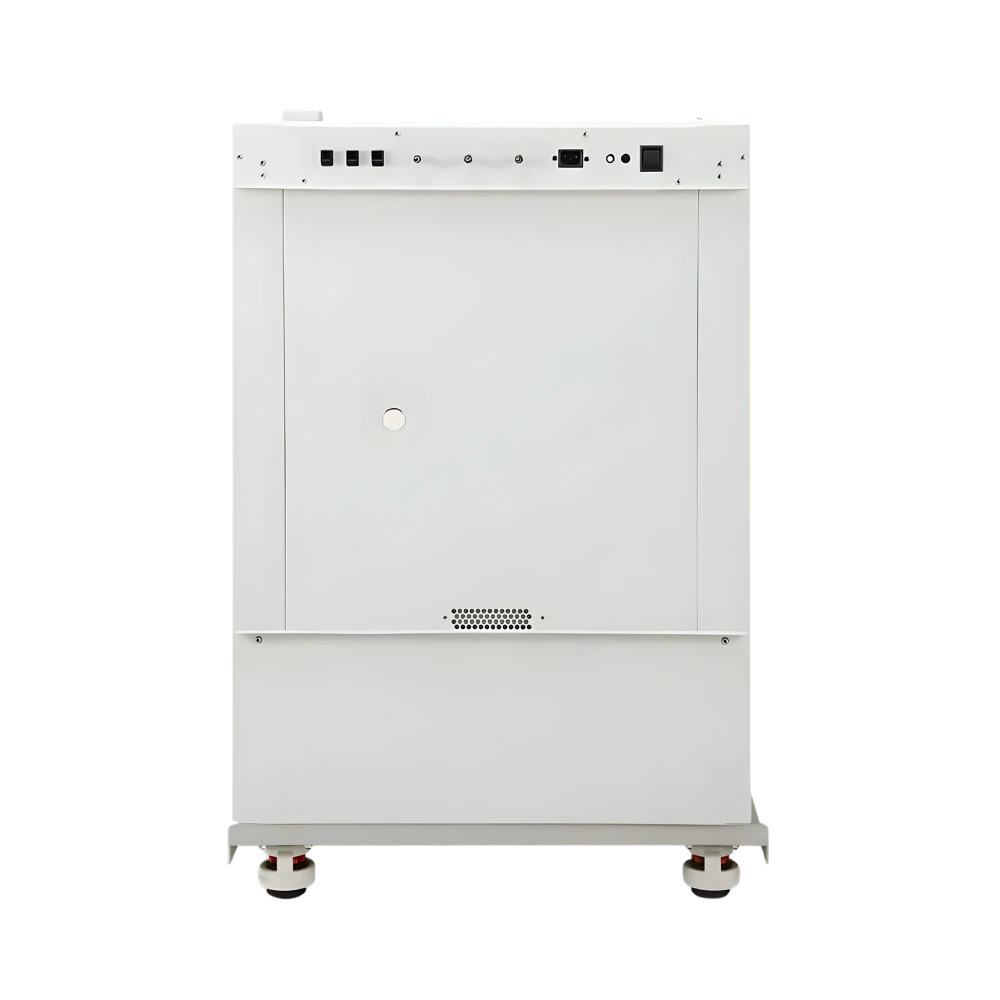

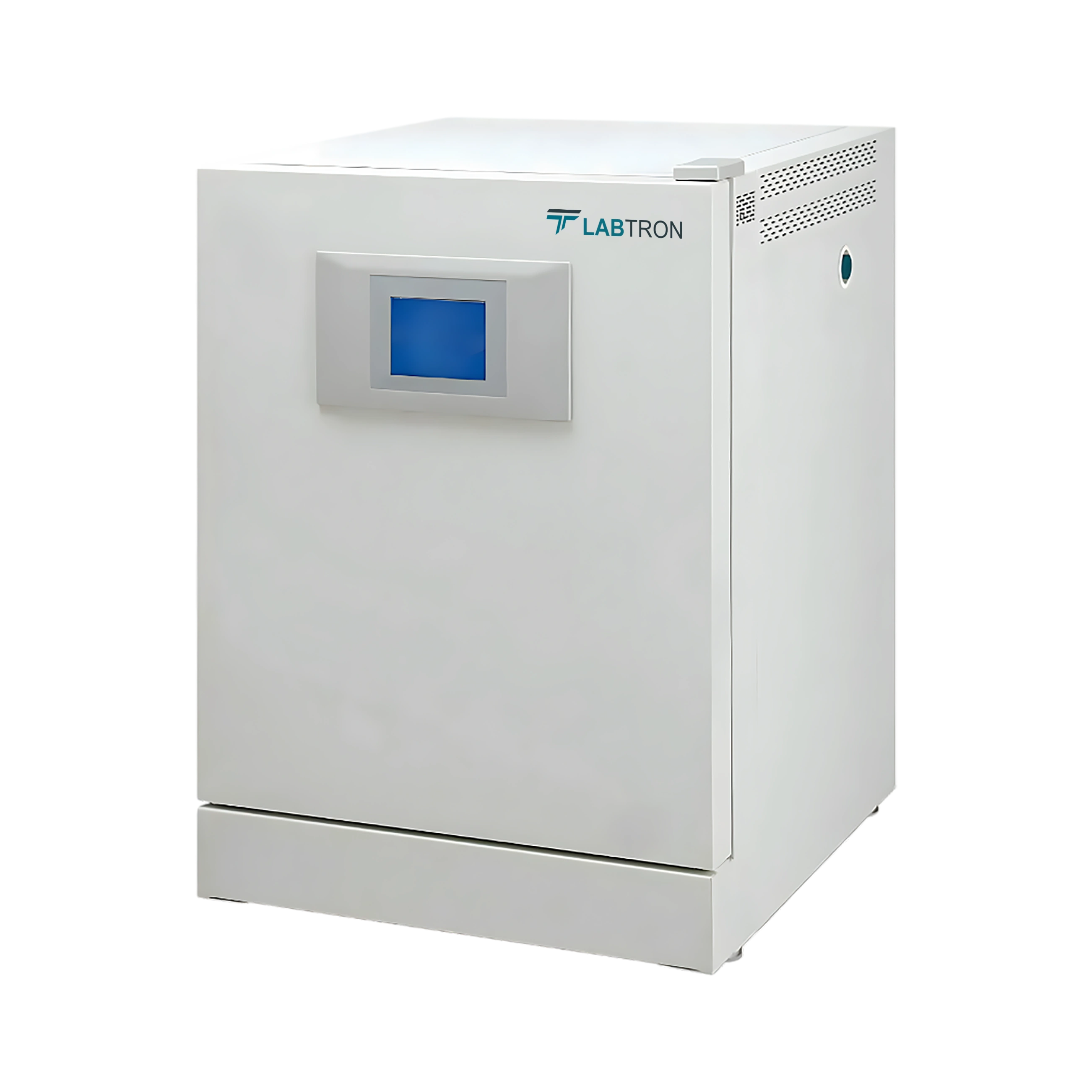

Air Jacketed CO2 Incubator LAJI-C13

Air Jacketed CO₂ Incubator LAJI-C13 offers outstanding temperature stability. Available with heat decontamination function and optional UV disinfection. Equipped with colored touch screen controller for displaying temperature, humidity, CO₂ concentration. In forced convection mode unit and offers heating function which prevents condensation on outer door.

Request Quote

Chamber Volume	233 L
Shelves	3
Heating Method	Air-jacketed
Temperature Range	RT+5 ℃ to 50 ℃
Temperature Resolution	0.1 ℃
Temperature Fluctuation	0.1 ℃
Temperature Gradient	≤ ± 0.5 ℃
Temperature Uniformity	± 0.3 ℃
CO₂ Range	(0~20)% V/V
CO₂ Sensor	IR sensor
CO₂ Control Resolution	± 0.1%
CO₂ Deviation	≤ ±0.3%V/V
Humidity Method	Natural vaporization ＞ 95%
Interior Dimension (W×H×D)	600×670×630 mm
Exterior Dimension (W×H×D)	790 × 940 × 840 mm
Electrical Requirement	AC220 V,50 Hz
Power Consumption	950 W

Air jacketed CO₂ Incubator
Coloured touch screen displays temperature, humidity, CO₂ concentration curves
ISO Class 5 chamber with air renewal system
Data logger with alarm features and dry contact alarm, humidity sensor with water top up alarm
Meets sterilisation of 99.99% with 80°C heat on cells
90℃ high temperature hot and humid sterilization system
In forced convection mode
Heating function preventing condensation on outer door
Independent temperature-limiting protection system
CO₂ pressure-relief valve with 2-stage control and stable pressure
Optional HEPA filtration system

Air jacketed CO₂ incubators are widely used for a broad range of applications that includes Tissue engineering, In vitro fertilization, Neuroscience, Cancer research, Stem cell research, Regenerative medicine, Mammalian cell research.

CO₂ pressure releasing valve
RS485 connector

Available Range :

Chamber Volume : 40 L Chamber Volume : 80 L Chamber Volume : 155 L Chamber Volume : 233 L CO₂ range : 0-20% CO₂ range : 0-20%

Related Models :

Model	Chamber Volume	Shelves	Heating Method	Temperature Range	Temperature Resolution	Temperature Fluctuation	Temperature Gradient	Temperature Uniformity	CO₂ Range	CO₂ Sensor	CO₂ Control Resolution	CO₂ Deviation	Humidity Method	Interior Dimension (W×H×D)	Exterior Dimension (W×H×D)	Electrical Requirement	Power Consumption
LAJI-C10	40 L	2	Air-jacketed	RT+5 ℃ to 50 ℃	0.1 ℃	0.1 ℃	≤ ± 0.5 ℃	± 0.3 ℃	(0~20)% V/V	IR sensor	± 0.1%	≤ ±0.3%V/V	Natural vaporization ＞ 95%	400 × 350 × 286 mm	590 × 576 × 440 mm	AC220 V,50 Hz	400 W
LAJI-C11	80 L	2	Air-jacketed	RT+5 ℃ to 50 ℃	0.1 ℃	0.1 ℃	≤ ± 0.5 ℃	± 0.3 ℃	(0~20)% V/V	IR sensor	± 0.1%	≤ ±0.3%V/V	Natural vaporization ＞ 95%	400 × 500 × 450 mm	590 × 790 × 690 mm	AC220 V,50 Hz	500 W
LAJI-C12	155 L	3	Air-jacketed	RT+5 ℃ to 50 ℃	0.1 ℃	0.1 ℃	≤ ± 0.5 ℃	± 0.3 ℃	(0~20)% V/V	IR sensor	± 0.1%	≤ ±0.3%V/V	Natural vaporization ＞ 95%	480 × 610 × 530 mm	670 × 880 × 770 mm	AC220 V,50 Hz	650 W
LAJI-C13	233 L	3	Air-jacketed	RT+5 ℃ to 50 ℃	0.1 ℃	0.1 ℃	≤ ± 0.5 ℃	± 0.3 ℃	(0~20)% V/V	IR sensor	± 0.1%	≤ ±0.3%V/V	Natural vaporization ＞ 95%	600×670×630 mm	790 × 940 × 840 mm	AC220 V,50 Hz	950 W
LAJI-C20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
LAJI-C21	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
LAJI-A10	80 L	2 (pcs)	Air-jacketed, PID Control	RT + 5 to 50°C	-	-	-	-	-	-	-	-	Natural vaporization > 90 %	-	-	-	500 W
LAJI-A11	155 L	3 (pcs)	Air-jacketed, PID Control	RT + 5 to 50°C	-	-	-	-	-	-	-	-	Natural vaporization > 90 %	-	-	-	750 W
LAJI-A12	233 L	3 (pcs)	Air-jacketed, PID Control	RT + 5 to 50°C	-	-	-	-	-	-	-	-	Natural vaporization > 90 %	-	-	-	950 W
LAJI-B10	49 L	2 (pcs)	Air-jacketed, PID Control	RT + 5 to 50°C	-	-	-	-	-	-	-	-	Natural vaporization > 90 %	-	-	-	350 W
LAJI-B11	80 L	2 (pcs)	Air-jacketed, PID Control	RT + 5 to 50°C	-	-	-	-	-	-	-	-	Natural vaporization > 90 %	-	-	-	500 W
LAJI-B12	150 L	2 (pcs)	Air-jacketed, PID Control	RT + 5 to 50°C	-	-	-	-	-	-	-	-	Natural vaporization > 90 %	-	-	-	750 W
LAJI-D10	-	-	-	5 to 40 °C	-	-	-	-	-	-	-	-	-	-	-	-	1250 W
LAJI-C14	-	3 pcs/ adjustable	-	RT+5 to 60℃	-	+0.2 ℃ (at 37 ℃)	-	+0.3°C (at 37 °C)	-	-	-	-	-	-	-	-	1800 W

Model

Chamber Volume

Shelves

Heating Method

Temperature Range

Temperature Resolution

Temperature Fluctuation

Temperature Gradient

Temperature Uniformity

CO₂ Range

CO₂ Sensor

CO₂ Control Resolution

CO₂ Deviation

Humidity Method

Interior Dimension (W×H×D)

Exterior Dimension (W×H×D)

Electrical Requirement

Power Consumption

LAJI-C10

40 L

Air-jacketed

RT+5 ℃ to 50 ℃

0.1 ℃

≤ ± 0.5 ℃

± 0.3 ℃

(0~20)% V/V

IR sensor

± 0.1%

≤ ±0.3%V/V

Natural vaporization ＞ 95%

400 × 350 × 286 mm

590 × 576 × 440 mm

AC220 V,50 Hz

400 W

LAJI-C11

80 L

Air-jacketed

RT+5 ℃ to 50 ℃

0.1 ℃

≤ ± 0.5 ℃

± 0.3 ℃

(0~20)% V/V

IR sensor

± 0.1%

≤ ±0.3%V/V

Natural vaporization ＞ 95%

400 × 500 × 450 mm

590 × 790 × 690 mm

AC220 V,50 Hz

500 W

LAJI-C12

155 L

Air-jacketed

RT+5 ℃ to 50 ℃

0.1 ℃

≤ ± 0.5 ℃

± 0.3 ℃

(0~20)% V/V

IR sensor

± 0.1%

≤ ±0.3%V/V

Natural vaporization ＞ 95%

480 × 610 × 530 mm

670 × 880 × 770 mm

AC220 V,50 Hz

650 W

LAJI-C13

233 L

Air-jacketed

RT+5 ℃ to 50 ℃

0.1 ℃

≤ ± 0.5 ℃

± 0.3 ℃

(0~20)% V/V

IR sensor

± 0.1%

≤ ±0.3%V/V

Natural vaporization ＞ 95%

600×670×630 mm

790 × 940 × 840 mm

AC220 V,50 Hz

950 W

LAJI-C20

LAJI-C21

LAJI-A10

80 L

2 (pcs)

Air-jacketed, PID Control

RT + 5 to 50°C

Natural vaporization > 90 %

500 W

LAJI-A11

155 L

3 (pcs)

Air-jacketed, PID Control

RT + 5 to 50°C

Natural vaporization > 90 %

750 W

LAJI-A12

233 L

3 (pcs)

Air-jacketed, PID Control

RT + 5 to 50°C

Natural vaporization > 90 %

950 W

LAJI-B10

49 L

2 (pcs)

Air-jacketed, PID Control

RT + 5 to 50°C

Natural vaporization > 90 %

350 W

LAJI-B11

80 L

2 (pcs)

Air-jacketed, PID Control

RT + 5 to 50°C

Natural vaporization > 90 %

500 W

LAJI-B12

150 L

2 (pcs)

Air-jacketed, PID Control

RT + 5 to 50°C

Natural vaporization > 90 %

750 W

LAJI-D10

5 to 40 °C

1250 W

LAJI-C14

3 pcs/ adjustable

RT+5 to 60℃

+0.2 ℃ (at 37 ℃)

+0.3°C (at 37 °C)

1800 W
