Ball Mill Machine

A ball mill machine is a mechanical device used to grind materials into fine powders, typically for the purpose of mixing, blending, or grinding substances into a uniform and homogenous mixture.

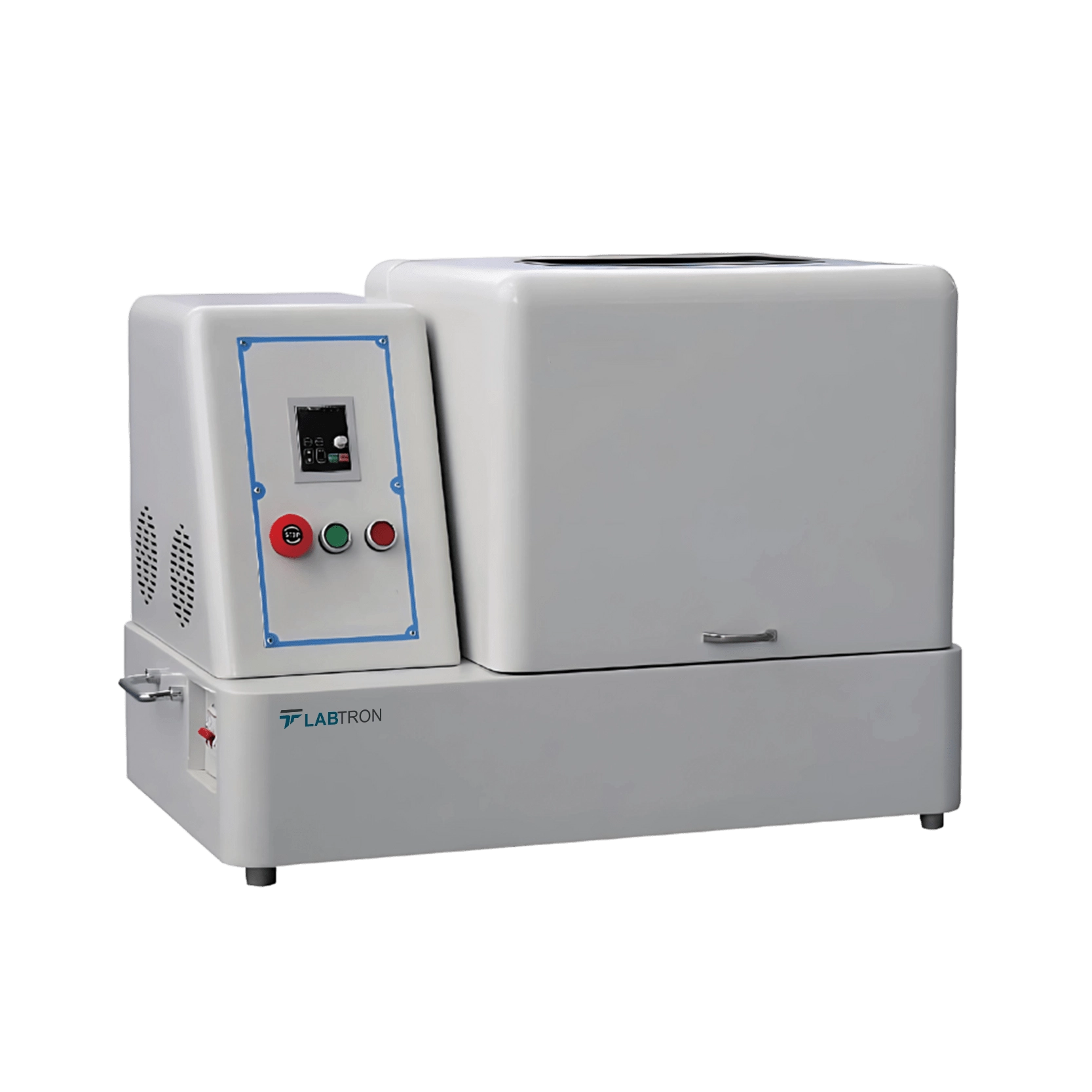

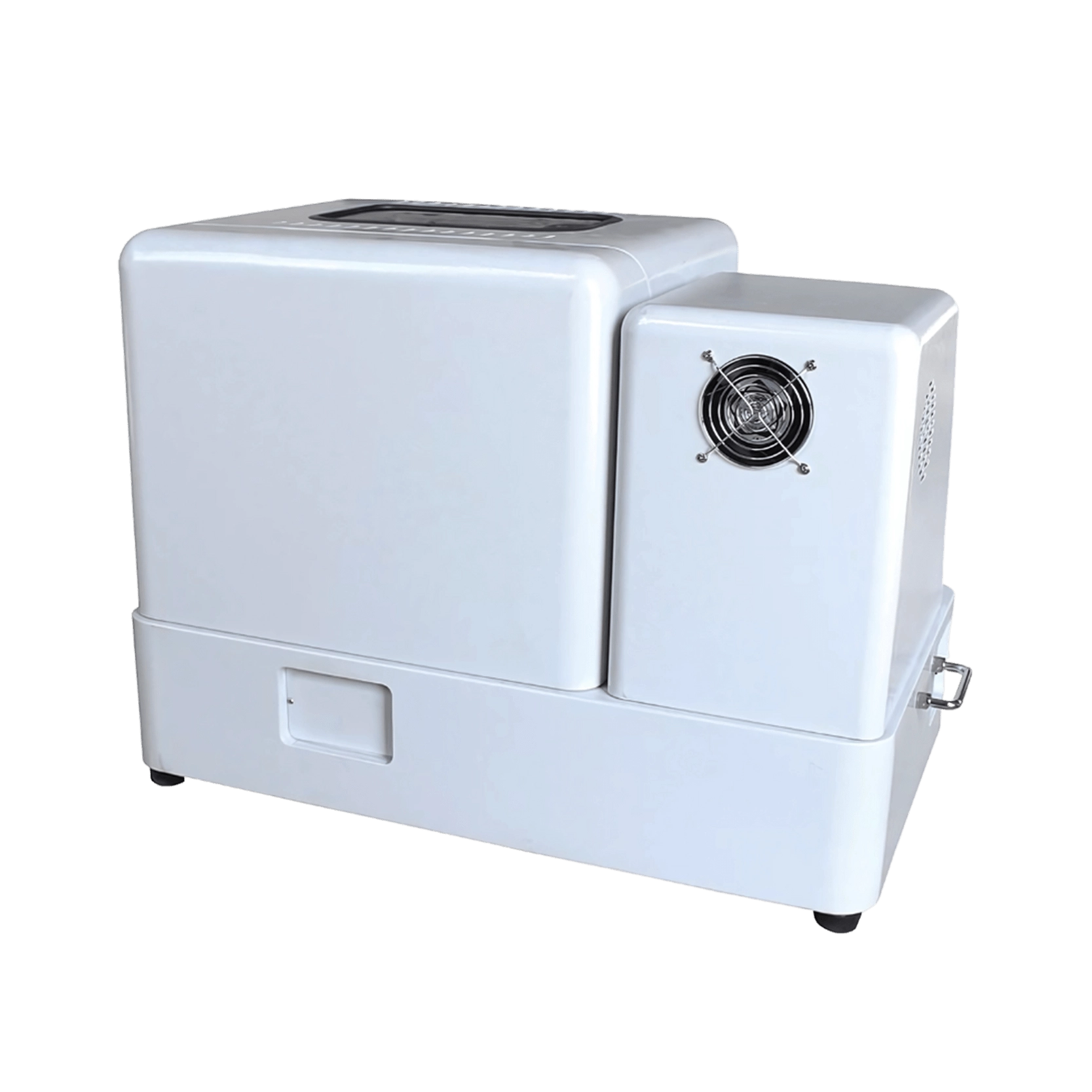

Benchtop Ball mill LBBM-A30

Benchtop Ball mill LBBM-A30

Benchtop Ball Mill LBBM-A30 has a capacity of handling batches of up to 3.96 liters. Offers a speed range of 70 to 580 rpm. Includes both dry and wet milling modes under vacuum conditions. With an effective grinding capability, it can accommodate a variety of feed materials. It allows for precise adjustment of milling parameters, guaranteeing accuracy and consistent outcomes. This mill supports continuous operation for up to 72 hours, assuring prolonged and uninterrupted processing capability.

Request Quote
Speed Range 70 to 580 rpm
Maximum Capacity 3.96 L/batch
Output Granularity Size Minimum 0.1 µm
Volume 12 L
Volume of each Pot 1 to 3 L
Number of Pots 4
Material Capacity Material + Mill Balls ˂ 2/3 volume
Input Granularity Size ≤ 10 mm for soil and crispy materials, ≤ 3 mm for other material
Revolution Speed 35 to 290 rpm
Rotation Speed Ratio 0.043055555555556
Mill Mode Dry and Wet milling
Speed Control Mode Frequency control
Timer Range 1 to 9999 min
Alternating Run Time of Forward and Reverse Rotation 1 to 999 min
Maximum Continuous Operating Time 72 hr
Grinding Jar Type Nylon
Ball Type Zirconia balls in mixed sizes (2.7kgs/set for each 3 L nylon mill jar)
Noise ≤ 65 dB
Power Consumption 1.5 KW
Power 220 V, 50 Hz
Dimension 900 × 600 × 640 mm
Weight 150 Kg

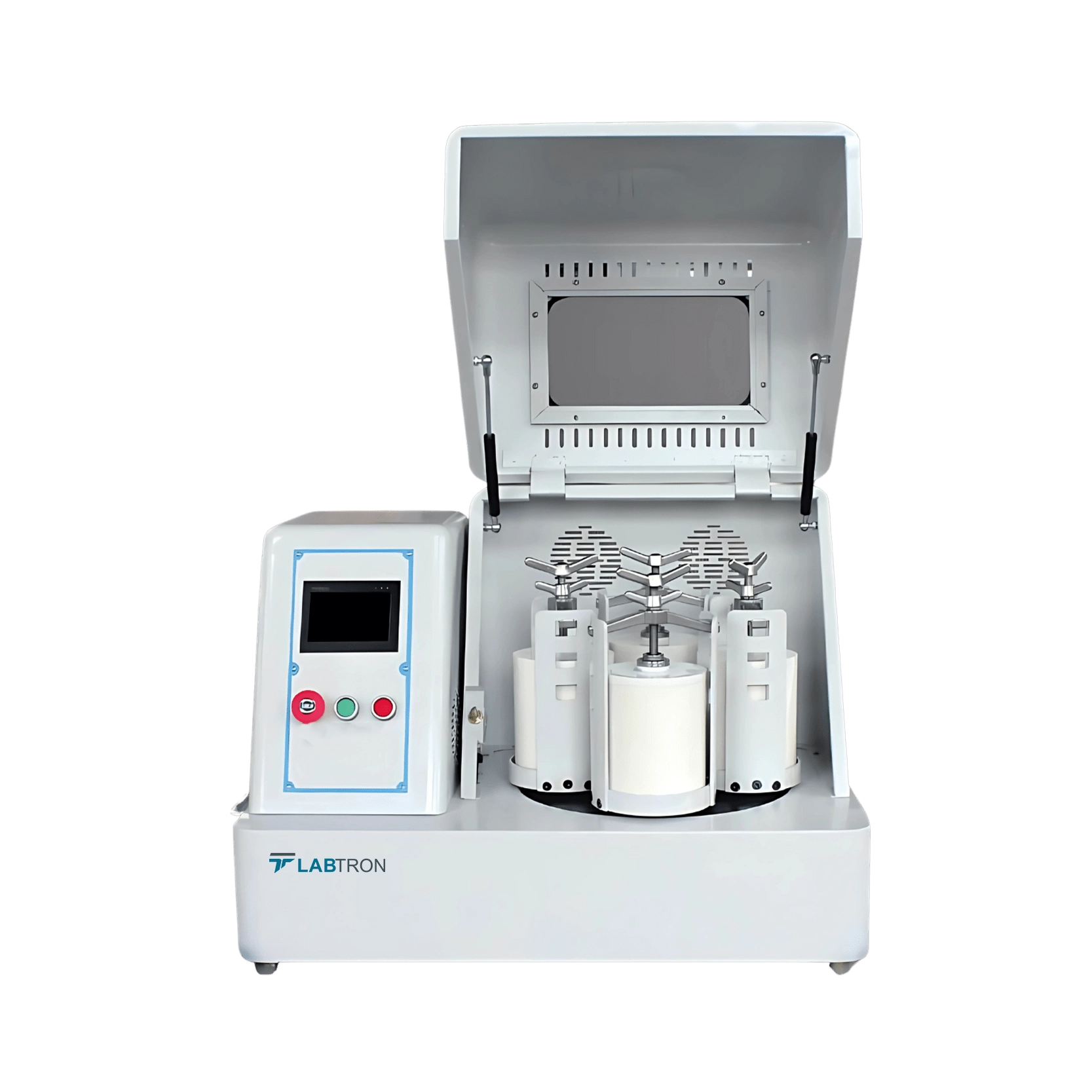

  • Features four ball grinding tanks on one turntable
  • Easy to operate
  • Versatile for various materials
  • Durable construction
  • Integrated with safety provisions
  • Low noise

Benchtop Ball Mill is used in electronic, magnetic, biological, ceramic, metal, and mineral materials across industries and research institutes for grinding or blending.
