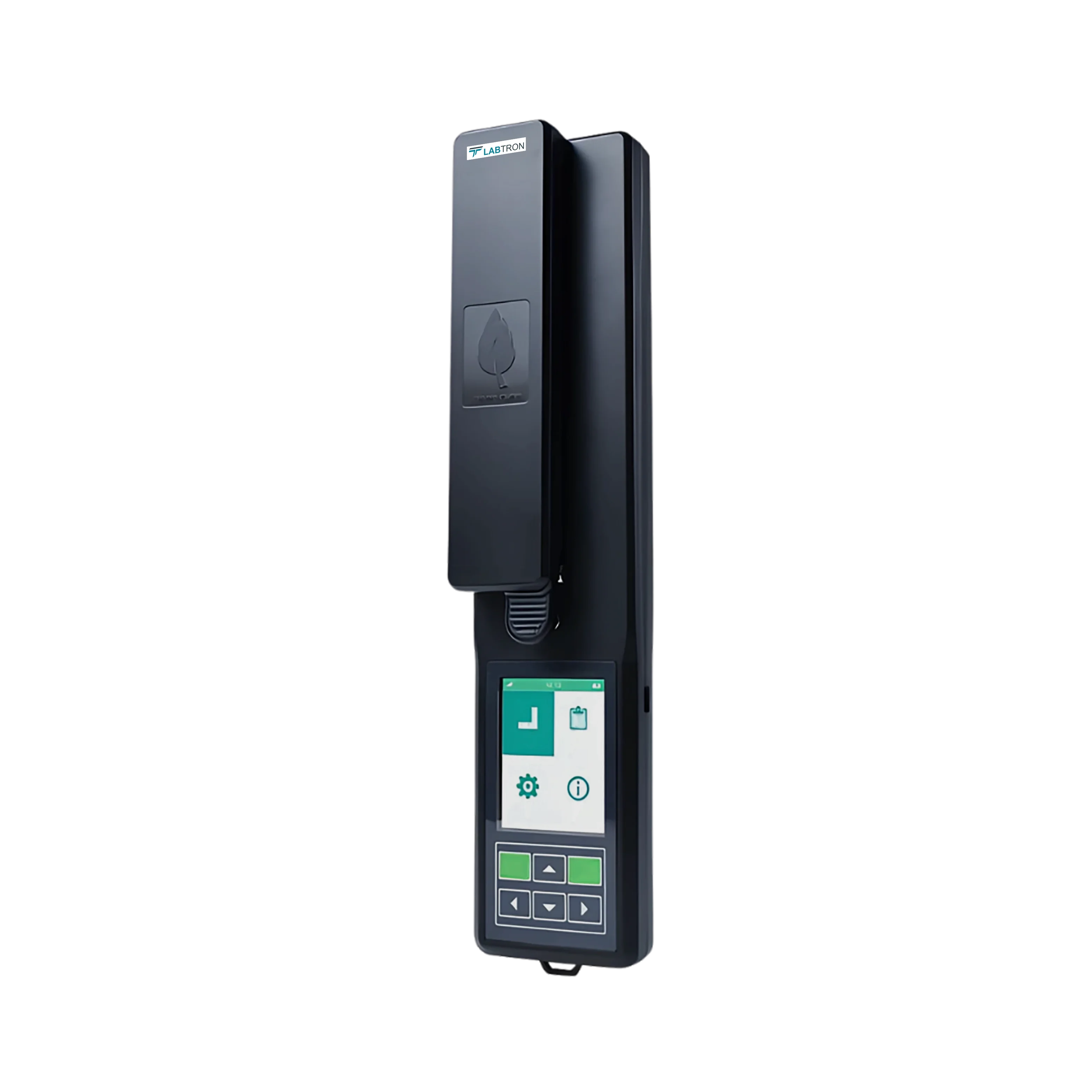

Leaf Area Meter LLAM-A10

Overview

Leaf Area Meter LLAM-A10 performs quick and straightforward measurement of leaves. Minimal setup process requires only the insertion of leaves and closure of the measuring probe. Device enables accurate monitoring of specific leaves throughout the crop growth process for more comprehensive analysis. LED lighting sources reduce battery consumption significantly.

Features :

  • Facilitates easy identification of data with significant differences
  • Trend chart for multiple sets of measured data
  • Easy to carry, allowing convenient on-site measurements
  • IPX-4 waterproof rating allows outdoor measurements, even on rainy days
  • Capable of measuring small blades accurately with the depth adjustment device
  • Can store up to 30 sets of measurement data
  • Reading detection feature ensures users can verify proper functioning
Specifications :
Measurement method Optical density difference at two wavelengths
Measurement area 2 × 3 mm
Maximum sample thickness 1.2 mm
Accuracy ± 1.0 SPAD units
Repeatability ± 0.3 SPAD units
Reproducibility ± 0.5 SPAD units
Temperature drift ± 0.04 SPAD units/℃
Minimum measurement interval 2 seconds
Working conditions Working temperature: 0 to 50 ℃, Working relative humidity: 85%
Storage conditions Storage temperature: -20 to 55 ℃, Storage humidity: 85%
Illumination LED light
Sample insertion depth 12 mm
Sensor Silicon photodiode
Display range -9.9 to 199.9 SPAD units
Display LCD screen, 4 decimal places, trend chart
Data 30 sets
Power supply 2 No. 5 batteries
Dimension (W× L × H) 78 × 164 × 49 mm
Weight 200 g
Applications :

Leaf Area Meter boasts several features to improve its usability and effectiveness for users in agriculture or plant-related research.
