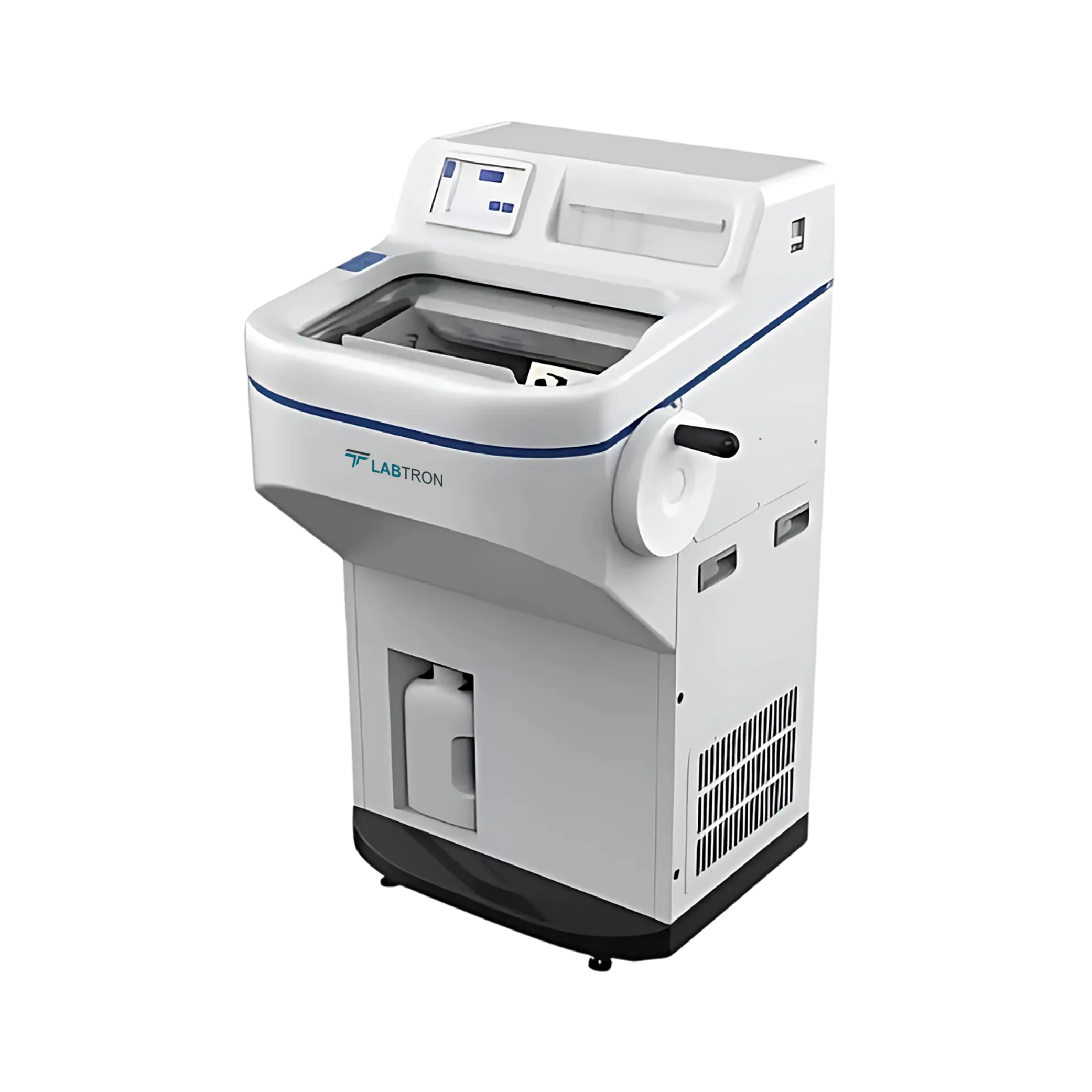

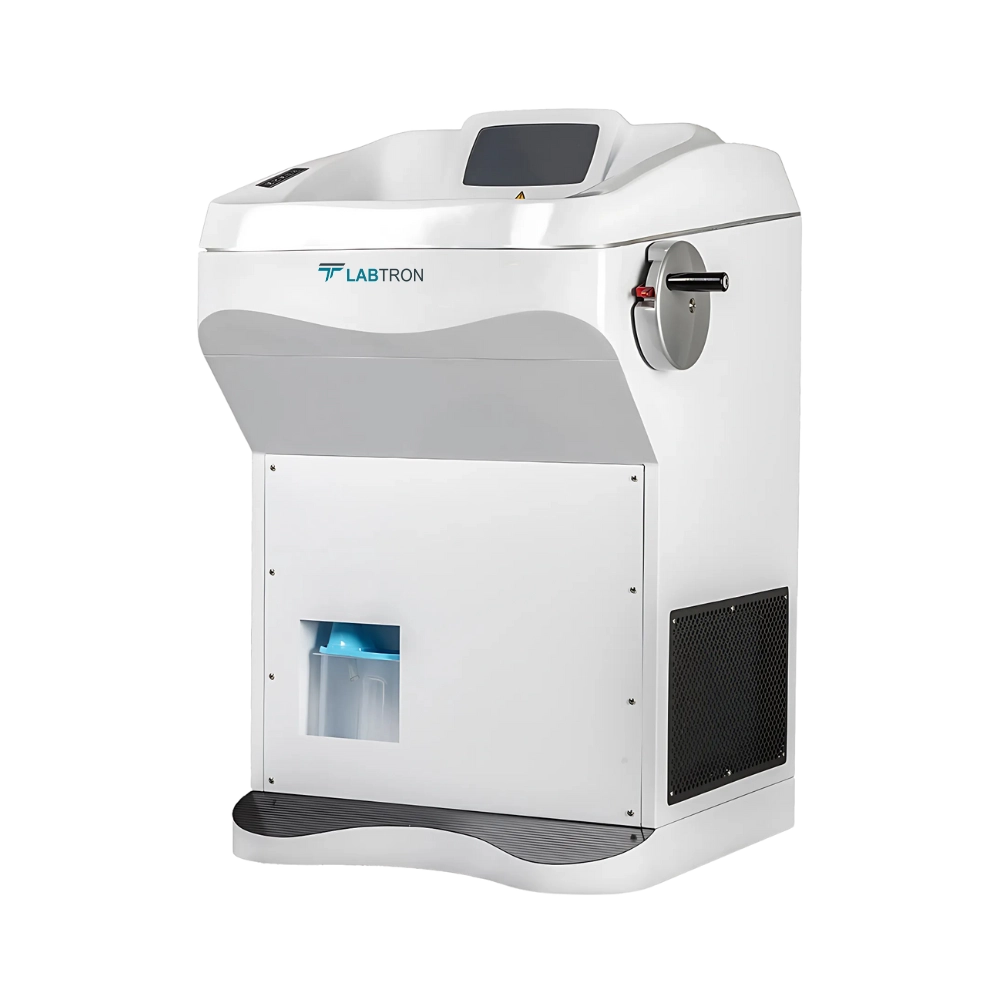

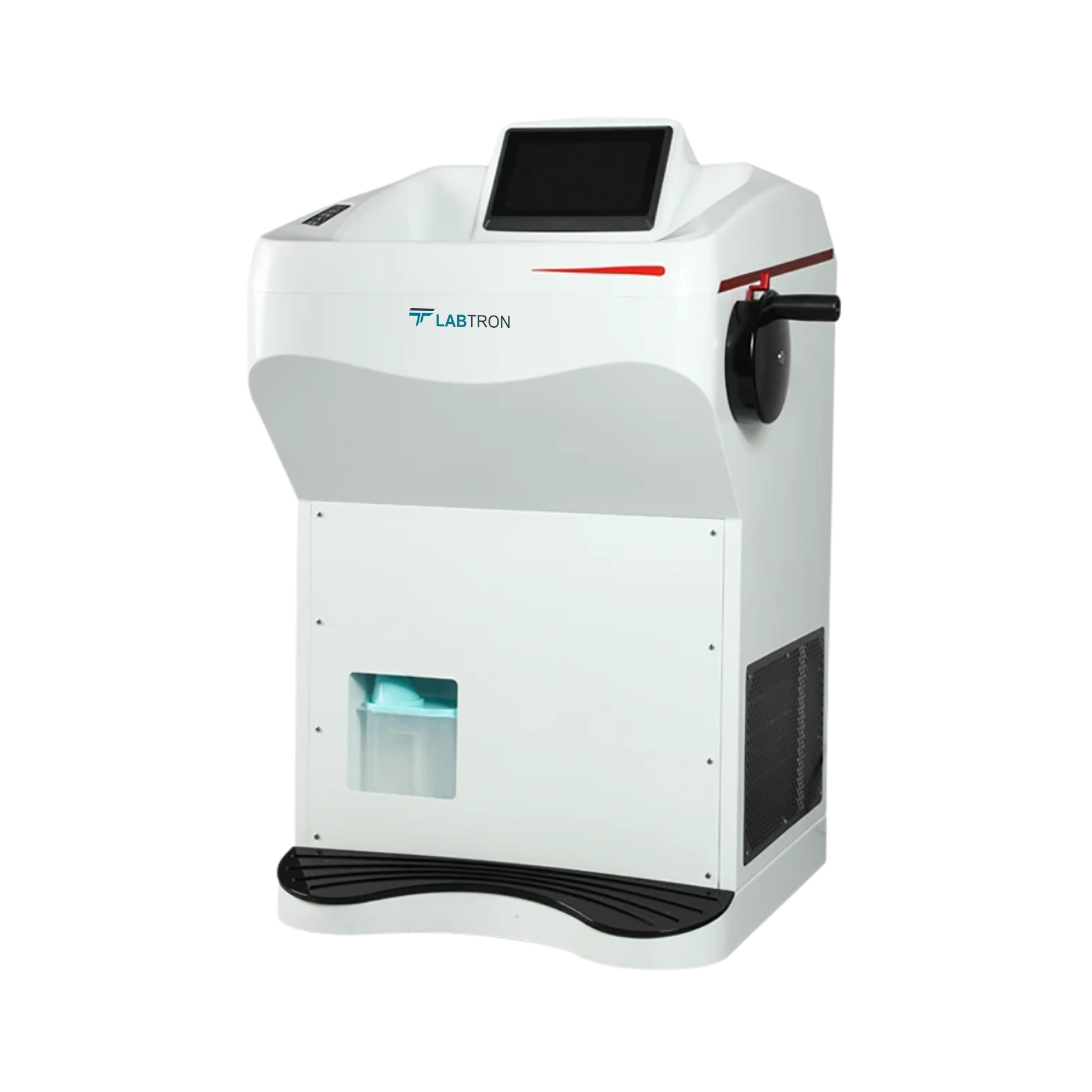

Cryostat Microtome

Section thickness setting range : 0 to 100 µm

Freezing chamber temperature range : -35°C to 40°C

Defrost : Auto/manual

Quick freezing shelf minimum temperature : -40°C

Section thickness setting range : 1 to 100 µm: 1 μm to 20 μm, in 1 μm increments; 20 μm to 50 μm, in 2 μm increments; 50 μm to 100 μm, in 5 μm increments

Trimming thickness range : 10 to 400 µm: 10 μm to 50 μm, in 5 μm increments; 50 μm to 100 μm, in 10 μm increments; 100 μm to 400 μm, in 50 μm increments

Freezing chamber temperature range : -10°C to -40°C

Freezing shelf minimum temperature : -45°C

Section thickness setting range : 1 to 100 µm: 0 to 2 µm increment by 0.5 µm; 2 to 10 µm increment by 1µm; 10 to 20 µm increment by 2 µm; 20 to 50 µm increment by 5 µm; 50 to 100 µm increment by 10 µm

Trimming thickness range : 10 to 400 µm; Adjustable

Freezing chamber temperature range : -5°C to -35°C (± 2°C)

Refrigerating table temperature range : -10°C to -55°C

Section Thickness Range : 0.5µm to 100µm adjustable 0.5µm to 5µm, in 0.5µm increment 5µm to 20µm, in 1µm increments 20µm to 50µm, in 2µm increments 50µm to 100µm, in 5µm increments

Trimming Thickness Range : 1µm to 600µm adjustable 0µm to 50µm, in 5µm increments 50µm to 100µm, in 10µm increments 100µm to 600µm, in 50µm increments

Tissue Retraction Function : 0µm to 100µm adjustable in 2µm increment

Freezing Chamber Temperature Range : 0 ℃ to -60 ℃
