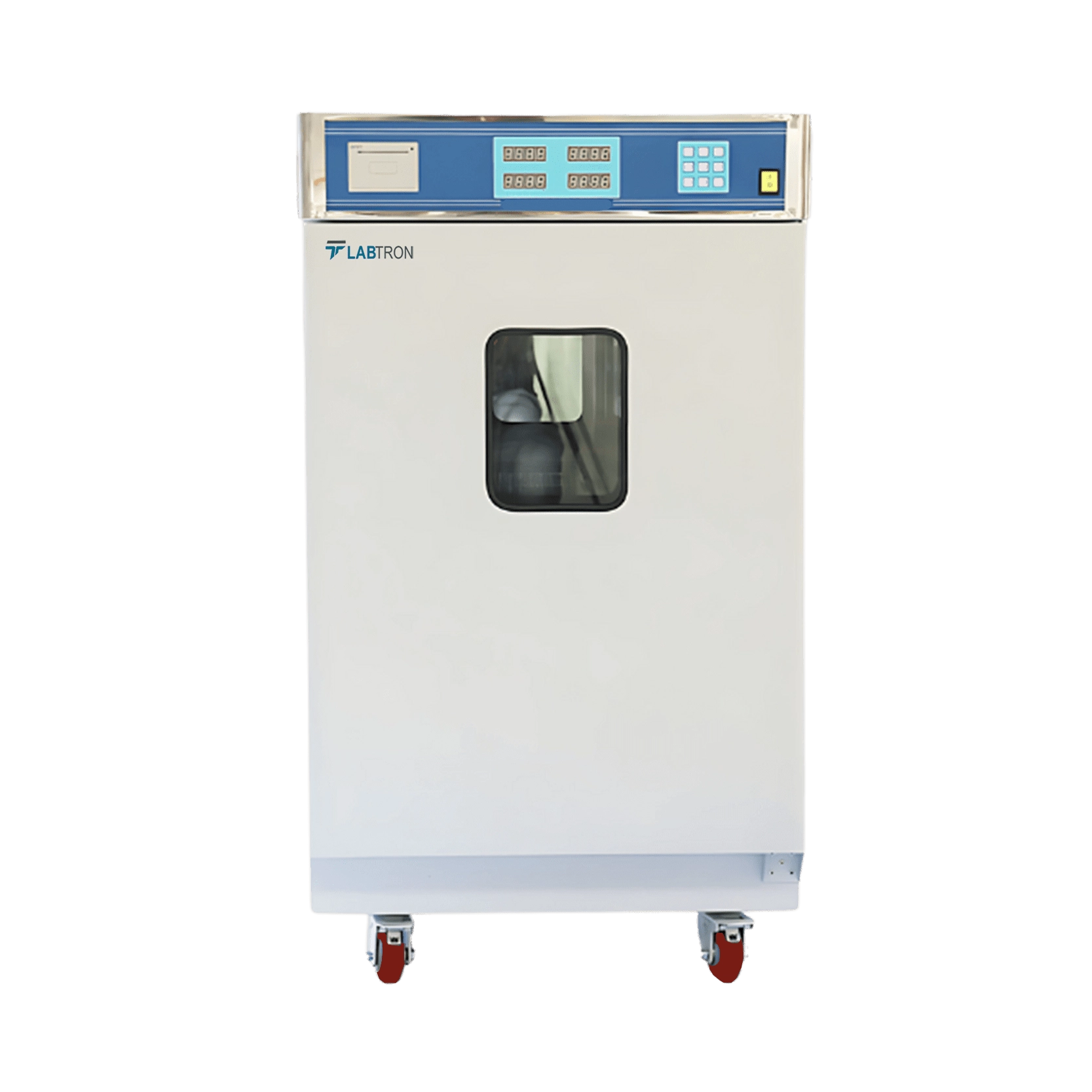

Ethylene Oxide Sterilizer LEOS-A10

Name: Ethylene Oxide Sterilizer LEOS-A10
Brand: Labtron
SKU: LEOS-A10
Rating: 4.8 (904 reviews)

Ethylene Oxide Sterilizer LEOS-A10 is a vertical, constant temperature heating box type sterilizer cabinet with manual door opening offers 80 L of capacity, 50 ℃ sterilization temperature, -60 kPa work pressure. Sterilization room material is made of 304 anti-corrosion type stainless steel, and outer box material is of carbon steel (thickness1.8 mm) baked plastic powder with electric heating method having automatic ventilation with 30 mins interval once. Built-in temperature; humidity; pressure sensor with automatic control system ensures stability, efficiency and quality. Digital LCD screen shows temperature, humidity, pressure, sterilization time, residual treatment time, the number of times. Built-in printer prints the whole process of sterilization information for recording and verification check. Explosion-proof electric heating device with over-voltage and over-temperature protection, residual air automatic processing system, reliable operations.

Request Quote

Type	Vertical; constant temperature heating box type
Door opening	Manual
Capacity	80 L
Sterilization temperature	50℃ ± 3℃
Work pressure	-60 kPa
Maximum pressure	-140 kPa
Humidity (sterilization)	45% to 75%
Sterilizing gas	Ethylene oxide; 1g/L
Sterilization time	0 to 99 hrs; adjustable
Vacuum speed	-60 kPa in 15 mins
Ventilation	Automatic
Ventilation cycle	3 times; 30 mins interval once
Control system	Automatic; one-button
Display	Digital LCD display
Printer	Yes
Humidity sensor	Yes; cavity humidity: >45% RH
Pressure sensor	Yes
Temperature sensor	Yes; cavity temperature: 50℃ ± 3℃ (within precise range)
Vacuum system	Oil free vacuum pump
Heating system	Electric; explosion-proof electric heating device
Alarm system	High/low temperature
Protection features	over-voltage, over-temperature protection, residual air automatic processing system
Sterilization room material	304 anti-corrosion type stainless steel
Outer box material	Carbon steel (thickness 1.8mm) baked plastic powder
Wear parts	Seal
Caster	Yes
Power	1.5 kW
Chamber dimensions (W×D×H)	320×600×450 mm
Dimensions (W×D×H)	620×780×1100 mm
Weight	176 kg

Vertical, constant temperature heating box type ethylene oxide sterilizer cabinet with manual door opening
304 stainless steel and carbon steel baked plastic powder for sterilization room and outer box respectively with electric heating method
Automatic ventilation, 3×cycle ventilation with 30 minutes interval once
Digital LCD display with automatic control system and printer
Built in sensor: humidity; pressure; temperature for precise and effective control
Oil-free vacuum pump; explosion-proof electric heating device for convenience
High and low temperature alarm system
Incorporated with casters for easy movements
Sealed wear parts
Simple and convenient operation with long service life

Ethylene Oxide Sterilizer used to sterilize catheters, resuscitation bags, anesthesia masks, most fiber-optic instruments, glassware, solution medium, assembled complex devices, Custom procedure packs, equipment with integrated electronics, multi-lumen tubing products, stents, wound care dressings etc. across the field of pharmaceutical industries, metal & glass industries, hospitals, laboratories and research institutes etc. This autoclave most suits for prosthetic implants (joint, hip and knee replacements) sterilization.

Download catalog for
Ethylene Oxide Sterilizer LEOS-A10 Catalog

Download manual for
Ethylene Oxide Sterilizer LEOS-A10 Manual

Available Range :

Ethylene Oxide Sterilizer LEOS-A10 : Vertical; constant temperature heating box type
