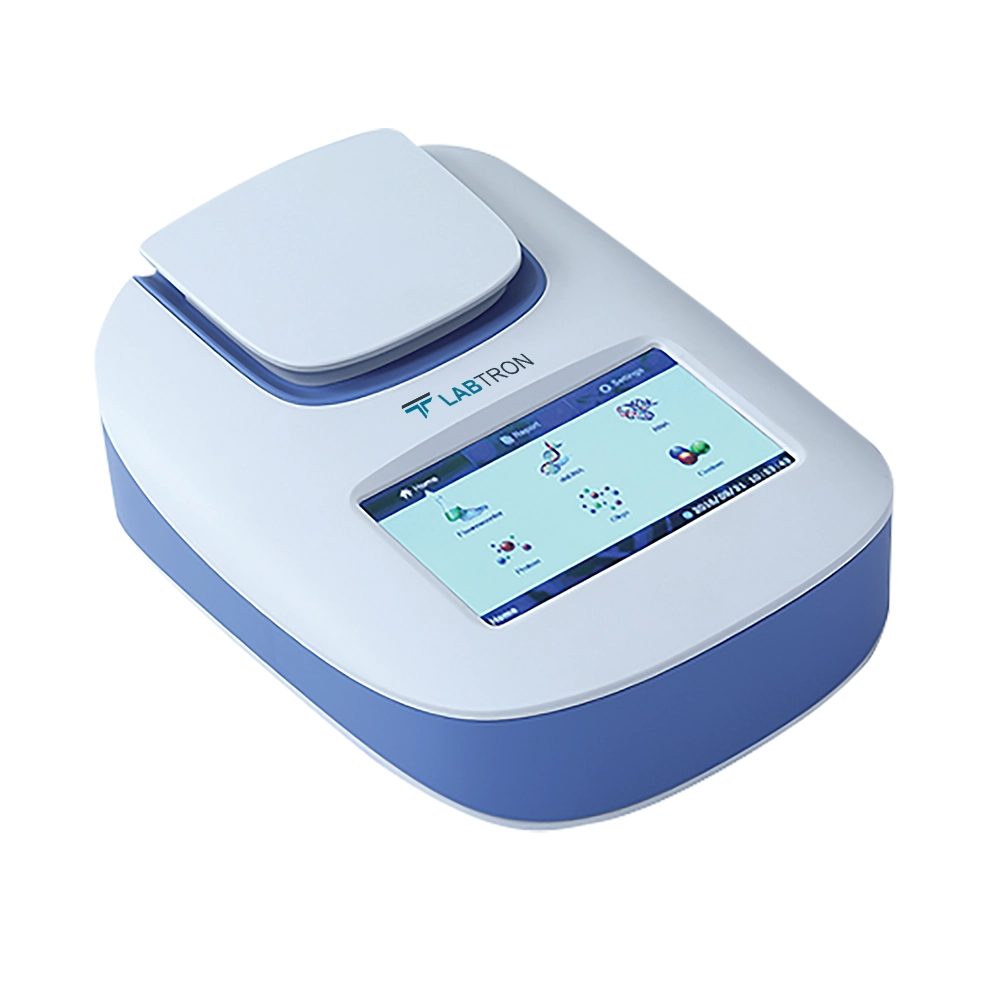

Fluorometer-LFFM-A12

Name: Fluorometer-LFFM-A12
Brand: Labtron
SKU: LFFM-A12
Rating: 5 (900 reviews)

Labtron Fluorometer LFFM-A12 is a compact, dual-channel benchtop fluorometer for fast, highly sensitive quantification of dsDNA, RNA, and protein. Blue and green LED light sources work with 460 ± 20 nm and 525 ± 20 nm excitation filters and 525 to 570 nm and 575 to 640 nm emission filters, so both channels can read a range of fluorescent dyes. It measures the fluorescence intensity of a reagent bound to the target molecule and converts it into sample concentration, with a dsDNA detection limit as low as 0.5 ng. A photodiode detector gives a dynamic range of five orders of magnitude with linearity of R² > 0.995. Results take about 3 seconds per reading, and repeatability and stability are both below 1.5%. At 194 × 155 × 72.5 mm and 0.4 kg, LFFM-A12 fits easily on crowded lab benches. It suits nucleic acid quantification before qPCR, cloning, transfection, and next-generation sequencing workflows.

Request Quote

Dynamic range	Five orders of magnitude
Linear dynamic range	R² >0.995
Processing time	3s (Once)
Light source	Blue LED Green LED
Excitation filters	460 ± 20 nm 525 ± 20 nm
Emission filters	525 to 570 nm (45 nm) 575 to 640 nm (65 nm)
Detector	Photodiode
Repeatability	<1.5 %
Stability	<1.5 %
Sensitivity	ds DNA: 0.5 ng/ml
Dimension	194 × 155 × 72.5 mm
Weight	0.4 kg

Designed with 4.3 inch touch screen, small and easy to use
Easy measurement within 3 sec for DNA, RNA, and protein
High sensitivity lowest DNA detection limit is 0.5 pg/ul
Linear dynamic range with five orders of magnitude
Equipped with two fluorescence channels for nucleic acid, protein quantitation in one detection
Offers opening system
Adopts PCR tube adapter
It can save at most 1,000 data and output data by USB port

Fluorometer is used for processing scarce and difficult samples, for low quantity of DNA, RNA, or protein after extraction, also, in expensive experiments: q PCR, PCR cloning, transfection, the next generation sequencing and etc. Applied for Nucleic acid quantification, Plant GUS reporter gene detection, Apoptosis detection.

Accessories no.	Name
1	Adapter for 0.5ml qPCR tube

Accessories no.	Name
1	Adapter for 0.2ml qPCR tube

Download catalog for
Fluorometer-LFFM-A12 Catalog

Models of Fluorometer

Labtron fluorometers are made for very sensitive quantification of protein, RNA, and dsDNA quantities. They feature an opening system with a PCR tube adaptor and a linear dynamic range spanning five orders of magnitude. We provide compact, user-friendly, touchscreen fluorometers. These offer two fluorescence channels with excitation filters for protein and nucleic acid quantification. They deliver quick readings in a matter of seconds, with a lower limit for detecting DNA. Our fluorometers have a USB connector for data output and data storage.
