Horizontal Laboratory Autoclave LHA-A10

Horizontal Laboratory Autoclave LHA-A10

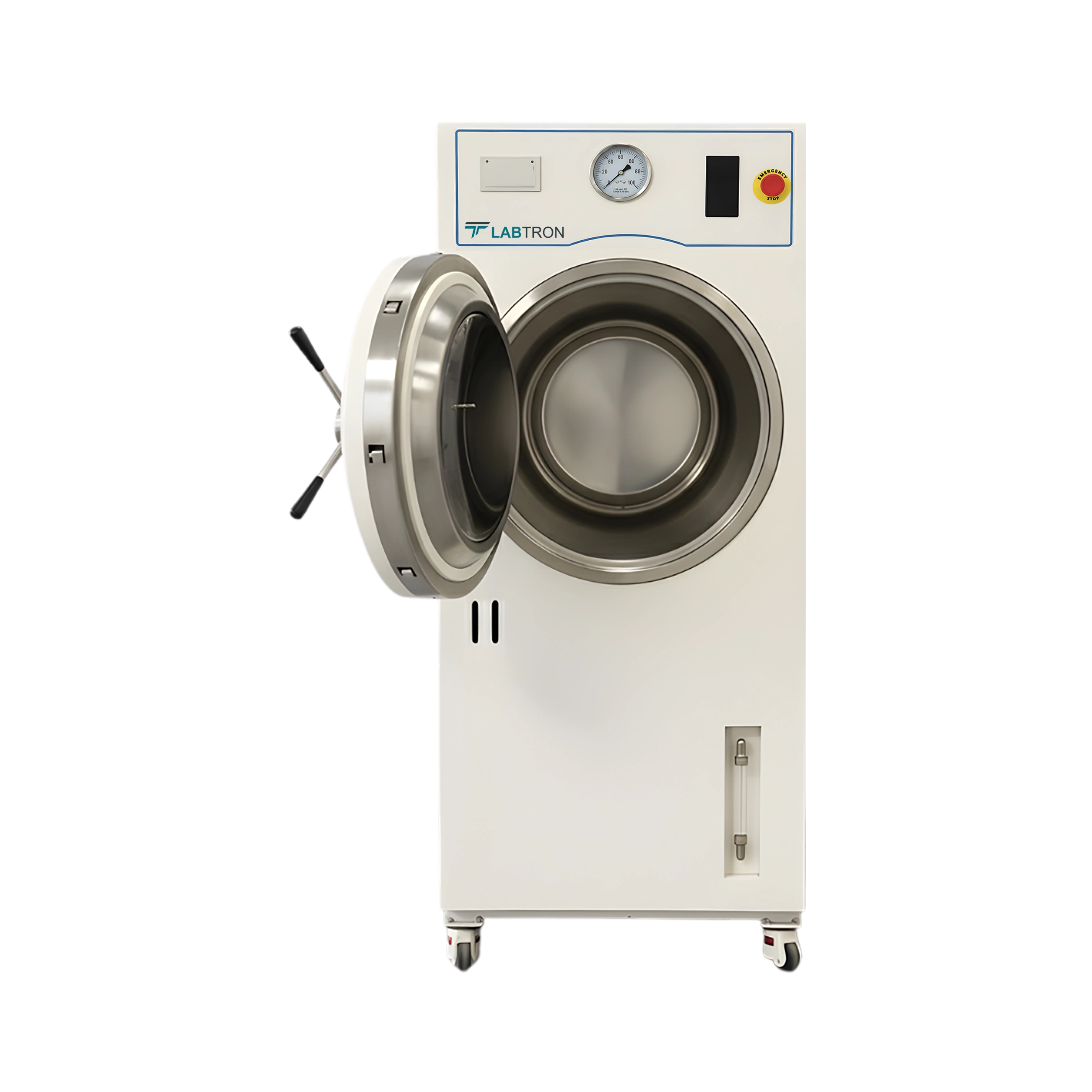

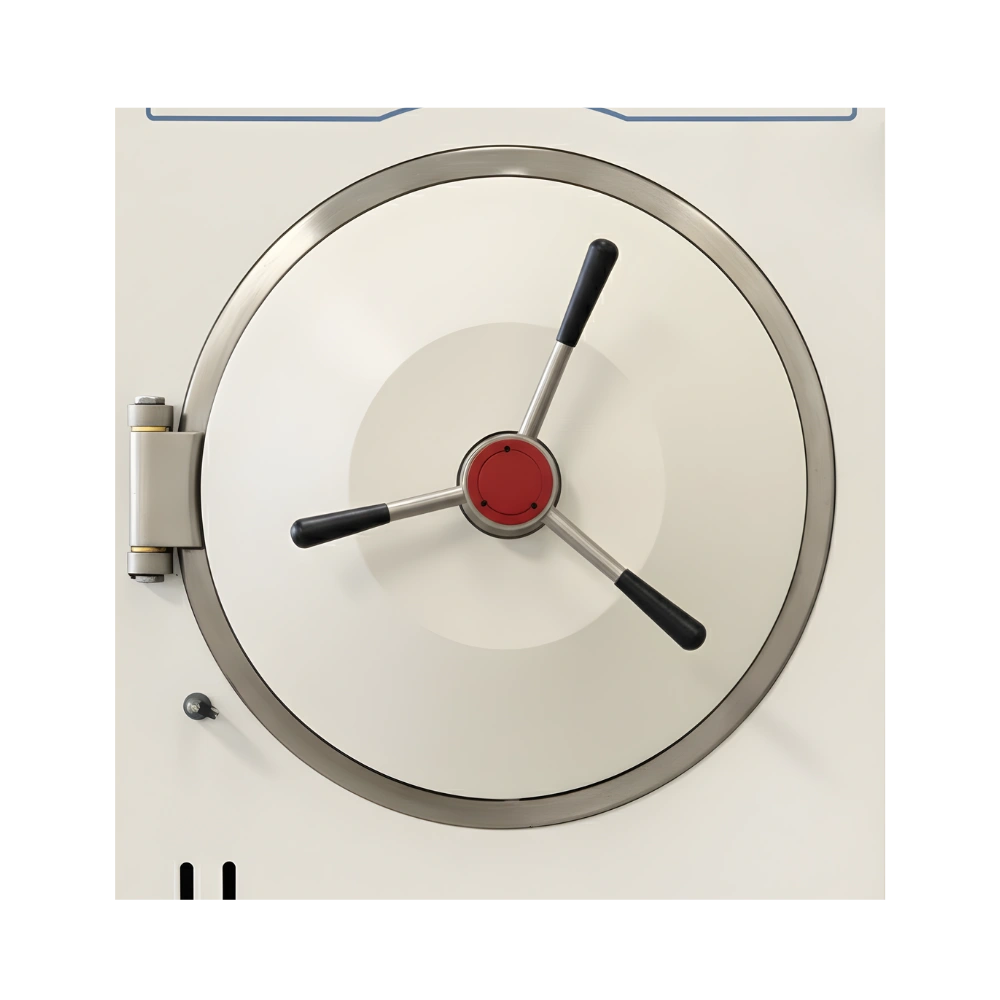

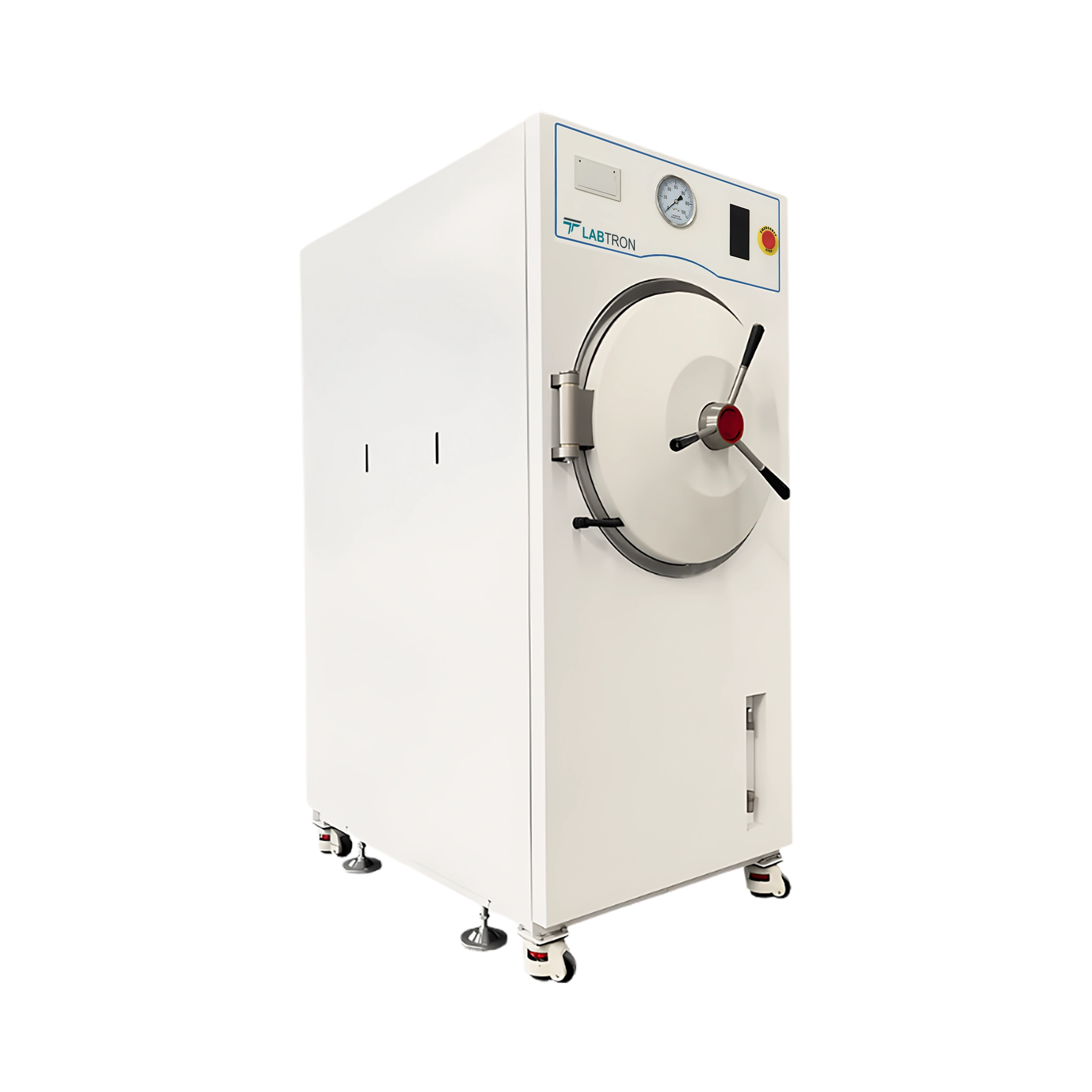

Horizontal Laboratory Autoclave LHA-A10 is a microcomputer-controlled device that uses saturated steam as a sterilization medium. It is constructed with durable and corrosion resistant SUS304 stainless steel material. Sterilization effect is dependable, making it one of the most efficient physical methods for sterilization. Equipped with overpressure relief valve to release pressure when it exceeds set limits.

Horizontal Laboratory Autoclave LHA-A10
Horizontal Laboratory Autoclave LHA-A10
Horizontal Laboratory Autoclave LHA-A10
Horizontal Laboratory Autoclave LHA-A10
Horizontal Laboratory Autoclave LHA-A10
Request Quote
Capacity 300 L
Sterilization Temperature 105 to 138 ℃
Maximum Temperature 138 ℃
Temperature uniformity ≤ ± 0.5 ℃
Sterilization Pressure 0.3 MPa
Working pressure 0.23 MPa
Pressure display accuracy 0.1 kPa
Timer Range 0 to 999 min
Drying time 0 to 999 min
Chamber Dimensions (Φ × L) 632 × 1000 mm
Power supply 380 V, 50 Hz, 20 Kw
Overall Dimensions (L × W × H) 1350 × 750 × 1750 mm
Net Weight 325 kg
  • Real-time sterilization process
  • Built-in high efficiency steam generator to generate constant pressure steam
  • Safe door lock system ensuring protection during sterilization
  • Automatic protection for overtemperature
  • Buzzer prompt alarm to alert about faults
  • Touch screen to display working parameters and alarm information
  • Provide users with the option to select from four customized sterilization procedures
  • DC control circuit with overvoltage and overload protection

Horizontal Autoclave is widely used in hospitals, pharmaceutical factories, food industries, scientific research institutes and other units to sterilize and dry clothing, dressings, metal instruments, culture medium, etc.

Models of Horizontal Autoclave

Labtron Horizontal Autoclave features side-loading capability with capacities ranging from 50 L to 2000 L. Their integrated steam generators provide a steady supply of sterilization vapors at temperatures from 105℃ to 150℃. Equipped with gauges for precise pressure monitoring and a display for checking pressure. The doors are safely interlocked, preventing accidental opening during operation. These Horizontal Autoclave efficiently sterilize medical and laboratory equipment by eliminating harmful microbes.

Horizontal Laboratory Autoclave LHA-B19

Horizontal Laboratory Autoclave LHA-B19

  • Capacity : 300L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134 °C
  • Temperature Range : 105 to 134 °C
Horizontal Laboratory Autoclave LHA-E11

Horizontal Laboratory Autoclave LHA-E11

  • Capacity : 200 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 MPa
  • Timer Range : 0 - 99 minutes
Horizontal Laboratory Autoclave LHA-C11

Horizontal Laboratory Autoclave LHA-C11

  • Capacity : 300 L
  • Chamber Volume : Φ600 × 1240 mm
  • Chamber Thickness : 3.0 mm
  • Temperature Range : 50 °C to 134 °C
Horizontal Laboratory Autoclave LHA-D29
Horizontal Laboratory Autoclave LHA-D29
  • Chamber Capacity : 360 Liters
  • Door Type : Double Door
  • Control System : PLC + HMI + Built-in Printer
  • Display : 7.0-inch Color Touchscreen
Horizontal Laboratory Autoclave LHA-B10
Horizontal Laboratory Autoclave LHA-B10
  • Capacity : 150 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 MPa
  • Timer Range : 0 - 60 minutes
Horizontal Laboratory Autoclave LHA-A11

Horizontal Laboratory Autoclave LHA-A11

  • Capacity : 500 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Timer Range : 0 - 99 minutes
Horizontal Laboratory Autoclave LHA-F11

Horizontal Laboratory Autoclave LHA-F11

  • Capacity : 360 L
  • Sterilization Temperature : 139 °C
  • Sterilization Pressure : 0.25MPa
  • Steam Pressure and the Consumption : 0.4 - 0.6 MPa / 20 kg
Horizontal Laboratory Autoclave LHA-D20

Horizontal Laboratory Autoclave LHA-D20

  • Capacity : 150 L
  • Operating temperature : 150 ℃
  • Maximum working temperature : 138 ℃
  • Maximum working pressure : 0.25 MPa

Horizontal Laboratory Autoclave LHA-A10 FAQ's
  • Labtron’s Horizontal Laboratory Autoclave LHA-A10 includes a built-in high-efficiency steam generator that requires a water supply to produce steam. Using distilled or deionized water is important to avoid mineral deposits and ensure a longer lifespan. Keeping an eye on the water level helps maintain consistent sterilization results. Regular cleaning and maintenance of the steam generator improve performance. Following proper water quality guidelines is necessary to prevent damage to the system.

  • Our Horizontal Laboratory Autoclave is ideal for high-volume sterilization, offering a large chamber for bulk loads. The horizontal design makes loading and unloading easier, reducing strain on users. It is well-suited for laboratories and industrial settings that need frequent sterilization. The built-in microcomputer control maintains accurate temperature and pressure. Compared to vertical autoclaves, it improves workflow efficiency and is more convenient to use.

  • The Horizontal Laboratory Autoclave is best suited for large laboratories because of its big size. It measures 1350 × 750 × 1750 mm and needs enough space for proper installation. Good ventilation is important to prevent overheating. If your lab has limited space, a vertical autoclave might be a better option. Always check the installation guidelines before setting it up. Its large chamber can handle bulk sterilization, making it ideal for labs that sterilize a high volume of items regularly.

  • Yes, Labtron’s Horizontal Laboratory Autoclave LHA-A10 is designed for continuous operation with multiple sterilization cycles. The durable construction ensures long-term reliability under frequent use. Its real-time sterilization process maintains efficiency across multiple loads. The built-in steam generator provides consistent performance. Proper maintenance ensures sustained high output without compromising sterilization quality.

  • With four customizable sterilization programs, the Horizontal Laboratory Autoclave LHA-A10 provides flexibility for various applications. Users can adjust temperature, pressure, and cycle duration to suit specific material requirements. The intuitive touch screen allows easy selection and monitoring of parameters. Its adaptable settings ensure effective sterilization across research and industrial fields. This customization maximizes efficiency while maintaining strict sterilization standards.
