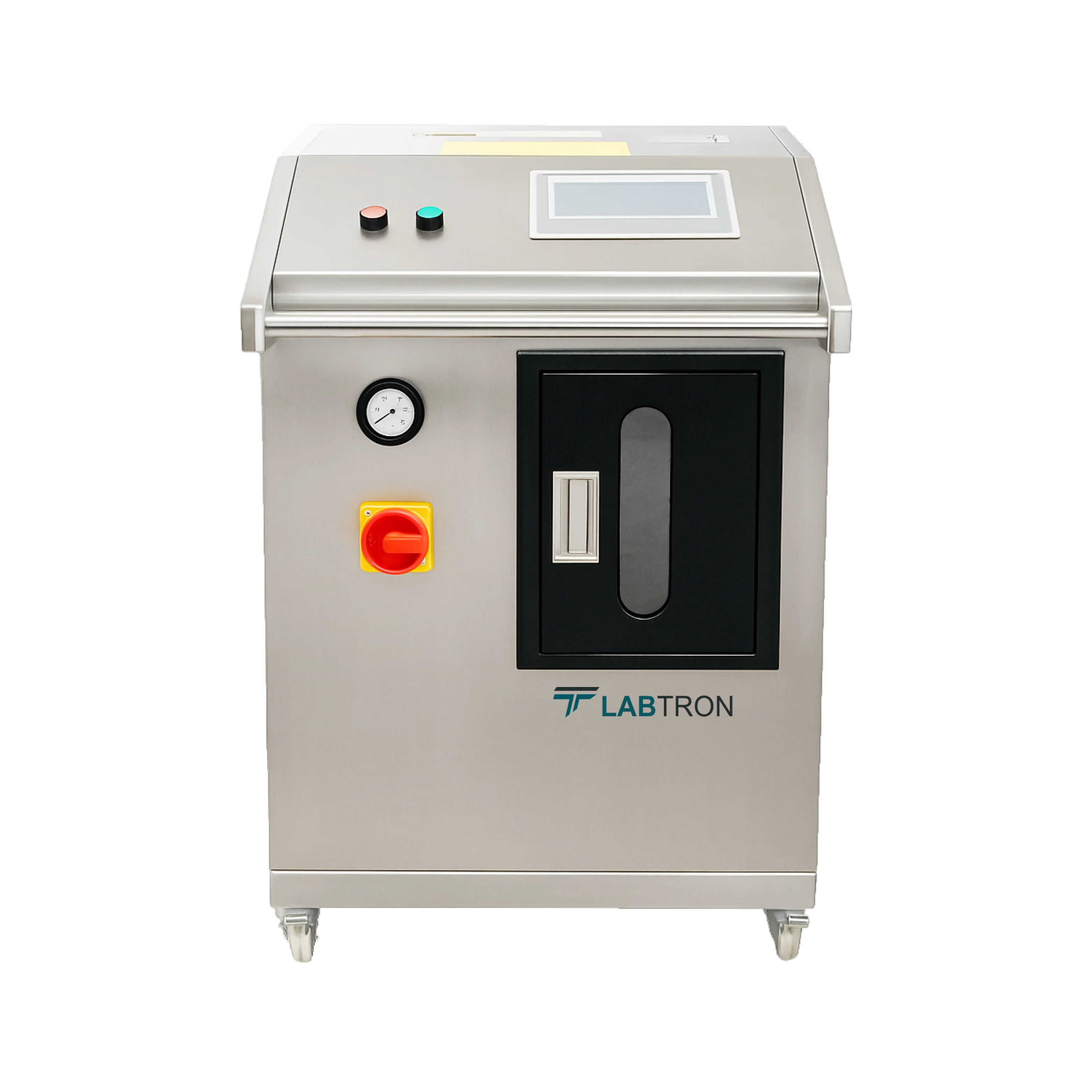

Hydrogen Peroxide Generator LVHG-A10 is specially designed device for sterilization in enclosed spaces such as isolation room, isolator, transfer passageway, blending machine, biosafety cabinets and in small clean room. It takes the advantages of the hydrogen peroxide has better sporicidal efficiency in gas state than the liquid state at room temperature and then generated free hydroxyl groups are this to attack cell components, including lipids, proteins and DNA organization, which achieves the requirement of complete sterilization.
Request Quote| Injection rate | 0 to 4 g/min |
| Air flow for Sterilization | ≤ 2.4 m3/min |
| Vaporization Temperature | ≤ 100 °C |
| Humidity for Dehumidification | ≤ 30 % RH |
| Sterilizing Space | ≤ 503 |
| Sterilizing Agent | 35 % of food grade hydrogen peroxide solution |
| Capacity of Sterilizing Agent | 500 g |
| Dehumidizer | Molecular sieve |
| Sterilizing Ratio | 106 for fat thermophilic spore |
| Working Mode | Continuous |
| Ground Wire | In effective connection with ground and ground impedance with no more than 4Ὼ |
| Environment Temperature | 20°C to 40°C |
| Relative Humidity | ≤ 70% RH |
| Compressed Air | ≥ 0.4 MPa |
| Compressed Air Flow | 36 L/min |
| Interface of Connected Air | Air pipeline at 8 |
| Noise | ≤ 70 dB (A) |
| Dimension | 560 × 720 × 1000 mm |
| Power Supply | AC 220 V ± 22 V, frequency 50 Hz ± 1 Hz |
| Power Requirement | 2500 W |
Hydrogen Peroxide Generator is applicable in hospitals, monitoring technologies and pharmaceutical companies, sterilize fungi, bacteria, viruses and spores.
Related Models :
| Model | Injection rate | Air flow for Sterilization | Vaporization Temperature | Humidity for Dehumidification | Sterilizing Space | Sterilizing Agent | Capacity of Sterilizing Agent | Dehumidizer | Sterilizing Ratio | Working Mode | Ground Wire | Environment Temperature | Relative Humidity | Compressed Air | Compressed Air Flow | Interface of Connected Air | Noise | Dimension | Power Supply | Power Requirement |
| LVHG-A10 | 0 to 4 g/min | ≤ 2.4 m3/min | ≤ 100 °C | ≤ 30 % RH | ≤ 503 | 35 % of food grade hydrogen peroxide solution | 500 g | Molecular sieve | 106 for fat thermophilic spore | Continuous | In effective connection with ground and ground impedance with no more than 4Ὼ | 20°C to 40°C | ≤ 70% RH | ≥ 0.4 MPa | 36 L/min | Air pipeline at 8 | ≤ 70 dB (A) | 560 × 720 × 1000 mm | AC 220 V ± 22 V, frequency 50 Hz ± 1 Hz | 2500 W |
| LVHG-B10 | - | ≥ 80 m3/h | - | - | - | - | - | - | - | - | - | - | 0 to 85% RH | - | - | - | - | - | - | - |
