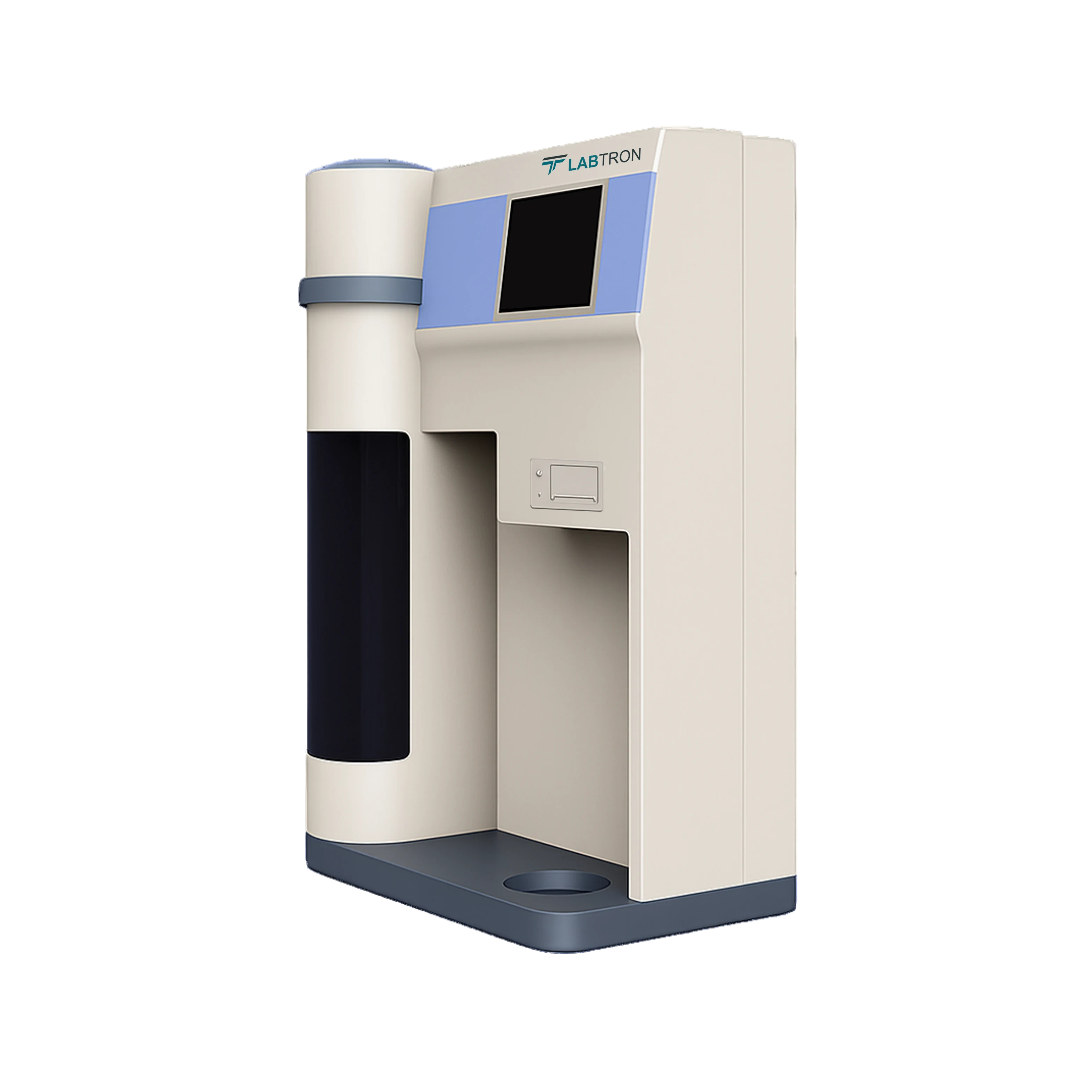

Fully-automatic Kjeldahl Analyzer LKA-C10

Name: Fully-automatic Kjeldahl Analyzer LKA-C10
Brand: Labtron
SKU: LKA-C10
Rating: 4.7 (827 reviews)

Fully-automatic Kjeldahl Analyzer LKA-C10 conducts titration and distillation simultaneously so as to neutralize the ammonia gas released which enhance the test efficiency and avoid the overflow of ammonia. It stand with a measuring range from 0.1 to 200 mgN which gives a maximum recovery of ≥ 99.5 %. The operating ambient temperature of the device starts from 10 °C to 35 °C. 8.0-inch LCD touch screen is used to set the distillation time, the amount of diluent, acid liquor and alkali. Diaphragm pump is used to add reagent so that the injure caused by high pressure pump can be neglected. Wireless network modules is installed for realizing remote data transmission to test data processing and report printing.

Request Quote

Measurement Range

0.1 to 200 mgN

Function

Automatic test module of conventional Nitrogen

Recovery Rate

≥ 99.5 %

Sample

Solid ≤ 5 g liquid ≤ 25 ml

Distillation Time

3 to 8 min / sample

Distillation Mode

Conventional distillation mode

Distillation Power

375 W to 1500 W

Condensate Water Consumption

≥ 1.5 L / min

Titr1ation precision

Repeatability

RSD ≤ 0.5 %

Stored record

5000

Automatic Function

Automatic sample dilution, addition of acid and alkali, distillation, reaction cup emptying and cleaning; auto correction, calculation and printing. Several conventional methods are equipped.

Result Determination

Determined by the terminal color

Safety Protection Function

1.Level alarm system
2.Flow sensor monitors the whole process with the flow velocity be adjusted freely.
3.Temperature measurement of distillate
4.Acid and alkali resistant polymer composite materials used for the cabinet

Optical sensor

RGB programmable optical sensing technology

Display mode

8.0-inch LCD touch screen

Titration mode

High-precision micro-metering pump

Way of distillation

Distillation and titration are carried out simultaneously

Steam flow

Adjustable

Operating Ambient Temperature

10 °C to 35 °C

Language

English

Power

AC 220 V AC ± 10 % 50 Hz

Rated Power

1500 W

External Dimension

360×460×680 mm

Communication Mode

(Enhancement Mode) Network Interface RS232 interface / USB interface

Weight

About 20 kg

Ammonia gas released is neutralized to avoid the overflow of ammonia gas and it enhance the test efficiency
For improving precision and reducing cleaning work, traditional syringe plunger pump is replaced by a high-precision micro-metering pump
Imported RGB color sensor technology eliminates the disturbance of ambient light and an accurate judgment
Digestion duct, makes it more convenient for users to operate
To neglect the injure caused by high pressure pump, diaphragm pump is used to add reagent
8.0-inch LCD touch screen to set the distillation time, the amount of diluent, acid liquor and alkali
Wireless network modules for remote data transmission, data processing and report printing
ARM processor with built-in Flash chip and equipped with a file system, enables user to create or delete folders or files and store 1000 routine data
All-stage warning system is installed which alters users for any abnormal working condition at any time
Real-time display of titration curve, informs the user about the working condition at any time
Built-in mini printer; to print experimental data according to their need

Fully-automatic Kjeldahl Analyzer is widely used in many applications such as determination of ammonia nitrogen, protein determination, nitrogen content, nitric nitrogen, phenols, volatile acids, cyanides, alcohol content and so on.

Download catalog for
Fully-automatic Kjeldahl Analyzer LKA-C10 Catalog

Available Range :

Kjeldahl Analyzer LKA-D10 : 0.1 mgN to 200 mgN (Nitrogen content 0.1% to 99%) Fully-automatic Kjeldahl Analyzer LKA-C10 : 0.1 to 200 mgN Fully Automatic Kjeldahl Analyzer LKA-C13 : 0.1 to 210mgN Fully-automatic Kjeldahl Analyzer LKA-C11 : 0.1 to 240 mg N

Models of Kjeldahl Analyzer

Labtron Kjeldahl Analyzer is specialized for quantifying 0.1mg to 250mg of nitrogen content, present in organic samples. They utilize sulphuric acid and catalysts for digestion of matter which releases ammonia gas. Their automated system simplifies decomposition, distillation and titration process. They feature precise temperature control and digital titration for accurate and reproducible measurement. Our Kjeldahl Analyzer is applicable for soil testing, pharmaceuticals and in nutritional labeling.
