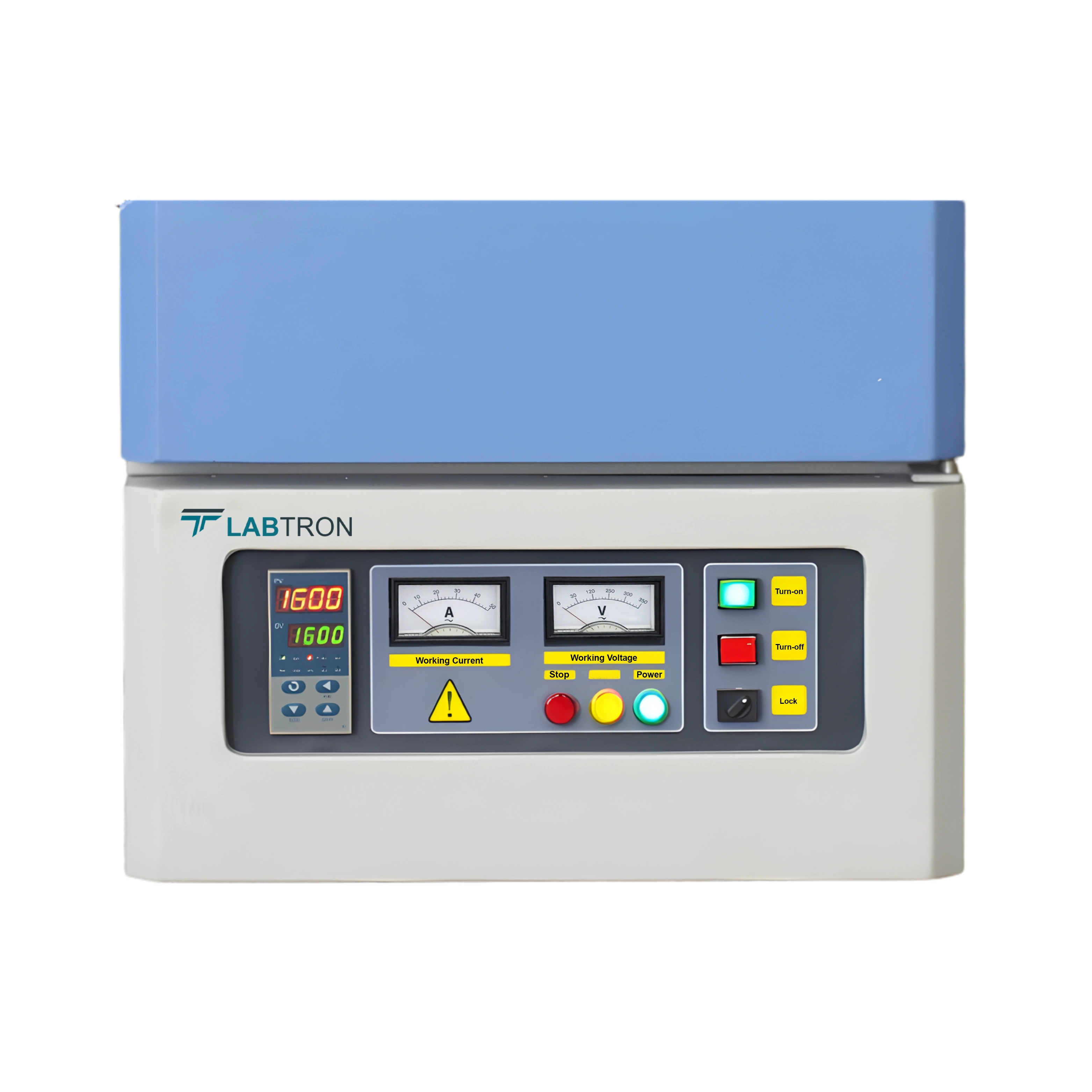

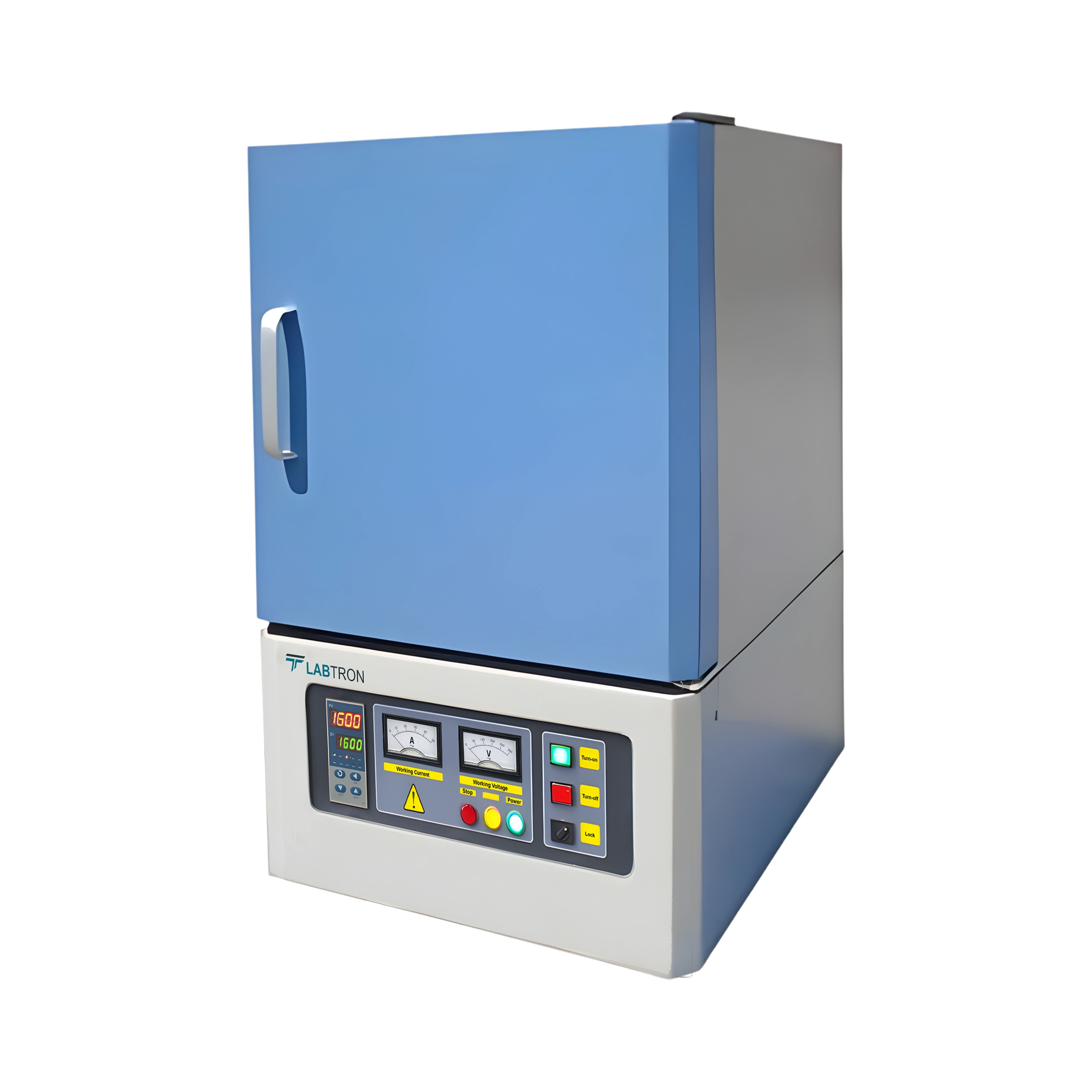

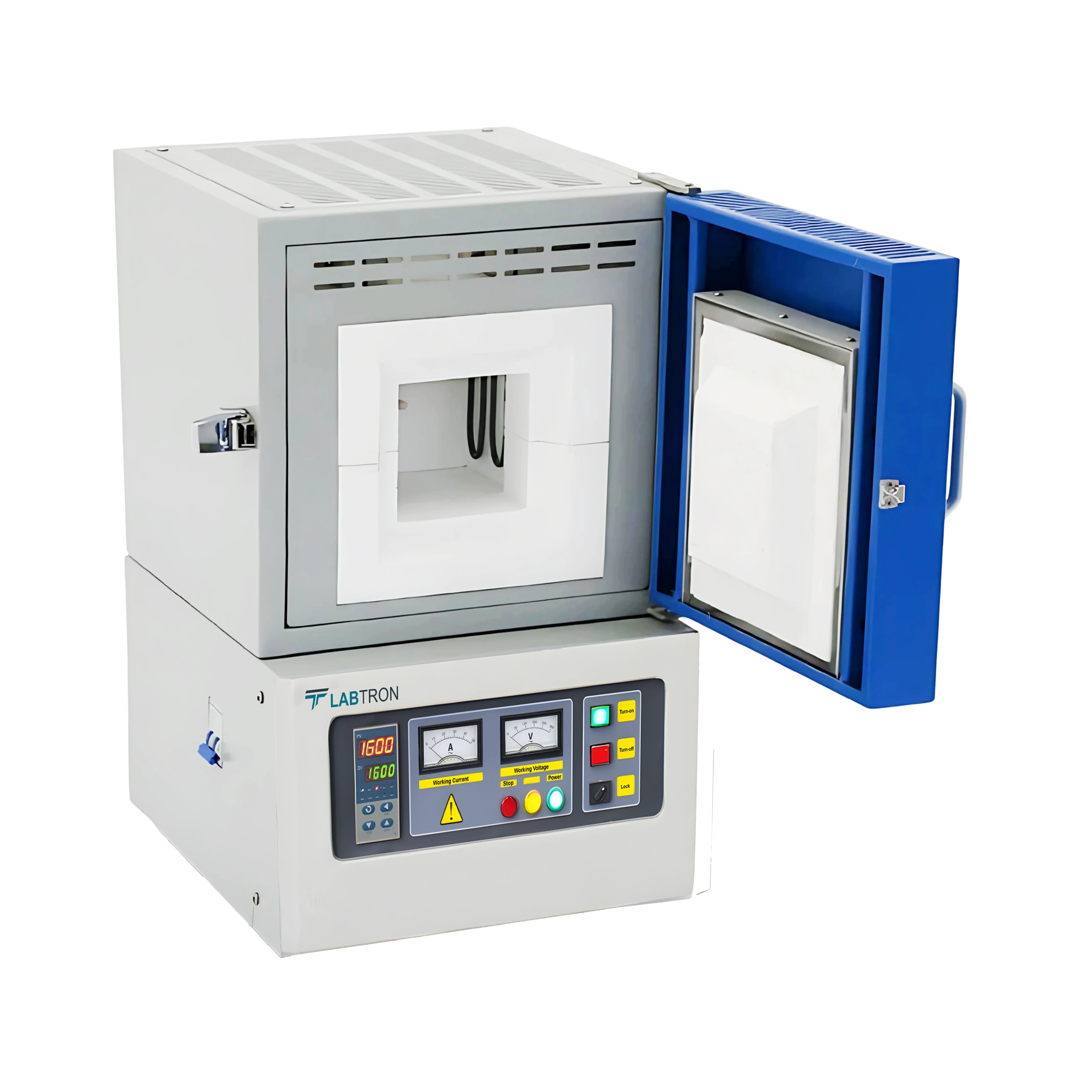

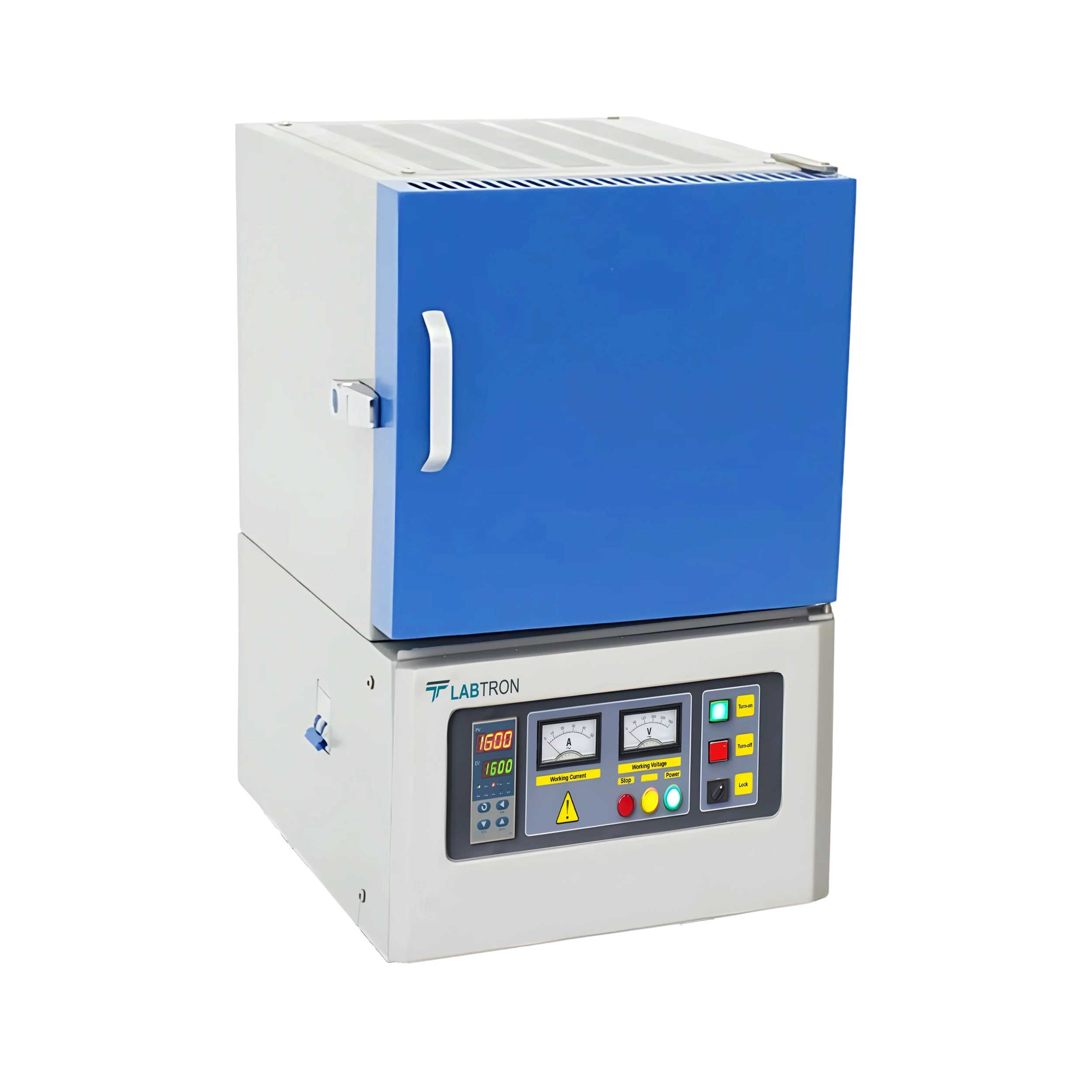

Muffle Furnace LMF-A10

Muffle Furnace LMF-A10

LMF-A10 model of Muffle Furnace is uniquely designed with optimum insulation properties and is ideal for ashing of food, plastic and other organic materials. With heating elements Fe-Cr-Al embedded into the brick walls, K type thermocouple and dual shell housing for low outer surface temperature, it is perfect for continuous working process at 950 °C.

Request Quote
Max. Temperature 950 °C
Capacity 3 L
Heating Program Direct
Thermal Rate 5°C - 25°C / min
Heating Element Fe-Cr-Al
Program Memories 1
Thermocouple Type K Type
Heating Element Placement Embedded into brick walls
Inner Insulation Material Insulating Fire Brick
Front Face Insulation Material Ceramic Fibre Board
Door Insulation Material Ceramic Fibre Board
Housing Material Steel Sheet
Housing Coating Epoxy powder coating
Chimney Standard
Element Heating Element Protection Quartz Tube
Lockable Door Handle Sidewards
Temperature Control Accuracy ± 1 °C
Measurement Accuracy ± 1 °C
Power 1500 W
Max. Current 7A
Inner Volume Temperature Homogenity ± 10 °C
Inner Chamber Dimension (W x H x D) 130 x 105 x 230 mm
Product Outer Dimension (W x H x D) 336 x 434 x 533 mm
Gross Dimension (W x H x D) 420 x 620 x 620 mm
Net Weight 25 kg
Gross weight 35 kg
  • PID controller
  • New mono block body design
  • 7 segment display
  • Optimum insulation properties
  • Direct/ 2 step heating program
  • Fe-Cr-Al heating element embedded in brick walls
  • K-type thermocouple
  • Dual shell housing for low outer surface temperature
  • Ceramic fibre board as front face and door insulation material
  • Audio warnings as the step changes and at the end of the program
  • Provision of automatic power cut-off to the heating elements and alert if the control unit/ control card is over heated
  • User friendly

Sr. no. Accessory
1 High Temperature Gloves
2 Tongs
3 Alumina Crucibles
4 Metal Crucibles
5 Alumina Combustion Boats
6 Ceramic Pipes
7 Extra Thermocouple

Over Temperature Limiter
Gas Supply Connection
Observation Hole
PC connection
110 V power supply

Inner module: changing inner module renews your furnace close to a brand new furnace
Door Insulation: with sheet metal holder vessel
PCB: Easy to replace. Pre-programmed
Display card: 7 segment, 3 digit
Chimney Fan: 4 x 40 x 10 / 5 V fan

Compare Models

Model Max. Temperature Capacity Heating Program Thermal Rate Heating Element Program Memories Thermocouple Type Heating Element Placement Inner Insulation Material Front Face Insulation Material Door Insulation Material Housing Material Housing Coating Chimney Element Heating Element Protection Lockable Door Handle Temperature Control Accuracy Measurement Accuracy Power Max. Current Inner Volume Temperature Homogenity Inner Chamber Dimension (W x H x D) Product Outer Dimension (W x H x D) Gross Dimension (W x H x D) Net Weight Gross weight
LMF-A10 950 °C 3 L Direct 5°C - 25°C / min Fe-Cr-Al 1 K Type Embedded into brick walls Insulating Fire Brick Ceramic Fibre Board Ceramic Fibre Board Steel Sheet Epoxy powder coating Standard Quartz Tube Sidewards ± 1 °C ± 1 °C 1500 W 7A ± 10 °C 130 x 105 x 230 mm 336 x 434 x 533 mm 420 x 620 x 620 mm 25 kg 35 kg
LMF-A11 950 °C 3 L Two step 5 °C - 25 °C / min Fe-Cr-Al 2 K Type Embedded into brick walls Insulating Fire Brick Ceramic Fibre Board Ceramic Fibre Board Steel Sheet Epoxy powder coating Standard Quartz Tube Sidewards ± 1 °C ± 1 °C 1501 W 7A ± 10 °C 130 x 105 x 230 mm 336 x 434 x 533 mm 420 x 620 x 620 mm 25 kg 35 kg
