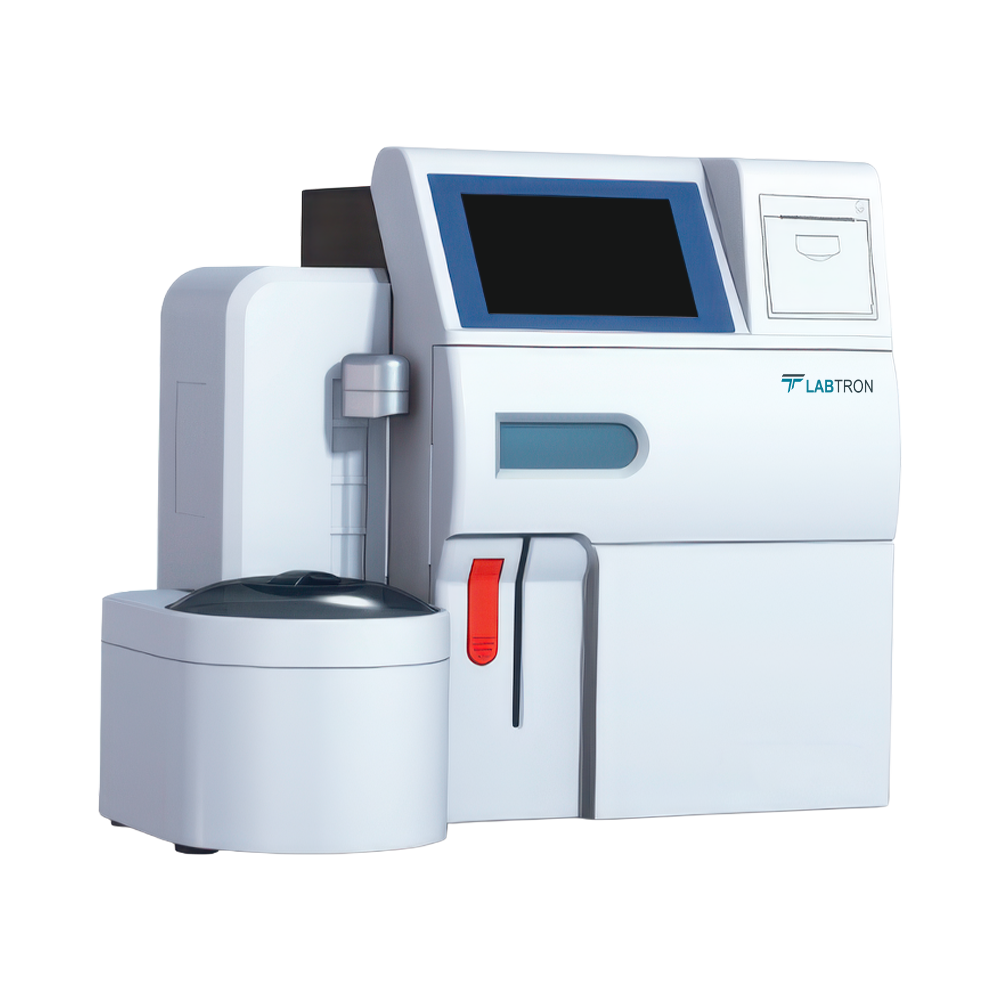

Semi-Automated Electrolyte Analyzer LSAE-A10

Name: Semi-Automated Electrolyte Analyzer LSAE-A10
Brand: Labtron
SKU: LSAE-A10
Rating: 4.9 (625 reviews)

Semi-Automated Electrolyte Analyzer LSAE-A10 is a benchtop, semi-automated electrolyte analyzer designed to determine the concentrations of various electrolytes in a patient's blood or other physiological fluids. It employs the ion-selective electrode method for the measurement of electrolytes with high precision. It measures sample volume up to 150 µl in less than 5 seconds. Equipped with LCD display to view measured parameter. It can store up to 512 tests, print testing reports, and store 31 tests for each of the two QC levels

Request Quote

Sample

Whole blood, serum, plasma, diluted urine

Sample volume

150 µL

Working temperature

5 to 40℃

Measuring time

less than 50s

Relative humidity

less than 85%

Measuring range

K+	0.50-10.00 mmol/L
Na+	80.0-200.0 mmol/L
Cl-	50.0-200.0 mmol/L
Ca2+	0.10-5．0 mmol/L
pH	4.00-9.00
Li+	0.3-3.00mmo/L

Precision (CV%)

K+	< 1 %
Na+	< 1 %
Cl-	< 1 %
Ca2+	< 2 %
pH	<1%
Li+	< 2 %

Resolution

K+	0.01 mmol/L
Na+	0.1 mmol/L
Cl-	0.1 mmol/L
Ca2+	0.01 mmol/L
pH	0.01
Li+	0.01

Calibration

One-point or two-point automatic calibration

Display

LCD display

Printer

Built-in thermal printer

Interface

RS232

Power supply

220 V ± 22 V,50 Hz ± 1 Hz

Advanced ion-selective electrodes with a long-life span
Transparent electrode cavity for easy observation
Uptakes sample volume up to 150 µL
LCD display to view measured parameter
Solenoid valve to quickly rinse the electrode pipe
Built-in thermal printer to print the data obtained
Consumption of less reagent reduces testing cost
Automatic one-point or two-point calibration to control data processing quality
More precise sample measurement and double parameter correction
Easy-to-use statistical function and unique quality control test

Semi-automated electrolyte analyzers are widely used in hospitals and clinical laboratories to measure levels of K+ / Na+ / Cl- / Ca++ / pH / Li+ in human body

Download catalog for
Semi-Automated Electrolyte Analyzer LSAE-A10 Catalog

Download manual for
Semi-Automated Electrolyte Analyzer LSAE-A10 Manual

Available Range :

Semi-Automated Electrolyte Analyzer LSAE-A10 : Whole blood, serum, plasma, diluted urine

Semi-Automated Electrolyte Analyzer LSAE-A11

Sample Type : Plasma, Serum, Whole blood, Urine, CSF
Test Parameters : K⁺, Na⁺, Cl ⁻, TCO₂
Sample Volume : 65 to 150µL
Test Range : K⁺: 0.50 to 15.00 mmol/L Na⁺: 20.0 to 200.0 mmol/L Cl ⁻: 20.0 to 200.0 mmol/L TCO₂: 6.0 to 50.0 mmol/L

Compare Remove

Semi-Automated Electrolyte Analyzer LSAE-A14

Sample Type : Plasma, Serum, Whole blood, Urine, CSF
Test Parameters : K⁺, Na⁺, Cl ⁻
Sample Volume : 65 to 150µL
Test Range : K⁺: 00.50 to 15.00 mmol/L Na⁺: 20.0 to 200.0 mmol/L Cl ⁻: 20.0 to 200.0 mmol/L

Compare Remove

Semi-Automated Electrolyte Analyzer LSAE-A16

Sample Type : Plasma, Serum, Whole blood, Urine, CSF
Test Parameters : K⁺, Na⁺, Cl ⁻, Ca²⁺, pH
Sample Volume : 65 to 150µL
Test Range : K⁺: 00.50 to 15.00 mmol/L Na⁺: 20.0 to 200.0 mmol/L Cl ⁻: 20.0 to 200.0 mmol/L Ca²⁺: 0.10 to 5.00 mmol/L pH: 6.00 to 9.00

Compare Remove

Semi-Automated Electrolyte Analyzer LSAE-A12

Sample Type : Plasma, Serum, Whole blood, Urine, CSF
Test Parameters : K⁺, Na⁺, Cl ⁻, Ca²⁺, pH, TCO₂
Sample Volume : 65 to 150µL
Test Range : K⁺: 0.50 to 15.00 mmol/L Na⁺: 20.0 to 200.0 mmol/L Cl ⁻: 20.0 to 200.0 mmol/L Ca²⁺: 0.10 to 5.00mmol/L pH: 6.0 to 9.0 TCO₂: 6.0 to 50.0 mmol/L

Compare Remove

Semi-Automated Electrolyte Analyzer LSAE-A13

Sample Type : Plasma, Serum, Whole blood, Urine, CSF
Test Parameters : K⁺, Na⁺, Cl ⁻, Ca²⁺, Li⁺, pH, TCO₂
Sample Volume : 65 to 150µL
Test Range : K⁺: 00.50 to 15.00 mmol/L Na⁺: 20.0 to 200.0 mmol/L Cl ⁻: 20.0 to 200.0 mmol/L Ca²⁺: 0.10 to 5.00mmol/L Li⁺: 0.00 to 3.00mmol/L pH: 6.00 to 9.00 TCO₂: 6.0 to 50.0 mmol/L

Compare Remove

Semi-Automated Electrolyte Analyzer LSAE-A18

Sample Type : Plasma, Serum, Whole blood, Urine, CSF
Test Parameters : K⁺, Na⁺, Cl ⁻, Li⁺, TCO₂
Sample Volume : 65 to 150µL
Test Range : K⁺: 00.50 to 15.00 mmol/L Na⁺: 20.0 to 200.0 mmol/L Cl ⁻: 20.0 to 200.0 mmol/L Li⁺: 0.00 to 3.00mmol/L TCO₂: 6.0 to 50.0 mmol/L

Compare Remove

Semi-Automated Electrolyte Analyzer LSAE-A17

Sample Type : Plasma, Serum, Whole blood, Urine, CSF
Test Parameters : K⁺, Na⁺, Cl ⁻, Ca²⁺, Li⁺, pH
Sample Volume : 65 to 150µL
Test Range : K⁺: 00.50 to 15.00 mmol/L Na⁺: 20.0 to 200.0 mmol/L Cl ⁻: 20.0 to 200.0 mmol/L Ca²⁺: 0.10 to 5.00mmol/L Li⁺: 0.00 to 3.00mmol/L pH: 6.00 to 9.00

Compare Remove

Semi-Automated Electrolyte Analyzer LSAE-A15

Sample Type : Plasma, Serum, Whole blood, Urine, CSF
Test Parameters : K⁺, Na⁺, Cl ⁻, Li⁺
Sample Volume : 65 to 150µL
Test Range : K⁺: 00.50 to 15.00 mmol/L Na⁺: 20.0 to 200.0 mmol/L Cl ⁻: 20.0 to 200.0 mmol/L Li⁺: 0.00 to 3.00 mmol/L

Compare Remove
