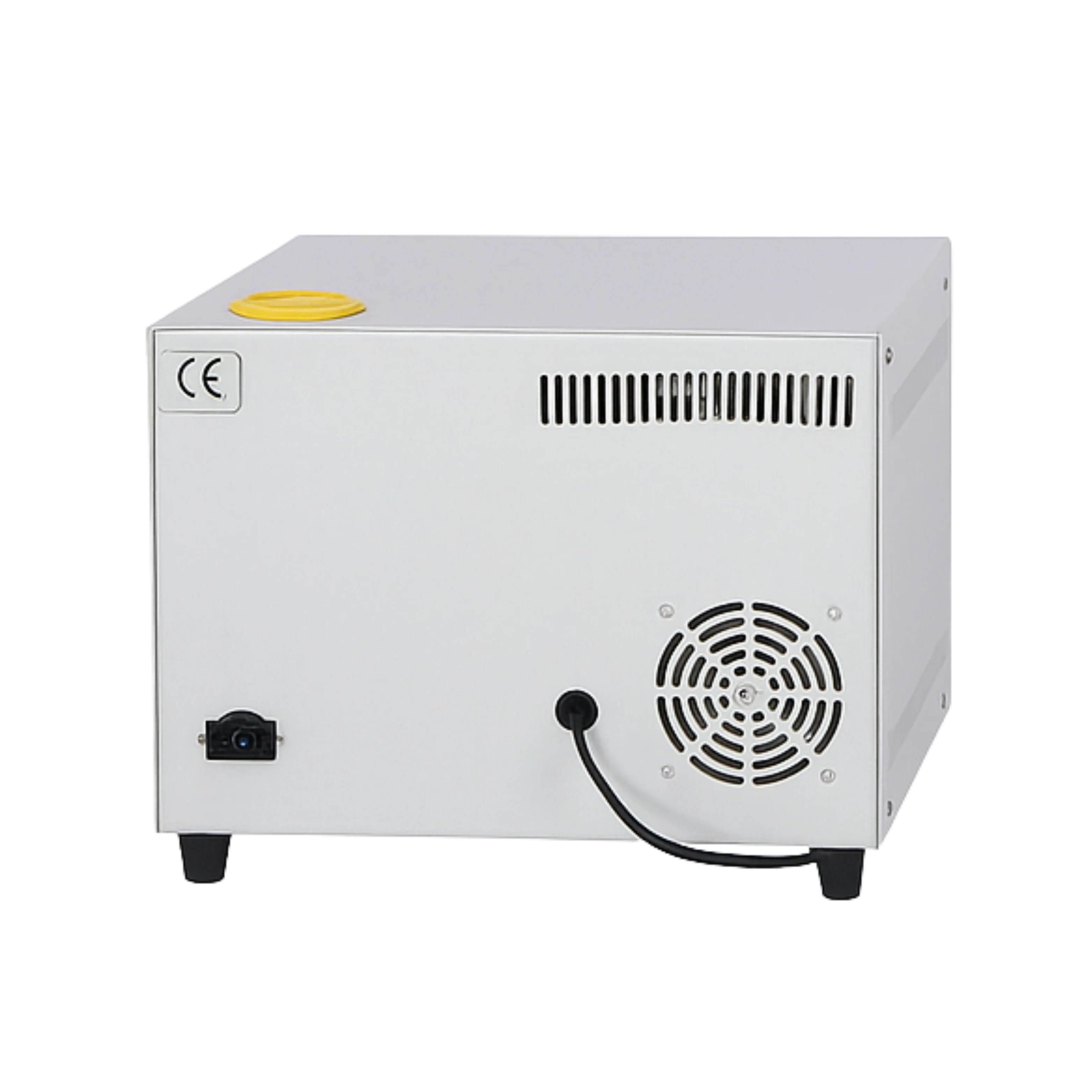

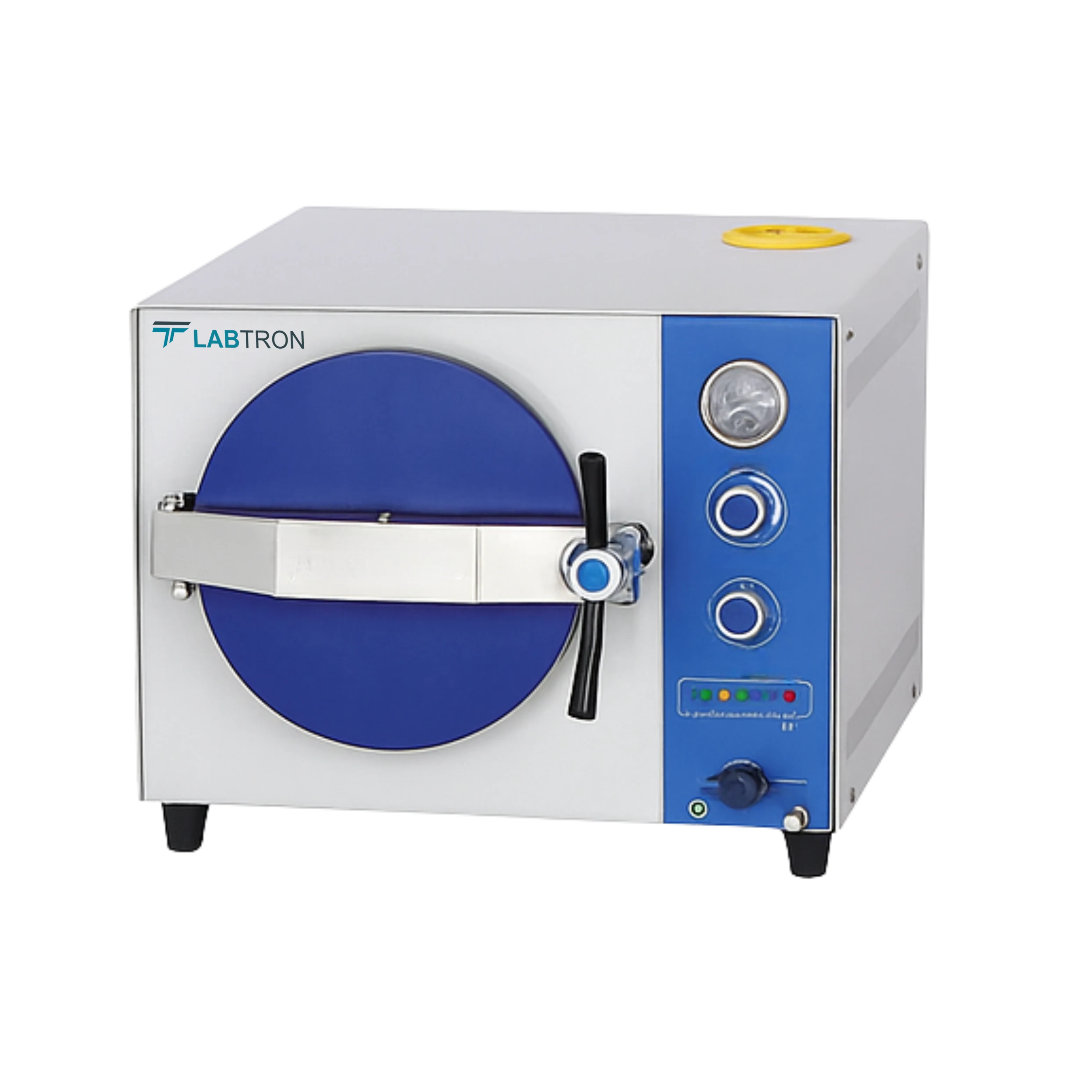

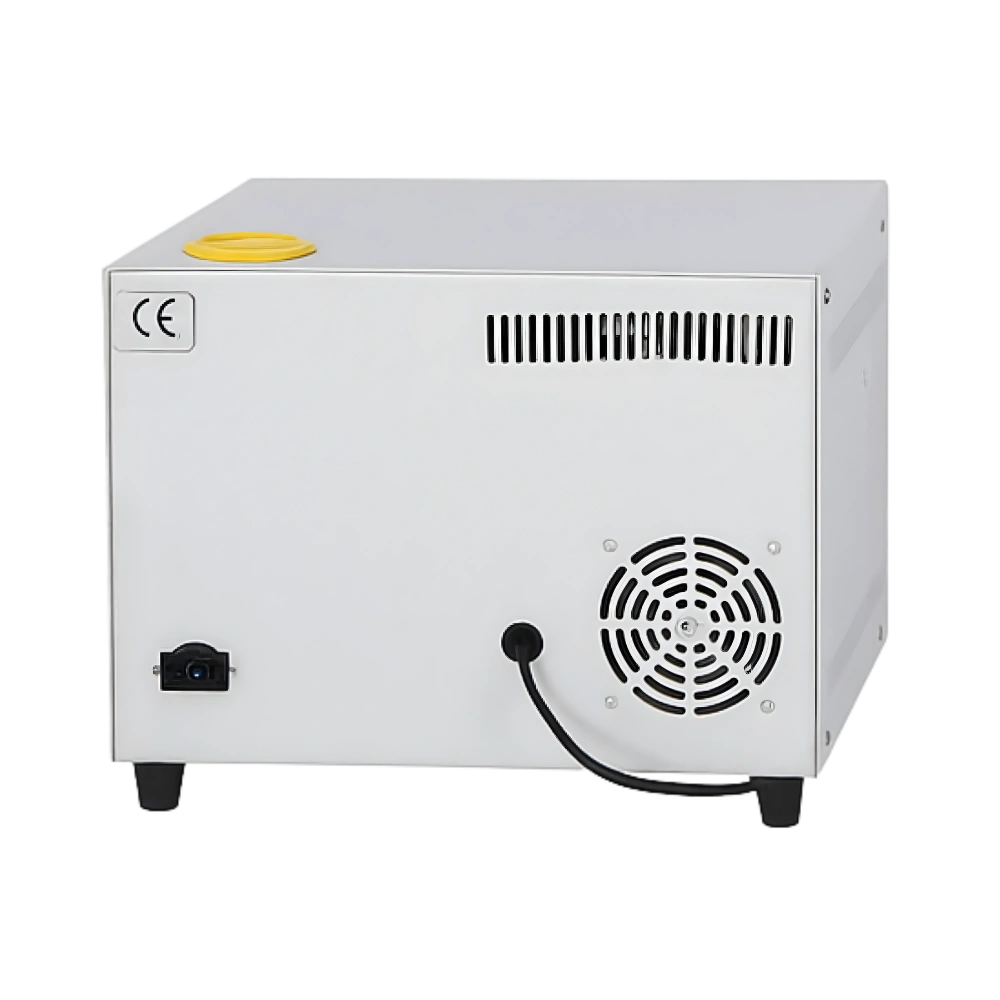

Tabletop Autoclave LTTA-C10

Tabletop Autoclave LTTA-C10

Tabletop Autoclave LTTA-C10 is a compact automatic unit, that provides a chamber capacity of 20 liters. It offers a sterilization temperature range of 105 to 134°C, for efficient sterilization. Features steam-water inner circulation system with no steam discharge. Enhanced with automatic over-temperature and pressure protection for safety use.

Request Quote
Capacity 20 L
Sterilization Temperature 134°C
Temperature Range 105 to 134°C
Pressure 0.22 Mpa

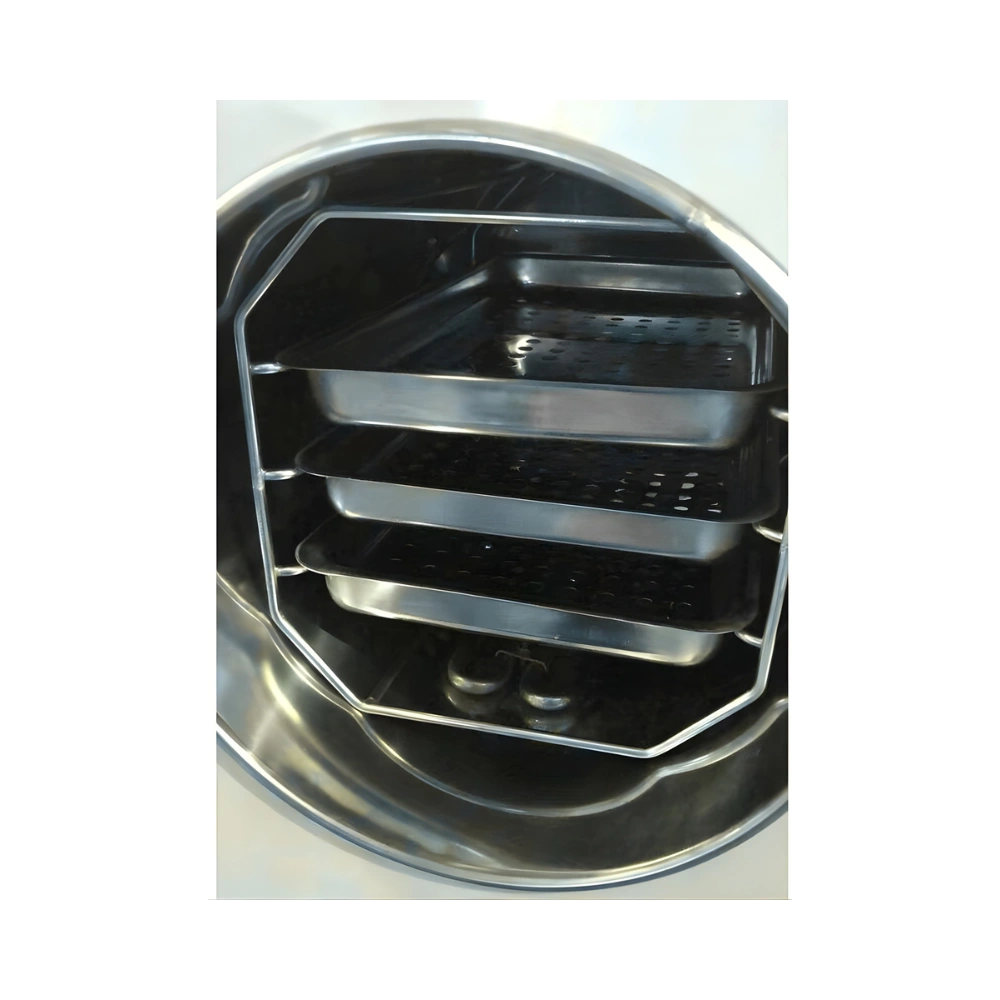

Sterilizing Baskets 3
Timer Range 0 to 60 min
Heat Average ≤ ±1°C
Sterilization Time 4 to 6 min
Power Supply 1.5 kW/AC 220 V 50 Hz (AC 110 V 60 Hz)
Sterilizing baskets Dimension (L×W×H) 340×200×30 mm
Chamber Dimension (Φ×D) 250×420 mm
Packaging Dimension (L×W×H) 700×580×500 mm
Net Weight 40 kg
Gross Weight 44 kg
  • Structured with stainless steel
  • Automatic exhaustion of cool air
  • Automatic shutdown with a reminder beep after sterilization
  • Safe protection for water lacking
  • Knob control with indicator lights
  • Ensures a clean and dry environment for sterilization
  • Allow user to preset sterilizing temperature and time
  • High-efficient and durable

Tabletop Autoclaves are used extensively to sterilize surgical equipment, laboratory instruments, pharmaceutical items, and other materials.

Compare Models

Model Capacity Sterilization Temperature Temperature Range Pressure Sterilizing Baskets Timer Range Heat Average Sterilization Time Power Supply Sterilizing baskets Dimension (L×W×H) Chamber Dimension (Φ×D) Packaging Dimension (L×W×H) Net Weight Gross Weight
LTTA-A10 20 L 134 °C 105 to 134 °C 0.22 Mpa 3 0 to 60 minutes ≤ ± 1 ℃ - 1.5 kW / AC 220 V 50 Hz - 250 × 420 mm - 40 kg 44 kg
LTTA-A11 24 L 134 °C 105 to 134 °C 0.22 Mpa 3 0 to 60 minutes ≤ ± 1 ℃ - 1.5 kW / AC 220 V 50 Hz - 250 × 520 mm - 45 kg 50 kg
LTTA-A12 35 L 134 °C 105 to 134 °C 0.22 Mpa 4 0 to 60 minutes ≤ ± 1 ℃ - 2.7 kW / AC 220V 50 Hz - 300 × 500 mm - 73 kg 90 kg
LTTA-A13 50 L 134 °C 105 to 134 °C 0.22 Mpa 4 0 to 60 minutes ≤ ± 1 ℃ - 2.7 kW / AC 220 V 50 Hz - 340 × 550 mm - 86 kg 105 kg
LTTA-A20 24 L 134 °C 105 to 134 °C 0.22 Mpa 3 0 to 60 minutes ≤ ± 1 ℃ - AC 220V 50 Hz / 1.5 Kw - 270 × 410 mm - 18 kg 20 kg
LTTA-B12 35 L 134 °C 105 to 134 °C 0.22 Mpa 4 0 to 99 minutes - 4 to 6 mins 2.7 kW / AC 220 V 50 Hz - 300 × 500 mm - 73 kg 90 kg
LTTA-B13 50 L 134 °C 105 °C to 134 °C 0.22 Mpa 4 0 to 99 minutes - - 2.7 kW / AC 220 V 50 Hz - 340 × 550 mm - 106 kg 130 kg
LTTA-C10 20 L 134°C 105 to 134°C 0.22 Mpa 3 0 to 60 min ≤ ±1°C 4 to 6 min 1.5 kW/AC 220 V 50 Hz (AC 110 V 60 Hz) 340×200×30 mm 250×420 mm 700×580×500 mm 40 kg 44 kg
LTTA-C11 24 L 134°C 105 to 134°C 0.22 Mpa 3 0 to 60 min ≤ ±1°C 4 to 6 min 1.5 kW/AC 220 V 50 Hz (AC 110 V 60 Hz) 400×200×30 mm 250×520 mm 800×580×500 mm 45 kg 50 kg
LTTA-D11 24 L 134°C 105 to 134°C 0.22 Mpa 3 0 to 99 min ≤ ±1°C 4 to 6 min 1.5 kW/AC 220 V 50 Hz 400×200×30 mm 250×520 mm 780×590×600 mm - 58 kg
LTTA-E13 35 L 134 °C 105 to 134 °C 0.22 Mpa 4 0 to 60 minutes ≤ ± 1 ℃ - AC 220 V 50 Hz / 2.7 kW - 300 × 500 mm - 73 kg 90 kg
LTTA-F10 35 L 134 ℃ ± 1 ℃ 55 ℃ to 134 ℃ 0.22 Mpa - 1 to 99 mins ≤ 2 ℃ - AC 220 V/50 Hz - - 810 × 680 × 650 mm 73 Kg 90 Kg
LTTA-E14 50 L 134 °C 105 to 134 °C 0.22 Mpa 4 0 to 60 minutes ≤ ± 1 ℃ - AC 220 V 50 Hz / 2.7 kW - 340 × 550 mm - 86 kg 105 kg
