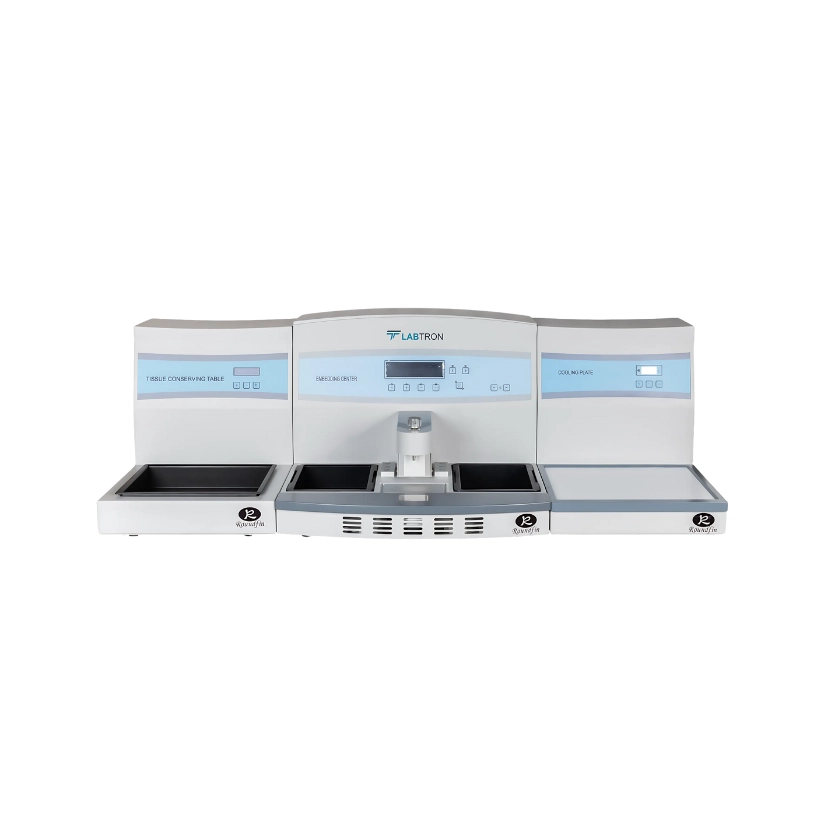

Tissue Embedding System LTES-A10

Name: Tissue Embedding System LTES-A10
Brand: Labtron
SKU: LTES-A10
Rating: 4.9 (902 reviews)

Tissue Embedding System LTES-A10 offers power inputs of 650 VA for Main and Thermal Consoles and 200 VA for Cryo Console, operating at 220 V/50 Hz. It features a Main Console with a working temperature range from ambient to 80°C in 1°C increments. Its Cryo Console offers precise, adjustable cooling for rapid and controlled sample processing. Its Thermal Console delivers adjustable heating from ambient levels with a large paraffin tray for continuous use. This system is ideal for precise, efficient, and high-throughput tissue embedding in pathology laboratories.

Request Quote

Main Console Working Temperature	From ambient to 80°C, increments 1°C
Main Console Capacity (Paraffin Reservoir)	6.0 L
Main Console Capacity (Cassette/Mold Tray)	1.6 L
Cryo Console Working Temperature	0°C to 15°C, increments 1°C
Thermal Console Working Temperature	From ambient to 80°C, increments 1°C
Thermal Console Capacity (Paraffin Tray)	5 L
Main Console Maximum Power Draw	650 VA
Cryo Console Maximum Power Draw	200 VA
Thermal Console Maximum Power Draw	650 VA
Main Console Nominal Supply Voltage	220 V/50 Hz
Cryo Console Nominal Supply Voltage	220 V/50 Hz
Thermal Console Nominal Supply Voltage	220 V/50 Hz
Main Console Dimensions	740 × 740 ×670 mm
Cryo Console Dimensions	720 × 490 × 630 mm
Thermal Console Dimensions	740 × 490 × 630 mm
Main Console Weight	50 kg
Cryo Console Weight	45 kg
Thermal Console Weight	36 kg

LCD Display
Simple Setup and Operation
Processes Multiple Samples
Easy To Clean and Maintain
Adjustable Temperature and Start Time
Flexible Left-to-Right or Right-to-Left Module Navigation
Efficient Heating and Cooling Performance
Ergonomic Design

Our Tissue Embedding System LTES-A10 is ideal for embedding biological tissue specimens in paraffin for subsequent microtome sectioning, ensuring optimal sample preservation and structural integrity.

Magnifying glass
Foot switch

Sr. No	Name of the Console	Function and Characteristic
1.	Main Console	Designed with large cold spot peltier to orient big and small samples.
		Ergonomic large working surface.
		Removable base molds trays and cassettes.
		Automatic programming of work start time.
2.	Cryo Console	Adjustable temperature from ambient to -20 centigrade.
		Rapid chilling of paraffin blocks by compressor cooled working surface.
		Stand-alone unit, adjacent to embedding unit
		Made up of Teflon coating, permits ice formation and easy to use.
3.	Thermo Console	Stores and warms specimens in a large paraffin tank.
		Stand-alone unit, adjacent to embedding unit.

Download catalog for
Tissue Embedding System LTES-A10 Catalog

Download manual for
Tissue Embedding System LTES-A10 Manual

Available Range :

Tissue Embedding System LTES-A10 : From ambient to 80°C, increments 1°C Tissue Embedding System LTES-A20 : From ambient to 90°C, increments 1°C

Models of Tissue Embedding System

Labtron Tissue Embedding System embeds fixed tissue in high-quality paraffin for precise microscopic analysis. They consist of three independently operable modules that enhance the precision of the embedding process. The system efficiently handles multiple tissue samples at once. The user-friendly controls and clear digital displays make them easy to operate. Our Tissue Embedding System is ideal for reliable tissue culture storage and analysis in both laboratory and pathological settings.

Tissue Embedding System LTES-A10

Models of Tissue Embedding System

Tissue Embedding System LTES-A11

Tissue Embedding System LTES-A20

Tissue Embedding System LTES-A21
