UV Test Chamber LUVC-A10

UV Test Chamber LUVC-A10

UV Test Chamber LUVC-A10 is equipped with special UV lamps, arranged in two rows with 8 lamps per row, each rated at 40W. Operates within a temperature range of 45 ℃ to 70 ℃. The camber body is constructed with high-quality 1.2mm thickness 304SUS stainless steel. Our chamber utilizes a U-type drainage device for efficient water drainage. It employs a bladder tank heating method, enabling rapid heating and uniform temperature distribution.

Request Quote
Lamp Quantity 8 UV lamps
Lamp Lifetime >1600 hours
Uv Temperature Range 45 ℃ to 70 ℃
Black Temperature Range RT+10 ℃ to 80 ℃
Irradiance Range 0.1 W/m² to 1.0 W/m²
Rain Time 0 to 1000 min
Rain Interval 0 to 1000 min
Testing Capacity & Sample Size 48 piece (75 × 150 mm)
50 piece (75 × 150 mm)
Water distilled water
Water Consumption 8 Liters/day
Humidity Range 90.0%RH to 98%RH
Temperature Range 30°C to 70°C
Standard ASTM G153-77, AATCC, ISO 4892-2 etc
Power Consumption 1800W
Power Supply 120V/60Hz,16A or 230V/50Hz, 9A
Dimension (W × D × H) 1370 × 530 × 1360 mm
Weight 136 Kg
  • Optional Radiometer available
  • Utilizes a single-cycle air duct system
  • Enhanced by an imported axial flow fan
  • The tank cover features a double-flip design
  • Incorporates an automatic water filling system
  • A sample frame is crafted from either stainless steel
  • High-quality PU wheels at the bottom
  • Includes an internal automatic sprinkler spray system

UV test chambers are used to assess how materials withstand sunlight, rain, and dew, predicting their long-term durability. They help industries like automotive, aerospace, and construction ensure their products can withstand outdoor conditions.

UVA 340 - 8pieces

UVB 313 Lamp

UVC 351 Lamp
Calibration meter

Download catalog for
UV Test Chamber LUVC-A10

Available Range :

UV Test Chamber LUVC-A20 : RT + 100 °C ~ 850 °C UV Test Chamber LUVC-A21 : RT + 100 °C ~ 630 °C

Similar Products

UV Test Chamber LUVC-A20

UV Test Chamber LUVC-A20
  • Temperature Range : RT + 100 °C ~ 850 °C
  • Humidity range : At 400 °C: R.H. is 40 % ~ 85 % / At 800 °C: R.H. is 30 % ~ 50 %
  • Testing Time : 20 hours
  • Testing Voltage : 120 V ~ 145 V (135 V)

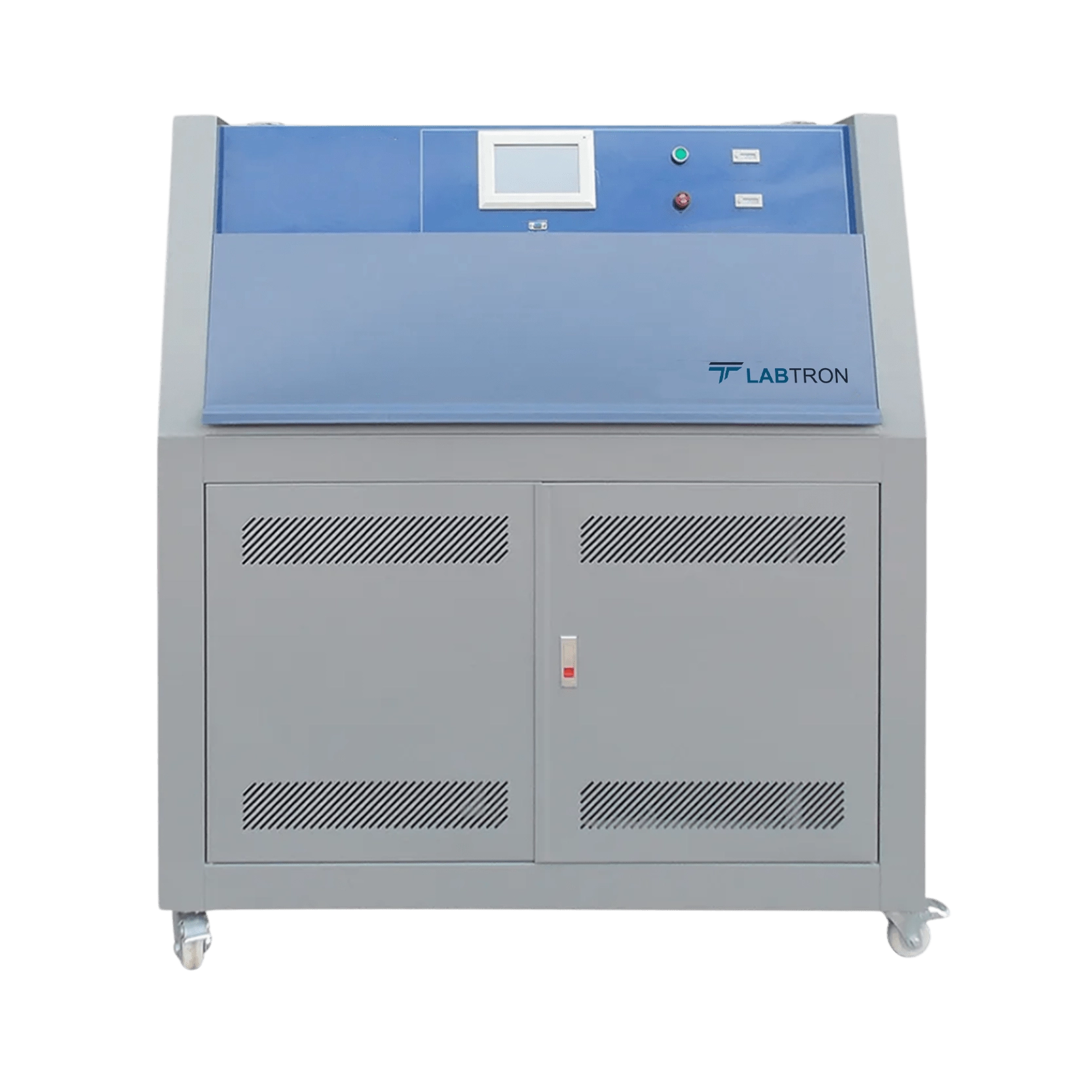

UV Test Chamber LUVC-A21
