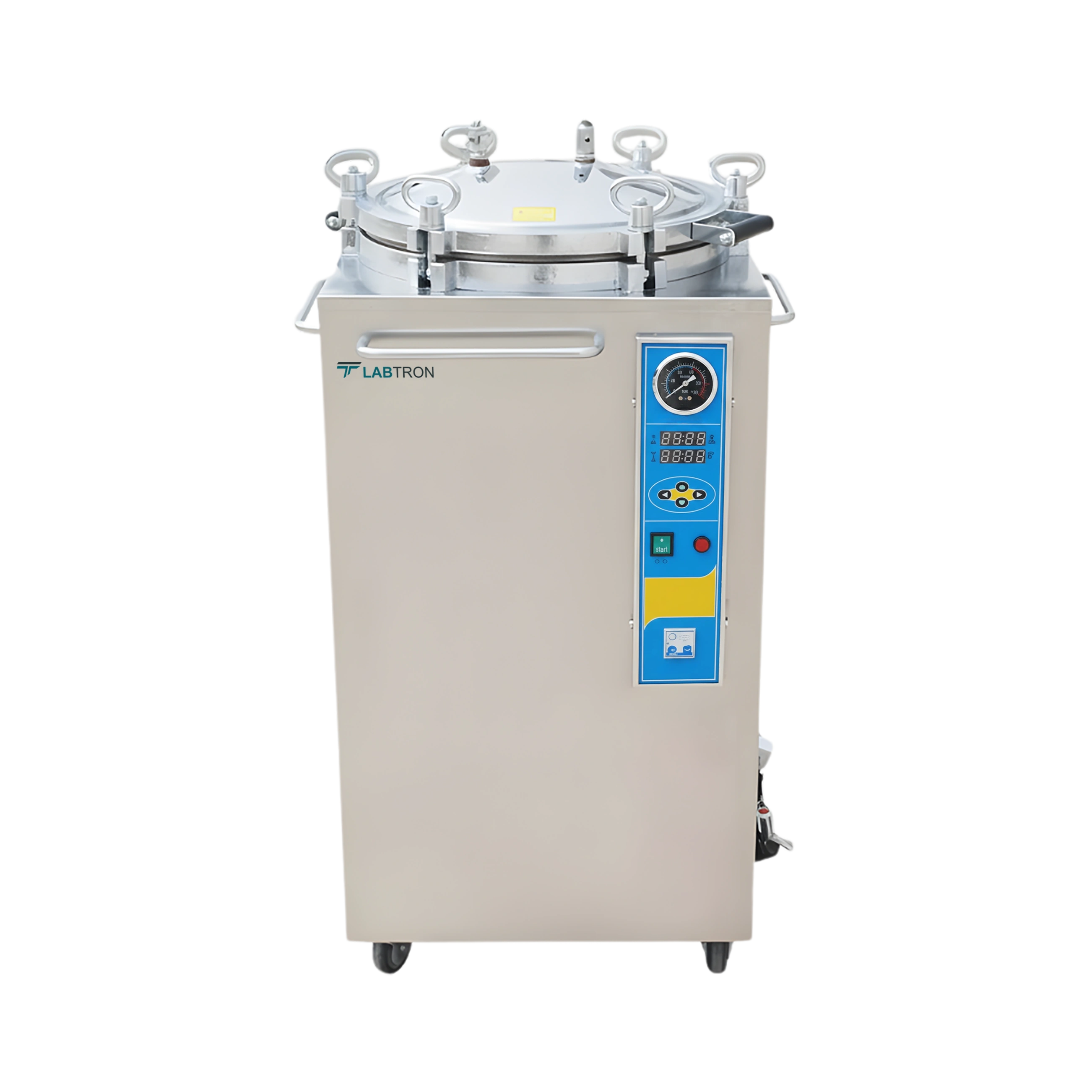

Vertical Laboratory Autoclave LVA-C10

Vertical Autoclave LVA-C10 is a top loading sterilizer, composed of high quality stainless steel with two stainless steel sterilizing baskets. It is equipped with light indicator to display working status of sterilization process. It works on electric heating or direct heating by immersing copper tubes of heating elements. It gives auto protection against over temperature & over pressure. This vertical autoclave is used for sterilization of surgical instruments, glass wares, biological materials, culture media, dressing etc.

Request Quote
Capacity 35 L
Sterilization Temperature 134 °C
Sterilization Pressure 0.22 Mpa
Chamber Dimension ( Φ × D ) 318 × 450 mm
Timer Range 0 - 60 min
Number of sterilizing baskets 2
Heat Average ≤ ± 1 ℃
  • Composed of stainless steel body with two stainless steel sterilizing baskets
  • Equipped with light indicator to display working status
  • Double scale indication pressure gauge
  • Safe door lock system
  • Auto power cut in case of water shortage
  • Automatic shutdown with beep sound as sterilization completes
  • Uses electric heating or direct heating by immersing copper tubes of heating elements
  • Auto protection against over temperature and pressure

Vertical autoclave for its effective sterilization has applications in medicine and health care industry, clinical and scientific research institutes, pharmaceutical industry, food industry aquaculture industry etc.

Available Range :

Capacity : 35 L Capacity : 50 L Capacity : 75 L Capacity : 100 L Capacity : 120 L Capacity : 150 L

Related Models :

Compare Models

Model Capacity Sterilization Temperature Sterilization Pressure Chamber Dimension ( Φ × D ) Timer Range Number of sterilizing baskets Heat Average
LVA-C10 35 L 134 °C 0.22 Mpa 318 × 450 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C11 50 L 134 °C 0.22 Mpa 340 × 550 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C12 75 L 134 °C 0.22 Mpa 400 × 600 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C13 100 L 134 °C 0.22 Mpa 440 × 650 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C14 120 L 134 °C 0.22 Mpa 480 × 660 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C15 150 L 134 °C 0.22 Mpa 510 × 740 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-G10 35L 134 °C 0.22 Mpa 318 × 450 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-G11 50L 134 °C 0.22 Mpa 340 × 550 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-G12 75L 134 °C 0.22 Mpa 400 × 600 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-G13 100L 134 °C 0.22 Mpa 440 × 650 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-I10 35 L 134 °C 0.22 Mpa 280 × 500 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I11 50 L 134 °C 0.22 Mpa 320 × 610 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I12 75 L 134 °C 0.22 Mpa 388 × 530 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I13 100 L 134 °C 0.22 Mpa 388 × 670 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I14 120 L 134 °C 0.22 Mpa 460 × 670 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I15 150 L 134 °C 0.22 Mpa 460 × 760 mm 0 - 999 min - ≤ ± 1 ℃
LVA-J10 35 L 115 to 129 °C 0.165 MPa 280 × 500 mm 0 - 80 min 2 ≤ ± 1 ℃
LVA-J11 50 L 115 to 129 °C 0.165 MPa 320 × 610 mm 0 - 80 min 2 ≤ ± 1 ℃
LVA-J12 75 L 115 to 129 °C 0.165 MPa 388 × 530 mm 0 - 80 min 2 ≤ ± 1 ℃
LVA-K10 60 L 134 °C 0.22 MPa 396 × 490 mm 0 - 99 min - ≤ ± 1 ℃
LVA-K11 80 L 134 °C 0.22 MPa 396 × 650 mm 0 - 99 min - ≤ ± 1 ℃
LVA-K12 100 L 134 °C 0.22 MPa 504 x 404 x 502 mm 0 - 99 min - ≤ ± 1 ℃
LVA-K13 120 L 134 °C 0.22 MPa 504 x 404 x 590 mm 0 - 99 min - ≤ ± 1 ℃
LVA-A10 35 L - - - - - ≤ ± 1°C
LVA-A11 50 L - - - - - ≤ ± 1°C
LVA-A12 75 L - - - - - ≤ ± 1°C
LVA-A13 100 L - - - - - ≤ ± 1°C
LVA-A14 120 L - - - - - ≤ ± 1°C
LVA-A15 150 L - - - - - ≤ ± 1°C
LVA-B10 35 L - - - - - ≤± 1℃
LVA-B11 50 L - - - - - ≤± 1℃
LVA-B12 75 L - - - - - ≤± 1℃
LVA-B13 100 L - - - - - ≤± 1℃
LVA-B14 120 L - - - - - ≤± 1℃
LVA-B15 150 L - - - - - ≤± 1℃
LVA-D10 35 L - - - - - ≤ ± 1°C
LVA-D11 50 L - - - - - ≤ ± 1°C
LVA-D12 75 L - - - - - ≤ ± 1°C
LVA-D13 100 L - - - - - ≤ ± 1°C
LVA-F10 50 L - - - - - ≤± 1℃
LVA-F11 75 L - - - - - ≤± 1℃
LVA-F12 35 L - - - - - ≤± 1℃
LVA-F13 100 L - - - - - ≤± 1℃
LVA-F20 50 L - - - - - ≤± 1℃
LVA-F21 75 L - - - - - ≤± 1℃
LVA-F22 100 L - - - - - ≤± 1℃
LVA-F23 35 L - - - - - ≤± 1℃
LVA-L10 60 L - - - - - -
LVA-L11 85 L - - - - - -
LVA-L12 110 L - - - - - -
LVA-L20 36 L - - - - - -
LVA-L21 54 L - - - - - -
LVA-H10 35 L - - - - - -
LVA-H11 50 L - - - - - -
LVA-H12 75 L - - - - - -
LVA-H13 100 L - - - - - -
