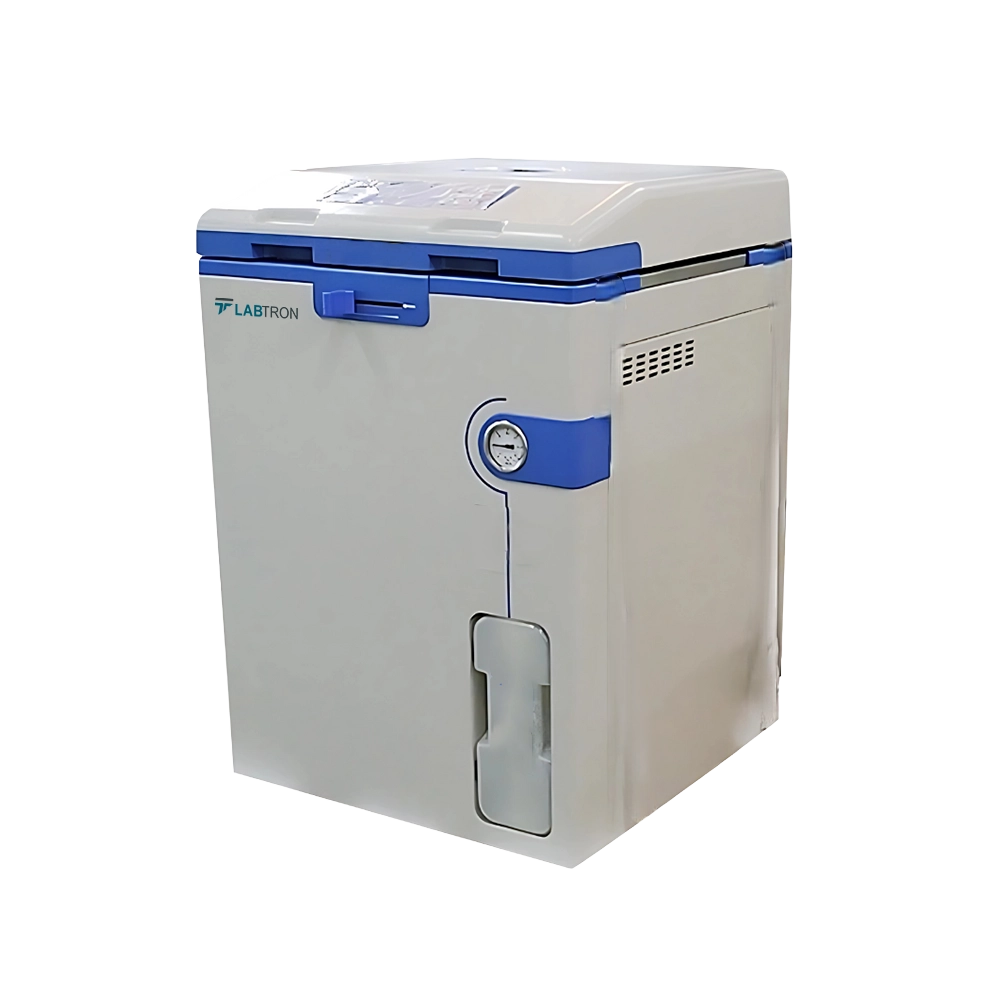

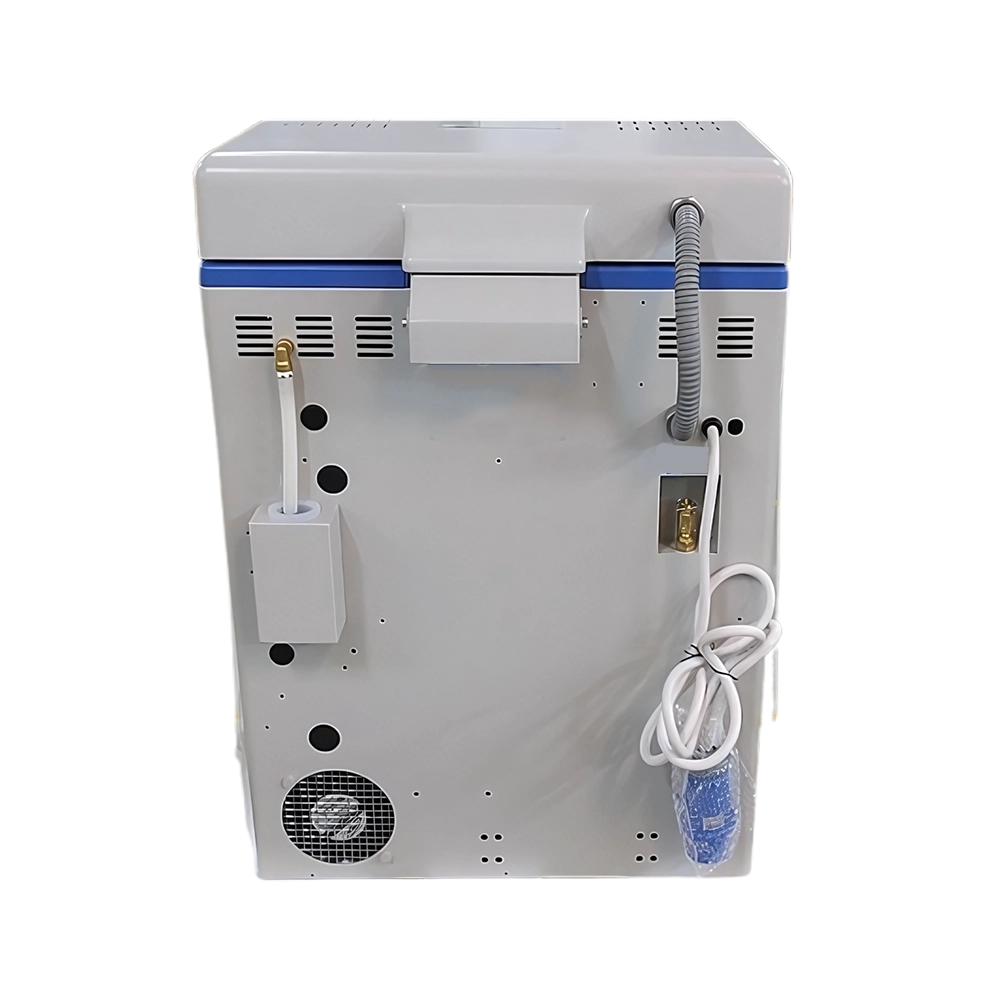

Vertical Autoclave LVA-L11


Share :


Vertical Autoclave LVA-L11


Vertical Autoclave LVA-L11 is an 85 liter capacity fast speed microcomputer controlled unit with eight column evenly distributed mechanical interlocking system and cooling lock open temperature for sterilization. Inbuilt with automatic water feeding, cooling fan and drying mode for different types of sterilization cycles such as agar and solid with drying cycle. It consists of embedded steam collector and water tank with exhaust mode. Automatic protection with water level sensor, overpressure, cooling lock, dry scorch, temperature, safety valve, short circuit and anti-scald chamber leakage.



Available Range :

Capacity : 35 L Capacity : 120 L Capacity : 75 L Capacity : 50 L Capacity : 50 L Capacity : 54 L
Capacity 85 L
Number of baskets 2
Sterilization temperature 105 °C to 138 °C
Working environment temperature 5 °C to 45 °C
Temperature accuracy 0.1 °C
Sterilization time range 1 to 6000 minutes
Melting temperature 45 °C to 60 °C
Melting time range 1 to 9999 minutes
Drying temperature 80 °C to 140 °C
Drying time range 1 to 300 minutes
Pressure gauge display -0.1 MPa to 0.5 MPa
Maximum working pressure 0.27 MPa
Design pressure 0.35 MPa
Chamber material SUS 304
Steam collector Embedded steam collector
Water tank 28 L tank
Sterilization cycle Solid, liquid, liquid with warming, agar, solid with drying, medical waste and customized cycles
Sterilization cycle number Up to 60 cycles
Power supply 4600 W
Current supply 32 A
Voltage supply AC 220 V, 50/60 Hz
Chamber dimension (D × H) ɸ 400 mm × 700 mm

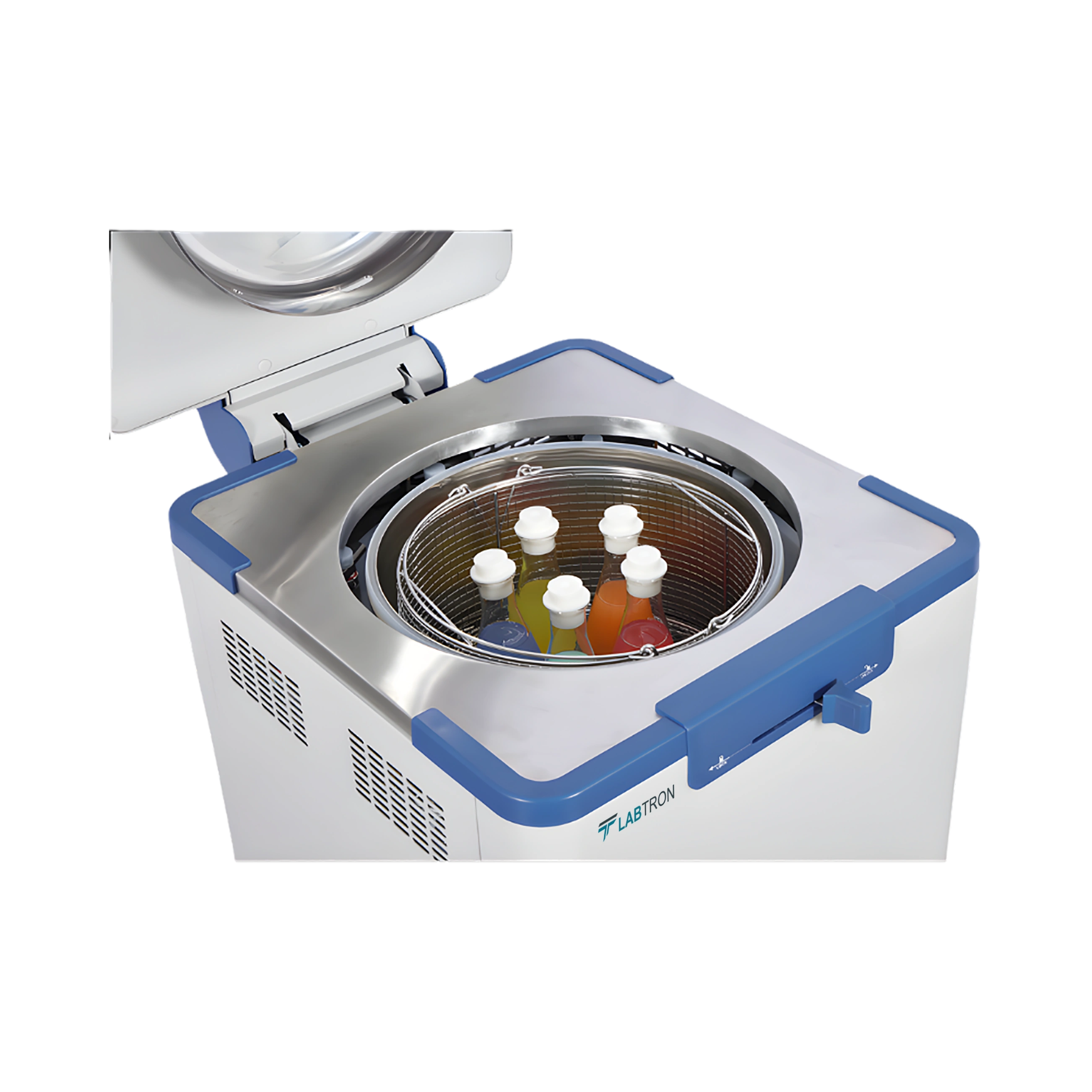

Stainless steel basket dimension (D × H) (ɸ 360 mm × 280 mm) × 2
Dimensions (L × W × H) 660 × 644 × 980 mm
Packing Dimensions (L × W × H) 980 × 800 × 1230 mm
Gross Weight 162 kg
  • Fast speed microcomputer intelligent control system
  • Eight column evenly distributed mechanical interlocking system
  • Drying mode consists of Automatic water feeding + cooling fan + drying
  • Specially designed for solid with drying function sterilization cycle
  • Sterilization cycle: Solid, liquid, liquid with warming, agar, solid with drying, medical waste and customized cycles
  • Sterilization cycle number: up to 60 cycles
  • Made up of SUS 304 chamber material

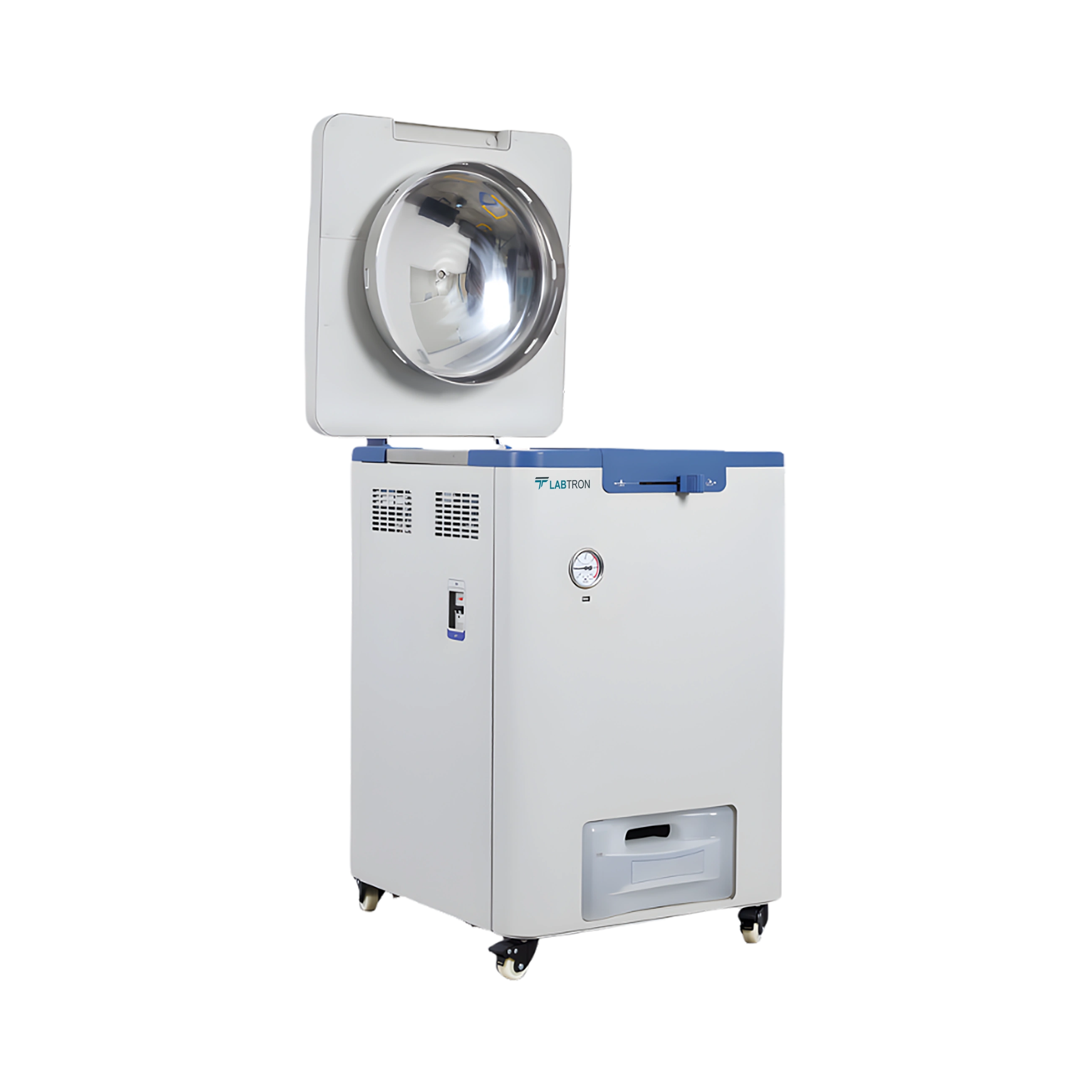

  • Up and Down lid opening type
  • Consist of auto start and preset range of timer
  • Water level sensor, leakage cooling lock, over pressure protection
  • Temperature monitor, anti-scald chamber and short circuit protection

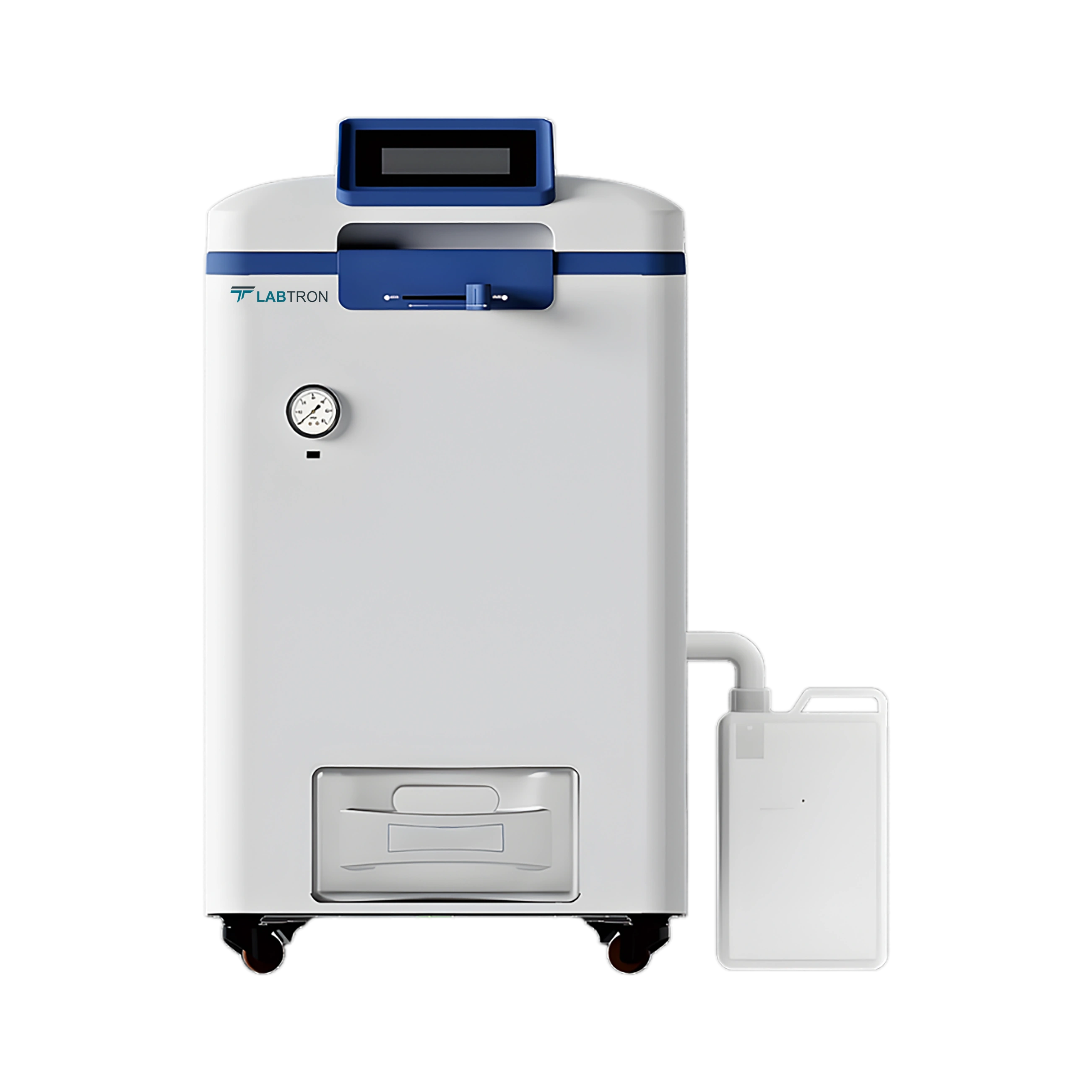

  • Automatic internal discharging exhaust mode with steam collector bottle
  • Cooling lock open temperature feature

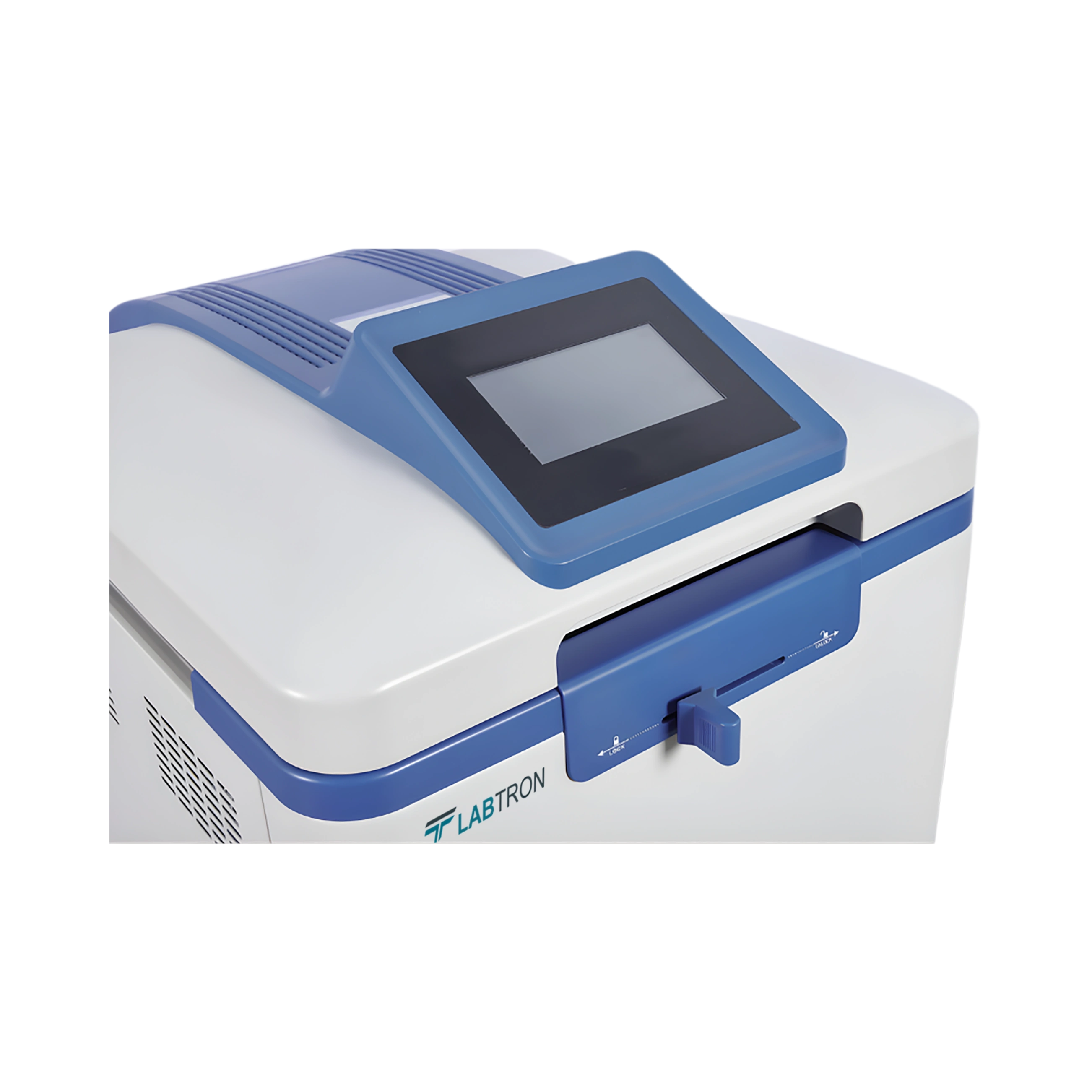

  • Easy to understand and operable control panel

Widely used in the applications of Biochemistry, pharmaceutical industry, medicine and health care industry, Biotechnology, Microbiology and scientific research.

No Accessory name
1 Drainage Hose
2 Water Plate
3 Exhaust Bottle
