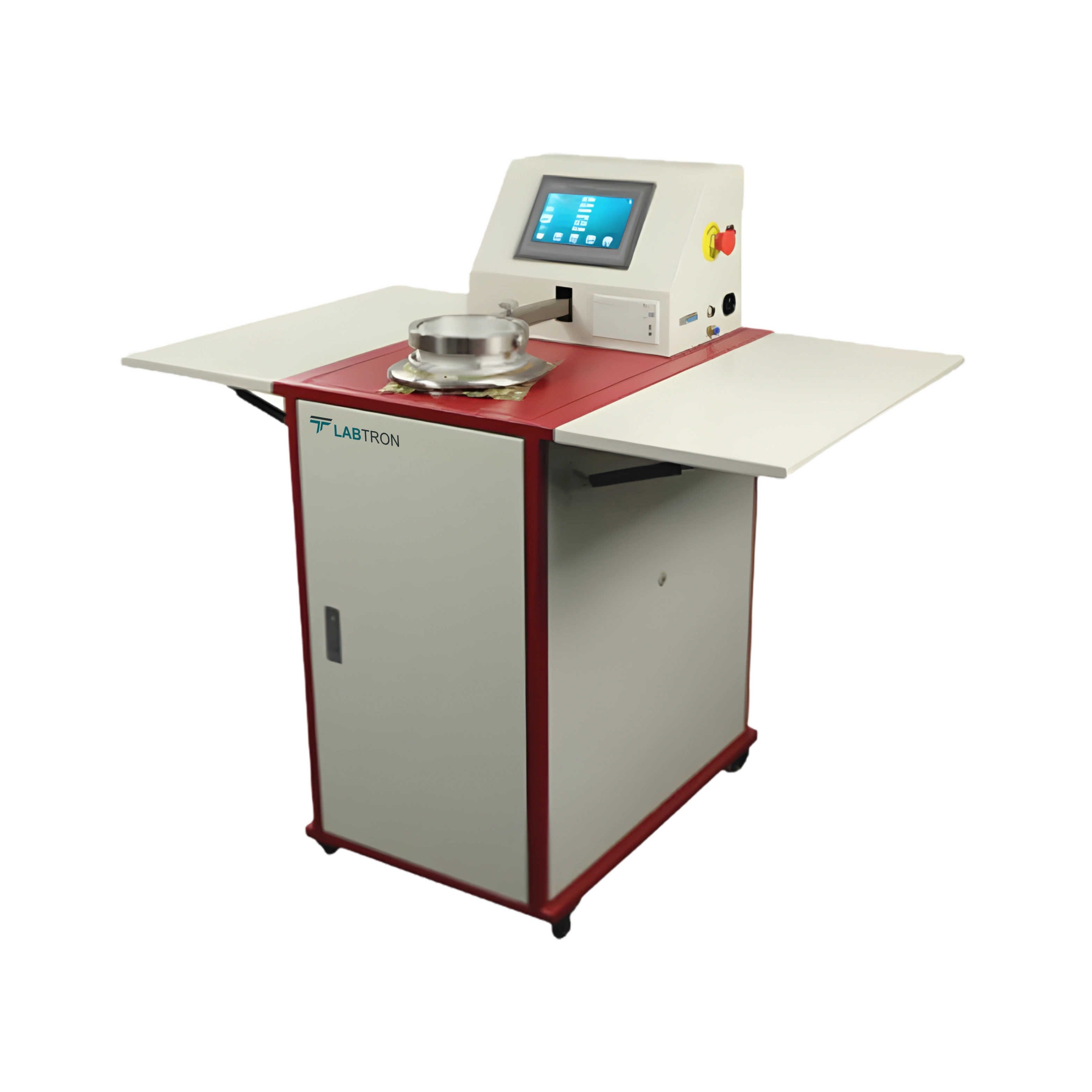

Air Permeability Tester LFAP-A10 measures air flow with a permeability range of 1 to 10,000 mm/s. With a sample pressure ranging from 1 to 4,000 Pa, it is suitable for a diverse array of materials. Features an integrated microcomputer that provides immediate test results. Equipped with a high-precision sensor, ensuring reliable and steady airflow measurements.
| Measurable Permeability | 1 to 10000 mm/s |
| Sample Pressure Range | 1 to 4000 Pa |
| Measurement Error | ≤ ± 2 ％ |
| Sample Thickness | ≤12 mm |
| Test Area | 5 cm², 20 cm², 50 cm², 100 cm² Ф50 mm (≈ 19.6 cm²) Ф70 mm (≈ 38.5 cm²) |
| Power Consumption | 2 KW |
| Power Supply | AC 220 V 50 Hz |
| Dimension | 1250 × 700 × 1250 mm |
| Weight | 80 Kg |
Air Permeability Tester is widely used across industries such as Textile, Filtration, Medical and Healthcare, Paper, and Packaging, as well as in research domains to evaluate material's breathability and performance.
Available Range :
Air Permeability Tester LFAP-A10 : 1 to 10000 mm/s
