Labtron densitometer boasts unparalleled precision, ensuring accurate measurements down to the minutest details. Its advanced sensors capture even the subtlest variations in density, guaranteeing reliable results every time. read more

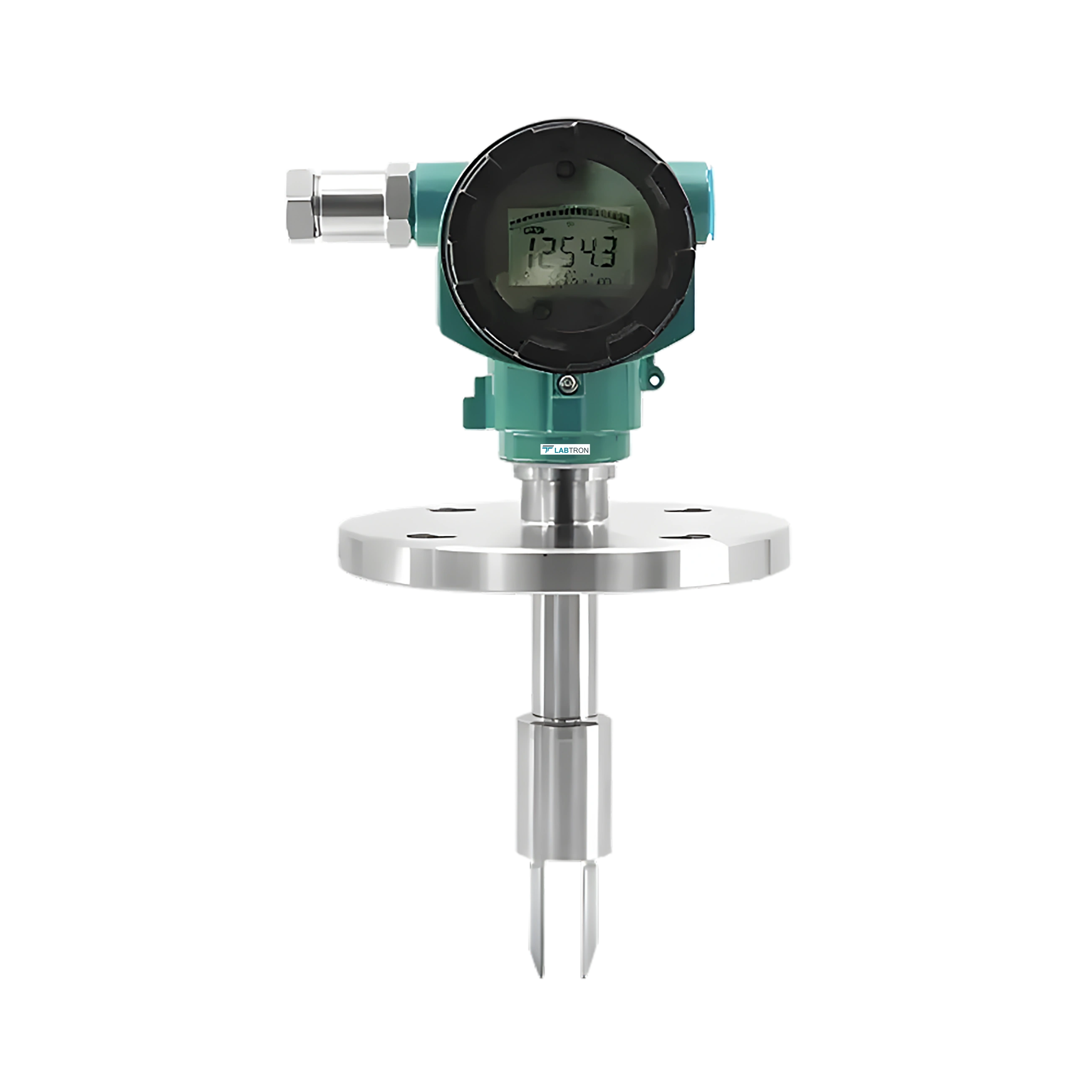

Densitometer LDTR-A10 performs density detection of the medium with a measuring range of 0 to 2.5 g/cc. Digital temperature sensor compensates for temperature-related variations in measurements. LCD display shows one of the three variables: density, mass, percentage, and sensor frequency. Designed with wetted material, made up of 316 L stainless steel Hastelloy for better durability.
| Measuring range | 0 to 2.5 g /cc (0 to 2500 kg/m3) |
| Calibration range | 0 to 2.5 g /cc (0 to 2500 kg/m3) |
| Measurement accuracy | ± 0.002 g /cc (± 2 kg/m3) |
| Repeatability | ± 0.0002 g /cc (± 0.2 kg/m3) |
| Output accuracy (20 ⁰C) | ± 0.1% of reading or ± 0.05% FS |
| Output repeatability (-40 to +85 ⁰C) | ± 0.05% FS |
| Temperature Coefficient | Less than 0.1 kg/m3/⁰C (after correction) |
| Temperature sensor | Digital sensor |
| Max. Working pressure range | 207 bar (3000 psi) |
| Pressure effect | Negligible |
| Fluid viscosity range | 0 to 2000 cP |
| Wetted material | 316 L stainless steel Hastelloy |
| Fork body coating | Standard type, PTFE, or electrolytic polishing |
| Analog signal output | 4 to 20 mA, 0 to 1000 Hz，RS485 Modbus RTU |
| Process connection | ANSI 150 to 1500 RF DIN 50 PN16 DIN 50 PN40 IDF and RJT Hygienic |
| Shell | Aluminum alloy |
| Protection level | IP65 |
| Power supply | 24V DC, ≥ 50 mA |
Densitometers are widely used in various fields, including photography, printing, radiology, and material science and for maintaining quality and consistency of materials in industries.
Available Range :
Densitometer LDTR-A10 : 0 to 2.5 g /cc (0 to 2500 kg/m3)
