A flame photometer is a scientific instrument used for the quantitative analysis of certain chemical elements, particularly alkali and alkaline earth metals, based on their ability to emit characteristic colors when exposed to a flame. This analytical technique is commonly used in various fields, including chemistry, environmental science, geology, and clinical laboratories, to determine the concentration of specific metal ions in a sample. read more

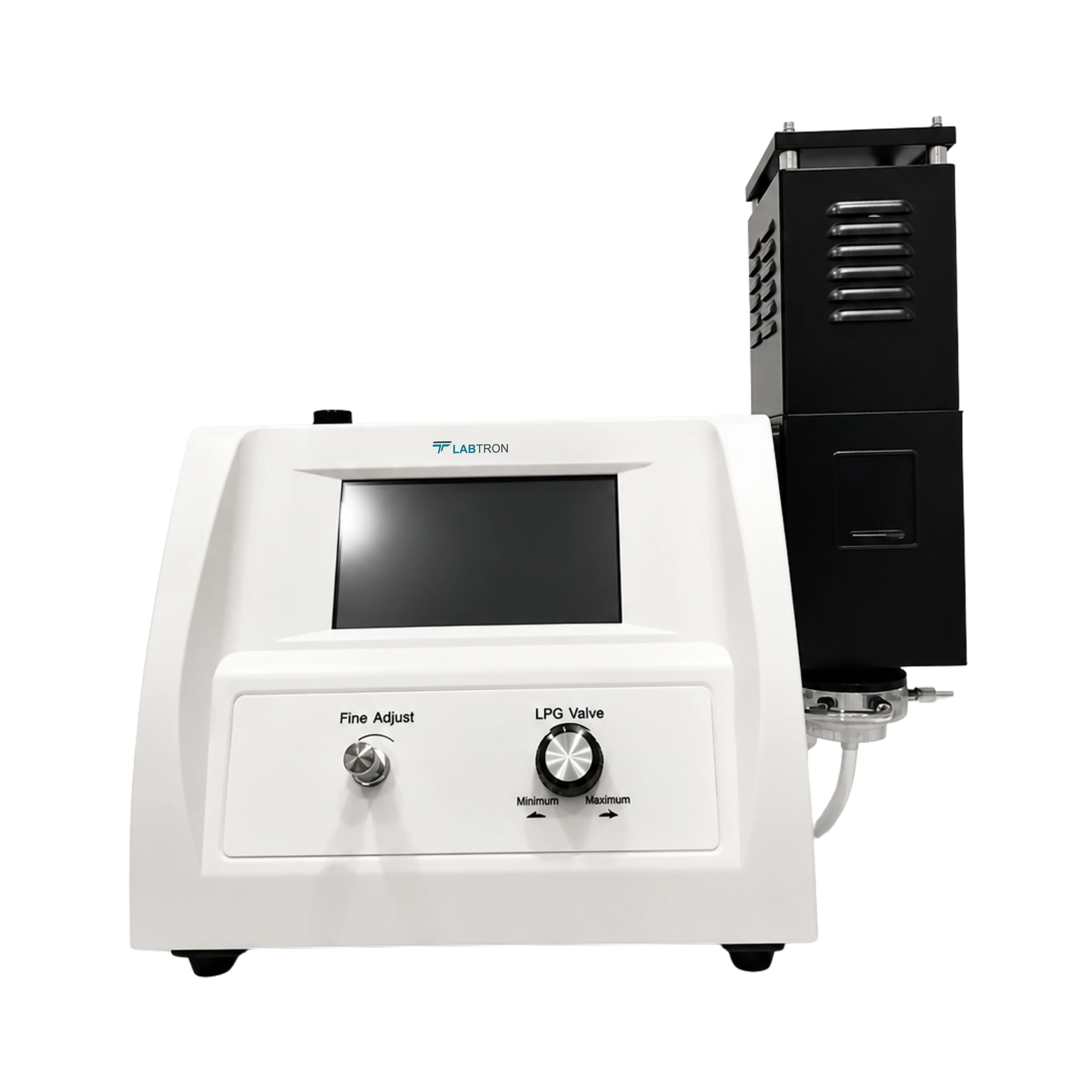

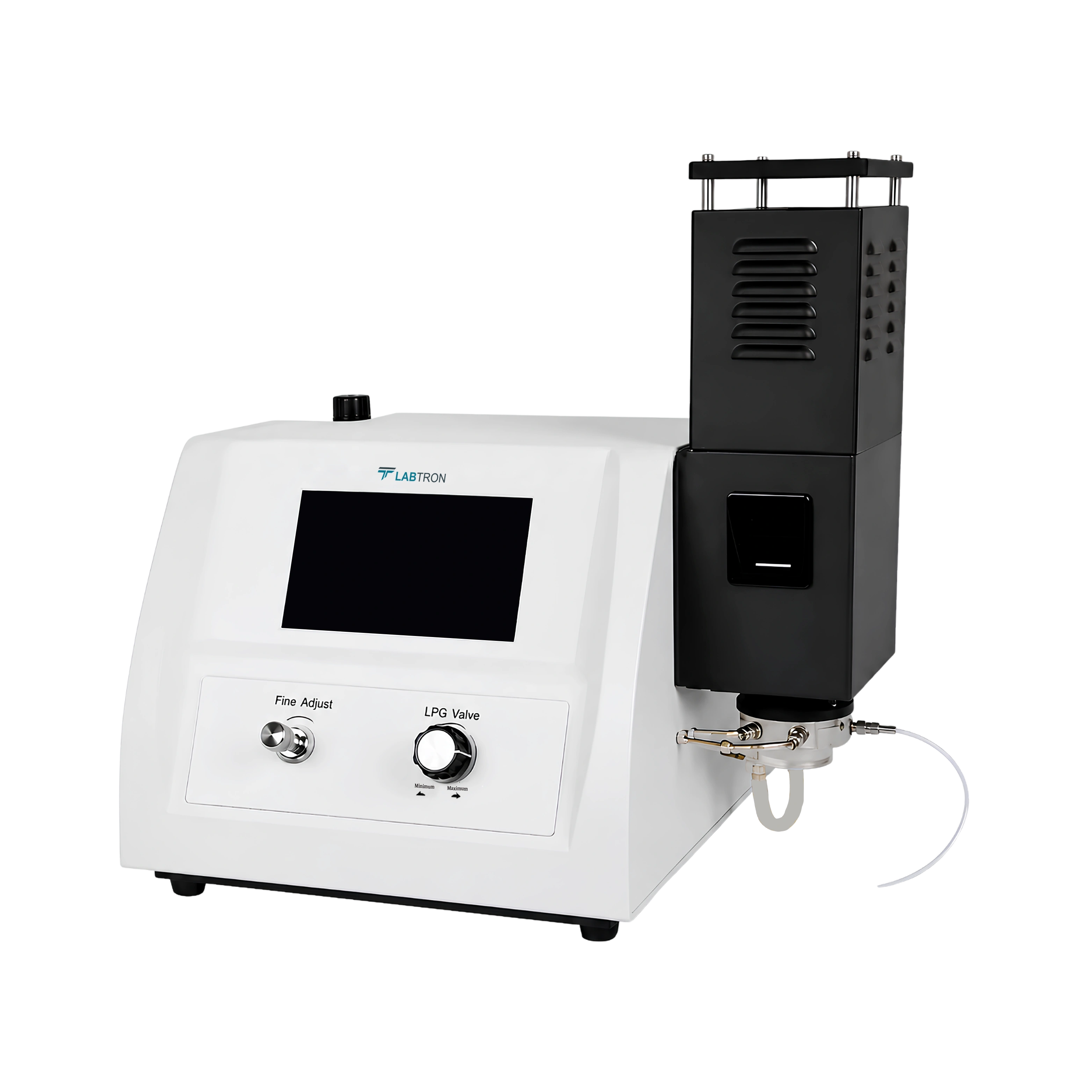

Flame Photometer LFP-A40 is a benchtop unit that determines concentration of metal ions like K, Na, Li, Ca, and Ba in a test sample. Designed with 7-inch color touch screen display that displays direct concentration of elements. Equipped with USB interface for data transfer and storage. Features flameout protection device and air compressor. It automatically determines correlation coefficient of test sample.
Testing Elements | K, Na, Li, Ca, Ba | ||||||||||
No of Channels | 5 | ||||||||||
Display Value | Concentration value | ||||||||||
Data Range | 0.000 to 999.9 | ||||||||||
Range |
|
||||||||||
LOD |
|
||||||||||
Linear Error |
|
||||||||||
Display | 7-inch colour touch screen | ||||||||||
Response time | time <8s | ||||||||||
Sample uptake | < 6 ml/min | ||||||||||
Stability | <3% drift over 15s during continuous aspiration | ||||||||||
Reproducibility | <3% coefficient of variation for 7 consecutive samples | ||||||||||
Fuel | LPG | ||||||||||
Interface | USB | ||||||||||
Power supply | AC 220 V±22 V 50 Hz±1 Hz, 250 W | ||||||||||
Overall Dimensions | 780 × 560 × 390 mm | ||||||||||
Weight | 18 kg |
Flame Photometer has wide applications in areas like clinical laboratories, pathology, research laboratories, soil and fertilizer industries, petroleum and mining industries, chemical product manufacturing units, pharmaceutical and beverage industries.
