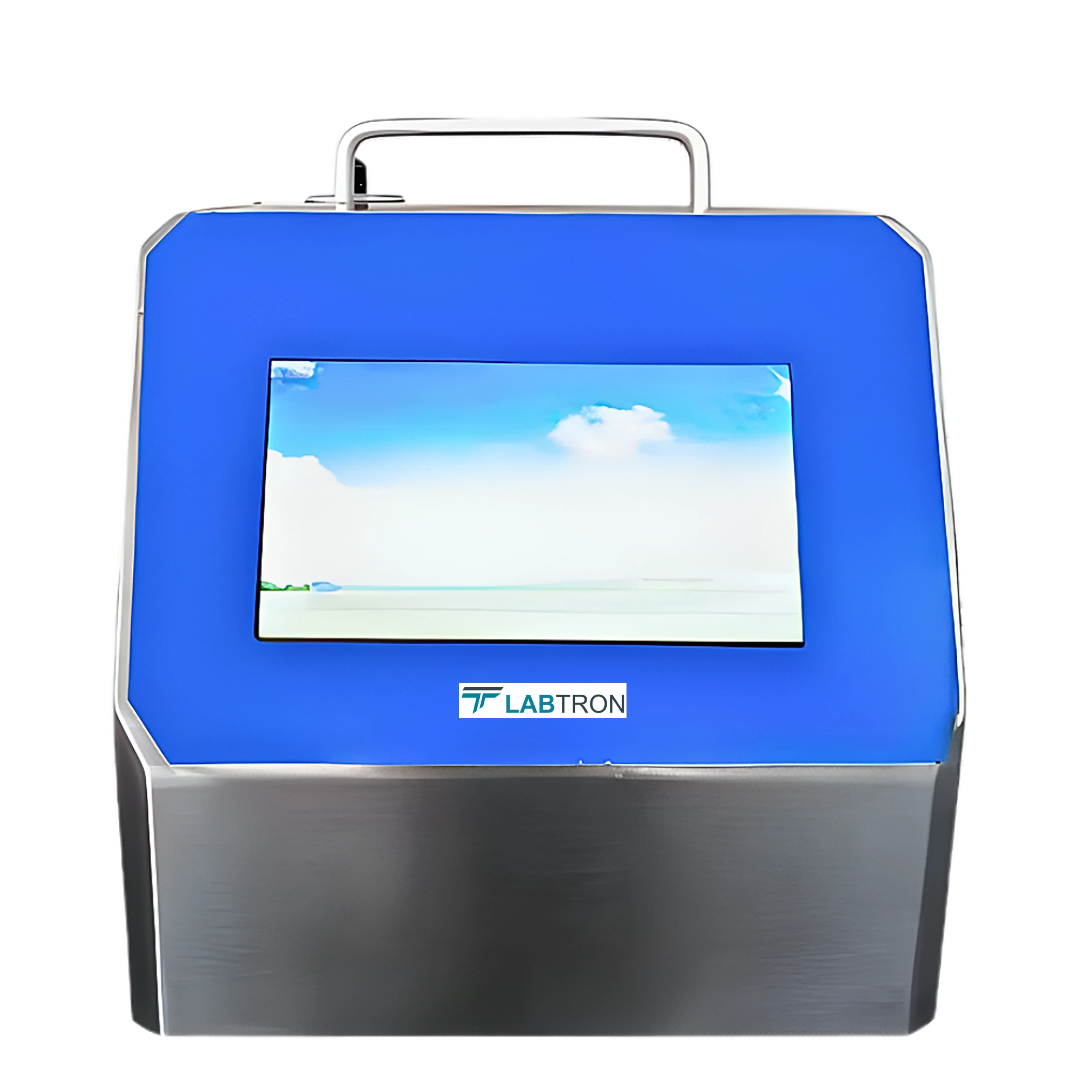

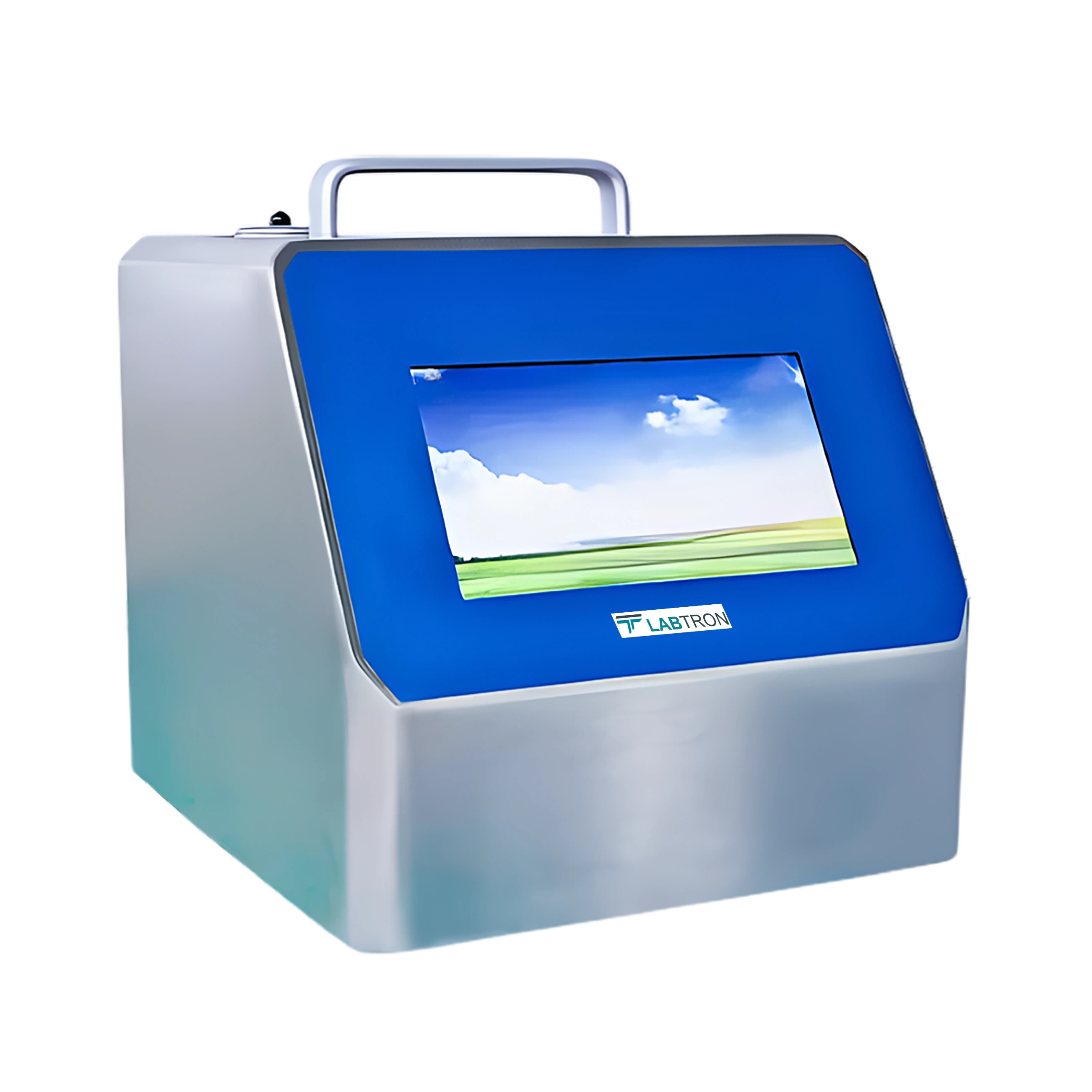

Portable Airborne Particle Counter LPPC-A30

Portable Airborne Particle Counter LPPC-A30 offers a flow rate of 28.3 L/min. Equipped with six channels that simultaneously assess various particle sizes. Employs laser technology for accurate detection and counting of airborne particles, ensuring precise size measurement. It calculates the upper confidence limit to estimate the maximum particle concentration crucial for quality control. Stores 256 sample data for future use.

Request Quote

Flow Rate	28.3 L/min
Particle Size Channel	0.1 µm, 0.2 µm, 0.3 µm, 0.5 µm, 1.0 µm, 5.0 µm
Test Way	UCL
Test Period	1 to 40 min
Zero Count	< = 10 min
Print Mode	Built-in Thermal Printer
Continuously Working Time	8 h
Light Source and Lifetime	Long life laser diode with 3000h MTTF
Display	LCD
Data Storage	256 samples
Power consumption	80 W
Power	AC 220 V+/-10%, 50 Hz
Dimension	370 × 440 × 126 mm
Weight	6 Kg

Large LCD screen displays
Features Computerized verification
Built-in thermal printer
Data conversion between ft³ and m³

Portable Airborne Particle Counter is used in industries like pharmaceuticals, electronics, manufacturing, and healthcare to monitor and ensure cleanroom cleanliness by measuring airborne particles.

Available Range :

Flow Rate : 28.3 L/min Flow Rate : 0.1 CFM ( 2.83 L/min ) Flow Rate : 0.1 CFM ( 2.83 L/min ) Flow Rate : 0.1 CFM ( 2.83 L/min ) Flow Rate : 2.83 L/min Flow Rate : 1.0 CFM ( 2.83 L/min )

Related Models :

Model	Flow Rate	Particle Size Channel	Test Way	Test Period	Zero Count	Print Mode	Continuously Working Time	Light Source and Lifetime	Display	Data Storage	Power consumption	Power	Dimension	Weight
LPPC-A30	28.3 L/min	0.1 µm, 0.2 µm, 0.3 µm, 0.5 µm, 1.0 µm, 5.0 µm	UCL	1 to 40 min	< = 10 min	Built-in Thermal Printer	8 h	Long life laser diode with 3000h MTTF	LCD	256 samples	80 W	AC 220 V+/-10%, 50 Hz	370 × 440 × 126 mm	6 Kg
LPPC-A10	0.1 CFM ( 2.83 L/min )	0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0 µm, 10.0 µm	-	1 min to 10 min ( 10 levels )	-	-	-	Semiconductor laser ( ˃ 30,000 hours )	-	-	-	220 V ± 10 %, 50 Hz ± 2 Hz	215 × 255 × 110 mm	2.6 Kg
LPPC-A11	0.1 CFM ( 2.83 L/min )	0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0 µm, 10.0 µm	-	1 min to 10 min ( 10 levels )	-	-	-	Semiconductor laser ( ˃ 30,000 hours )	-	-	-	15 W	215 × 255 × 110 mm	2.6 Kg
LPPC-A20	0.1 CFM ( 2.83 L/min )	-	-	1 min to 10 min ( 10 levels )	-	-	-	Semiconductor laser ( ˃ 30,000 hours )	-	-	-	12 W	235 × 300 × 115 mm	3.3 Kg
LPPC-A21	2.83 L/min	0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0 µm, 10.0 µm	-	1 second to 99 minutes	-	-	-	Semiconductor laser ( ˃ 30,000 hours )	-	-	-	7.5 W	-	-
LPPC-B10	1.0 CFM ( 2.83 L/min )	0.3 µm, 0.5 µm, 0.7 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm	-	1 sec to 5999 sec ( 5 L to 3000 L )	-	-	-	Semiconductor laser ( ˃ 30,000 hours )	-	-	-	145 W	220 × 285 × 260 mm	8.5 Kg
LPPC-B11	50 L/min	0.3 µm, 0.5 µm, 0.7 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm	-	1 sec to 5999 sec ( 5 L to 3000 L )	-	-	-	Laser diode	-	-	-	220 V ± 10 %, 50 Hz ± 2 Hz	220 × 285 × 260 mm	9 Kg
LPPC-B12	100 L/min	0.3 µm, 0.5 µm, 0.7 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm	-	1 sec to 5999 sec ( 5 L to 3000 L )	-	-	-	Semiconductor laser ( ˃ 30,000 hours )	-	-	-	220 V ± 10 %, 50 Hz ± 2 Hz	223 × 348 × 250 mm	7.1 Kg
