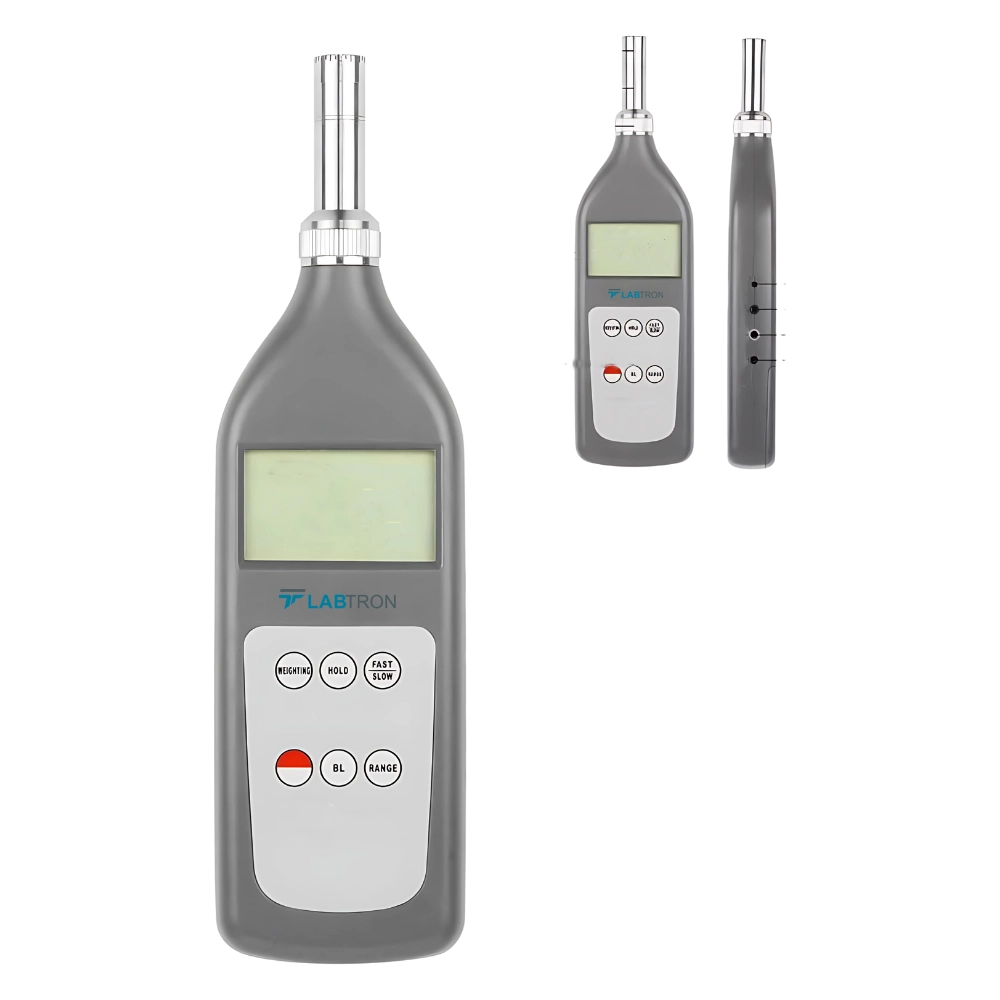

Accurate Sound Level Meter LSDM-A10 is a universal sound level meter that measures the exponential time weighted sound level. It has Φ 12.7 mm (1/2) test condenser microphone and ranges from 25 dB to 130dB (A) with control range manual, three gears, linear range > 60 dB. Designed with Large screen dynamic LCD, instantaneous sound level, with analog am meter display. Digital detection technology is used to replace some traditional sound level meter, stability and reliability are greatly improved.
Request QuoteMicrophone | Φ 12.7 mm (1/2) test condenser microphone |
Frequency weighting | A, C, and Lin (Linear) |
Range | 25 dB to 130dB (A) |
Range control | Manual, three gears, linear range > 60 dB |
Testing Range | 30 dB to 90 dB (dynamic scale display 10 to 100) 50 dB to 110 dB (dynamic scale display 30 to 120) 70 dB to 130 dB (dynamic scale display 50 to 140) |
Accuracy | In accordance with IEC61672 standard, class 2 |
Time Weighting | Fast (F), Slow (S) |
Display | Large screen dynamic LCD, instantaneous sound level, with analogam meter display. |
Calibration | Use class 1 sound level calibrator |
Temperature | -10 to 50°C |
Dimensions | 227 × 63 × 26 mm |
External Power | 6 V |
Power Supply | 4 x 1.5 V AAA Size (UM-4) Battery |
Weight | 185 g (Not Including Batteries) |
Accurate Sound Level Meter is used to test the sound level of environment, machinery, vehicle, ship and other noise also used for industrial environmental protection, construction, health care, teaching and research department.
Accessories no. | Name |
---|---|
1 | Main Unit |
2 | Windscreen |
3 | Carrying Case (B04) |
4 | Operation Manual |
Available Range :
Microphone : Φ 12.7 mm (1/2) test condenser microphone Standards : ANSI S1.40 CLASS2, IEC942 Standards : IEC 651.2, ANSI 1.4.2Related Models :
Model | Microphone | Frequency weighting | Range | Range control | Testing Range | Accuracy | Time Weighting | Display | Calibration | Temperature | Dimensions | External Power | Power Supply | Weight |
LSDM-A10 | Φ 12.7 mm (1/2) test condenser microphone | A, C, and Lin (Linear) | 25 dB to 130dB (A) | Manual, three gears, linear range > 60 dB | 30 dB to 90 dB (dynamic scale display 10 to 100) 50 dB to 110 dB (dynamic scale display 30 to 120) 70 dB to 130 dB (dynamic scale display 50 to 140) | In accordance with IEC61672 standard, class 2 | Fast (F), Slow (S) | Large screen dynamic LCD, instantaneous sound level, with analogam meter display. | Use class 1 sound level calibrator | -10 to 50°C | 227 × 63 × 26 mm | 6 V | 4 x 1.5 V AAA Size (UM-4) Battery | 185 g (Not Including Batteries) |
LSDC-A10 | - | - | - | - | - | 0.3 dB | - | - | - | - | - | - | 1 × 9 V 6F22 Battery | 275 g (Including Battery |
LSDM-A11 | 1/2 Inch Electret Condenser Type | - | - | - | - | 1 dB | Fast (125 ms) / Slow (1 Second) | - | 94 dB at 1k Hz (sinusoidal) | - | 236 × 63 × 26 mm | - | 4 × 1.5 V AAA Size (UM-4) Battery | 170 g |
