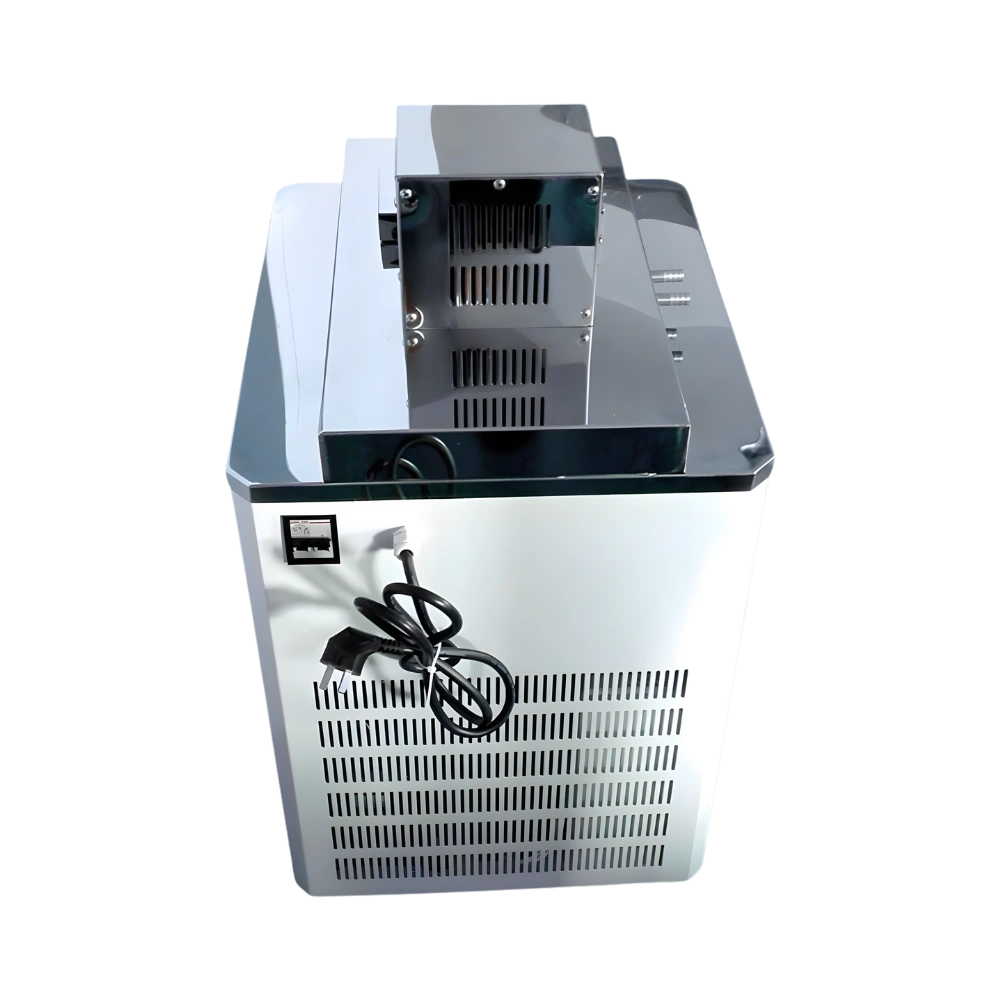

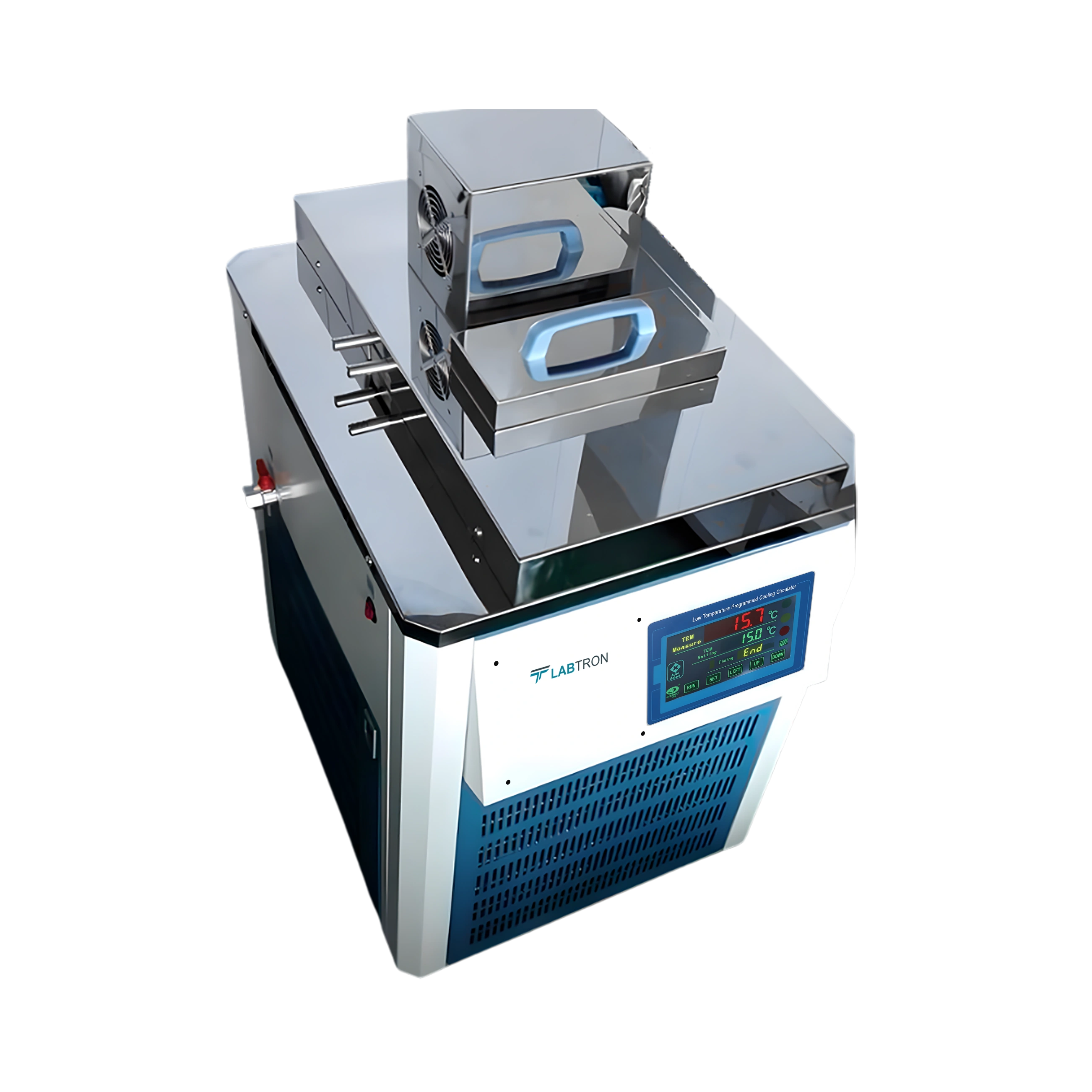

Rapid Low Temperature Circulating Bath LRTB-A20 is a microcomputer controlled 5 L bath with refrigeration system and a temperature range of - 40 °C to 200 °C. Equipped with dual red and green LED windows with upper window measuring red value and lower measuring green value. Features internal and external cycles with external cycles discharging thermostatic liquid outside the bath raising the temperature of the external vessel.
Request Quote| Volume | 5 L |
| Temperature range | - 40 °C to 200 °C |
| Refrigerating capacity | 1322 W |
| Pump flow | 20 L / min |
| Temperature stability | ± 0.1 °C |
| Head of delivery | 10 m |
| Temperature control tier number | 32 |
| Heating power | 800 W |
Related Models :
Rapid Low Temperature Circulating Bath LRTB-A10
Rapid Low Temperature Circulating Bath LRTB-A11
Rapid Low Temperature Circulating Bath LRTB-A12
Rapid Low Temperature Circulating Bath LRTB-A30
Rapid Low Temperature Circulating Bath LRTB-A31
Rapid Low Temperature Circulating Bath LRTB-A32
Rapid Low Temperature Circulating Bath LRTB-A33
Rapid Low Temperature Circulating Bath LRTB-A40
Rapid Low Temperature Circulating Bath LRTB-A50
Rapid Low Temperature Circulating Bath LRTB-A51
Rapid Low Temperature Circulating Bath LRTB-A52
Rapid Low Temperature Circulating Bath LRTB-A53
Rapid Low Temperature Circulating Bath LRTB-A60
Rapid Low Temperature Circulating Bath LRTB-A70
Rapid Low Temperature Circulating Bath LRTB-A71
Rapid Low Temperature Circulating Bath LRTB-A72
Rapid Low Temperature Circulating Bath LRTB-A73
Rapid Low Temperature Circulating Bath LRTB-B10
| Model | Volume | Temperature range | Refrigerating capacity | Pump flow | Temperature stability | Head of delivery | Temperature control tier number | Heating power |
| LRTB-A10 | 3 L | - 5 °C | 500 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A11 | 3 L | - 10 °C | 673 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A12 | 3 L | - 20 °C | 782 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A20 | 5 L | - 40 °C to 200 °C | 1322 W | 20 L / min | ± 0.1 °C | 10 m | 32 | 800 W |
| LRTB-A30 | 7 L | - 5 °C | 1122 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A31 | 7 L | - 10 °C | 1365 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A32 | 7 L | - 20 °C | 1538 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A33 | 7 L | - 40 °C | 2052 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A40 | 7 L | - 40 °C to 200 °C | 2329 W | 20 L / min | ± 0.1 °C | 10 m | 32 | 1200 W |
| LRTB-A50 | 10 L | - 5 °C | 2250 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A51 | 10 L | - 10 °C | 2458W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A52 | 10 L | - 20 °C | 2651 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A53 | 10 L | - 40 °C | 2847 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A60 | 10 L | - 40 °C to 200 °C | 3610 W | 20 L / min | ± 0.1 °C | 10 m | 32 | 2500 W |
| LRTB-A70 | 20 L | - 10 °C | 3960 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A71 | 20 L | - 20 °C | 5008 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A72 | 20 L | - 40 °C | 7939 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-A73 | 30 L | - 40 °C | 11808 W | 20 L / min | ± 0.5 °C | 10 m | - | - |
| LRTB-B10 | 13 L | - | - | - | - | - | - | - |
