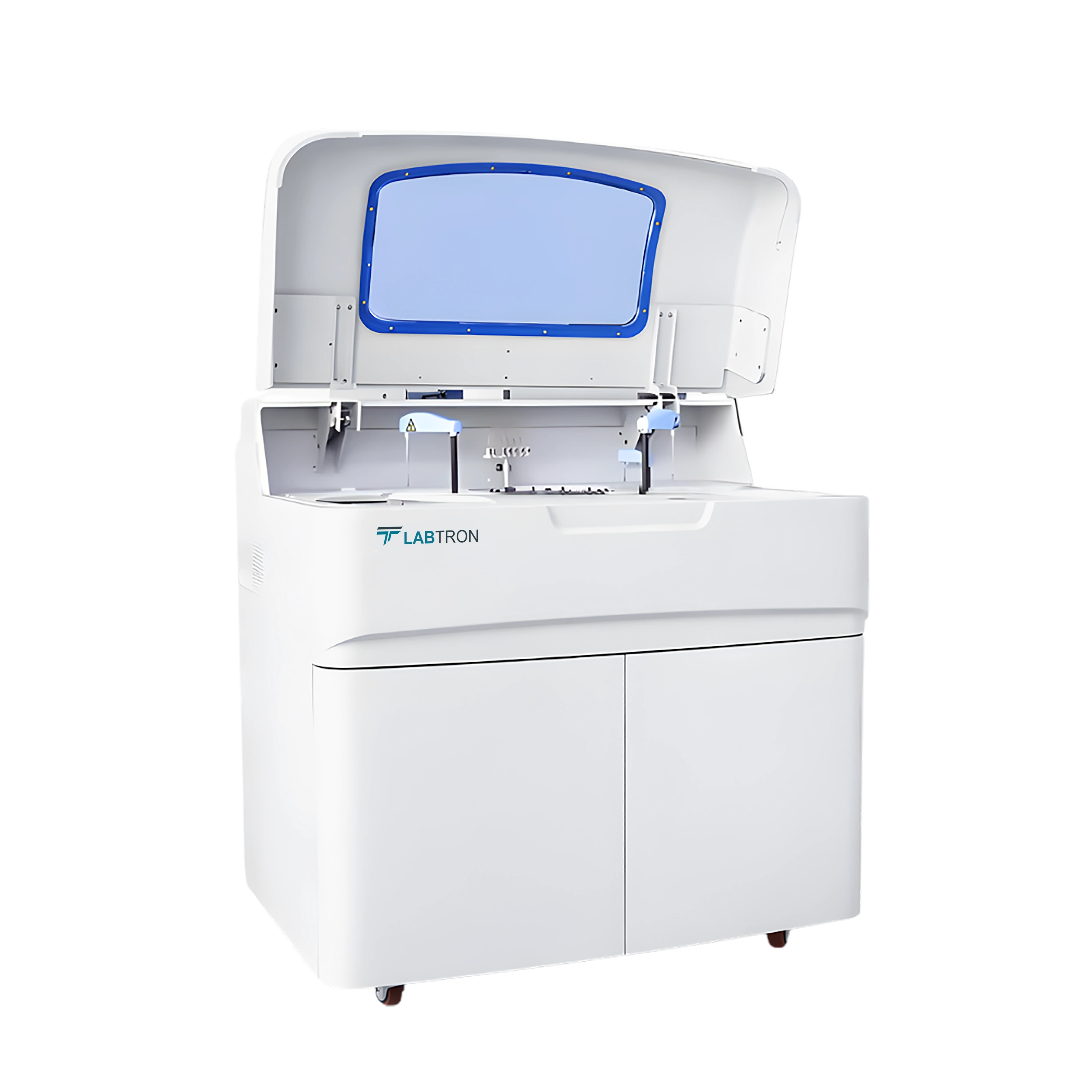

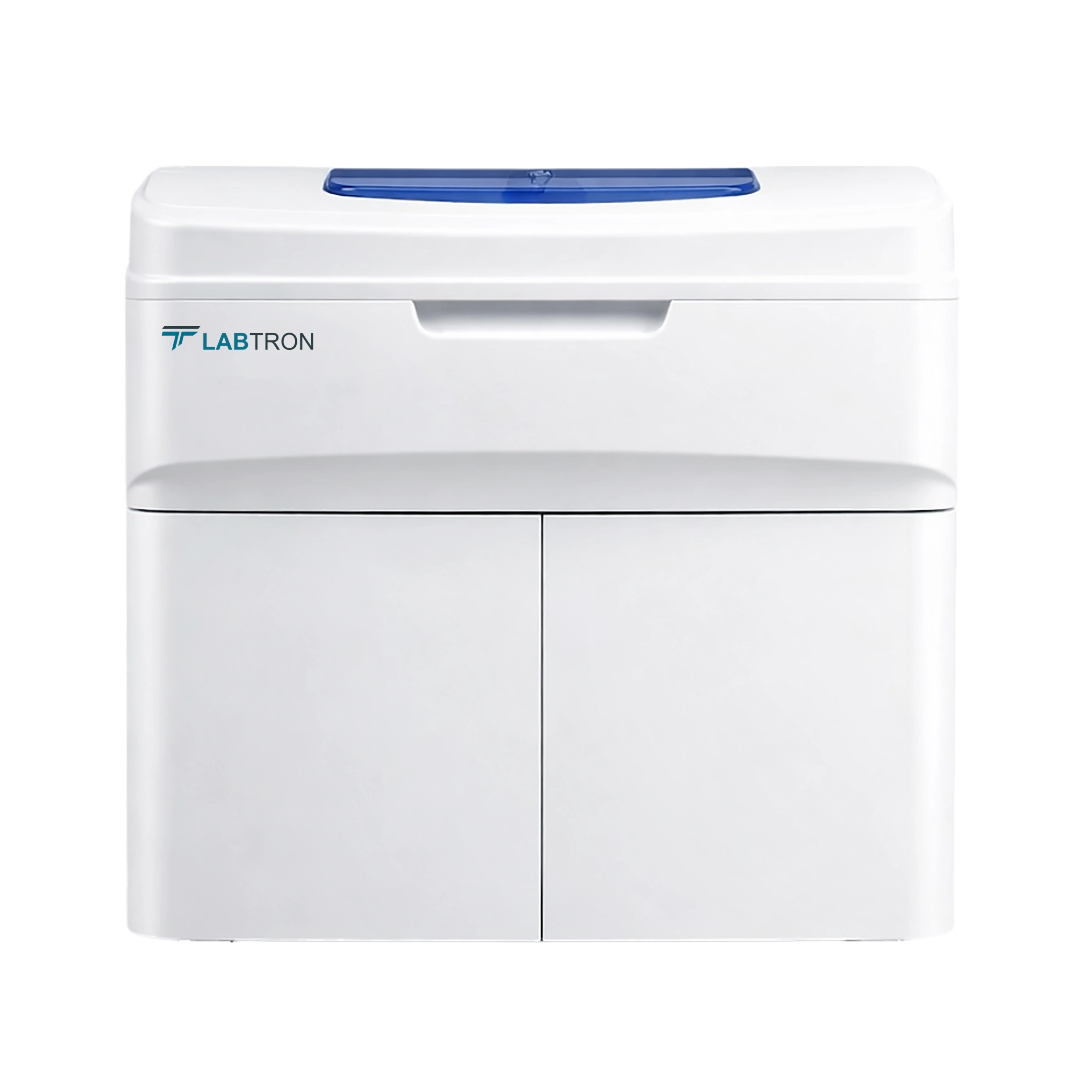

Auto Chemistry Analyzer LACA-A11 is a bench top, fully automated chemistry analyzer with a throughput of 600 tests per hour which is designed to meet the requirements of a wide range of customers with flexible analyzer enabling easy addition of new methods. It is possible to program and store almost unlimited number of protocols, arranged on a panel drawn up the user according to the needs. The user-friendly interface provides a long life platform for analytical excellence. This system includes reagents, controls and calibrators where execution is pure random access with the possibility to choose the batch mode.
Request Quote| Throughput | 600 tests/hour |
| Sample Volume | 2 to 70 µl |
| Reagent Volume | 20 to 350 µl |
| Sample Positions | 90 sample positions |
| Reagent Positions | 180 refrigerated reagent positions |
| Wavelength | 340,405,450,510,546,578,630,700nm |
| Absorbance | 0~3.0 Abs |
| Humidity | 30 to 80% |
| Washing | Automatic cuvettes washing |
| Probe Washing | Automatic washing interior and exterior |
| Reagent Cooling | Refrigerated tray with independent switch |
| Cuvettes | 120 reusable cuvettes, optical length 6mm |
| Mixed Probe | Independent stirring |
| Stat Function | Yes |
| Light Source | 12V/30W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry |
| Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 |
| Quality Control | Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) |
| Software | Windows 7/8/10, 32 or 64bit |
| LIS System | Bi-direction, support HL7 protocol |
| Interface | LAN port access |
| Printer | External, multiple reporting mode available |
| Temperature | 10 to 30°C |
| Temperature Control | 37±0.1°C, real time monitor |
| Water Consumption | Deionized water: 15L/H |
| Power Supply | AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W |
| External Dimension (W×D×H) | 1167×780×1016 mm |
| Package Dimension (W×D×H) | 1348×928×1399 mm |
| Net Weight | 216 kg |
| Gross Weight | 290 kg |
This device is used in many Biology and Histopathology Laboratories to extract the serum, plasma, urine or any other body fluid, Research institutes etc.
| Model | Throughput | Sample Volume | Reagent Volume | Sample Positions | Reagent Positions | Wavelength | Absorbance | Humidity | Washing | Probe Washing | Reagent Cooling | Cuvettes | Mixed Probe | Stat Function | Light Source | Spectrophotometry | Calibration | Quality Control | Software | LIS System | Interface | Printer | Temperature | Temperature Control | Water Consumption | Power Supply | External Dimension (W×D×H) | Package Dimension (W×D×H) | Net Weight | Gross Weight |
| LACA-A10 | 400 tests/hour | 2 to 70 µl | 20 to 350 µl | 60/90 sample positions | 45 reagent positions | 340,405,450,510,546,578,630,700nm | 0~3.0 Abs | 30 to 80% | Automatic cuvettes washing | Automatic washing interior and exterior | Refrigerated tray with independent switch | 120 reusable cuvettes, optical length 6mm | Independent stirring | Yes | 12V/30W halogen lamp | Post-spectral spectrophotometry | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 | Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) | Windows 7/8/10, 32 or 64bit | Bi-direction, support HL7 protocol | LAN port access | External, multiple reporting mode available | 10 to 30°C | 37±0.1°C, real time monitor | Deionized water: 12L/H | AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W | 1167×780×1016 mm | 1348×928×1399 mm | 193 kg | 267 kg |
| LACA-A11 | 600 tests/hour | 2 to 70 µl | 20 to 350 µl | 90 sample positions | 180 refrigerated reagent positions | 340,405,450,510,546,578,630,700nm | 0~3.0 Abs | 30 to 80% | Automatic cuvettes washing | Automatic washing interior and exterior | Refrigerated tray with independent switch | 120 reusable cuvettes, optical length 6mm | Independent stirring | Yes | 12V/30W halogen lamp | Post-spectral spectrophotometry | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 | Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) | Windows 7/8/10, 32 or 64bit | Bi-direction, support HL7 protocol | LAN port access | External, multiple reporting mode available | 10 to 30°C | 37±0.1°C, real time monitor | Deionized water: 15L/H | AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W | 1167×780×1016 mm | 1348×928×1399 mm | 216 kg | 290 kg |
| LACA-A20 | 200 tests/hour | 2 to 70 µl | 20 to 350 µl | 37 sample positions | 28 reagent positions | - | 0~3.0 Abs | 30 to 80% | Automatic cuvettes washing | Automatic washing interior and exterior | Refrigerated tray with independent switch | 48 reusable cuvettes, optical length 6mm | Independent stirring | Yes | 6V/10W halogen lamp | Post-spectral spectrophotometry | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 | Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) | Windows 7/8/10, 32 or 64bit | Bi-direction, support HL7 protocol | LAN port access | External, multiple reporting mode available | 10 to 30°C | 37±0.1°C, real time monitor | Deionized water: 5 L/H | AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W | 625×425×460 mm | 721×531×855 mm | 36 kg | 55 kg |
| LACA-A21 | 200 tests/hour | 2-70 µl | 20-350 µl | 49 sample positions | 56 reagent positions | 340,405,450,510,546,578,630,700nm | 0~3.0 Abs | 30-80% | Automatic cuvettes washing | Automatic washing interior and exterior | Refrigerated tray with independent switch | 120 reusable cuvettes, optical length 6mm | Independent stirring | Yes | 12V/30W halogen lamp | Post-spectral spectrophotometry | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 | Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) | Windows 7/8/10 LIS system available | Bi-direction, support HL7 protocol | LAN port access | External, multiple reporting mode available | 10 - 30°C | 37±0.1°C, real time monitor | Deionized water: 5 L/H | AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W | 950x612x510 mm | 1118x728x1151 mm | 75 kg | 130 kg |
| LACA-A30 | 800 tests/hour, 1200 tests/hour with ISE | 2 to 70 µl | 20 to 350 µl | 150 sample positions | 180 refrigerated reagent positions | 340 to 800 nm | -0.3~3.3 Abs | 30 to 80% | Automatic cuvettes washing | Automatic washing interior and exterior | Refrigerated tray with independent switch | 160 reusable cuvettes, optical length 6mm | Independent stirring | Yes | 12V/20W halogen lamp/fiber brag | Post-spectral spectrophotometry | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 | Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) | Windows 7/8/10, 32 or 64bit | Bi-direction, support HL7 protocol | LAN port access | External, multiple reporting mode available | 10 to 30°C | 37±0.1°C, real time monitor | Deionized water: 20L/H | AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 1500 W | 1360×791×1157 mm | 1348×928×1399 mm | 286 kg | 390 kg |
| LACA-A40 | 120 tests/hr | - | - | - | - | 340, 405, 450, 510, 546, 578, 630,700 nm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | RS-232 | Internal thermal sensitive printer | - | - | - | - | - | - | - | - |
