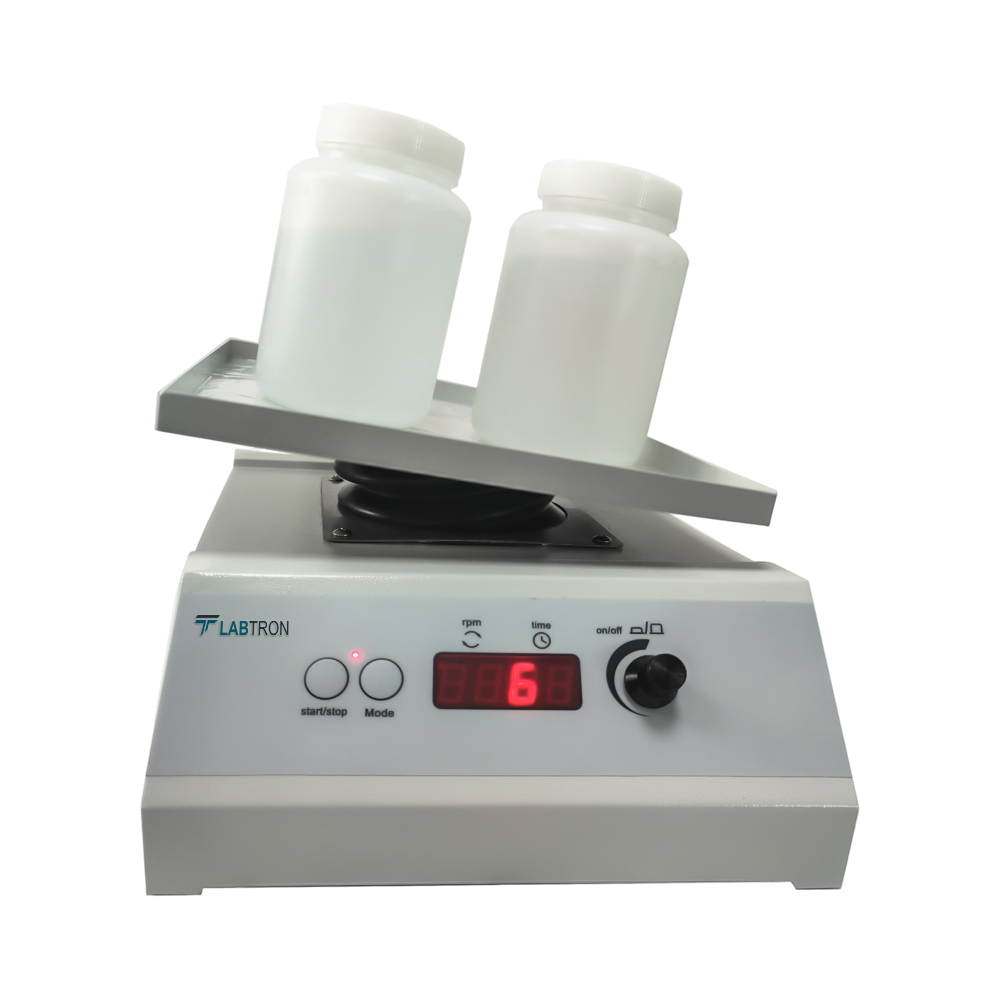

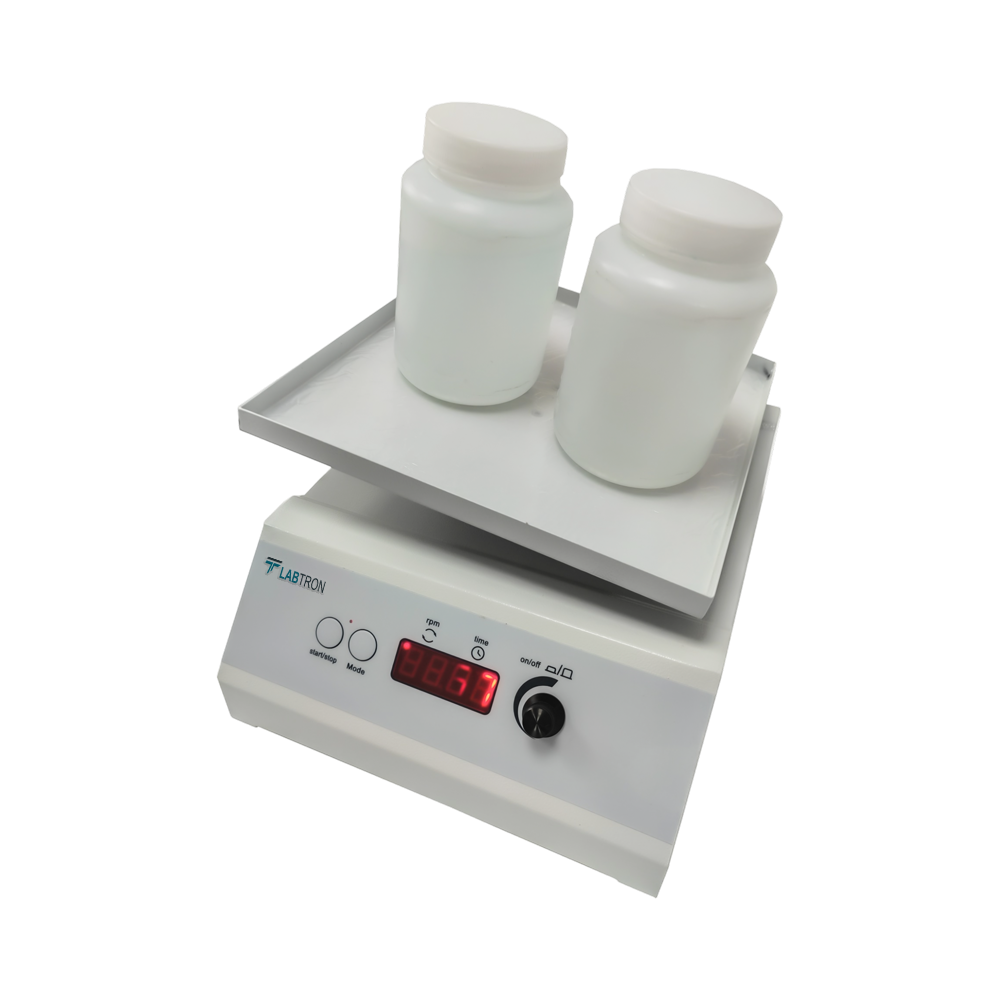

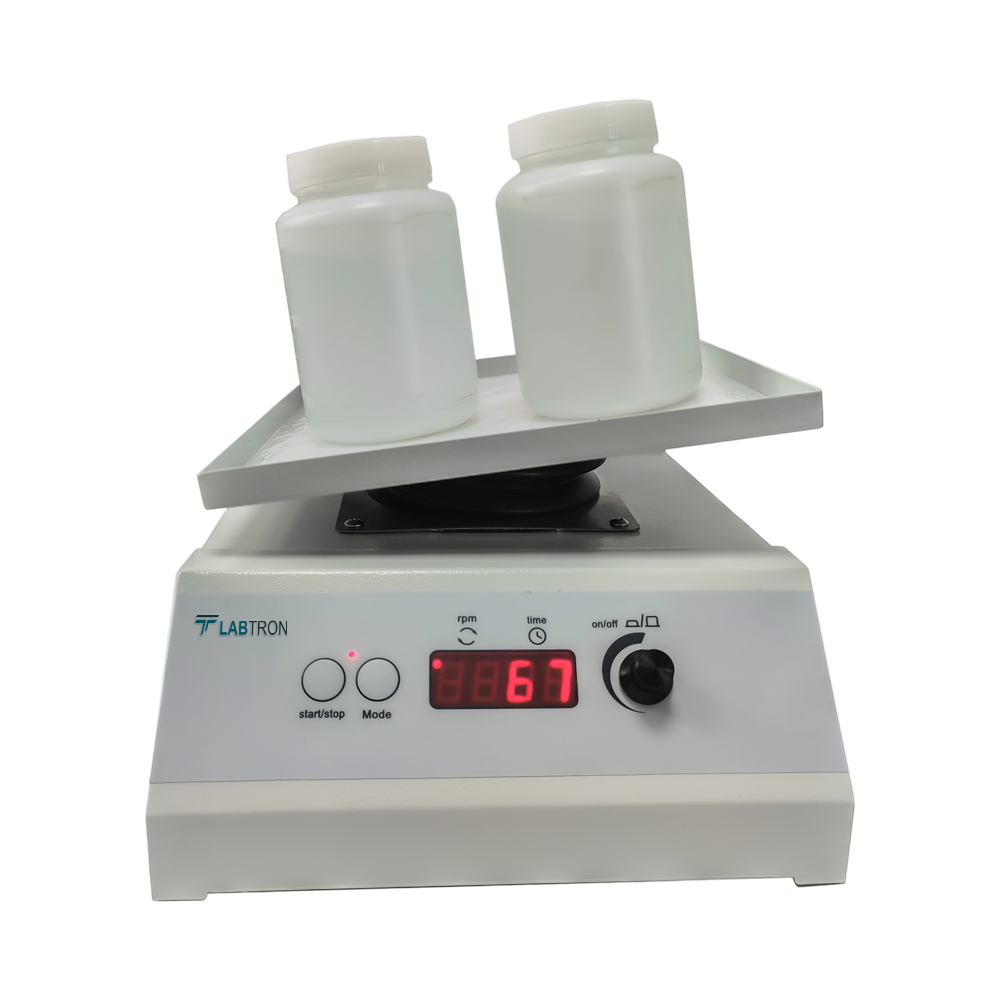

3-D Gyratory Rockers LGR-A30

Name: 3-D Gyratory Rockers LGR-A30
Brand: Labtron
SKU: LGR-A30
Rating: 4.9 (795 reviews)

3-D Gyratory Rockers LGR-A30 utilizes a gentle 3-D gyratory action where the platform moves in a three dimensional motion about the central point for precise results. With a large platform, the rockers can accommodate large vessels such as culture flasks, petri dishes etc. The non-slip matt on the tray prevents the vessels slipping away during agitation. They are suitable for low foaming agitating and are widely used in DNA extractions, staining and de-staining procedures. Due to the compact size they can also be used in conjuction with incubators and chambers.

Request Quote

Maximum Load Capacity	10 kg
Shaking Speed Range	35 - 70 rpm
Platform Dimension	235 x 235 mm
Shaking Motion	3-D Gyratory
Display	Analog
Timer Range	120 min
Tilt Angle	3 - 12°
Speed Increment	10 min integral selection
Temperature Range	4 - 40 °C
Humidity	80 %RH
Operation	Continuous/Timed
Overall Dimension	240 × 300 × 210 mm
Weight	6 kg
Power	50 W
Power Supply	230 V, 60 Hz

Smooth 3D gyratory motion
Tilted adjustable angle between 3º to 12º
Can be used in conjuction with incubators and chambers
Compact space-saving design fits easily in incubator and refrigerator
Speed range 35-70rpm
Adjustable speed control provides gentle to vigorous agitation
Continuous operation
Aluminum-alloyed platform provides strong bearing capability

This 3-D Gyratory Rocker is suitable for rocking and mixing applications in Biotechnology, Biochemistry, Chemistry due to large & variety of platforms.

Download catalog for
3-D Gyratory Rockers LGR-A30 Catalog

Available Range :

3-D Gyratory Rockers LGR-A30 : 10 kg 3-D Gyratory Rockers LGR-A10 : 3 kg 3-D Gyratory Rockers LGR-A20 : 5 kg

Models of 3-D Gyratory Rockers

Labtron 3-D Gyratory Rockers provide advanced rotation with loading capacity of 5 kg to 10 kg for complex and dynamic motion pattern. Their revolving mechanics offers interplay of light and shadow that enhance overall effect. They are equipped with advanced sensors that monitor rotational angles, providing real time feedback. Their motors are high torque and designed for quiet operation, maintaining unobtrusive user experience. Our 3-D Gyratory Rockers is versatile for art installation, public exhibits, architectural design and retail display.
