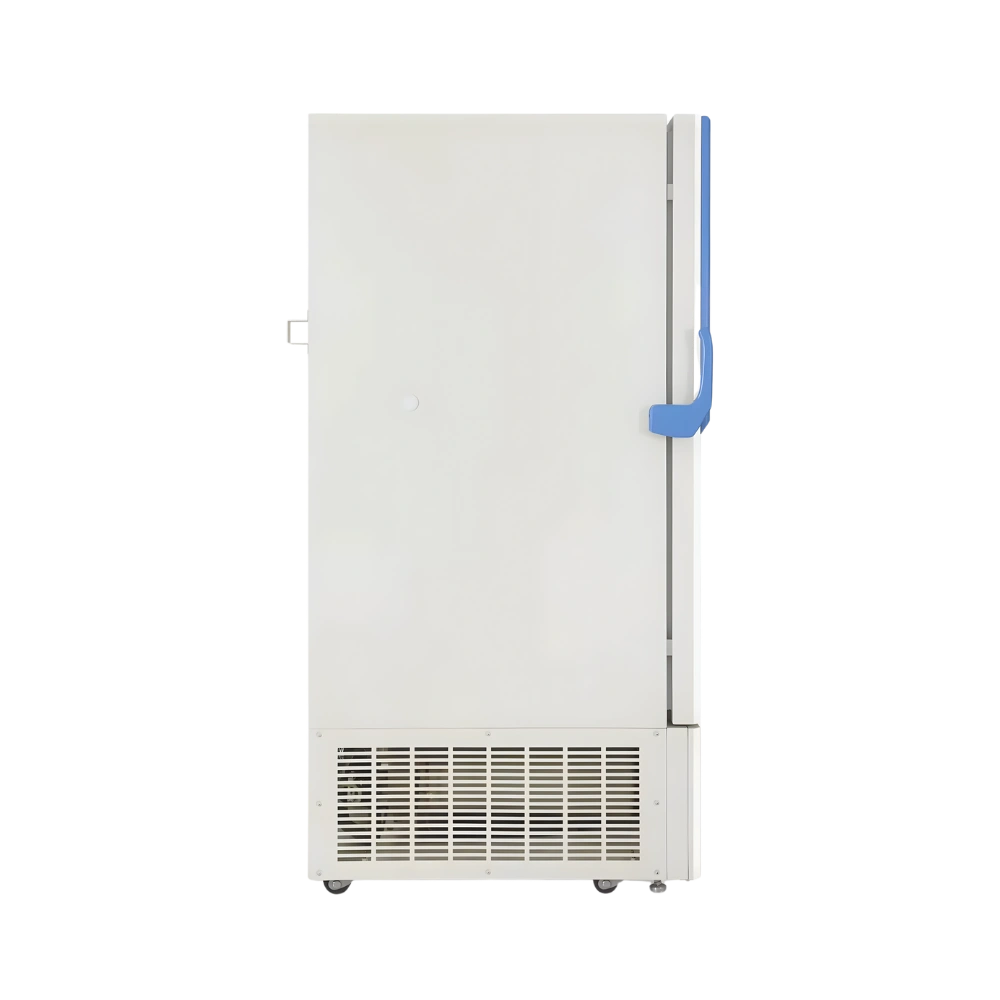

-86 °C Ultra Low Temperature Upright Freezer LUF-C12

Name: -86 °C Ultra Low Temperature Upright Freezer LUF-C12
Brand: Labtron
SKU: LUF-C12
Rating: 5 (906 reviews)

-86 °C Ultra Low Temperature Upright Freezer LUF-C12 is an upright type freezer comes with 678 L capacity and offers temperature range -40 to -86˚C and -86˚C cooling performance. Features with microprocessor controlled system with interior 7 inches LED touch Screen temperature display to show various parameters simultaneously. Designed with direct cooling system and manual defrost mode, equipped with eco- friendly refrigerant Mixture gas, Built-in high-precision microcomputer temperature control system and platinum resistor temperature sensors. It offers high or low temperature alarm, Door open alarm and Keyboard lock, password protection function to prevent arbitrary adjustment of operating parameters.

Request Quote

Cabinet type	Upright
Capacity	678 L
Temperature range	-40 to -86˚C
Ambient temperature	16 to 32˚C
Cooling performance	-86˚C
Refrigerant	Mixture gas
Defrost Mode	Manual
Cooling method	Direct cooling
Controller	Microprocessor
Display	Touch screen
Climate class	N
Insulation thickness	130 mm
Compressor	1 pcs
Alarm system	High and low temperature, high ambient temperature
External material	High quality steel plates with spraying
Inner material	Galvanized steel sheet
Shelves	3 (stainless steel)
Door look with key	Yes
External Lock	Yes
Access Port	3 pcs. Φ 25 mm
Casters	4 +(2 leveling feet)
Data Logging / Interval/ Recording Time	USB/Record every 1 minute / 365 days
Electrical	Power failure, Low battery
System	Sensor error, Main board communication error, Built-in data logger USB failure， Condenser cooling failure, Door ajar, Samples out of date， System failure
Backup Battery	Yes
Rated power	1680 W
Input power	2000 W
Rated current	9.1 A
Power consumption	15 KWh/24h
Power supply	230 ±10% V /50 Hz
Internal dimension	750 × 696 × 1286 mm
External dimension	1090 × 1025 × 1965 mm
Package size	1203 × 1155 × 2171 mm
Net weight	330 kg
Gross weight	382 kg

Adopts 7 inches LED touch screen display control system
Designed with high-precision microcomputer temperature control system and platinum resistor temperature sensors ensure more precise temperature control
Temperature ranges from -40 to -86˚C
EBM fan are powerful, energy-saving and highly efficient
Six sides of the cabinet are made from high-performance vacuum insulation material, improving thermal insulation performance to a large extent
The rotating handle facilitates door opening
Universal wheels easy for movement and fixation
Two-layer heat insulating foamed door with airbag-typed outer seal and the insulation
Forced air circulation system
Highly effective condenser and expansive evaporator to provide quick freezing
Upright type, Exterior and inside body all made from stainless steel
Design with safety door lock, ensure sample storage is more secure
The perfect audible & visual alarm system high/low temperature, sensor failure, door open, and power failure etc

Upright Freezers is used in scientific research, cryogenic test on special materials, blood plasma cryopreservation, low temperature resistance test on biological materials, vaccines, biological products and military products, etc. and Suitable for use in research institutions, the electronic industry, the chemical industry, hospitals, the health & disease prevention system, laboratories in colleges & universities, military enterprises, etc.

Accessories no.	Name
1	Chart recorder
2	CO2 backup system

Download catalog for
-86 °C Ultra Low Temperature Upright Freezer LUF-C12 Catalog

Download manual for
-86 °C Ultra Low Temperature Upright Freezer LUF-C12 Manual

-86 °C Ultra Low Temperature Upright Freezer LUF-C12- Temperature range -40 to -86˚C Refrigerant Mixture gas

-86 °C Ultra Low Temperature Upright Freezer LUF-C12- dopts 7 inches LED touch screen display control system

Models of -86℃ Ultra-Low Temperature Upright Freezers

Labtron’s -86℃ ultra-low temperature upright freezers offer a temperature range from -40℃ to -86℃. They are available in various sizes with adjustable shelving to meet different storage needs. These upright freezers are equipped with advanced cooling technology, high-performance compressors, and excellent insulation. Our -86℃ ultra-low temperature upright freezers provide reliable long-term storage for a variety of biological samples.
