What are the key features of the -86°C Under Counter ULT Freezer LUUF-B10?

The -86°C Under Counter ULT Freezer LUUF-B10 is designed with a space-saving structure, ideal for limited lab areas. It features a large digital display with intuitive control keys, allowing easy monitoring and precise system navigation. The freezer includes built-in alarms for power failure, sensor error, and high ambient temperature to ensure continuous sample protection. Its durable construction, secure locking system, and smooth-operating door provide both reliability and ease of use. Additionally, the freezer's low-noise operation and user-friendly interface contribute to a quiet and efficient working environment.

Does the -86°C Under Counter ULT Freezer LUUF-B10 offer long-term durability?

Yes, -86°C Under Counter ULT Freezer LUUF-B10 is built for long-lasting use in demanding environments. It features a rugged exterior made from galvanized steel with a powder-coated finish for enhanced resistance to corrosion and wear. The interior is also designed using high-quality materials to support durability and easy maintenance. Its insulation system includes high-density polyurethane foam for improved thermal stability. With proper maintenance, this freezer ensures consistent performance over many years.

What safety features are included in the -86°C Under Counter ULT Freezer LUUF-B10?

The -86°C Under Counter ULT Freezer LUUF-B10 is equipped with multiple safety measures to protect both the contents and the freezer. It includes audible and visual alarms for high/low temperature, power failure, and sensor error. The secure door locking system helps prevent unauthorized access to stored samples. An integrated pressure balance port ensures easy door opening without compromising the temperature. These safety features work together to ensure reliable and secure storage.

Does -86°C Under Counter ULT Freezer LUUF-B10 provide any protection for battery performance during power interruptions?

Yes, -86°C Under Counter ULT Freezer LUUF-B10 features a backup battery system that ensures continuous operation of the display and alarm functions during power outages. This allows users to monitor the temperature status and receive alerts even when the main power supply is disrupted. It helps safeguard the integrity of stored materials until power is restored. The battery backup enhances reliability in critical storage applications. Regular checks and timely replacement of the battery are recommended for optimal performance.

How does -86°C Under Counter ULT Freezer LUUF-B10 ensure consistent sample preservation in high-demand environments?

The -86°C Under Counter ULT Freezer LUUF-B10 is designed to maintain stable internal temperatures even under frequent access or ambient temperature fluctuations. It utilizes direct cooling technology and efficient insulation to prevent temperature drift. The freezer’s microprocessor controller allows for accurate temperature settings and monitoring. Its compact yet robust design ensures consistent performance in clinical, research, and pharmaceutical settings. This makes it highly suitable for continuous, high-reliability storage of sensitive biological samples.

-86°C Under Counter ULT Freezer LUUF-B10

Name: -86°C Under Counter ULT Freezer LUUF-B10
Brand: Labtron
SKU: LUUF-B10
Rating: 4.8 (841 reviews)

-86°C Under Counter ULT Freezer LUUF-B10 provides consistent temperature control from -40°C to -86°C. It offers a 90 L capacity designed to accommodate sensitive biological and pharmaceutical materials under ultra-low temperatures. The freezer includes multiple alarm systems, stainless steel interior, and robust construction for long-term durability. It's designed with a space-saving upright structure, rapid cooling performance, and easy-to-clean surfaces for user convenience. Our freezer is suitable for storing vaccines, biological samples, enzymes, and other temperature-sensitive materials.

-86°C Under Counter ULT Freezer LUUF-B10_overview

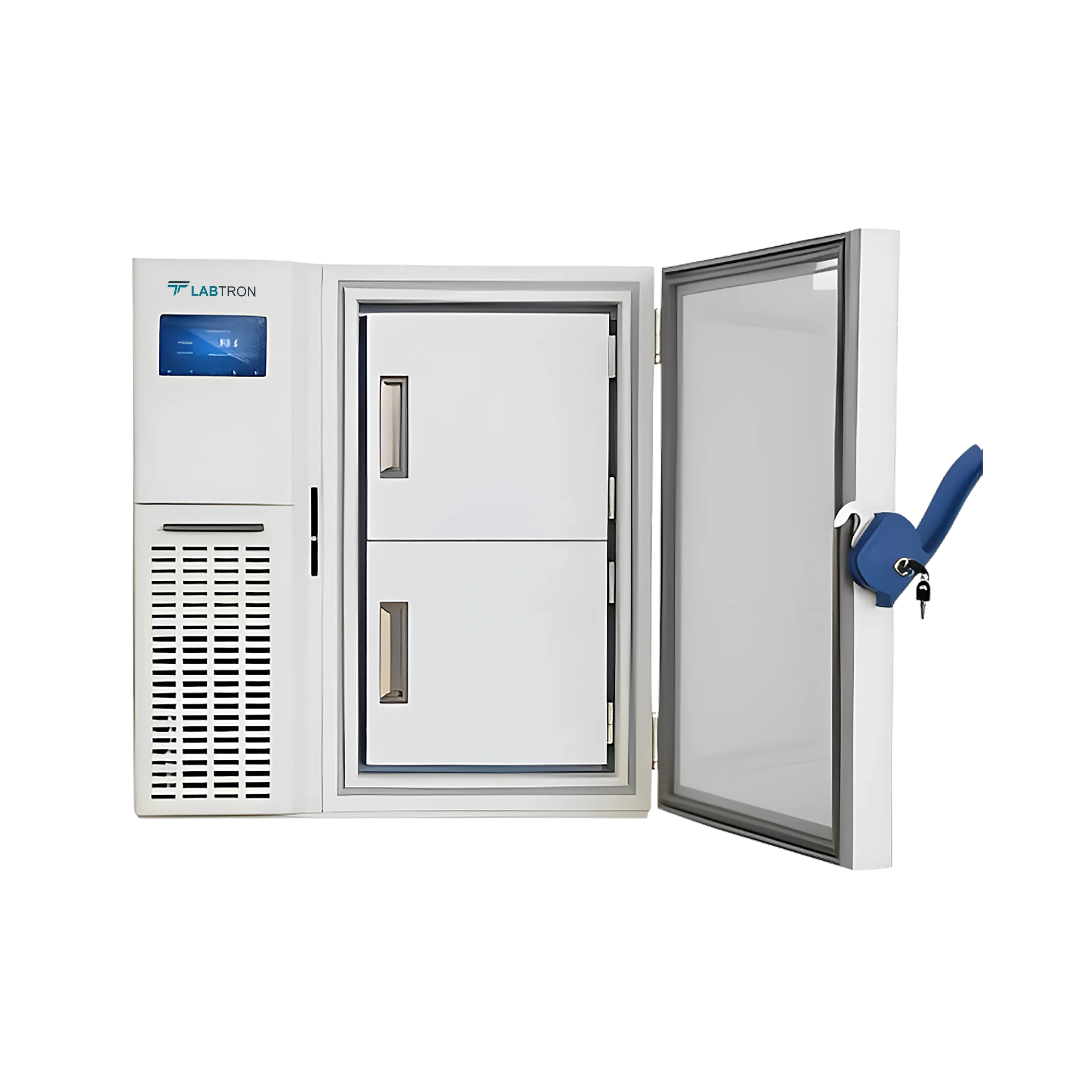

-86°C Under Counter ULT Freezer LUUF-B10_frontview

Request Quote

Capacity	90 L
Temperature Range	-40℃ to -86℃
Temperature Accuracy	-80℃
Cabinet Type	Undercounter
Climate Class	N
Display	7-inch Touch Screen
Data Interface	USB Port
Defrost Type	Manual
Cooling System	Direct cooling
Refrigerant Type	HC mixed
Exterior Material	Galvanized steel powder coating
Interior Material	Galvanized steel powder coating
Display Panel	Large digital display & adjusting keys
Temperature Deviation	Yes
Hot Condenser Alarm	Yes
Power Failure Alarm	Yes
Sensor Alarm	Yes
Low Battery Alarm	Yes
High Ambient Alarm	Yes
Alarm Mode	Sound and light alarm, remote alarm terminal
Energy Consumption	5.5 KW.H/24H
Power	460 W
Test Hole	Yes
Door Locking Device	Yes
Handle	Yes
Pressure Balance Hole	Yes
Insulation Material	PUF + VIP
Power Supply	220V / 50Hz
Exterior Dimensions	795 × 680 × 815 mm
Packing Dimensions	850 × 740 × 953 mm
Net Weight	92 Kg
Gross Weight	107 Kg
Interior Dimensions	320 × 450 × 610 mm

Rapid cooling
Energy-efficient operation
Low Power Consumption
Heavy-Duty Casters
Data Logging Capability

Our -86°C Under Counter ULT Freezer LUUF-B10 is specially designed for the long-term storage of biological products such as germs, including viruses, erythrocytes, and leukocytes, also used in blood banks, hospitals, epidemic prevention services, research institutes, and laboratories. It maintains reliable ultra-low temperatures for applications in electronic and chemical plants, biological engineering institutes, and marine fishery companies.

Download catalog for
-86°C Under Counter ULT Freezer LUUF-B10 Catalog

Available Range :

-86⁰C Under Counter ULT Freezer LUUF-A10 : 108 L / 3.81 Cu. Ft -86°C Under Counter ULT Freezer LUUF-B10 : 90 L

Models of -86⁰C Under Counter ULT Freezer

Labtron -86⁰C Under Counter ULT Freezer safeguards temperature-sensitive materials with ultra-stable cooling performance. They include advanced self-cascade refrigeration, which ensures stable ultra-low temperatures. Their microprocessor control system with LED display enables precise regulation and real-time monitoring. The smart alarm system actively detects and reports any deviations, helping prevent damage caused by environmental or mechanical faults. Our Under Counter ULT Freezer offers precise temperature control, ultra-low storage conditions, advanced alarm protection, energy-efficient performance, and long-term preservation reliability.

-86⁰C Under Counter ULT Freezer LUUF-A10

Capacity : 108 L / 3.81 Cu. Ft
Temperature Range : -40°C to -86°C
Temperature Accuracy : 0.1°C
Cabinet Type : Upright

-86°C Under Counter ULT Freezer LUUF-B10 FAQ's

The -86°C Under Counter ULT Freezer LUUF-B10 is designed with a space-saving structure, ideal for limited lab areas. It features a large digital display with intuitive control keys, allowing easy monitoring and precise system navigation. The freezer includes built-in alarms for power failure, sensor error, and high ambient temperature to ensure continuous sample protection. Its durable construction, secure locking system, and smooth-operating door provide both reliability and ease of use. Additionally, the freezer's low-noise operation and user-friendly interface contribute to a quiet and efficient working environment.
Yes, -86°C Under Counter ULT Freezer LUUF-B10 is built for long-lasting use in demanding environments. It features a rugged exterior made from galvanized steel with a powder-coated finish for enhanced resistance to corrosion and wear. The interior is also designed using high-quality materials to support durability and easy maintenance. Its insulation system includes high-density polyurethane foam for improved thermal stability. With proper maintenance, this freezer ensures consistent performance over many years.
The -86°C Under Counter ULT Freezer LUUF-B10 is equipped with multiple safety measures to protect both the contents and the freezer. It includes audible and visual alarms for high/low temperature, power failure, and sensor error. The secure door locking system helps prevent unauthorized access to stored samples. An integrated pressure balance port ensures easy door opening without compromising the temperature. These safety features work together to ensure reliable and secure storage.
Yes, -86°C Under Counter ULT Freezer LUUF-B10 features a backup battery system that ensures continuous operation of the display and alarm functions during power outages. This allows users to monitor the temperature status and receive alerts even when the main power supply is disrupted. It helps safeguard the integrity of stored materials until power is restored. The battery backup enhances reliability in critical storage applications. Regular checks and timely replacement of the battery are recommended for optimal performance.
The -86°C Under Counter ULT Freezer LUUF-B10 is designed to maintain stable internal temperatures even under frequent access or ambient temperature fluctuations. It utilizes direct cooling technology and efficient insulation to prevent temperature drift. The freezer’s microprocessor controller allows for accurate temperature settings and monitoring. Its compact yet robust design ensures consistent performance in clinical, research, and pharmaceutical settings. This makes it highly suitable for continuous, high-reliability storage of sensitive biological samples.
