| Pressure Ratio | 4:1 |
| MAX Outlet Pressure | 32 bar |
| Air Drive Connection | PT3/8 |
| Inlet A Connection | NPT1 |
| Outlet B Connection | NPT1/2 |
| MAX Flow | 15.07 L/min |
| Power Supply | Compressed air (0.5 to 0.6 Mpa, 0.6 M³/min) |
| Power Consumption | 0.6 M³/min |
| Product Dimension | 285 × 86 × 129 mm |
| Packaging Dimension | 420 × 250 × 330 mm |
| Weight | 4.5 kg |
Strong and durable construction
Corrosion-resistant aluminum body
Standard bottom inlet design
Operates on compressed air supply
Compact and lightweight structure
Easy to install and use
Explosion-proof for safe operation

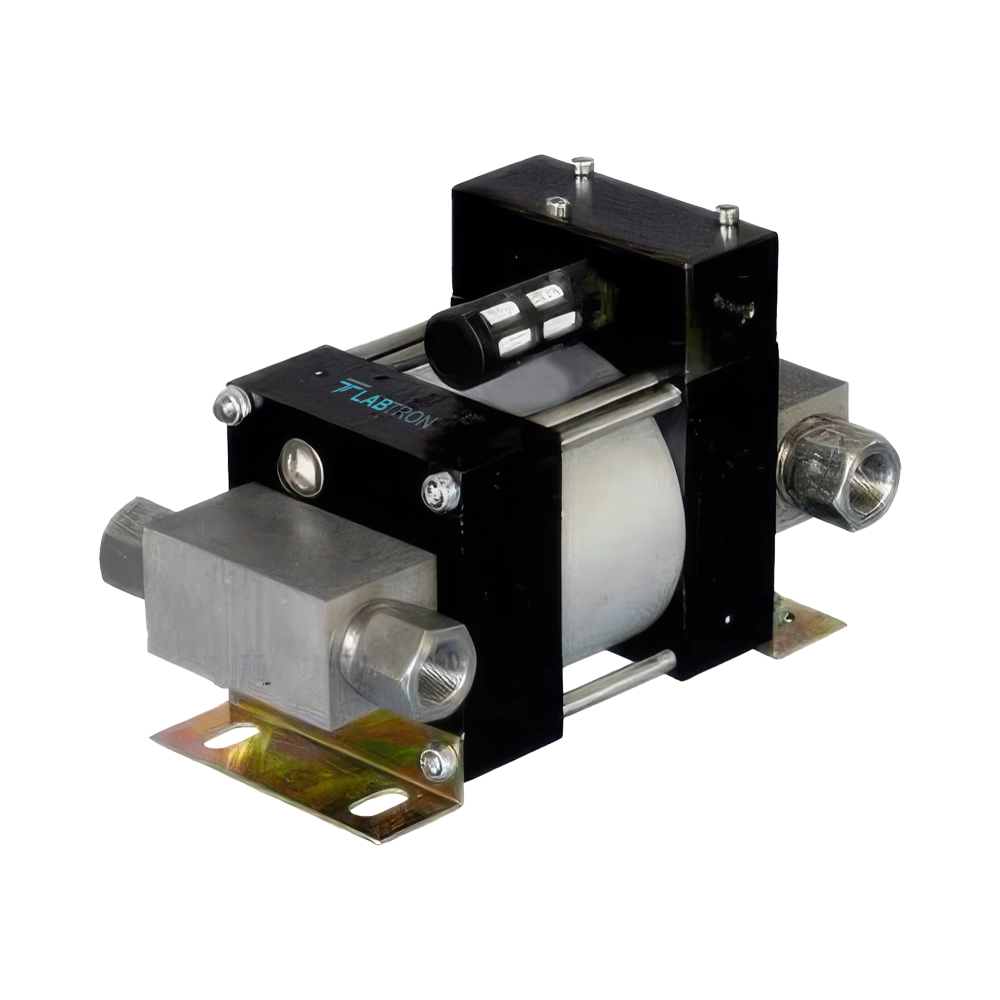

Our Air Driven Liquid Pump LADP-A10 is ideal for high-pressure liquid transfer in industrial, chemical, and hydraulic applications. It is widely used in hydraulic systems, pressure testing, chemical injection, and fluid pressurization without electrical power.
Accessory Name | Quantity |
Seal 1 (40×50×6mm) | 4 Pcs |
Seal 2 (40×50×6mm) | 4 Pcs |
O-Ring 1 (d73×3.55) | 4 Pcs |
O-Ring 2 (d76×2) | 8 Pcs |
O-Ring 3 (d2.5×1.8, 70°) | 4 Pcs |
O-Ring 4 (d14×2.65) | 4 Pcs |
O-Ring 5 (d8×1.8) | 10 Pcs |
O-Ring 6 (d37.5×2.65) | 4 Pcs |
O-Ring 7 (d4.5×1.8) | 8 Pcs |
O-Ring 8 (d33.8×3.1) | 8 Pcs |
O-Ring 9 (d2.5×1.8, 90°) | 12 Pcs |
O-Ring 10 (d8.75×1.8) | 10 Pcs |
O-Ring 11 (d12.5×1.8) | 4 Pcs |
O-Ring 12 (d18×1.8) | 8 Pcs |
O-Ring 13 (d10×1.8) | 4 Pcs |
O-Ring 14 (d4×1.8) | 8 Pcs |
O-Ring 15 (d15×1.8) | 4 Pcs |
O-Ring 16 (d17×1.8, 90°) | 10 Pcs |
Steel Ball 1 (⌀25.4, 440C) | 10 Pcs |
Steel Ball 2 (⌀12.7, 440C) | 8 Pcs |
Stainless Steel Spring 1 (⌀0.4×8.6×20×9) | 8 Pcs |
Stainless Steel Spring 2 (D6×CS0.7×H17-9.5) | 8 Pcs |
Stainless Steel Spring 3 (1×17×17×4L) | 8 Pcs |
Stainless Steel Spring 4 (⌀0.5×7.5×19×10) | 8 Pcs |
Seal Gasket (11×17×2) | 8 Pcs |
Spring (⌀1.1×8×24×8.5) | 8 Pcs |
Download catalog for
Air Driven Liquid Pump LADP-A10 Catalog
Download manual for
Air Driven Liquid Pump LADP-A10 Manual
Labtron Air Driven Liquid Pumps are designed for efficient liquid transfer and pressure generation without electrical power. These pumps have durable construction and corrosion-resistant materials for handling various service liquids. Their compact design ensures easy installation, operation, and maintenance in industrial environments. They include high-quality seals for longevity and function safely in hazardous conditions. Our pumps support pressure testing, hydraulic actuation, valve control, and liquefied gas transfer.
