| Gases Detected | PM2.5. PM10, CO₂, CO, VOC, NH₃, H₂S HCHO, SO₂, NO₂, O₃ and more |
| Detection Range and Resolution | PM2.5 & PM10: 0 to 1000 ug/m3, 1ug/m3 CO₂: 0 to 5000 ppm, 0.1 ppm (Customized) CO: 0 to 1000 ppm, 0.1ppm (Customized) TVOC: 0 to 10ppm, 0.1 ppm NH₃: 0 to 100 ppm, 0.1 ppm H₂S: 0 to 100 ppm, 0.1ppm (Customized) HCHO: 0 to 20 ppm, 0.1ppm (Customized) SO₂: 0 to 500 ppb, 1ppb NO₂: 0 to 500 ppb, 1ppb O₃: 0 to 500 ppb, 1ppb |
| Electrochemical Sensor | CO, SO₂, NO₂, H₂S, NH₃, O₃, HCHO |
| IR Sensor | CO₂ |
| Laser Sensor | PM2.5 & PM10 |
| PID Sensor | TVOC |
| Detection Mode | Diffusion |
| Sampling Time | Default 5 minutes (Customizable from 1 minute) |
| Sampling Method | Pumped |
| Cutter | Whirlwind physical cutter |
| Heating | Automatic |
| Calibration | Automatic |
| Sensor Response Time | T₉₀ or 90 seconds |
| Error Alarm | Real time display of fault alarm |
| IP Grade | IP53 |
| Body Material | Cold roll steel |
| Data Output | 4G LTE (Wireless) or RS485 MODBUS (Wired) (Select anyone at same price) |
| Working Environment Temperature | -20 to 50°C |
| Working Environment Humidity | 0 to 100% RH |
| Display Mode | High-definition LED screen |
| Power Consumption | 80 W |
| Power Supply | AC 220 V 50 Hz |
| Dimensions (L × H × W) | 620 × 440 × 160 mm |
| Packaging Dimensions (L × H × W) | 700 × 650 × 500 mm |
| Gross Weight | 27 kg |
Continuous measurement regular intervals
Color-coded air quality indicators (green/yellow/red)
Wall-mounted and tamper-proof installation
Fully wireless data transmission with no external wiring
Built-in LED screen showing real-time readings

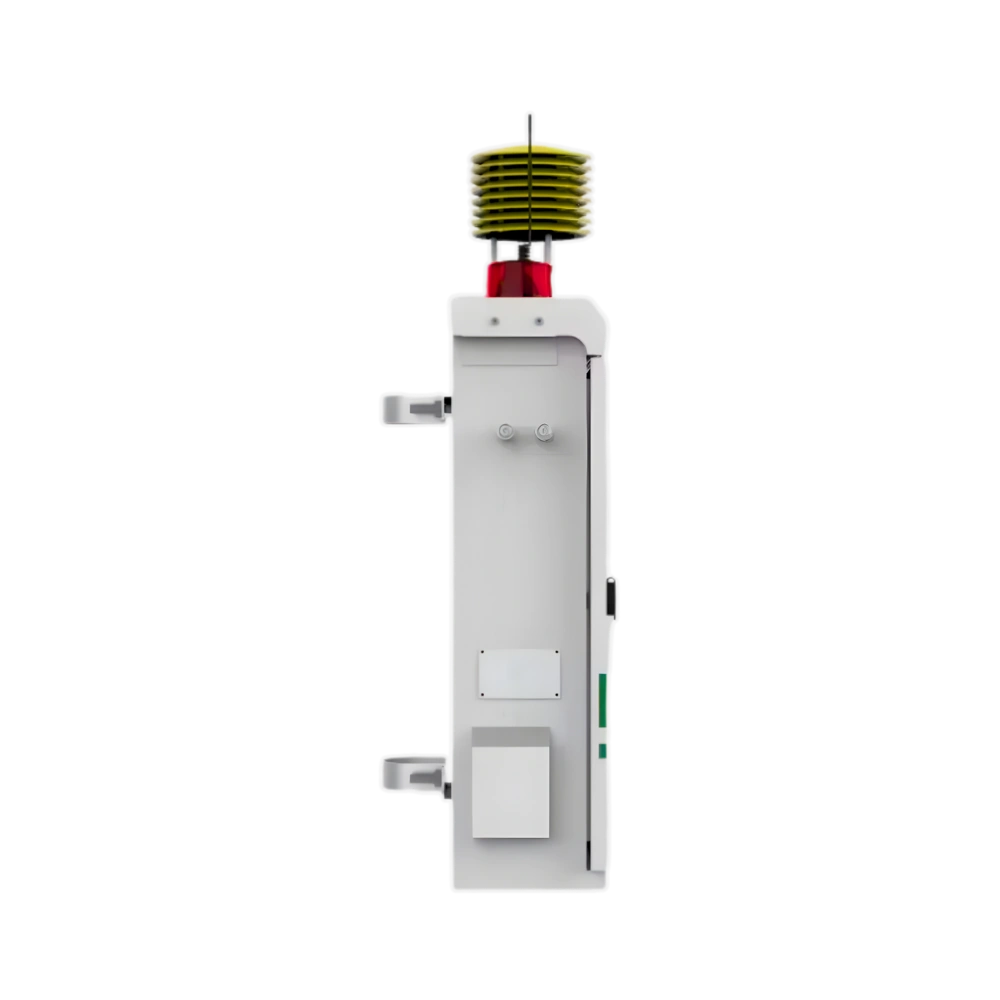

Air Quality Monitor LAQM-L10 is suitable for environmental protection projects, weather stations, and air quality research. It monitors air pollution levels in both indoor and harsh outdoor surroundings.
Labtron Air Quality Monitors provide quick and efficient detection of various gases, temperature, humidity, and other parameters. These can detect a wide range of pollutants including fine particulate matter, larger particulate matter, volatile organic compounds, carbon dioxide, and more. They ensure complete monitoring of indoor and outdoor air quality. They store past air quality readings for trend analysis and comparison. Our Air Quality Monitor offers a battery-powered option for flexible and portable usage.
Air quality monitor is an important tool for improving air quality, protecting public health, and ensuring compliance with regulations. It can also be used to monitor climate change or support research and development.
Our air quality monitor can detect particulate matter (PM 2.5, PM 10), carbon monoxide, ozone, nitrogen dioxide, sulphur dioxide, volatile organic compounds.
Place the air quality monitor in an area with good airflow and don’t obstruct the air intake vent. For optimal sensor readings, keep your device away from direct sunlight and in open space that’s less than 500 square feet. Avoid placing your device near air vents, such as an AC or heater vent.
Our air quality monitor is ideally suited for use in homes, offices, industrial settings, and outdoor monitoring.
Air quality monitor is a device that measures the level of common air pollutants including both tiny and large particulate matter. They provide quick and efficient detection of various gases, temperature, humidity, and other parameters. Our air quality monitor ensure complete monitoring of indoor and outdoor air quality.
