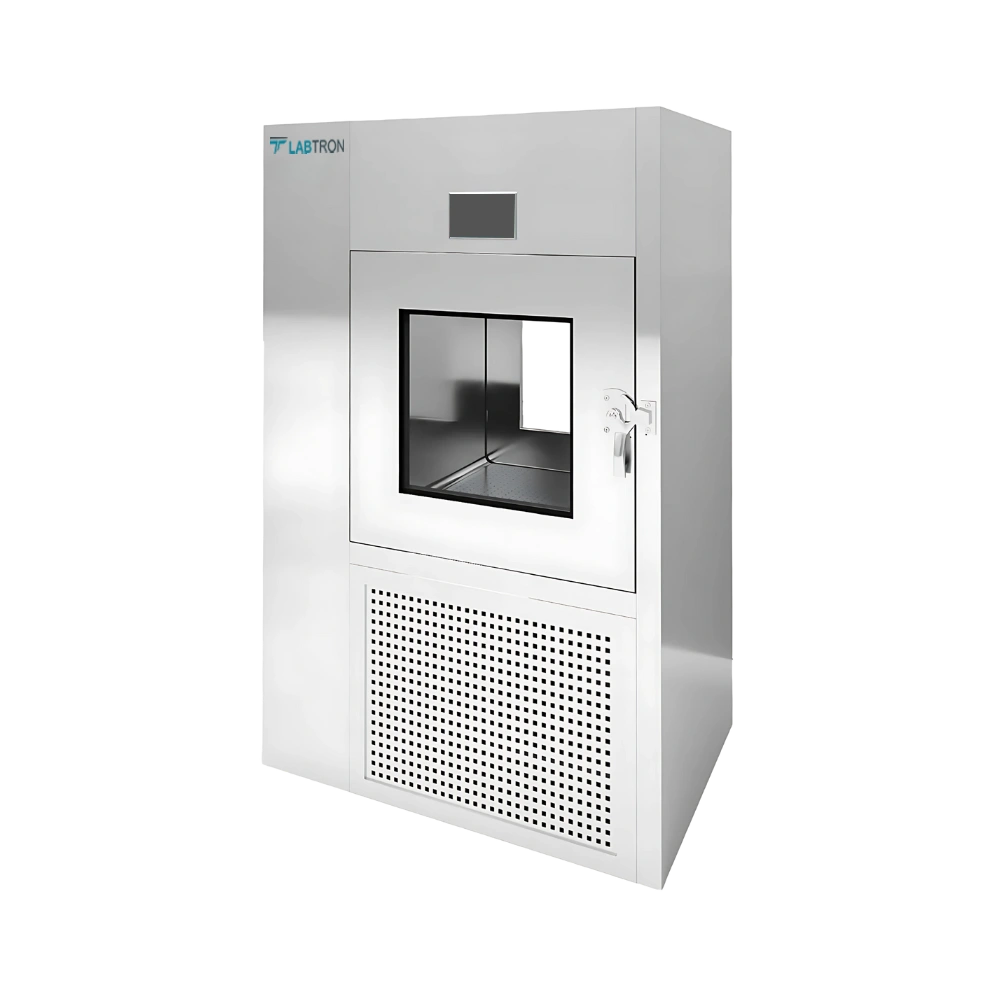

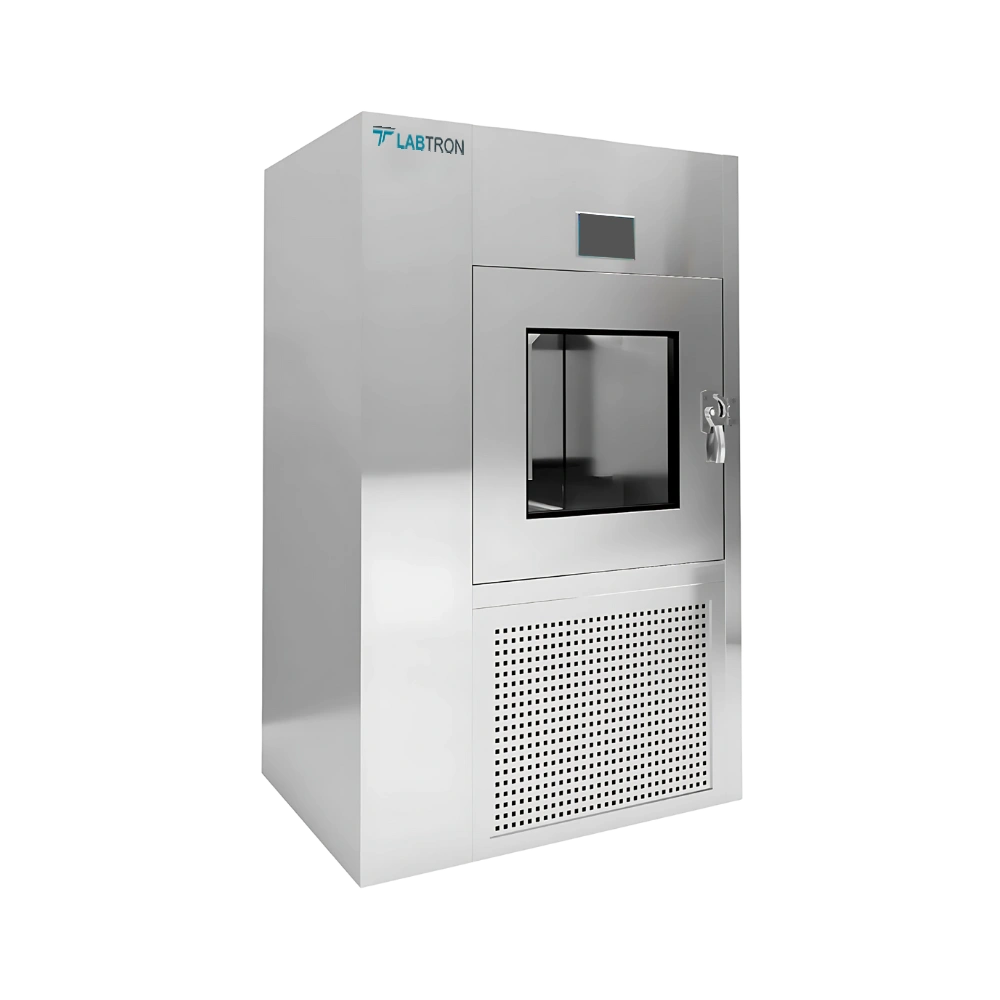

Air Shower Pass Box LASP-A12

Name: Air Shower Pass Box LASP-A12
Brand: Labtron
SKU: LASP-A12
Rating: 4.8 (708 reviews)

Air Shower Pass Box LASP-A12 works with a fan noise level of ≤ 65 dB, matching standard low-noise thresholds for contamination-controlled environments. The integrated control circuit uses microprocessor-driven logic to manage door interlocks. It is equipped with a primary and a high-efficiency filter, extending the lifespan of the HEPA filter. Our air shower pass box features an automated timed air-digital control system shower cleaning cycle that locks both interlocked doors.

Request Quote

External Dimension (W× L× H)	1080 ×790 ×1650
Internal Dimension (W× L× H)	700 × 700 × 700
Primary Filter Size (mm)	695 × 290 × 17
High Efficiency Filter Size (mm)	610 × 610 × 120
Fan Air Volume	1200
Fan Noise (dB)	< 65
Fan Speed (r/ min)	2800
Nozzle	Stainless steel / Φ30
High Efficiency Filter	>99.99% at 0.3 µm
Power Supply	220V/50HZ
Power Consumption	550 W
Weight	115 kg

Integrated UV germicidal lamp
Centrifugal Fan System
Tempered- Glass Observation Window
Airflow Purification Design
Air Safety Mechanism

Air Shower Pass Box LASP-A12 combines high-velocity HEPA/ULPA-filtered air jets. It plays a key role in pharmaceutical, biotechnology, semiconductor, laboratories, hospitals and sterile prep areas for maintaining environmental cleanliness.

Download catalog for
Air Shower Pass Box LASP-A12 Catalog

Available Range :

Air Shower Pass Box LASP-A12 : 1080 ×790 ×1650 Air Shower Pass Box LASP-A10 : 880 ×590 ×1450 Air Shower Pass Box LASP-A11 : 980 ×690 ×1550

Models of Air Shower Pass Box

Labtron Air Shower Pass Box is a precision-engineered cleanroom transfer chamber that combines high‑velocity HEPA or ULPA‑filtered air jets. These devices feature built-in safety mechanisms, including pressure sensors and LED indicators. They provide interlocked double doors that are mechanically interlocked, preventing both doors from opening simultaneously. Their touchscreen interface allows operators to customize the air-shower cycle duration. Our air shower pass box features an automated timed air-digital control system for shower cleaning cycles
