| Test Speed | Constant 200 tests/hour (mono reagent or double reagent) |
| Test Principle | Colorimetric method, turbidimetry |
| Test Method | 1-point end, 2-point end, Fixed-Time, Kinetics |
| Calibration Type | Linear & nonlinear |

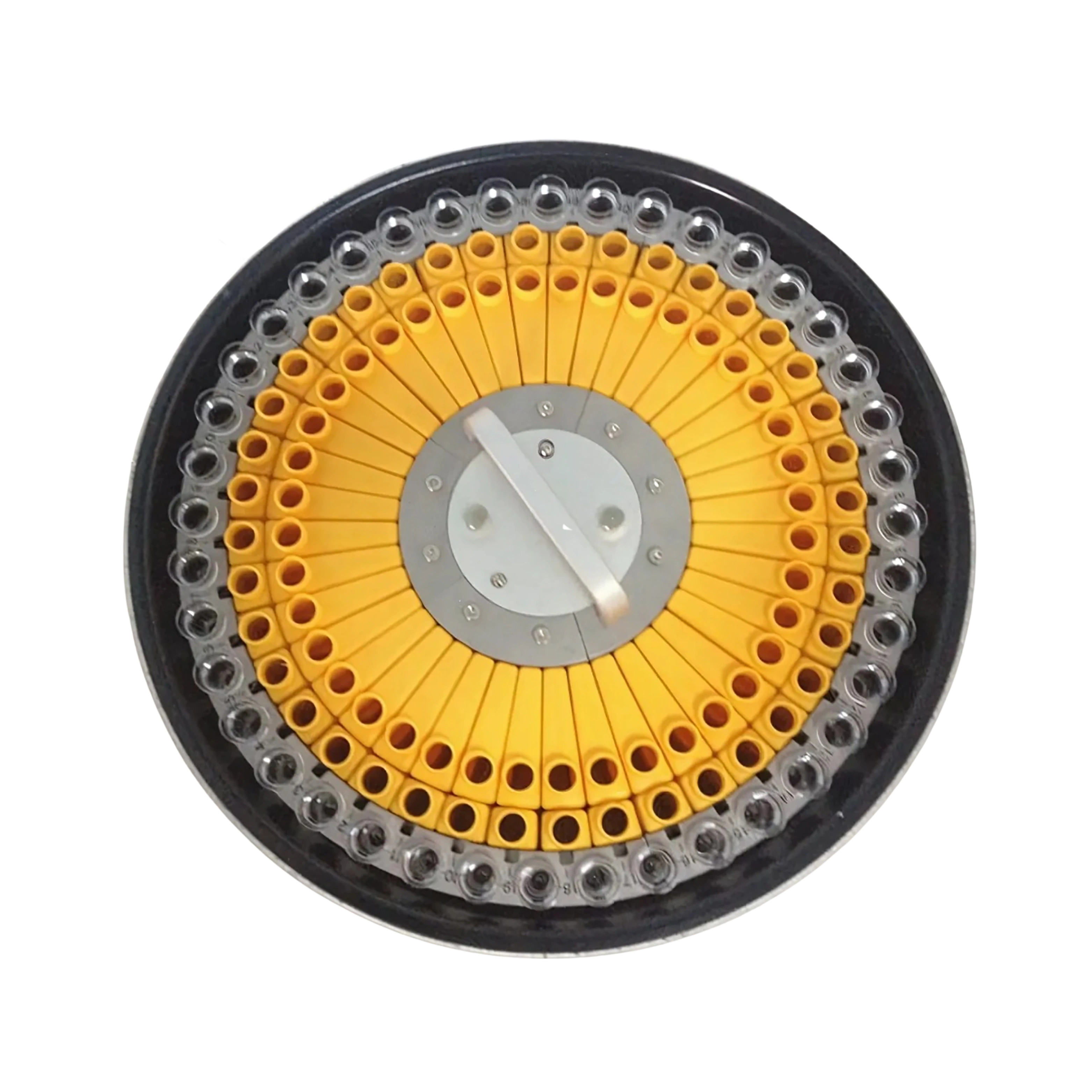

| Sample Tray Capacity | 40 sample positions |
| Sample Cup Type | Micro cup & test tube |
| Reagent Tray Capacity | 80 reagent positions (40 for R1, 40 for R2) |
| Sample Volume Range | 2 to 30µl, adjustable in 0.1µl steps |
| Reagent Volume Range | 20 to 300µl, adjustable in 1µl steps |
| Barcode Reader | Optional (sample & reagent) |
| Reaction Cuvettes | 44 high-quality plastic cuvettes |
| Reaction Volume | 150µl to 350µl |
| Reaction Time | 10 minutes |
| Temperature Control | Peltier pad incubation system (37°C ±0.1°C) |
| Cuvette Washing | 3-step washing with 4 needles |
| Mixer Design | Teflon-coated mixer (prevents water droplets & carry-over) |
| Wavelength Options | 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm, 700nm (+4 optional) |
| Light Source | Halogen lamp |
| Absorbance Range | 0 to 4.0 Abs |
| Resolution | 0.0001 Abs |
| Water Consumption | Max 6L/hour |
| Probe Material | External & internal mirror polish |
| Washing Mechanism | Internal & external probe washing (reduces carry-over) |
| Liquid Sensor | Detects reagent/sample residuals |
| Collision Protection | Yes |
| Auto Depth Adjustment | Yes |
| Operating System | Windows XP & Windows 7 |
| Interface | USB |
| Sample Dilution | Automatic (decrease, increase, normal) |
| Calibration | Linear/nonlinear, multi-point (up to 8 points) |
| Quality Control | Westgard rules, L-J plot, Cumulative QC |
| Real-Time Monitoring | Reagent/sample tray status, cuvette defects, reaction progress |
| Alarm System | Automatic logs with explanations |
| Space Efficiency | Compact cabinet design |
| Time Efficiency | 200 tests/hour |
| Operation Efficiency | Automated testing, low maintenance |
| Cost Efficiency | 150µl reagent consumption |
| Laboratory Efficiency | Accurate results on first attempt |
| Power Supply | AC 110/220V ±10%, 50/60 Hz, 650W |
| Dimensions | 650mm × 700mm × 1200mm |
Unmatched efficiency & performance
Fully automated operation

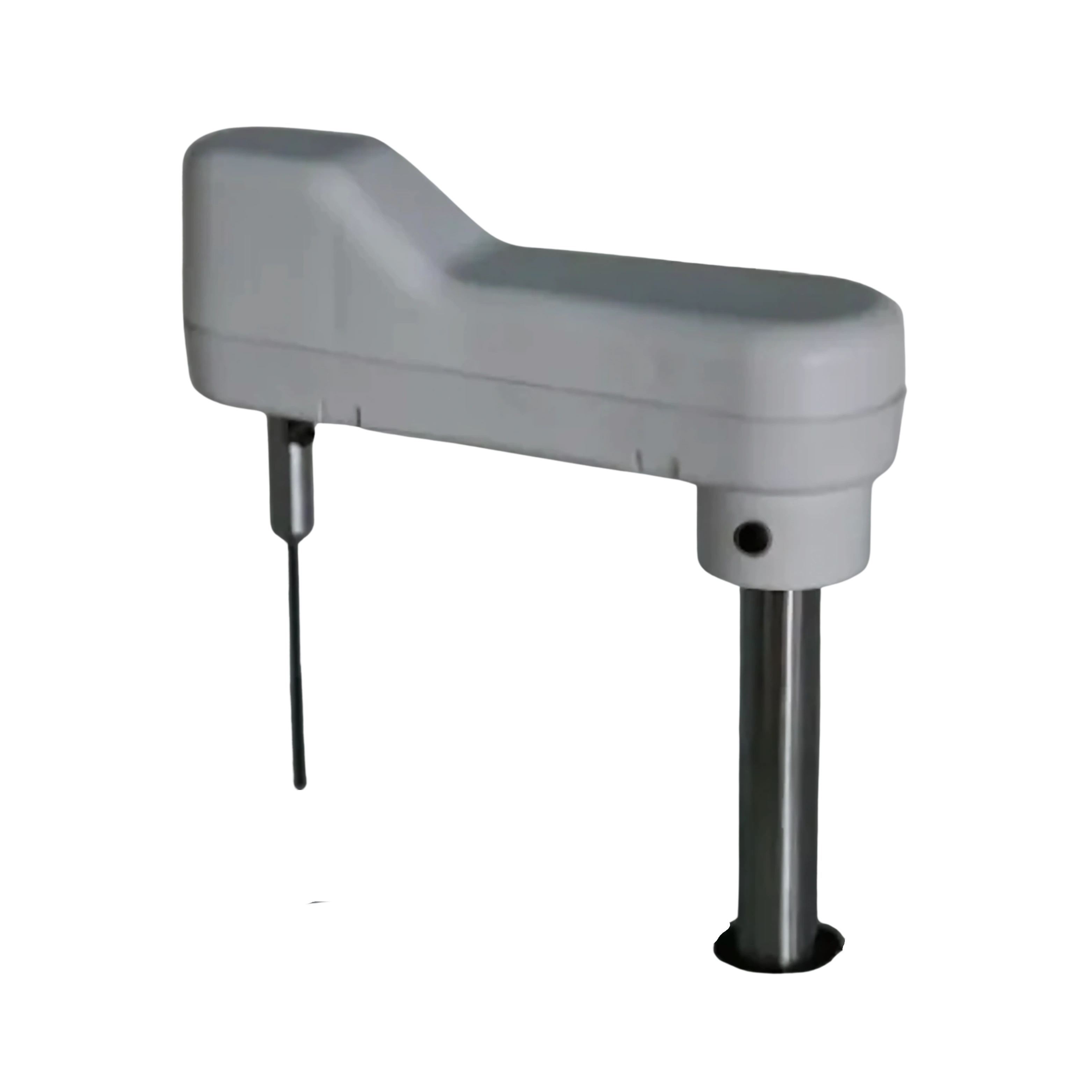

Advanced sampling probe
Smart & user-friendly design
Powerful software for seamless control
Compact & lab-optimized
Our Automatic Biochemistry Analyzer LBCA-A12 is ideal for clinical diagnostics, research laboratories, and hospital labs, enabling high-throughput testing of blood, serum, plasma, and urine samples for parameters like glucose, cholesterol, liver/kidney function, and enzymes. With fast, accurate results and low reagent consumption, it enhances efficiency in medical labs, veterinary diagnostics, and biopharmaceutical research.
Download catalog for
Automatic Biochemistry Analyzer LBCA-A12 Catalog
Labtron Automatic Biochemistry Analyzer offers fully automated sample processing and biochemical analysis by eliminating manual intervention. They feature advanced detection system that provide rapid results without compromising on accuracy or reliability. Their maintenance alerts ensure equipment remains in optimal working condition consistently. They require minimal sample volume making them suitable for pediatric and neonatal testing. Our Automatic Biochemistry Analyzer assures rapid and accurate diagnostic in hospitals and research institutions.
