| Measurement Range | 5pF to 200pF |
| Measurement Accuracy | ± (1% of reading +0.5pF) |
| Measurement Range Relative permittivity | ±1% of reading |
| Resolution | 0.01pF |
| Temperature Measurement Range | 0 to 120℃ |
| Temperature Measurement Error | ± 0.5℃ |
| Ambient Temperature | 0℃ to 40℃ |
| Ambient Humidity | Less than 75% |
| DC resistivity | 2.5 MΩm to 20 TΩm |
| Power consumption | 100W |
| Power Supply | AC 220V±10% |
| Dimensions | 500mm × 360mm × 420mm |
| Net Weight | 22 kg |
| Gross Weight | 30 kg |
Our Automatic Dielectric Tester LADT-A20 is widely used in oil quality assessment, high voltage equipment diagnostics, power utility test field testing, insulating fluid research and quality control in oil production.
Download catalog for
Automatic Dielectric Tester LADT-A20 Catalog

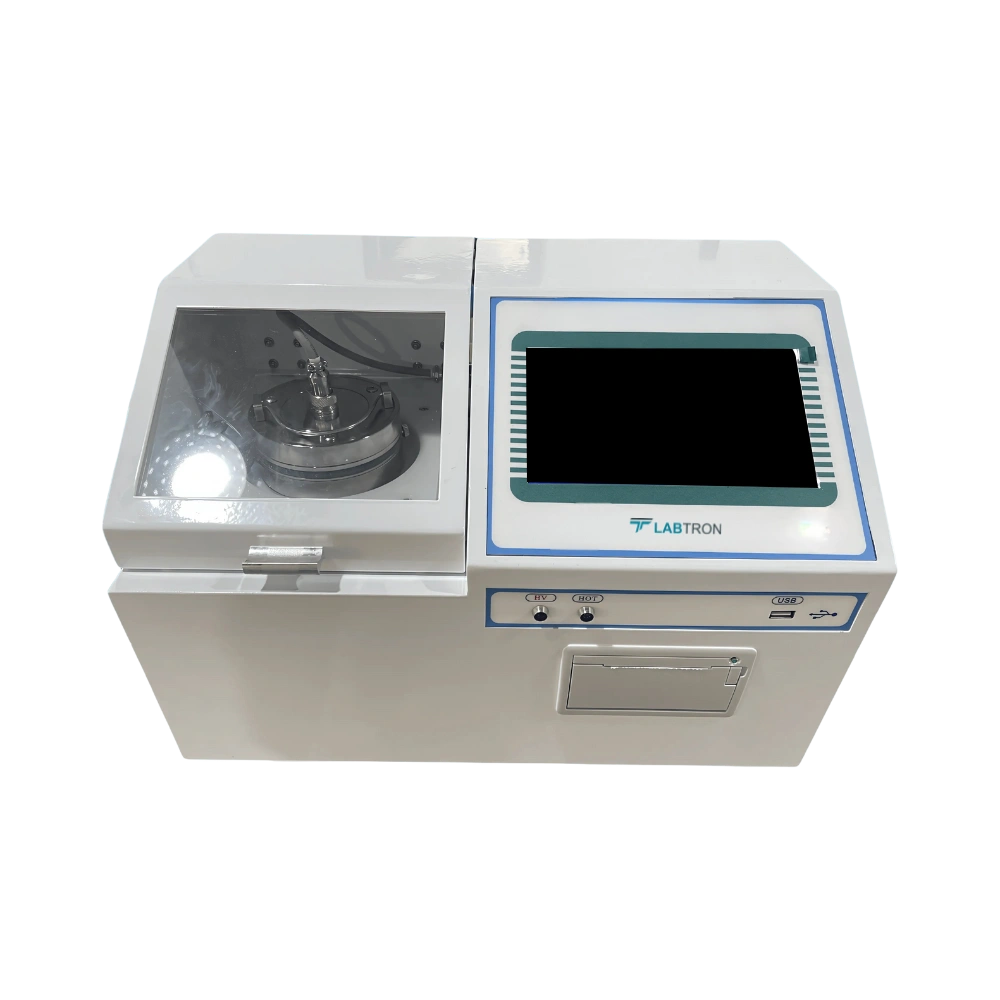

Labtron Automatic Dielectric Tester evaluates insulation properties of materials with a capacity of 2.0 kVA. They include multiple testing modes such as breakdown voltage for comprehensive analysis. Their battery life supports extended usage without frequent recharging interruptions. They provide real-time monitoring of voltage and current during processes. Our Automatic Dielectric Tester is used for electrical equipment, cable, automotive, aerospace, and medical device.
