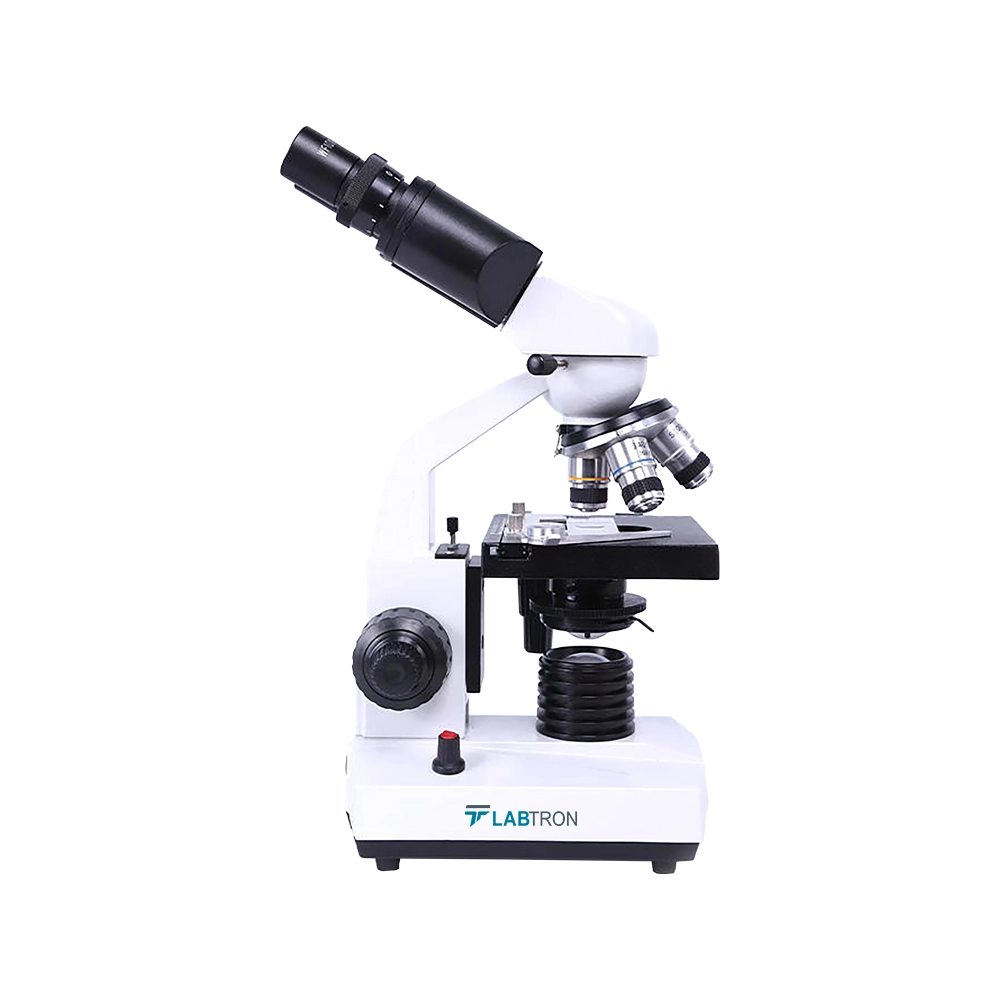

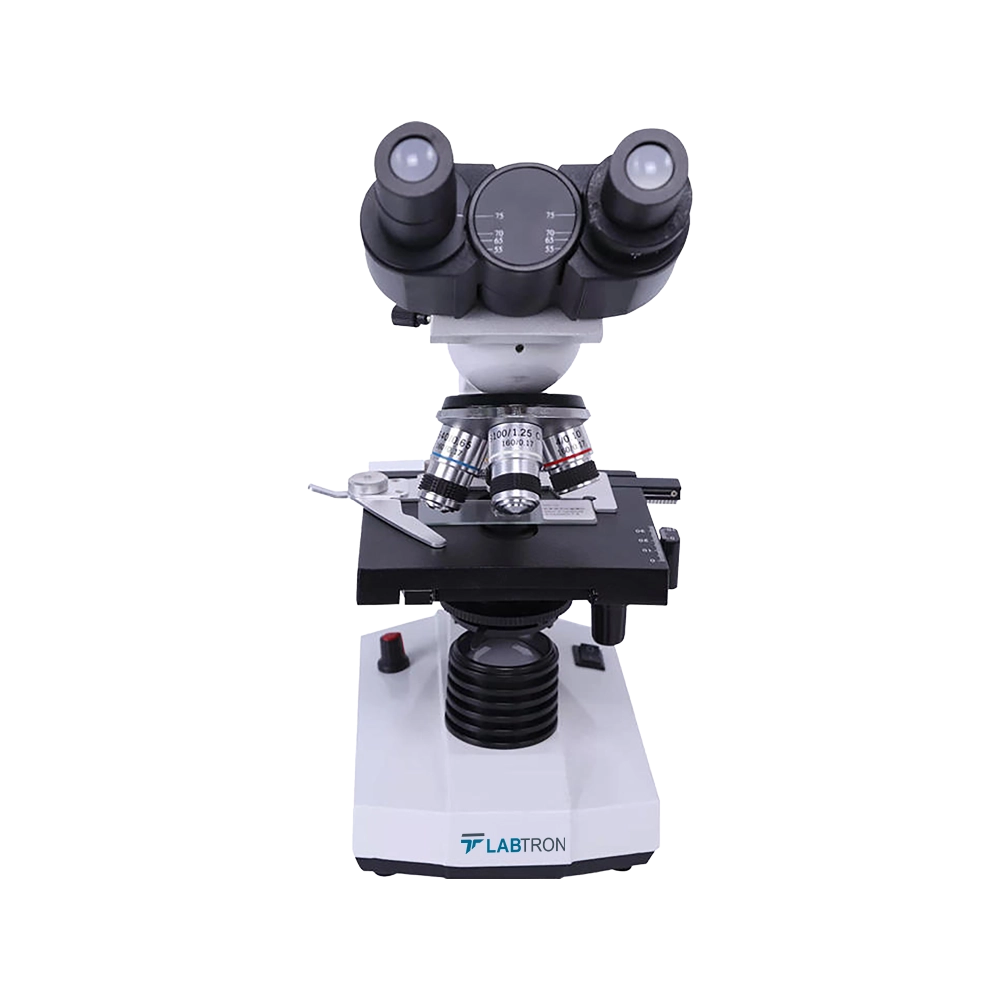

Binocular Electric Microscope LBEM-A10

Binocular Electric Microscope LBEM-A10

Binocular Electric Microscope LBEM-A10 offers a total magnification range of 40X to 1600X, providing high-resolution observation for a variety of specimens. It features built-in LED transmitted illumination for consistent and bright lighting. Its double-layer mechanical stage ensures precise movement for accurate slide positioning. The binocular head is ergonomically designed with adjustable interpupillary and dioptre settings for comfortable use. Our microscope provides superior image quality and advanced optical performance, making it ideal for laboratories.
Binocular Electric Microscope LBEM-A10-1
Binocular Electric Microscope LBEM-A10-2
Binocular Electric Microscope LBEM-A10-3
Binocular Electric Microscope LBEM-A10-4
Request Quote
Total Magnification 40x to 1600x
Objective 45 mm DIN Achromatic: 4x, 10x, 40x (S), 100x (S, Oil)
Eyepiece Wide Field Plan WF10x (Optional: WF16x)
Nosepiece Fixed revolving quadruple nosepiece
Condenser Aperture iris diaphragm
Binocular Head Articulated, 55 to 75 mm inter-pupillary distance, 45° inclined, 360° rotatable
Illumination Built-in LED 1W (Optional: Halogen 6V, 20W)
Stage Double-layer mechanical, 140 × 155mm, X-Y moving range: 70 × 50mm
Stage Height Movement Coarse stroke movement at 20 mm
Diaphragm and Filter Ø30mm iris diaphragm, Ø32 mm filter, ABBE condenser N.A. 1.25
Focusing Mechanism 25 mm range, precision 0.002mm
Fine Focus Graduation 2.5 µm
Power Supply 220 to 240 VAC, 60 Hz
Weight 6.4 kg
  • One eyepiece provided with pointer
  • Coarse and fine adjustment controls
  • Anti-fungus treated lenses
  • Stable platform
  • Versatile magnification
Binocular Electric Microscope LBEM-A10 is used to magnify small objects such cell sample and tissue sample for their detailed examination. It is widely used in research labs, hospitals, medical institutions etc.
Power cord
Carrying case (ABS plastic or better)
Dust cover
LED bulb with one spare
