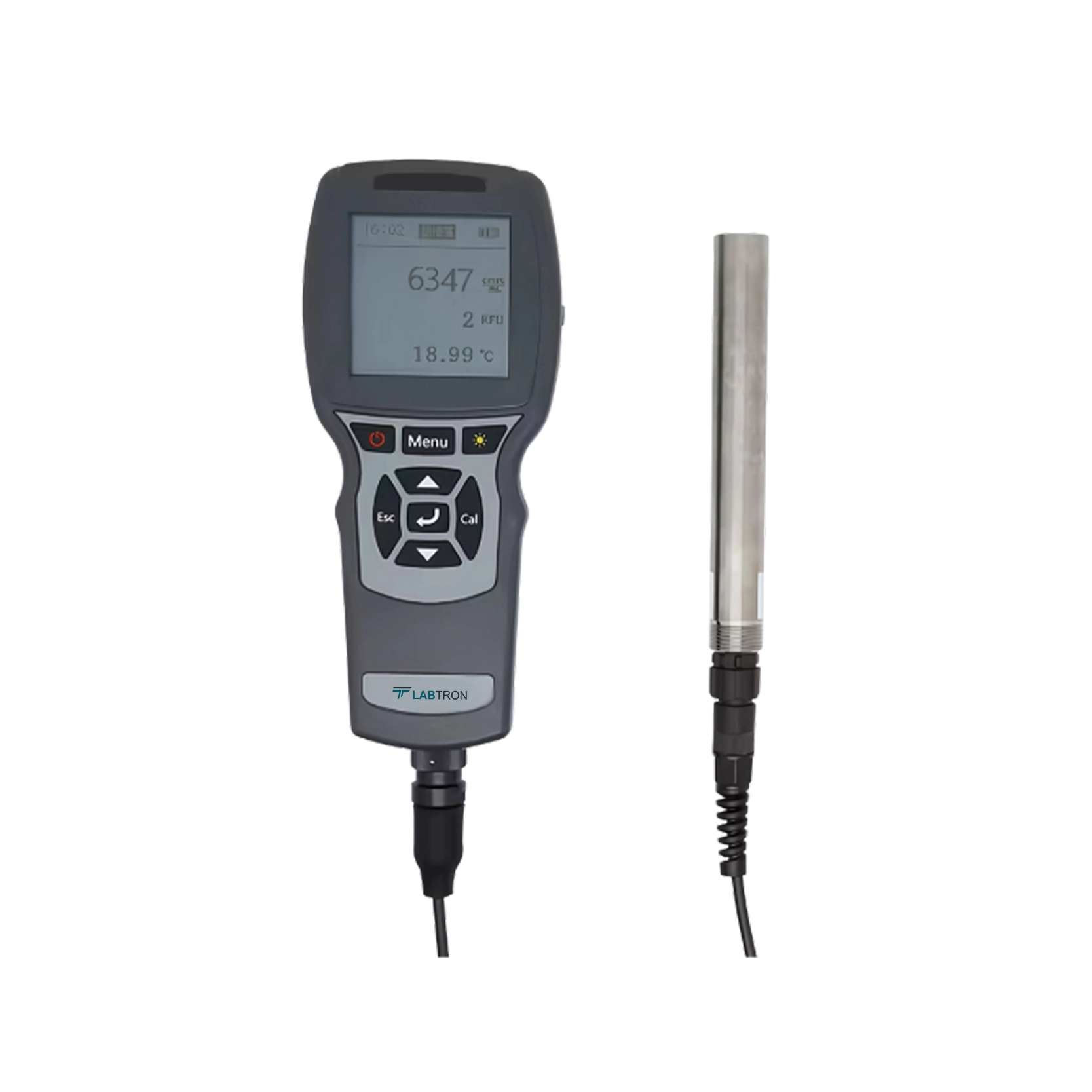

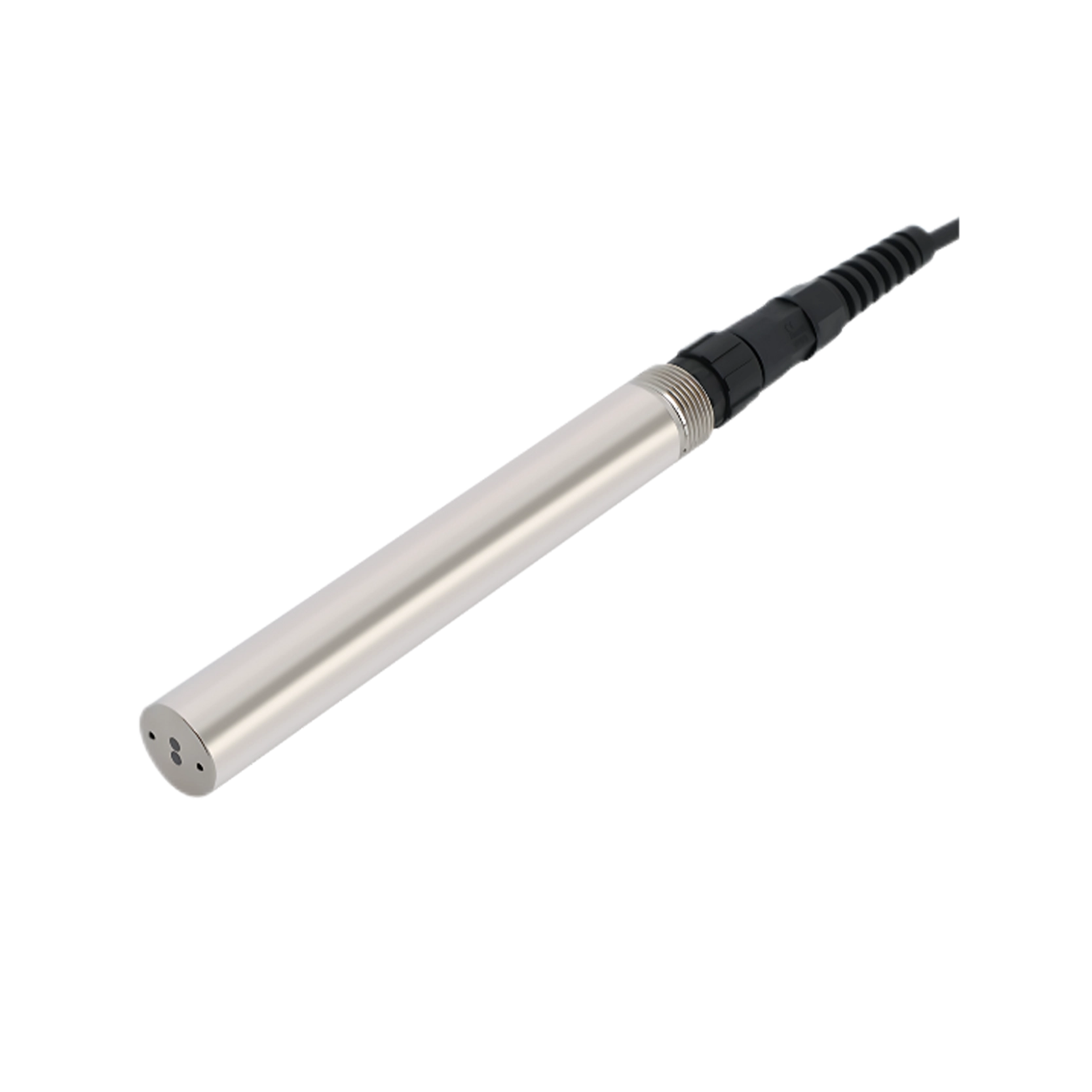

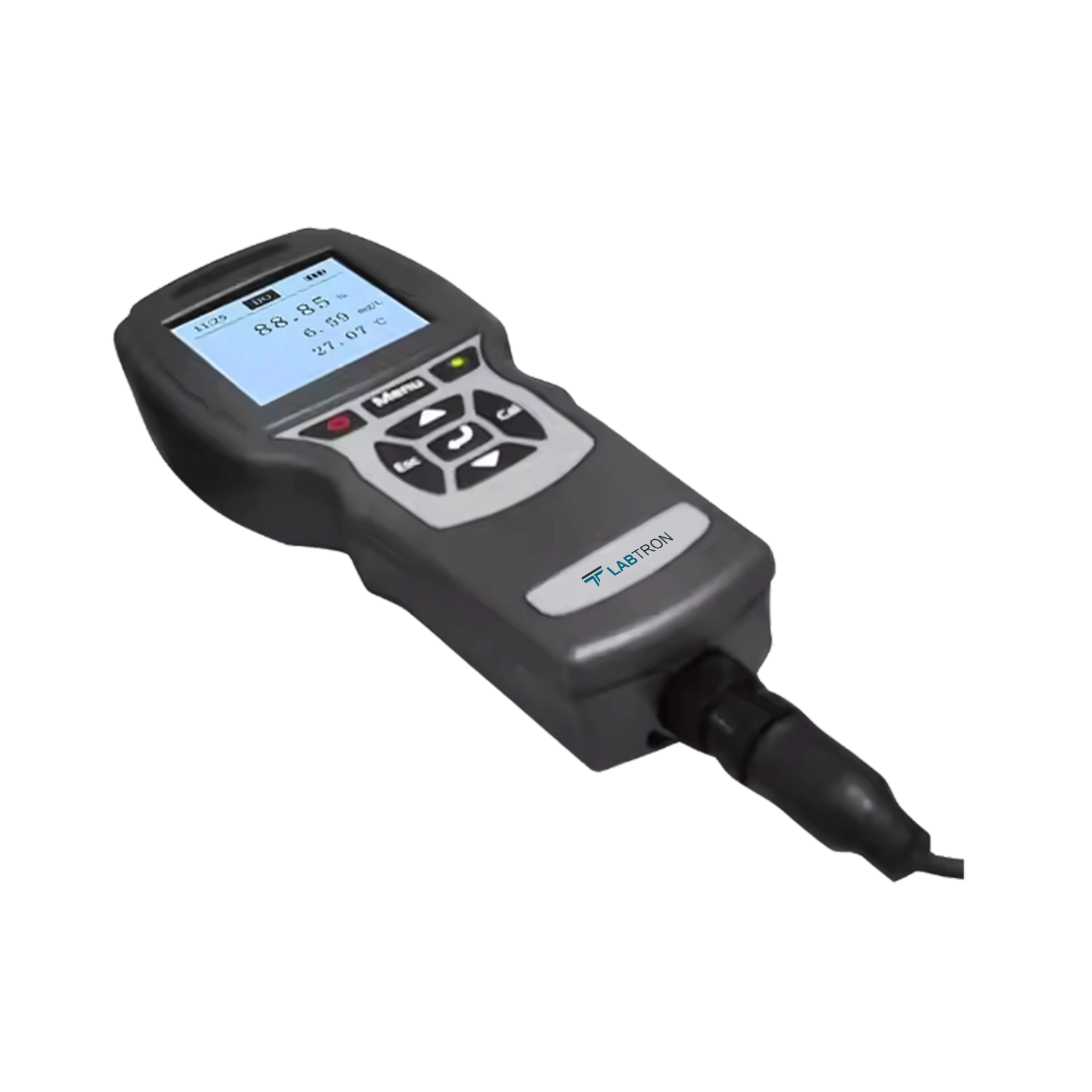

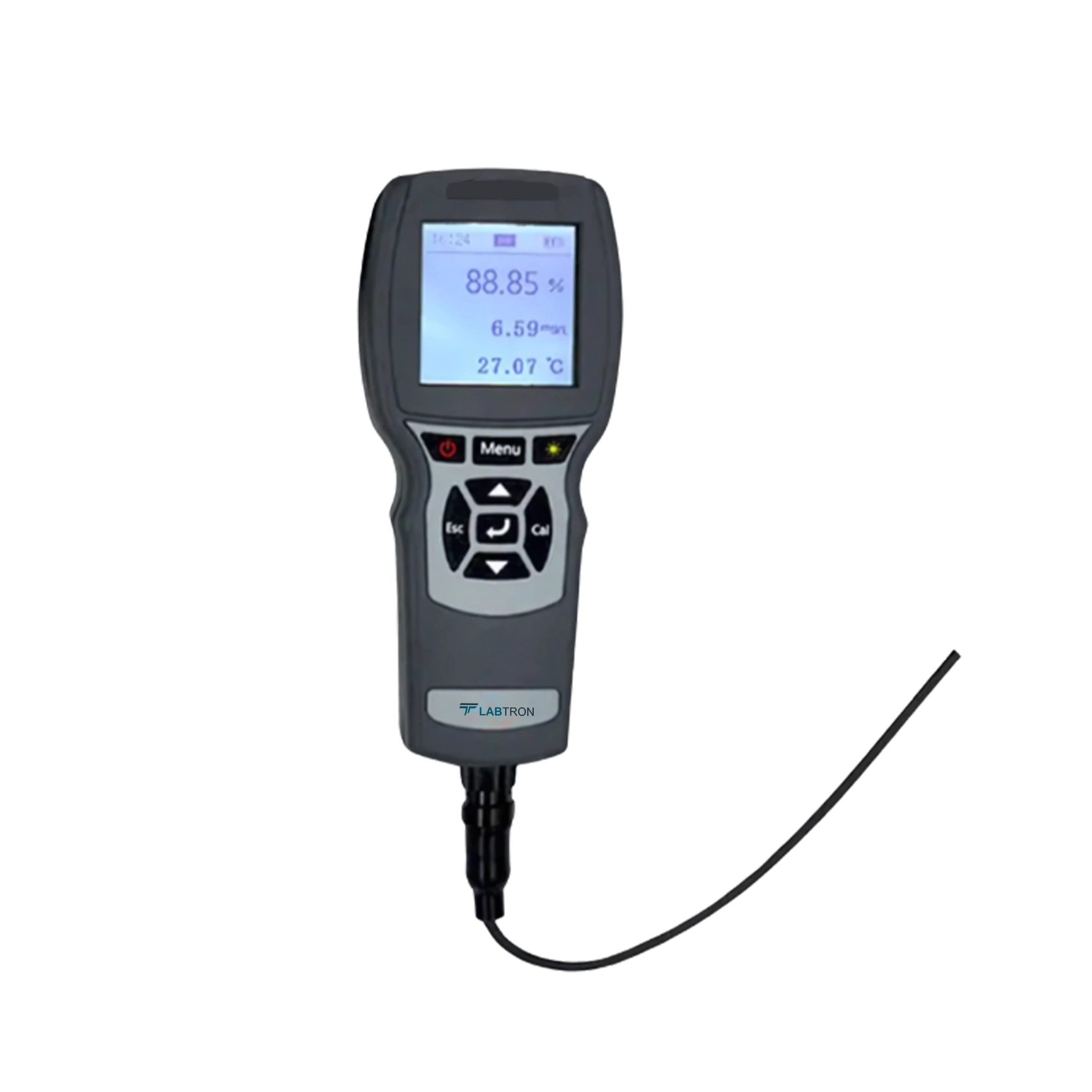

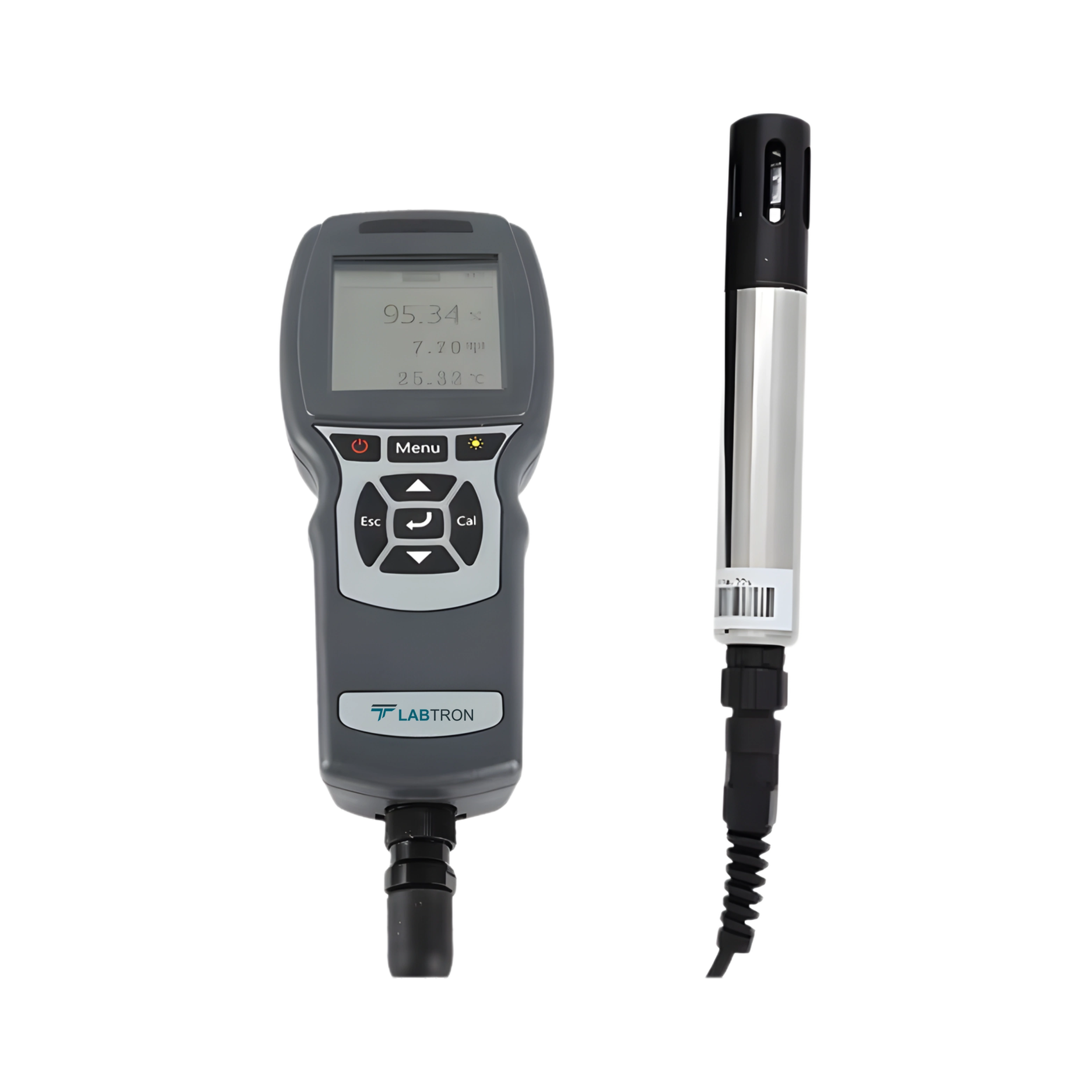

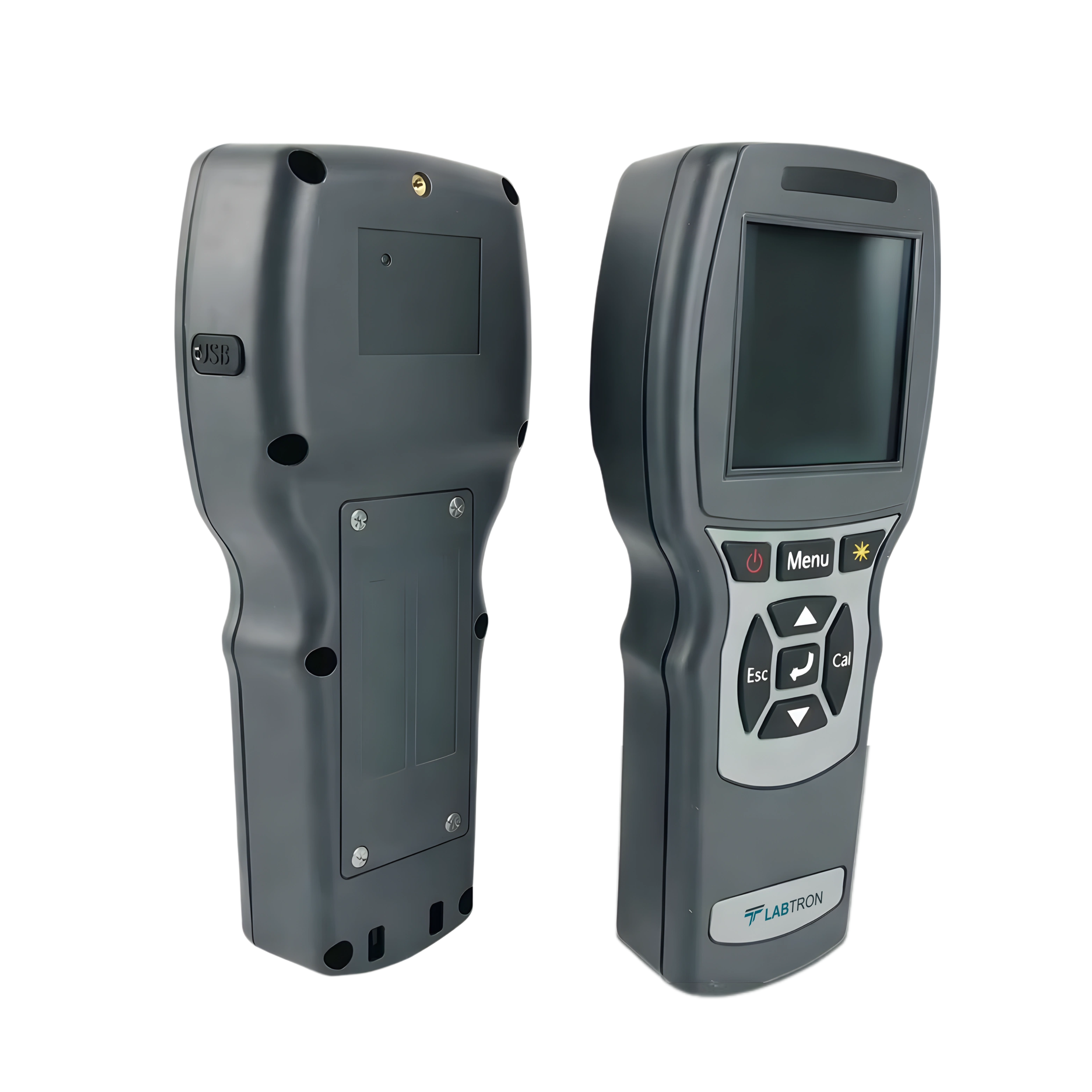

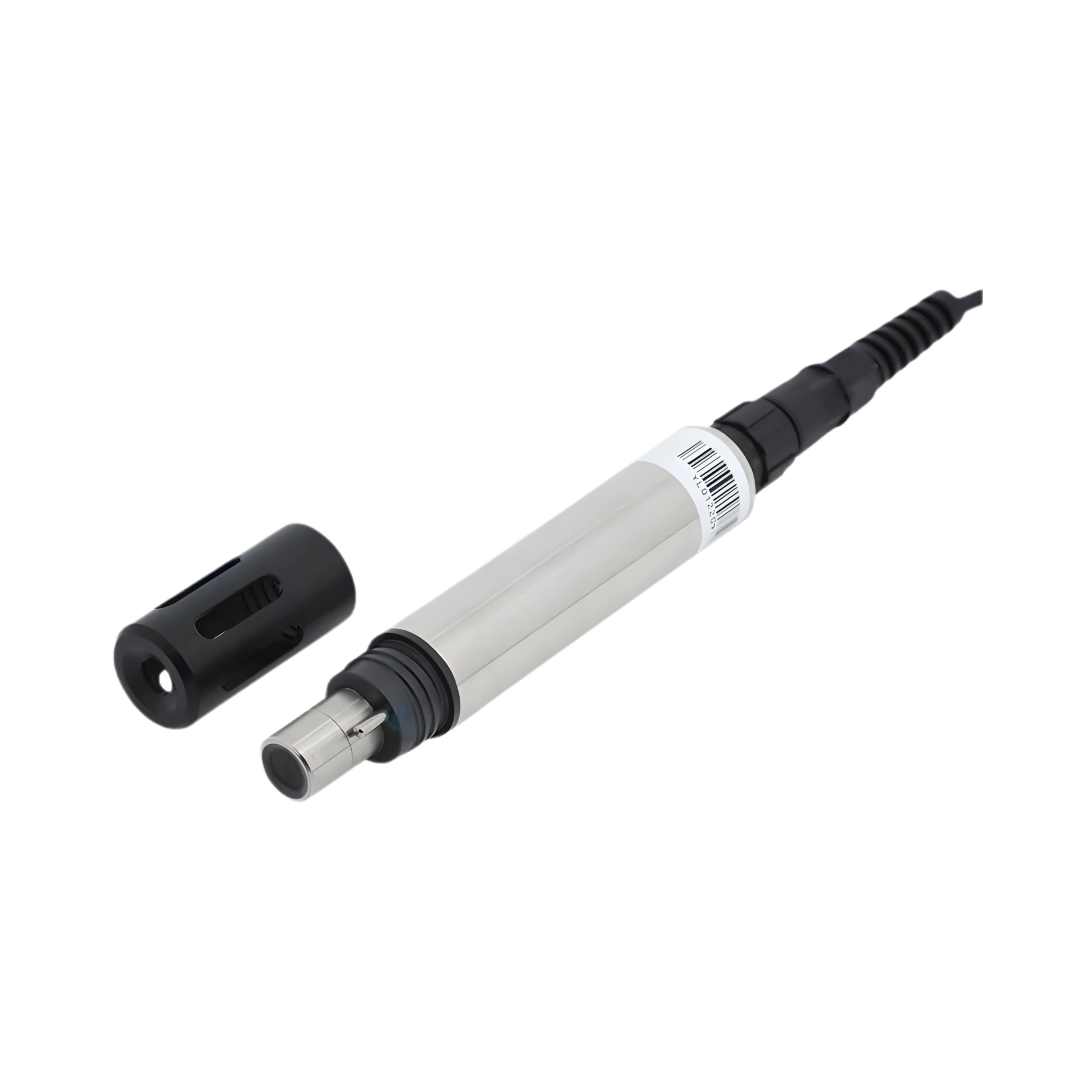

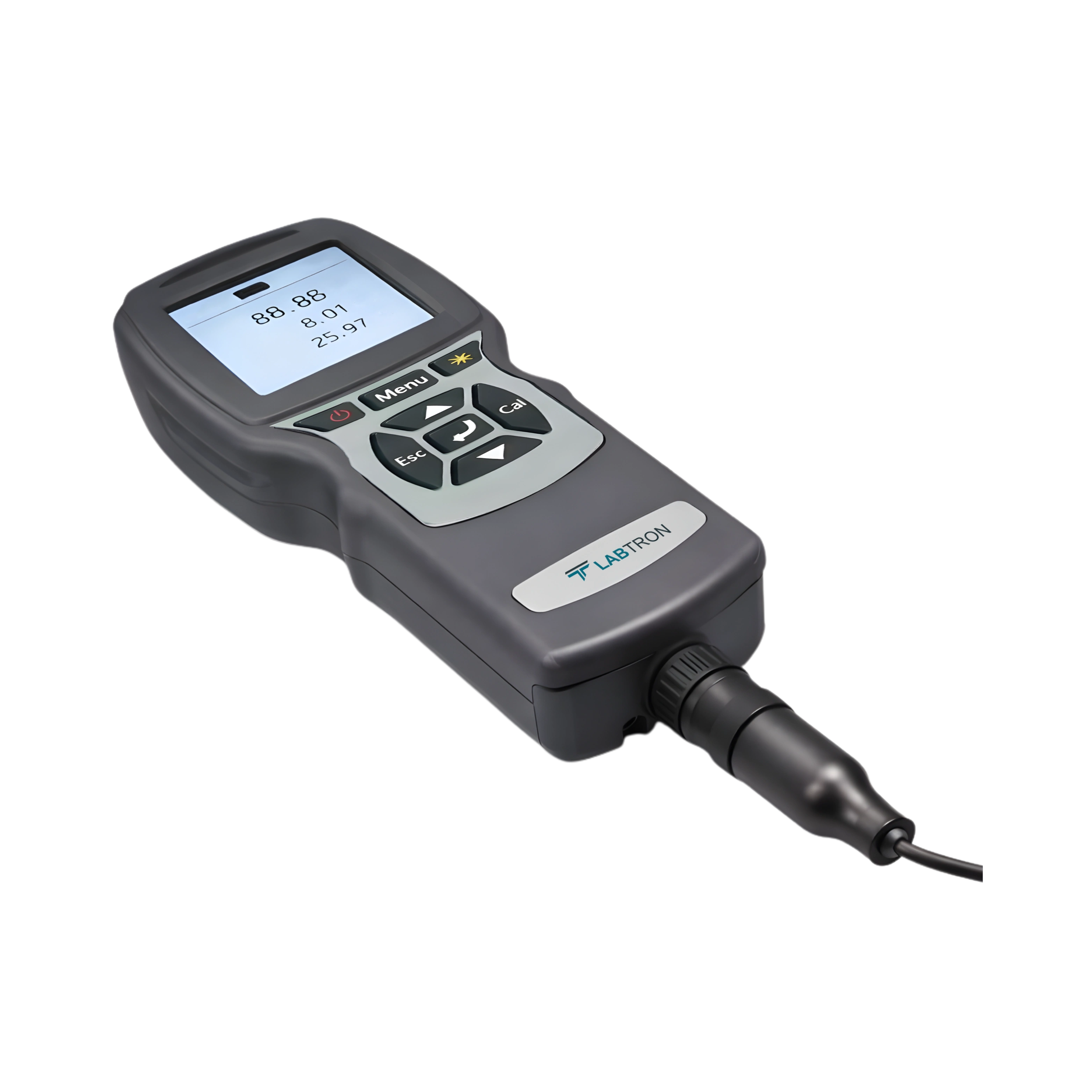

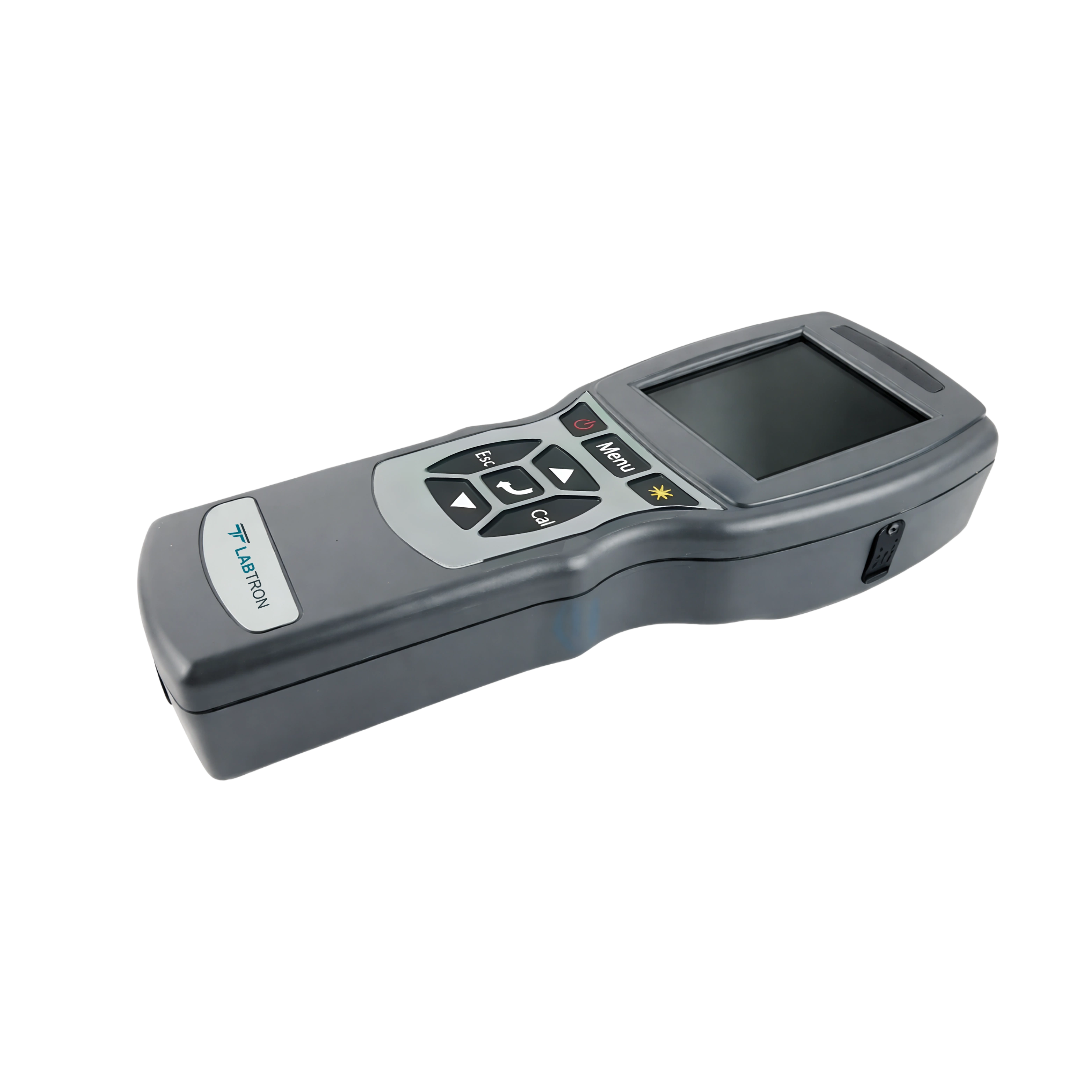

Chlorophyll Meter with Sensor LCSM-A10 utilizes the fluorescence method to measure concentrations from 0 to 500 μg/L or 0 to 100 RFU with a high-resolution of 0.01 μg/L. Made of durable titanium, it resists corrosion for long-term use. Advanced LED fluorescence sensing of our chlorophyll meter ensures accurate measurements, while continuous online monitoring enables real-time water quality management. Ideal for algae and phytoplankton monitoring in rivers, lakes, ponds, marine surveys, aquaculture, and drinking water sources.
| Principle | Fluorescence method |
| Range | 0 to 500 μg/L or 0 to 100 RFU |
| Resolution | 0.01 μg/L |
| Accuracy | ±5% or 0.5 μg/L |
| Housing IP Rating | IP68 |
| Maximum Pressure | 6 bars |
| Temperature Range | 0 to 50℃ |
| Output | RS-485, MODBUS protocol |
| Self-cleaning Wiper | Null |
| Cable Length | 10m (default), customizable |
| Body Material | Titanium |
| Calibration | Zero-point, One-point, or Two-points Calibration |
| Power Consumption | 0.2W (Brushes don't rotate) / 0.6W (Brushes rotate) |
| Power Supply | DC 12 to 24V, more than 500 mA |
| Sensor Dimension (Online) | Φ22mm × 175.5 mm |
| Sensor Dimension (Multi-parameter) | Φ22mm × 165.6 mm |
| Net Weight | 0.103 Kg |
| Gross weight | 0.8 Kg |
Automatic cleaning wiper
Supports RS485 output
Easy calibration

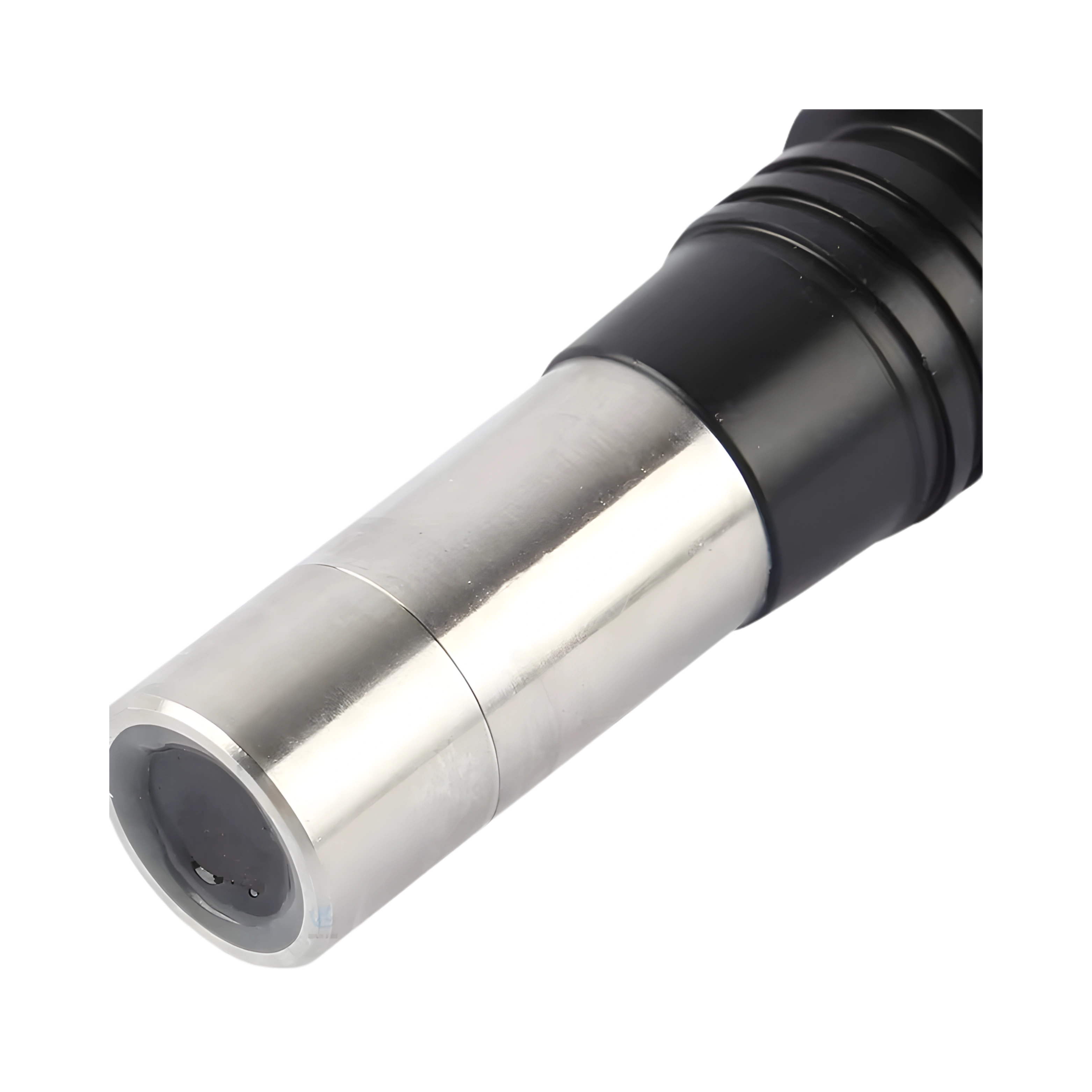

Scratch-resistant sapphire window
Chlorophyll Meter with Sensor LCSM-A10 is ideal for monitoring algae and phytoplankton in rivers, lakes, ponds, marine surveys, aquaculture, and drinking water sources.
10 meters standard cable
Download catalog for
Chlorophyll Meter With Sensor LCSM-A10 Catalog
Available Range :
Chlorophyll Meter With Sensor LCSM-A10 : Fluorescence method
The meter uses advanced fluorescence technology to measure chlorophyll concentrations accurately in water samples.
It can measure concentrations from 0 to 500 ?g/L or 0 to 100 RFU with a high resolution of 0.01 ?g/L.
Yes, it is made of durable titanium, resistant to corrosion, and designed for field applications in various water environments.
Yes, it provides continuous online monitoring for real-time water quality analysis.
It is ideal for monitoring algae and phytoplankton in rivers, lakes, ponds, marine surveys, aquaculture, and drinking water sources.
