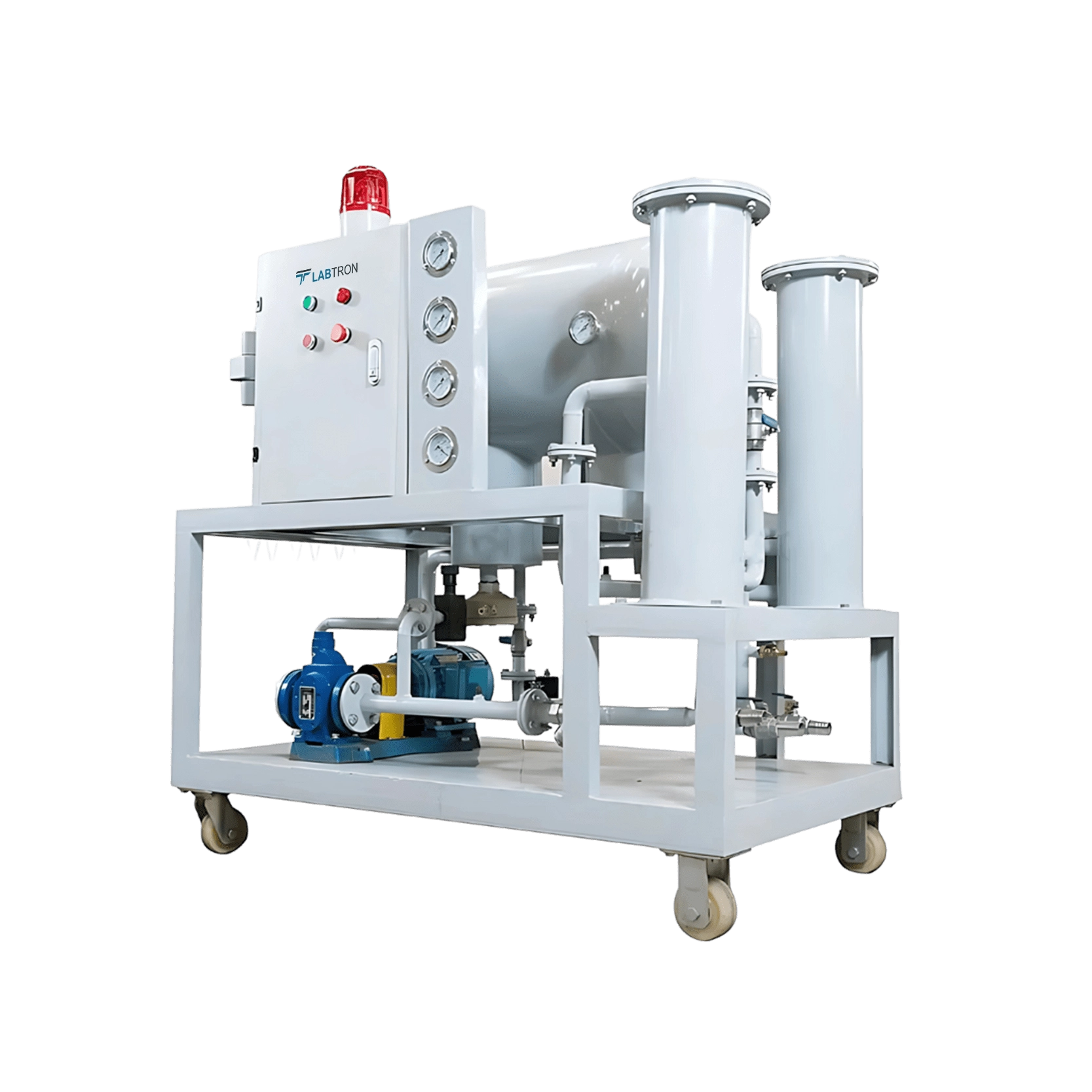

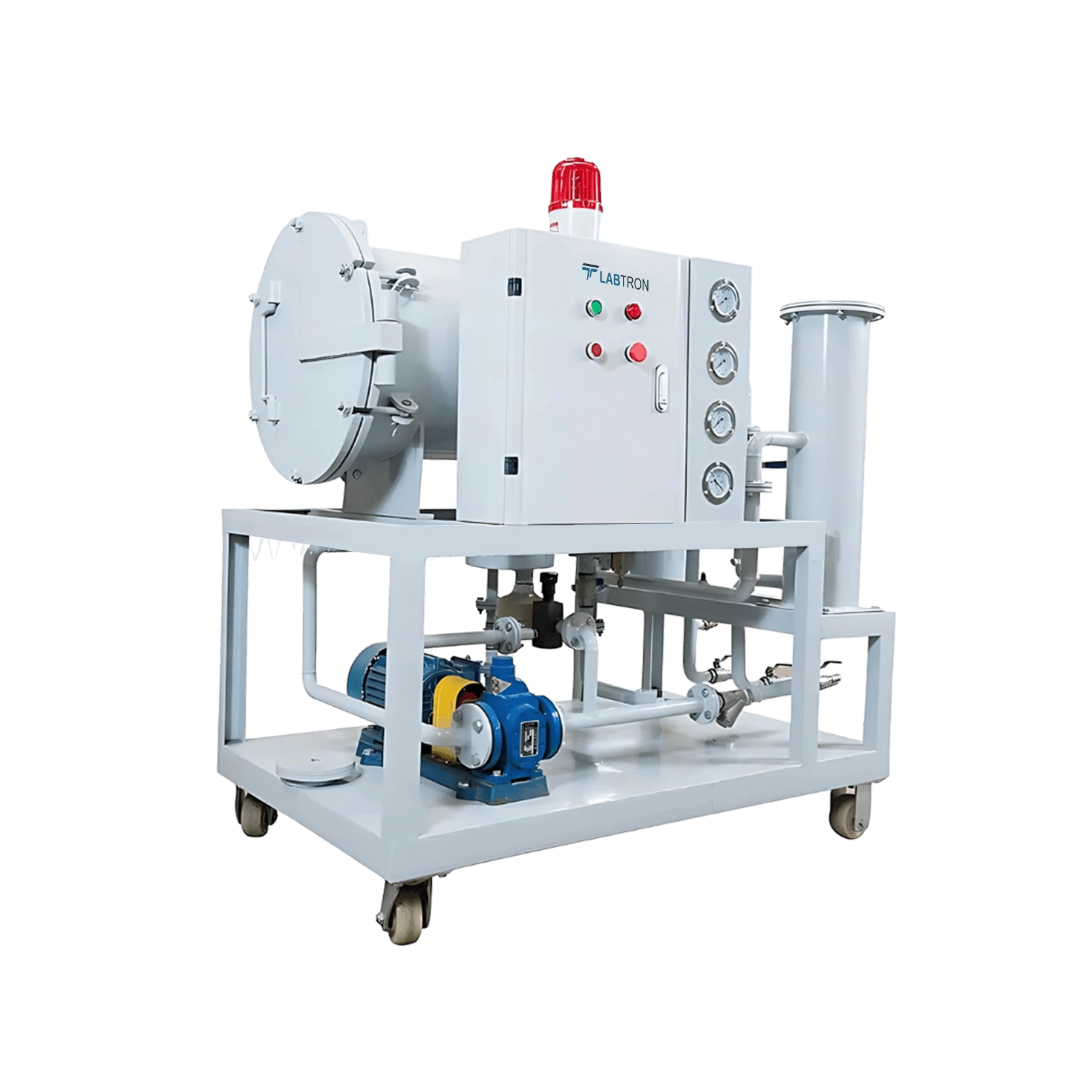

Coalescing Oil Separator LCOP-A12

Name: Coalescing Oil Separator LCOP-A12
Brand: Labtron
SKU: LCOP-A12
Rating: 4.8 (988 reviews)

Coalescing Oil Separator LCOP-A12 operates with a flow rate of 30 L/min, efficiently separating oil and water for enhanced system performance. It features fully automated operation, with PLC control for hands-free efficiency with minimal user intervention. The unit features non-heated operation, preserving oil quality and preventing additive degradation. Our Oil Separator eliminates water and impurities, enhancing oil lubrication and fuel.

Request Quote

Flow Rate	30 L/min
Working Pressure	Less than or equal to 0.4 MPa
Working Noise	Less than or equal to 65 to 80 dB (A)
Continuous Working Time	Greater than or equal to 150 H
Moisture	Less than 100 PPM
Filtering Accuracy	Less than 5 μm
Power Consumption	1500 W
Power Supply	380V / 50Hz / 3Ph
Dimensions (L×W×H)	1150 × 850 × 1600 mm
Weight	300 kg

Energy-efficient power consumption
Low-noise working performance
Continuous online monitoring
Stable low-pressure functioning
Mobile trailer-mounted option

Coalescing Oil Separator LCOP-A12 is used to purify fuel oils, including diesel and gasoline, as well as light lubricating oils. It is commonly applied in industrial and automotive settings to improve oil quality and extend equipment lifespan.

Download catalog for
Coalescing Oil Separator LCOP-A12 Catalog

Available Range :

Coalescing Oil Separator LCOP-A10 : 10 L/min Coalescing Oil Separator LCOP-A14 : 100 L/min Coalescing Oil Separator LCOP-A11 : 20 L/min Coalescing Oil Separator LCOP-A15 : 200 L/min Coalescing Oil Separator LCOP-A12 : 30 L/min Coalescing Oil Separator LCOP-A13 : 50 L/min

Models of Coalescing Oil Separator

Labtron Coalescing Oil Separator offers a high flow rate, enabling efficient purification of large volumes of oil in a short amount of time, ensuring rapid and continuous operation. They include automated monitoring, providing real-time tracking of moisture and particle levels. Their advanced coalescing filter technology enables rapid water-oil separation, ensuring high oil cleanliness. The self-cleaning mechanism automatically removes contaminants from the filter elements, reducing maintenance. Our Oil Separator purifies fuel and lubricating oils in power generation, manufacturing, transportation, marine, and automotive industries.
