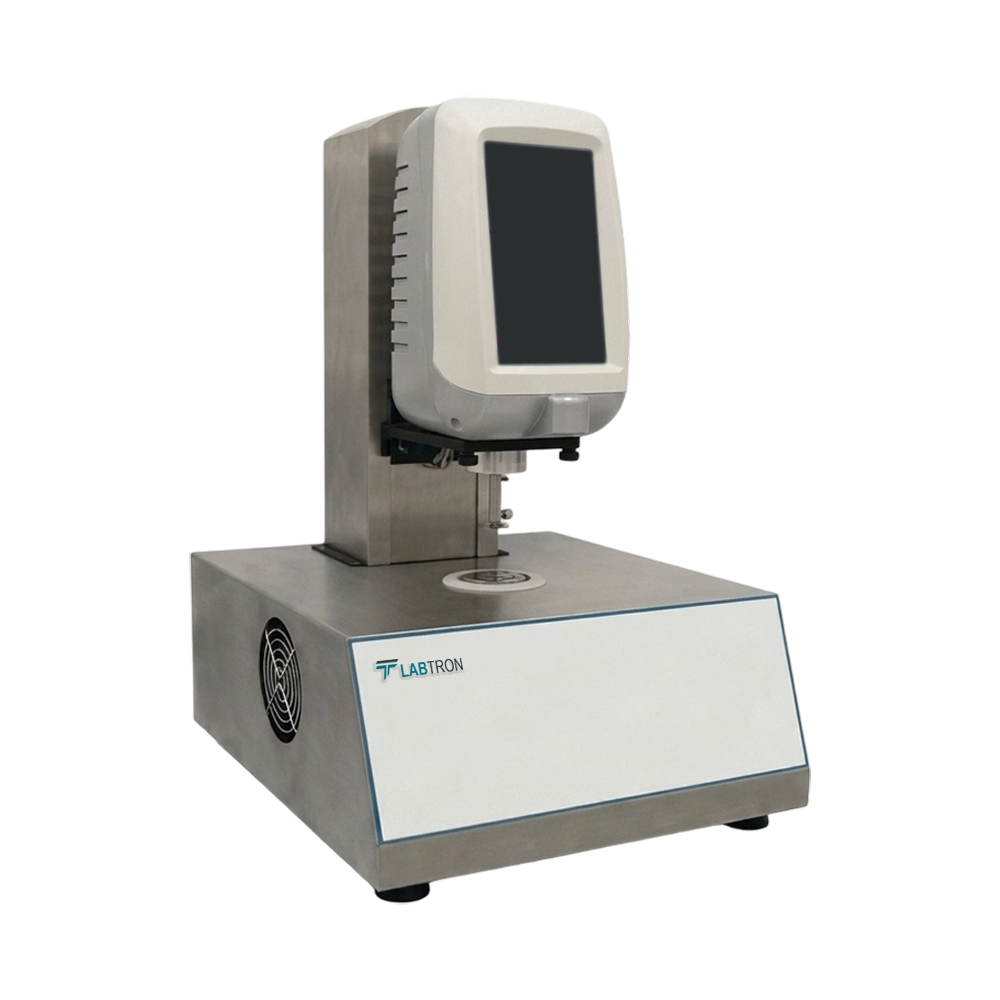

Cone and Plate Viscometer LCPV-A10

Name: Cone and Plate Viscometer LCPV-A10
Brand: Labtron
SKU: LCPV-A10
Rating: 4.7 (807 reviews)

Cone and Plate Viscometer LCPV-A10 offers a viscosity range from 20 to 11920 mPa.s to measure fluids with a broad range of viscosity levels. It is equipped with a torque sensor and adjustable rotational speed it determines the shear rate ranging from 800 to 11970 s⁻¹. Incorporated with a digital interface for operating parameters such as viscosity, temperature, speed, timing, torque, and spindle number.

Request Quote

Viscosity range	20 to 11920 mPa.s
Rotational Speed	400, 750, 900 RPM
Shear Rate	800 to 11970 s⁻¹
Sample Volume	24 to 1700 µl
Temperature Range	5℃ to 250℃
Temperature Accuracy	±0.1℃
Accuracy	±2.0% F/S
Repeatability	±0.5% F/S
Indoor Temperature Range	20 to 25℃ (±1℃)
Power	Input AC100-240V, 50Hz/60Hz.
Weight	18 kg

ARM chip processor for quick data processing
Alarm for torque not in 10 to 90% range
Passwords for temperature and viscosity correction factors
Complies with ISO, DIN, and ASTM standards
Integrated with an optimized temperature program

Cone and plate viscometer measures typically non-newtonian liquids under controlled conditions. It is widely employed in quality control, biomedical, polymer processing, paint and coatings, and cosmetics industries.

Viscometer host: 1 set

220V power line: 1 Pcs

CAP spindles: 1 Pcs

Touch pen: 1Pcs

Standard oil (2ml): 1 Pcs

USB flash disk (SNB software & Manual): 1 Pcs

Reticle: 1Pcs

Insulation cover: 1 Pair BGD 159-2 Cone-plate Viscometer operation instruction: 1 Pcs

Certificate of qualification: 1 Pcs

Download catalog for
Cone and Plate Viscometer LCPV-A10 Catalog

Available Range :

Cone and Plate Viscometer LCPV-A10 : 20 to 11920 mPa.s
