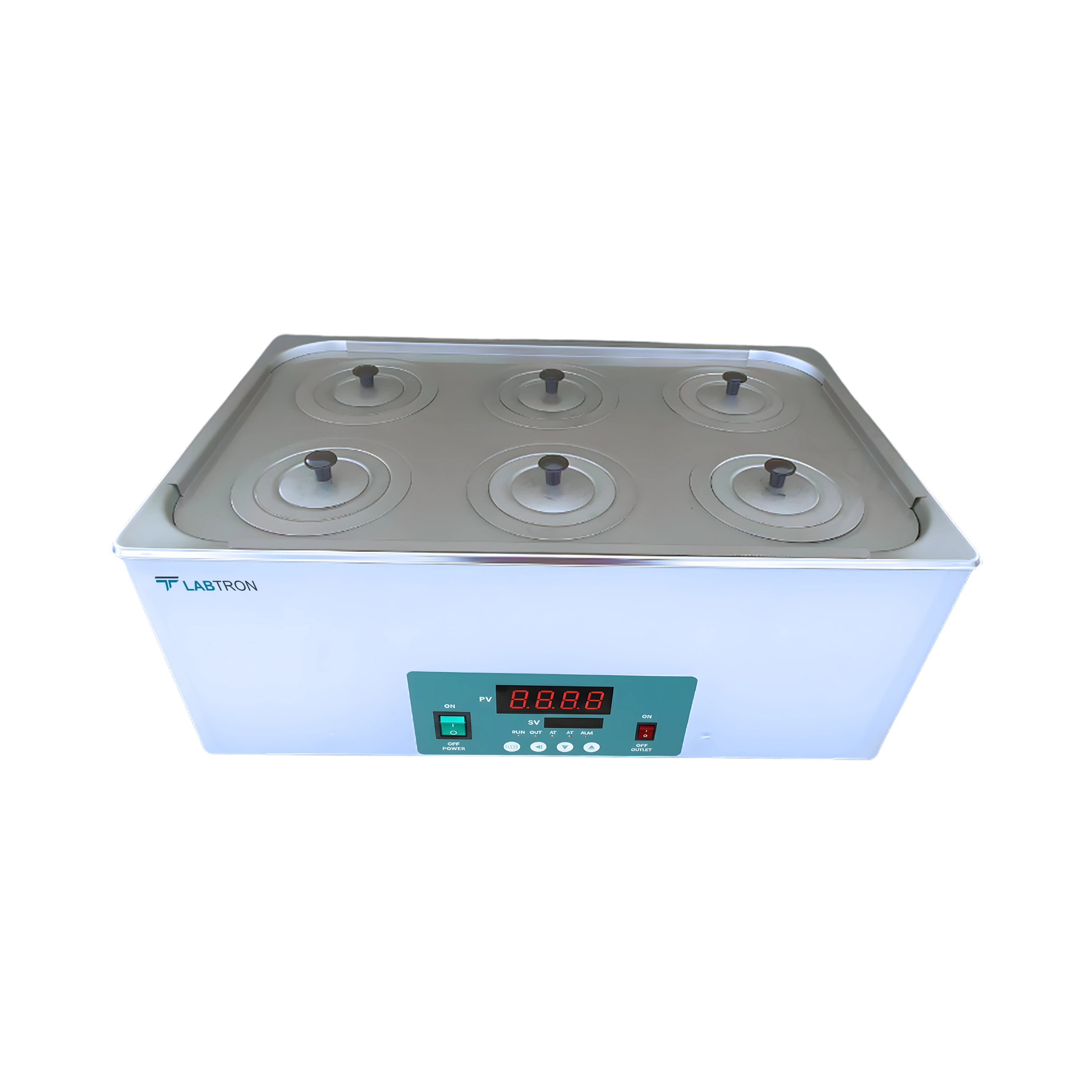

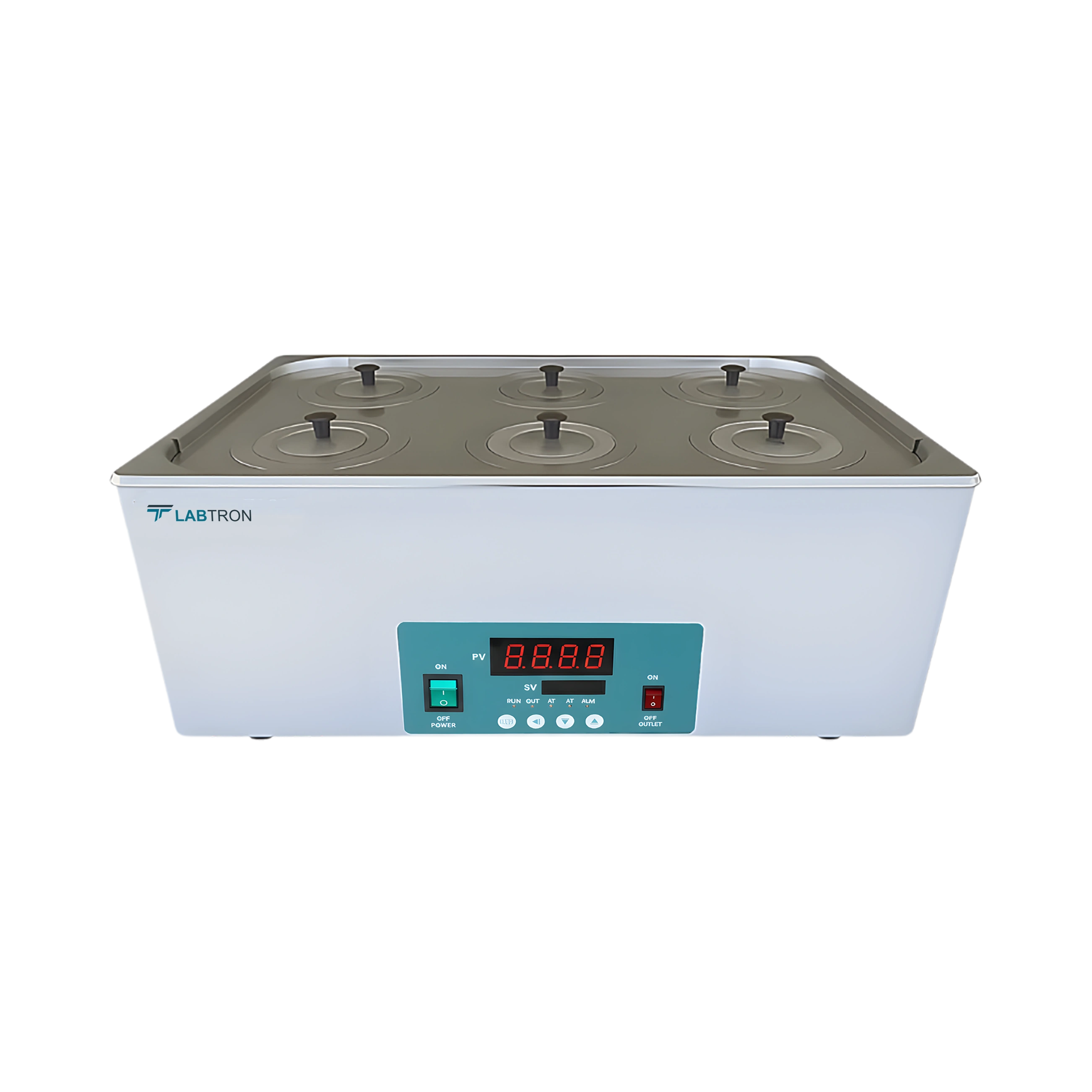

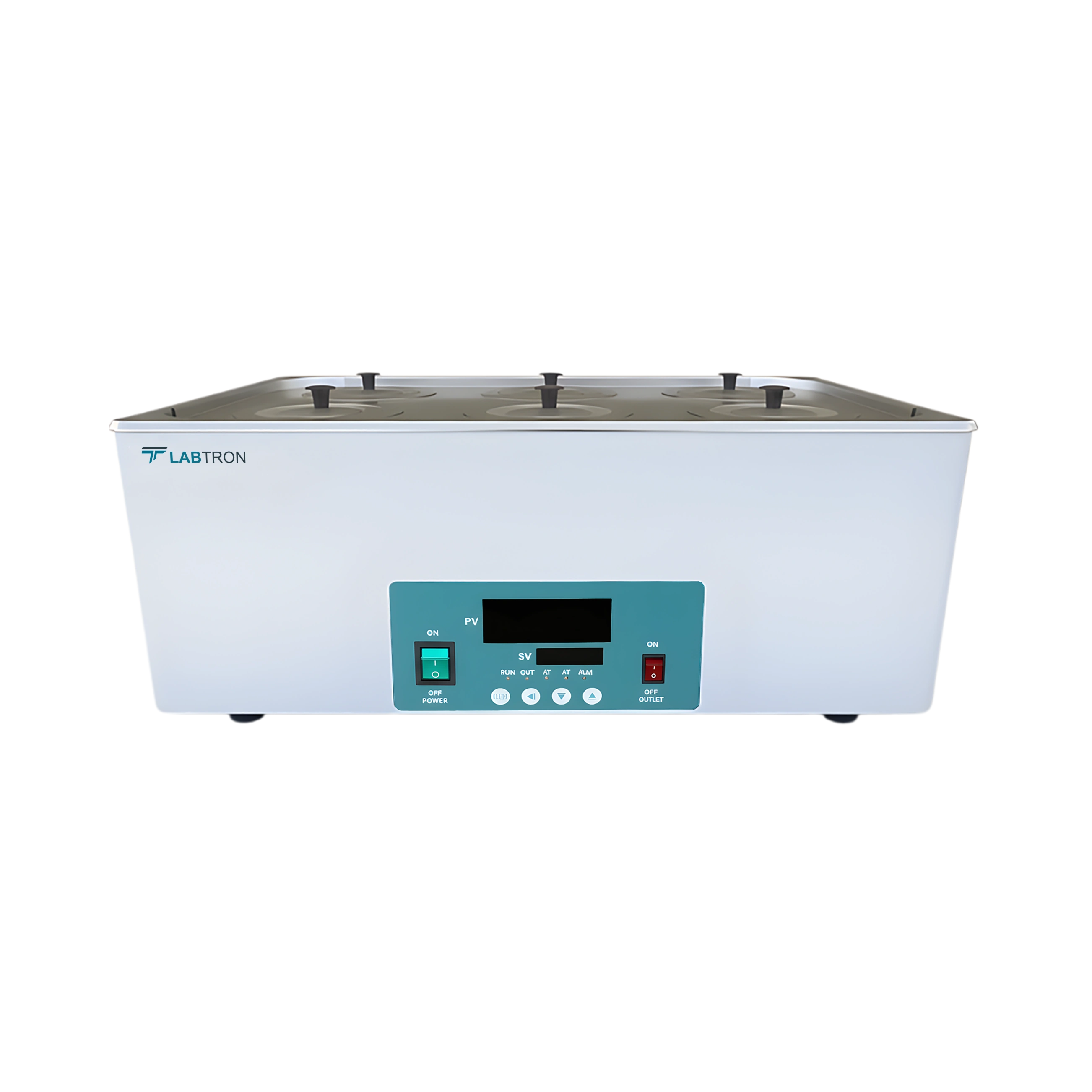

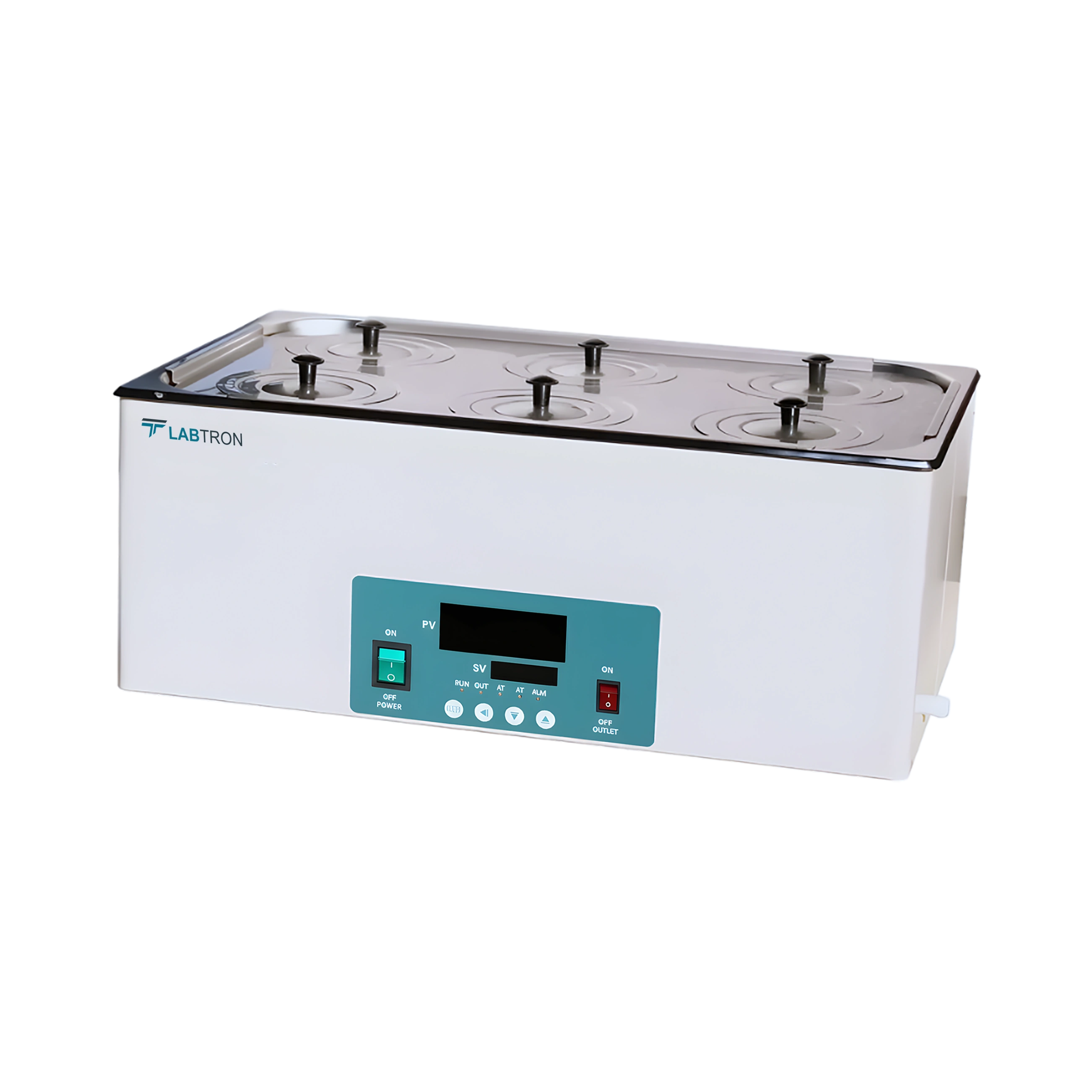

Constant Temperature Water Bath LCTW-A13 is a thermostatic water bath comprising nature water convection heat transfer configuration with stainless steel heating tube, offers temperature range of RT +5°C to 100°C with fixed temperature operation and timing function. Features stretching inner chamber with 22.5 L of capacity along with roof cover, one-button operation and convenient drain. Incorporated PID temperature controller and NTC sensor with digital tube display, ensures precise auxiliary and constant temperature. With timing wait function, auto stop function and over temperature alarm, it also offers deviation correction, menu key locked, power failure back-up and power-off memory. Designed with cold – rolled steel plate outer shell, single shelf, double row and sextuple hole, and chemical reagent resistance surface coating, this water bath automatically stops working on water shortage to ensure safe product operation.
| Inner chamber volume | 22.5 L |
| Temperature range | RT +5°C to 100°C |
| Temperature resolution | 0.1°C |
| Temperature motion | ±0.5°C |
| Temperature uniformity | ±1.0°C |
| Heating mode | Nature water convection heat transfer |
| Heater | Stainless steel heating tube |
| Timer | 0 to 9999 min |
| Temperature controller | PID |
| Temperature Setting | Touch button |
| Operation function | Fixed temperature operation |
| Safety function | Deviation Correction, menu key locked, power failure back-up, power-off memory, timing function, and auto stop |
| Alarm system | Over-temperature |
| Inner chamber material | Stainless steel |
| Outer shell | Cold – rolled steel plate outer shell with chemical reagent resistance surface coating |
| Shelf | Single |
| Load per rack | 5 kg |
| Rows and holes | Double row, sextuple hole |
| Power supply | AC 220 V/6.8 A, 50/60 Hz |
| Power rating | 1.5 kW |
| Inner chamber dimension (L×W×H) | 300×500×150 mm |
| Exterior dimension (L×W×H) | 322×524×210 mm |
| Package dimension (L×W×H) | 390×600×280 mm |
| Net weight | 7.5 kg |
| Gross weight | 9 kg |
Constant temperature water bath is widely used for incubation, boiling, inactivation, wet ashing, enzyme analysis, evaporating, concentrating and constant temperature heating across school laboratory, food processing, oil factory, biochemistry, agriculture, and a variety of clinical and industrial use.
| Model | Inner chamber volume | Temperature range | Temperature resolution | Temperature motion | Temperature uniformity | Heating mode | Heater | Timer | Temperature controller | Temperature Setting | Operation function | Safety function | Alarm system | Inner chamber material | Outer shell | Shelf | Load per rack | Rows and holes | Power supply | Power rating | Inner chamber dimension (L×W×H) | Exterior dimension (L×W×H) | Package dimension (L×W×H) | Net weight | Gross weight |
| LCTW-A20 | - | RT to 99.9°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| LCTW-A21 | - | RT to 99.9°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| LCTW-A10 | 3.4 L | RT +5°C to 100°C | 0.1°C | ±0.5°C | ±1.0°C | Nature water convection heat transfer | Stainless steel heating tube | 0 to 9999 min | PID | Touch button | Fixed temperature operation | Deviation Correction, menu key locked, power failure back-up, power-off memory, timing function, and auto stop | Over-temperature | Stainless steel | Cold – rolled steel plate outer shell with chemical reagent resistance surface coating | Single | 5 kg | Single hole | AC 220 V/1.8 A, 50/60 Hz | 0.4 kW | 135×150×150 mm | 154×170×210 mm | 230×240×280 mm | 3.3 kg | 4 kg |
| LCTW-A11 | 6.1 L | RT +5°C to 100°C | 0.1°C | ±0.5°C | ±1.0°C | Nature water convection heat transfer | Stainless steel heating tube | 0 to 9999 min | PID | Touch button | Fixed temperature operation | Deviation Correction, menu key locked, power failure back-up, power-off memory, timing function, and auto stop | Over-temperature | Stainless steel | Cold – rolled steel plate outer shell with chemical reagent resistance surface coating | Single | 5 kg | Single row, double hole | AC 220 V/2.3 A, 50/60 Hz | 0.5 kW | 135×300×150 mm | 168×318×210 mm | 240×390×280 mm | 4.5 kg | 5 kg |
| LCTW-A12 | 14.6 L | RT +5°C to 100°C | 0.1°C | ±0.5°C | ±1.0°C | Nature water convection heat transfer | Stainless steel heating tube | 0 to 9999 min | PID | Touch button | Fixed temperature operation | Deviation Correction, menu key locked, power failure back-up, power-off memory, timing function, and auto stop | Over-temperature | Stainless steel | Cold – rolled steel plate outer shell with chemical reagent resistance surface coating | Single | 5 kg | Double row, quadruple hole | AC 220 V/4.5 A, 50/60 Hz | 1.0 kW | 300×325×150 mm | 318×350×210 mm | 390×420×280 mm | 6 kg | 7 kg |
| LCTW-A13 | 22.5 L | RT +5°C to 100°C | 0.1°C | ±0.5°C | ±1.0°C | Nature water convection heat transfer | Stainless steel heating tube | 0 to 9999 min | PID | Touch button | Fixed temperature operation | Deviation Correction, menu key locked, power failure back-up, power-off memory, timing function, and auto stop | Over-temperature | Stainless steel | Cold – rolled steel plate outer shell with chemical reagent resistance surface coating | Single | 5 kg | Double row, sextuple hole | AC 220 V/6.8 A, 50/60 Hz | 1.5 kW | 300×500×150 mm | 322×524×210 mm | 390×600×280 mm | 7.5 kg | 9 kg |
| LCTW-B10 | - | RT to 100°C | - | - | - | - | - | - | Digital temperature controller | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 20 kg | 23 kg |
