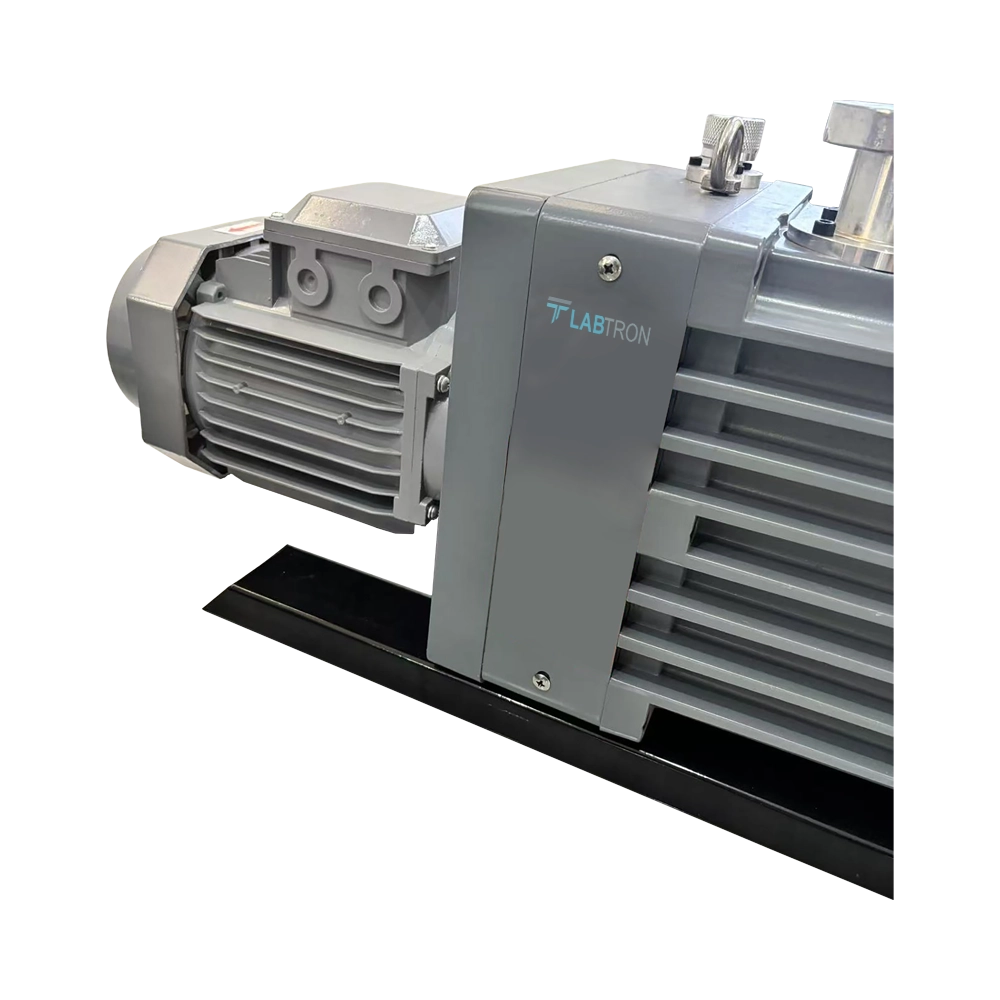

Direct Drive Rotary Vane Vacuum Pump LDDVP-A16

Direct Drive Rotary Vane Vacuum Pump LDDVP-A16

Direct Drive Rotary Vane Vacuum Pump LDDVP-A16 provides rapid air evacuation with 15 L/s flow rate. Equipped with gas-ballast valve that introduces air into exhaust space to reduce vapor pressure preventing oil emulsification. Feature eccentrically mounted rotors with vanes that draw in and compress gas, creating vacuum. Incorporates devices to prevent oil backflow and axle seal leakage, ensuring cleanliness. Offers small, lightweight, and quiet, contributing to easy operation and minimal space requirements.
Direct Drive Rotary Vane Vacuum Pump LDDVP-A16-1
Direct Drive Rotary Vane Vacuum Pump LDDVP-A16-2
Request Quote
Pumping Speed 15 L/s
Ultimate Pressure ≤6 × 10⁻² Pa
Inlet Diameter 40mm
Oil Capacity 4 L
Power Consumption 1500 W
Power Supply 380V/50Hz
Product Dimension (W×D×H) 690mm × 200mm × 330mm
Packaging Dimension (W×D×H) 800mm × 280mm × 490mm
Net Weight 58kg
Packaging Weight 65kg
  • Low operational noise levels
  • Oil-lubricated vane mechanism
  • Integrated gas ballast system
  • Durable metal pump casing
  • Reliable motor-driven operation
Our Direct Drive Rotary Vane Vacuum Pump LDDVP-A16 is ideal for laboratories, manufacturing, and pharmaceutical fields, ensuring efficient vacuum performance. It supports critical applications requiring precision, reliability, and consistent vacuum levels.
Inlet port
Filter net
Oil baffle
O-Ring
Spring
Vane
Rotor
Stator
Oil box
Vacuum oil
Exhaust valve plate
Screw plug for oil drain
Oil glass
Screw plug for oil filling
Gas-ballast valve
Mist arrester
Outlet port
Handle
Driving bushing
Protective covers
