Dry Biochemistry Analyzer LDBA-A10

Name: Dry Biochemistry Analyzer LDBA-A10
Brand: Labtron
SKU: LDBA-A10
Rating: 5 (919 reviews)

Dry Biochemistry Analyzer LDBA-A10 requires 90-120 μL of sample volume and delivers results in 12 minutes. It includes IQC intelligent quality control to ensure test accuracy and reliability. Our analyzer functions effectively within a temperature range of 10 to 32℃ and in humidity levels from 30% to 70%. It can analyze up to 31 biochemical parameters in a single test, providing complete diagnostic results.

Request Quote

Sample Type	Anticoagulant whole blood, serum and plasma
Sample Volume	90-120 μl
Testing Time	12 minutes / sample
Bar Code	QR code
Temperature	37±0.3℃
Resolution	0.001 Abs
Absorbance	0-3.0Abs
Control system	IQC intelligent QC
Work Condition	Temperature:10 to 32℃ Humidity: <30 to 70%
Testing Principle	Absorption spectroscopy, transmission turbidimetry
Testing Method	End point, kinetic, fixed time, turbidimetry etc
Light Source	12V/20W, halogen tungsten lamp’s life span is over 2500 hours
Display	Android 7.0 inch 800 × 480, multi-point capacitive touch screen, multilingual choice
Storage	500,000 results

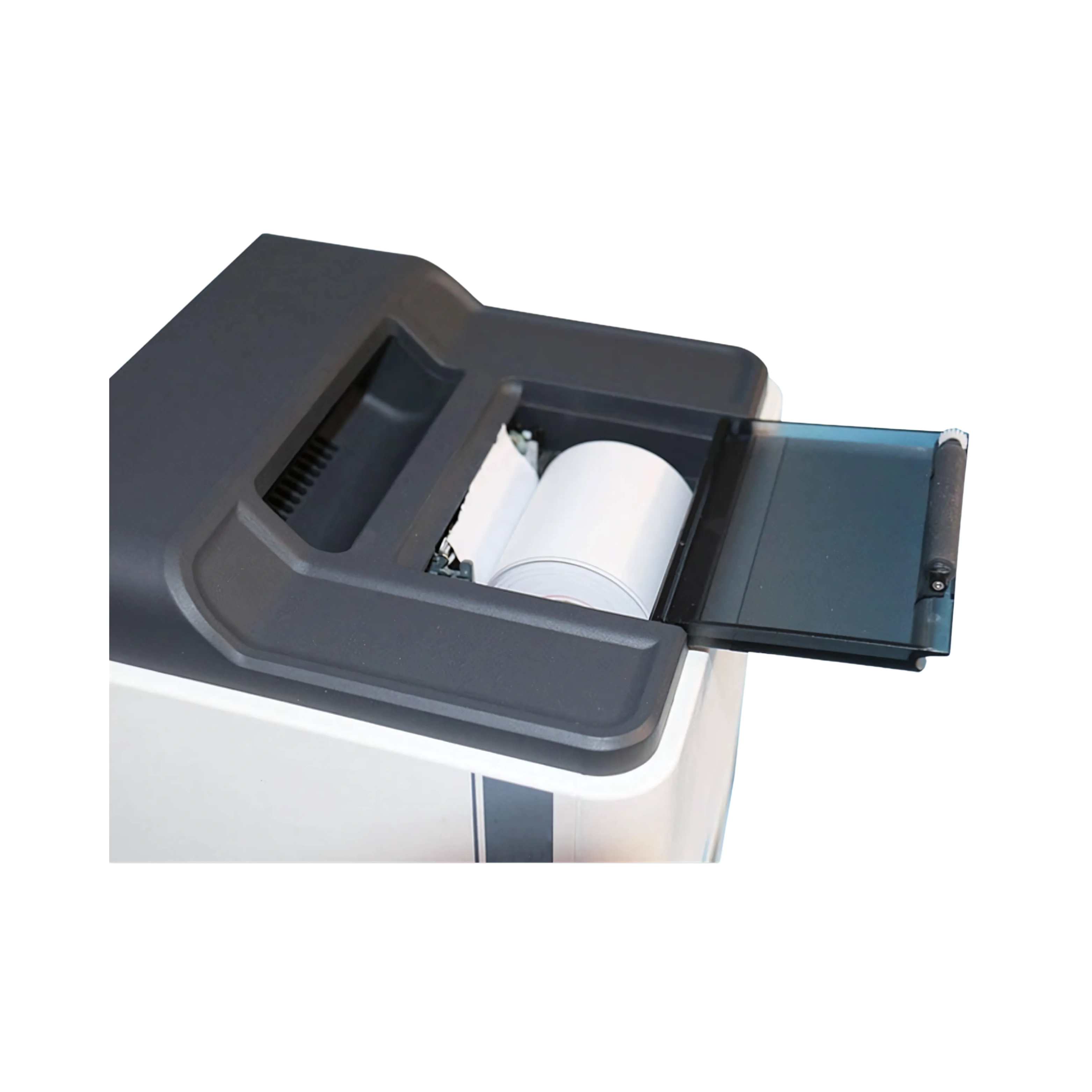

Printer	Built-in thermal printer
Connectors	4 USB ports, 1 LAN port
Power Supply	AC100V-240V, 50-60 Hz
Power Output	15 7.0a, 105W MAX
Dimensions	200× 250 ×300 mm
Weight	4.4 kg

Supports multiple testing methods
Requires minimum sample
Disposable reagent disc
Portable and lightweight
Photoelectric colorimetric principle
Three step simple operation
Low maintenance

Dry Biochemistry Analyzer is widely used in primary healthcare for routine blood tests in labs, emergency diagnostic testing, field rescue operations, as well as in research and veterinary medicine for biochemical testing.

Download catalog for
Dry Biochemistry Analyzer LDBA-A10 Catalog

Available Range :

Dry Biochemistry Analyzer LDBA-A10 : Anticoagulant whole blood, serum and plasma
