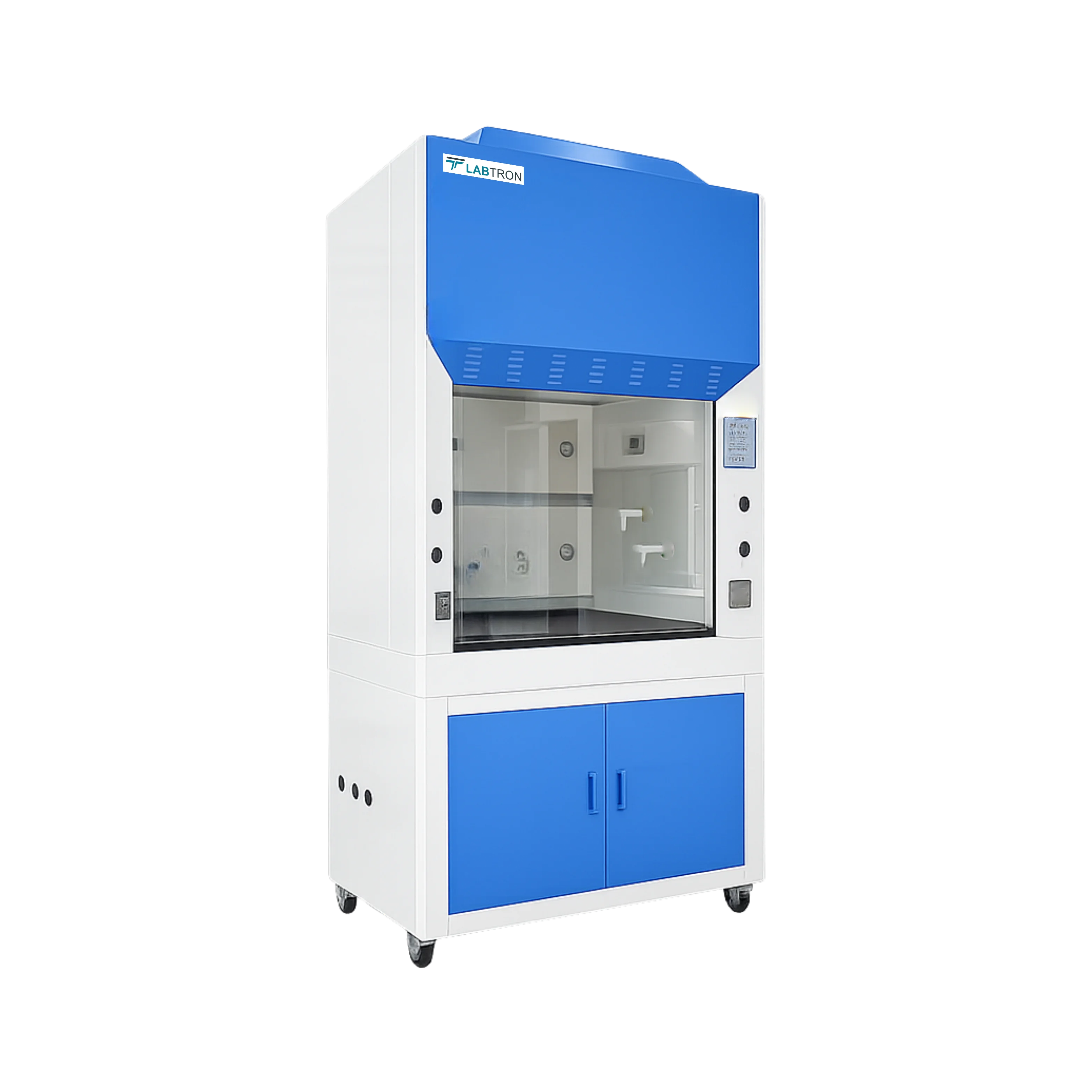

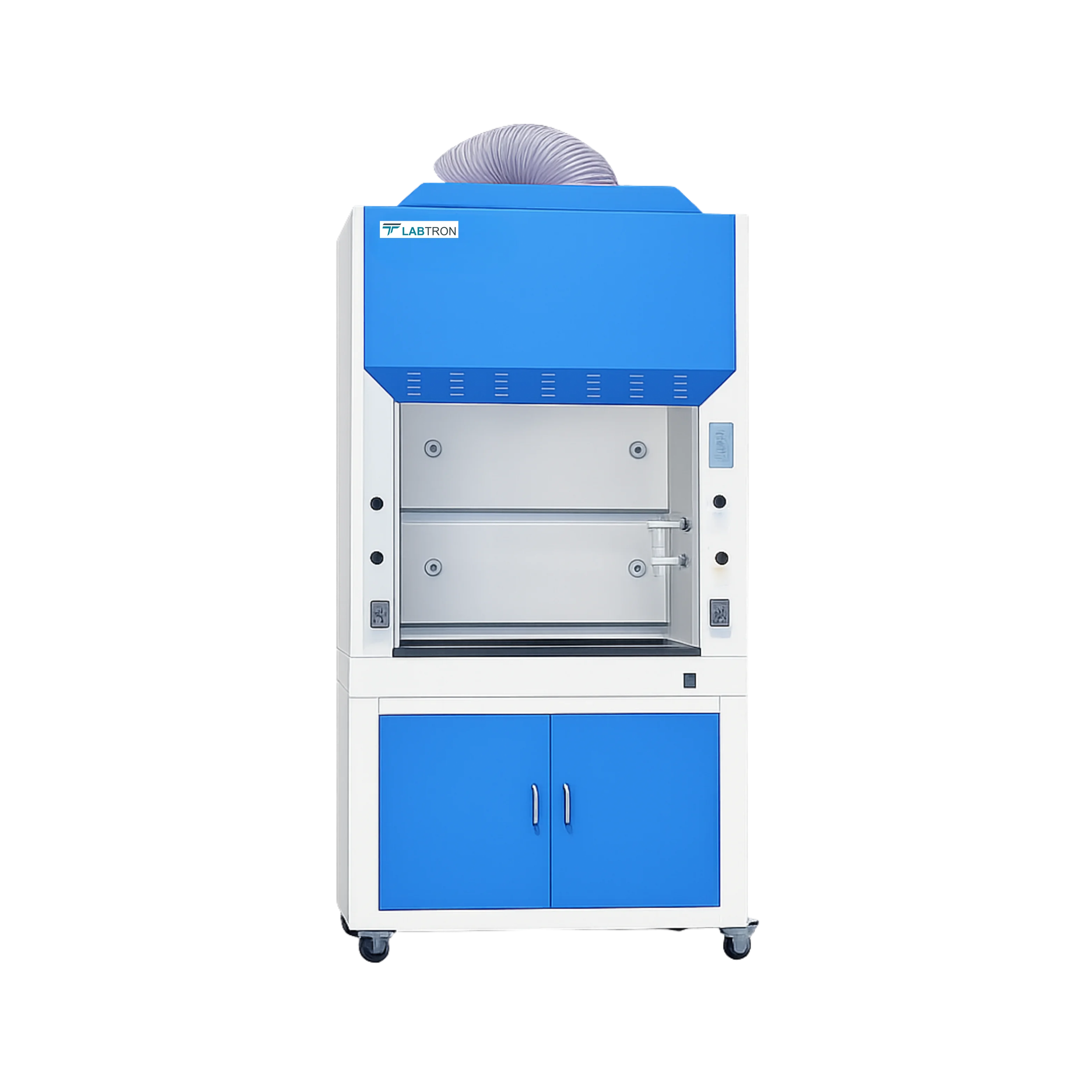

Ducted Fume Hood LFH-B10

Name: Ducted Fume Hood LFH-B10
Brand: Labtron
SKU: LFH-B10
Rating: 4.8 (872 reviews)

Ducted Fume Hood LFH-B10 is a microprocessor controlled ducted Fume Hood with built in centrifugal blower which removes toxic gases to the outside of the working environment. The Fume Hood material is highly authentic and is resistant to acid and base having weak strength. It has maximum opening of 520 mm, 850 mm working area height and 9 levels air speed exhaust blower. Equipped with LED and UV lamp for illumination and decontamination of working environment. Active carbon filter for air fume filtration. It is ideally used for effective working environment in microbiology, biology, biotechnology field centers.

Request Quote

Exterior Size (W × D × H)	1040 × 800 × 2200 mm
Interior Size (W × D × H)	820 × 670 × 730 mm
Maximum Opening	520 mm
LED Lamp	8 W × 1
UV Lamp	Emission of 253.7 nm for efficient decontamination
Air Velocity	0.3 m/s to 0.8 m/s
Work Surface Height	850 mm
Exhaust Duct	PVC 4 meters, φ 300 mm
Noise	≤ 68 dB
Power Supply	AC 220 V ± 10%, 50/ 60 Hz AC 110 V ± 10%, 60 Hz
Power Consumption	400 W
Package Size (W × D × H)	1190 × 990 × 1690 mm
Gross Weight	286 kg

Microprocessor control system
Digital LED display
LED lamp for illumination
UV lamp for decontamination of working environment
9 level adjustable air speed exhaust blower
Air velocity memory function in case of power failure
Built-in centrifugal blower
5 mm Motorized front glass window
Active carbon filter to remove toxic fumes
Alarm function on filter reaching working time of 3500 hours
Chemically resistant phenolic resin work table
Interior material highly authentic melamine board resistant to weak acid and base
External material made up of cold rolled steel having anti-bacterial coating
Backside air compensation avoiding turbulence in working area

Ducted Fume Hood is used for providing effective working environment for laboratory experiments in various fields of microbiology, chemical, biotechnology, research centers etc.

No	Accessory name	Quantity
1	UV Lamp	2
2	LED Lamp	1
3	Water Tap	1
4	Gas Tap	1
5	Water Sink	1
6	Base Cabinet	1
7	Total load of 2 Waterproof Socket: 500 W	2
8	PVC Exhaust Duct: 4 meters	1
9	Pipe Strap	2
