Explosive And Narcotics Detector LEND-A14

Name: Explosive And Narcotics Detector LEND-A14
Brand: Labtron
SKU: LEND-A14
Rating: 4.9 (858 reviews)

Explosive and Narcotics Detector LEND-A14 offers high sensitivity, detecting as low as 100 ng of black powder for reliable trace identification. It features Photoionization Ion Mobility Spectrometry (PIMS) for accurate detection. Its self-testing and calibration to ensure reliability and reduce operator effort. The automatic cleaning system prevents injector contamination, lowering maintenance and ensuring consistent performance. Our detector is ideal for airports, border checkpoints, law enforcement, and critical infrastructure.

Explosive And Narcotics Detector LEND-A14_Front View

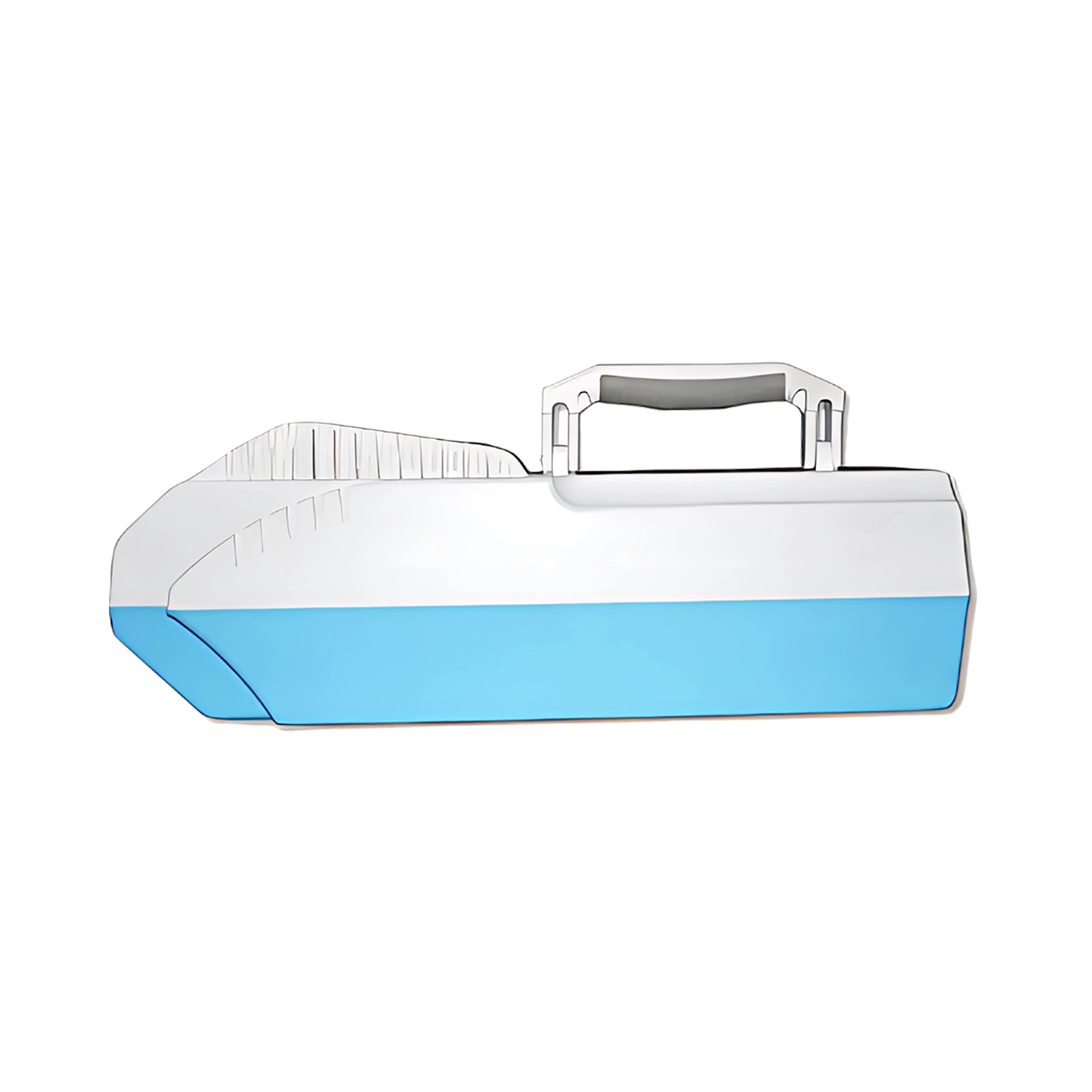

Explosive And Narcotics Detector LEND-A14_Side View

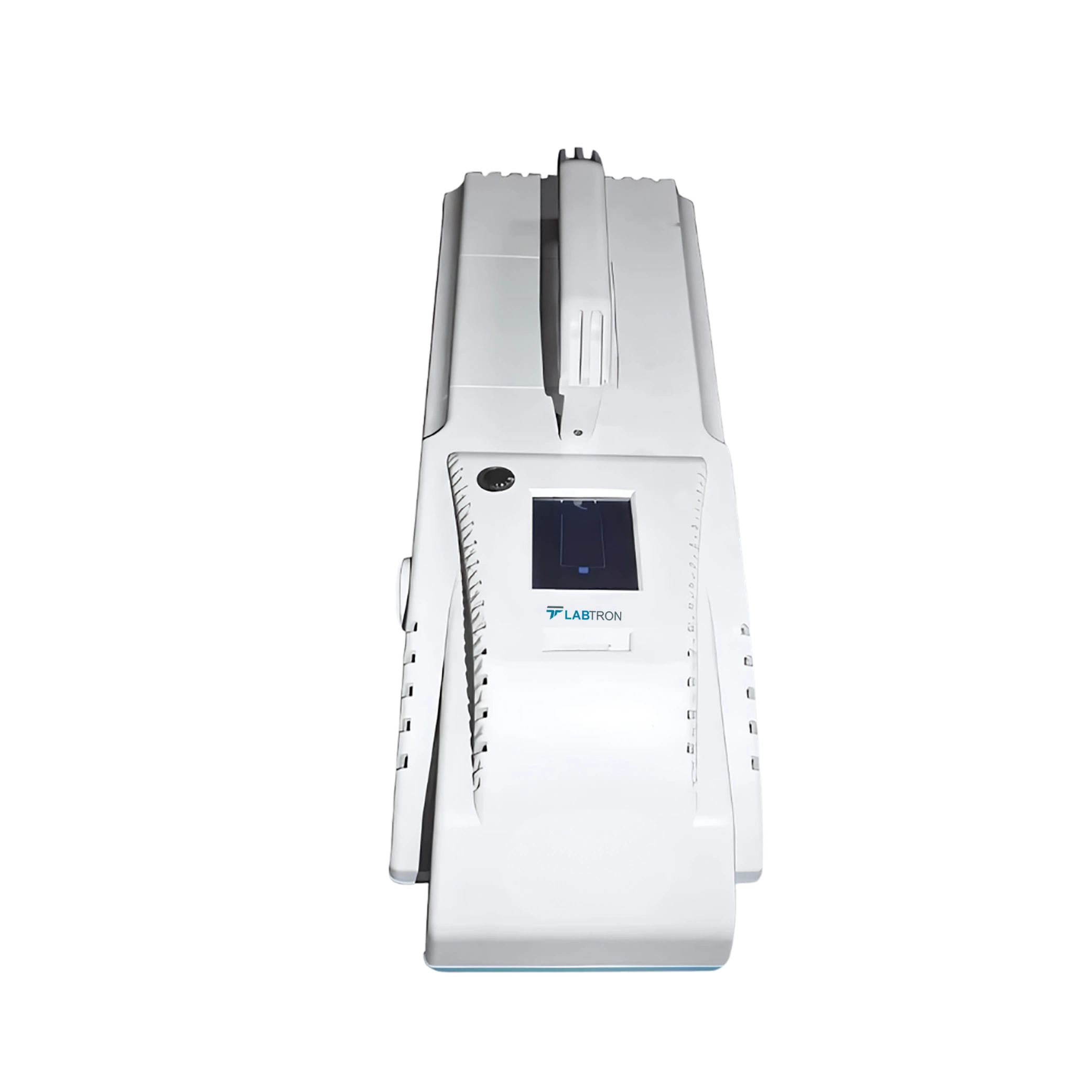

Explosive And Narcotics Detector LEND-A14_Top View

Request Quote

Sensitivity	Greater than or equal to 100 ng black powder
Analysis Time	2 sec
Detection Principle	Photoionization Ion Mobility Spectrometry (PIMS)
Working Principle	Detection using test paper samples (300 papers)
Ionization Technique	VUV soft ionization
Resolution	High resolution tube
Identify Speed	Less than 5 sec
Recovery Time After Alarm	1.5 sec
Warm-Up Time	Less than 90 sec
Hot Start Time	2.5 sec
Cold Start Time	90 sec
Data Storage Capacity	Less than 800,000 records
Explosive Detection Targets	Black Powder, Ammonium Nitrate, Tnt, Picric Acid, Tetryl, PETN, Nitroglycerin, Ng Explosives, RDX, HMX, C4
Narcotic Detection Targets	Cocaine, Heroin, Morphine, Amphetamines, Tetrahydrocannabinol, Papaverine, Ecstasy
Detection Limit (Explosives)	For TNT samples: greater than 10 pg (90% detection rate)
Detection Limit (Narcotics)	For Cocaine Hydrochloride samples: greater than 10 pg (90% detection rate)
Reference Analysis Substances (Explosives)	TNT-1-2, Hexamethylenetetramine, Tetrazole, Nitroglycerin, Ammonium Nitrate, Black Powder (With Sulfur Substitution), 2,4-Dinitrotoluene, Tetryl, Octogenin, Picric Acid, Gelatin, C4 Explosive, Semtex, Tatp, Hmtd, Nitroguanidine, Hexanitrostilbene, Ethylene Glycol Dinitrate, Degdn, Propylene Glycol Dinitrate, 3,4-Dinitrotoluene, 2,6-Dinitrotoluene, 1,3,5-Trinitrobenzene, 2,4,6-Trinitroresorcinol, 4-Nitrotoluene, Dmnb, Pyx, Tatb, 2-Amino-4,6-Dinitrotoluene, 3,5-Dinitrotoluene
Reference Analysis Substances (Narcotics)	Cocaine Hydrochloride, Heroin Hydrochloride, Tetrahydrocannabinol, Methamphetamine, Ketamine Hydrochloride, Morphine Hydrochloride, Demerol, Mdma, Papaverine, Methylephedrine, Metcathinone, Synthetic Ephedrine (K2), Ecstasy, Triazolam, Pentachlorophenol
False Alarm Rate	Less than equal to 1%
Alarm System	Audible and visual (light)
Database	Updatable at any time
Display	2.8 inch TFT touch color screen
Ports	Ethernet, USB, and RS232 interfaces
Control Elements	Physical button
Battery	14.8V/ 4400mah (Lithium Battery)
Battery Operating Time	Greater than or equal to 2 hours (analysis mode)
Power Consumption	100 W
Power Supply	AC 187 to 240 V 50/60 Hz
Operating Temperature	10 to 55°C
Dimensions (L × W × H)	565 × 365 × 280 mm
Weight	4 kg

Continuous gas purification
Customizable threat database
Interactive color display
Data storage export
Automated system reliability

Explosive and Narcotics Detector LEND-A14 rapidly identifies trace amounts of explosives and narcotics with high sensitivity and accuracy. It is ideal for use in airports, border checkpoints, law enforcement, and critical infrastructure security.

Name	Quantity
Desiccant	5 Pieces
USB Line	1 Piece
Absorb Elegant Air Sample Cloth (200 Piece/Box)	1 Box
Injector Heater Rod	1 Piece

Download catalog for
Explosive And Narcotics Detector LEND-A14 Catalog

Available Range :

Portable Explosive And Narcotics Detector LEND-A11 : 100 ng Explosive And Narcotics Detector LEND-A14 : Greater than or equal to 100 ng black powder Portable Explosive and Narcotics Detector LEND-A13 : pg level

Models of Explosive and Narcotics Detector

Labtron manufactures Explosive and Narcotic Detectors with high sensitivity. They utilize advanced detection technologies such as IMS, MS, and X-ray imaging. These detectors can accurately identify a wide range of substances including TNT, RDX, heroin, cocaine, methamphetamine, and more. Our Explosive and Narcotic Detectors provide real-time alert and data logging with a user-friendly interface. They are built to withstand harsh environments. These detectors meet international standards, including CE, ROHS, FCC, USFDA, ISO 9001, ISO 14001, and OHSAS 18001, ensuring reliability and effectiveness.

Tabletop Explosive and Narcotics Detector LEND-C13

Detectable Explosive Substances : Trinitrotoluene (TNT), Hexogen (RDX), Pentaerythritol tetranitrate (PETN), Nitroglycerine (NG), Ammonium nitrate (AN), Black Powder, Dinitrotoluene (DNT), Tetryl, Octogen (HMX), Nitroxanthic acid, Gena, C4, Semtex explosive, TATP, HMTD, Nitroguanidine (customizable according to the need to add new samples)
Detectable Narcotics Substances : Cocaine hydrochloride, Heroin hydrochloride, THC, Methamphetamine, Ketamine hydrochloride, Morphine hydrochloride, Dolantin, Ecstasy (MDA), Papaverine, Ecstasy (MDMA), Methyl ephedrine, Methcathinone, Synthetic ephedrine (K2), Shake foot pill (LSD), pethidine (customizable according to the need to add new samples)
Analysis Time : 1 to 10s
Sampling Method : Trace particle adsorption sampling, test paper wipe samples

Compare Remove

Portable Explosive and Narcotics Detector LEND-D13

Detectable Explosive Substances : TNT, RDX, Taian, Nitroglycerin, Ammonium Nitrate, Black Powder, Tequila, Octokine, Picric Acid, Gina, C4, Semtine, TATP, HMTChemical warfare agents and Neurotoxic agents: Tabun (GA), Sarin (GB), Soman (GD), Viex (VX), Mefluronic acid cyclohexyl ester (GF) Erosive agent: Mustard gas (HD), Louis reagent (L); blood poisons: hydrocyanic acid (AC), hydrogen chloride (CK)
Detectable Narcotics Substances : Cocaine, heroin, marijuana, methamphetamine, K powder, morphine, Dolantin, ecstasy, papaverine, ephedrine, methcathinone, ecstasy, fentanyl (more can be added)
Detectable Industrial Toxic Gases : ethanol, acetone, isopropanol, hydrogen chloride, hydrogen sulfide, ammonia, carbon disulfide, ethylene oxide, chlorine, nitrogen monoxide, nitrogen dioxide, formaldehyde, and toluene (more can be added)
Detectable Radiation Type : X-rays, gamma rays (50 keV to 1.25 MeV)

Compare Remove

Portable Explosive and Narcotics Detector LEND-A13

Detectable Explosive Substances : Trinitrotoluene (TNT), Hexogen (RDX), Pentaerythritol tetranitrate (PETN), Nitroglycerine (NG), Ammonium nitrate (AN), Black Powder, Dinitrotoluene (DNT), Tetryl, Octogen (HMX), Nitroxanthic acid, Gena, C4, Semtex explosive, TATP, HMTD, Nitroguanidine (customizable according to the need to add new samples)
Detectable Narcotics Substances : Cocaine hydrochloride, Heroin hydrochloride, THC, Methamphetamine, Ketamine hydrochloride, Morphine hydrochloride, Dolantin, Ecstasy (MDA), Papaverine, Ecstasy (MDMA), Methyl ephedrine, Methcathinone, Synthetic ephedrine (K2), Shake foot pill (LSD), pethidine (customizable according to the need to add new samples)
Sampling Method : Trace particle adsorption sampling, test paper wipe samples
Mixture Detection : Detect the main component and determine the composition of the mixture

Compare Remove

Portable Explosive and Narcotics Detector LEND-A23

Detectable Explosive Substances : TNT (Trinitrotoluene), RDX (Cyclotrimethylene trinitramine (C4)), PETN (Pentaerythritol tetranitrate), NITRO (nitroglycerine, ethylene glycol dinitrate), AM NO3 (ammonium nitrate), Black powder (sulphur), 2,4- Dinitrotoluene, Tetry, Octogen, Picric acid, NA, Composition C-4 13. Semtex, TATP, HMTD, Nitroguanidine, HNS, EGDN, DEGDN, PGDN, 3,4- Dinitrotoluene, 2,6- Dinitrotoluene, 3,5- Dinitrotoluene, 2,3- Dinitrotoluene, 2,5- Dinitrotoluene, 1,3,5- trinitrobenzene, 2,4,6- trinitrobenzene, 4-nitrotoluene, 2,3-dinitrobenzene; 2,3 Dimethylbutane, PYX, 2. 4. 6- TATB
Detectable Narcotics Substances : COCAINE, HEROIN, THC (cannabis), METHAM (Methamphetamine), Ketamine hydrochloride (K powder), Morphine hydrochloride (morphine), Ethidine, Ecstasy (MDA), Papaverine, Ecstasy (MDMA), Methyl ephedrine, Metformin, Synthetic ephedrine (K2), Shakeballs (lysergic acid diethylamide, LSD), Triazolam, Pentachlorophenol, Amphetamine, Fentanyl, Diazepam, Phencyclidine (PCP), N-ethyl-1- (3,4-methylenedioxyphenyl) -2-propylamine (MDEA), Cassione, Dihydroetorphine Hydrochloride (DHE)
Detection Limit : Picogram range
Accuracy Rate : ≥ 99%

Compare Remove

Portable Explosive And Narcotics Detector LEND-A11

Analysis Time : ≤3 seconds
Warm-up Time : ≤5 minutes
Detection Technology : Ion Mobility Spectrometry (IMS)
Photoionization Source : Vacuum ultraviolet (VUV), non-radioactive

Compare Remove

Tabletop Explosive and Narcotics Detector LEND-B13

Detectable Explosive Substances : Trinitrotoluene (TNT), Hexogen (RDX), Pentaerythritol tetranitrate (PETN), Nitroglycerine (NG), Ammonium nitrate (AN), Black Powder, Dinitrotoluene (DNT), Tetryl, Octogen (HMX), Nitroxanthic acid, Gena, C4, Semtex explosive, TATP, HMTD, Nitroguanidine (customizable according to the need to add new samples)
Detectable Narcotics Substances : Cocaine hydrochloride, Heroin hydrochloride, THC, Methamphetamine, Ketamine hydrochloride, Morphine hydrochloride, Dolantin, Ecstasy (MDA), Papaverine, Ecstasy (MDMA), Methyl ephedrine, Methcathinone, Synthetic ephedrine (K2), Shake foot pill (LSD), pethidine (customizable according to the need to add new samples)
Analysis Time : ≤6 s
Sampling Method : Trace particle adsorption sampling, test paper wipe samples
