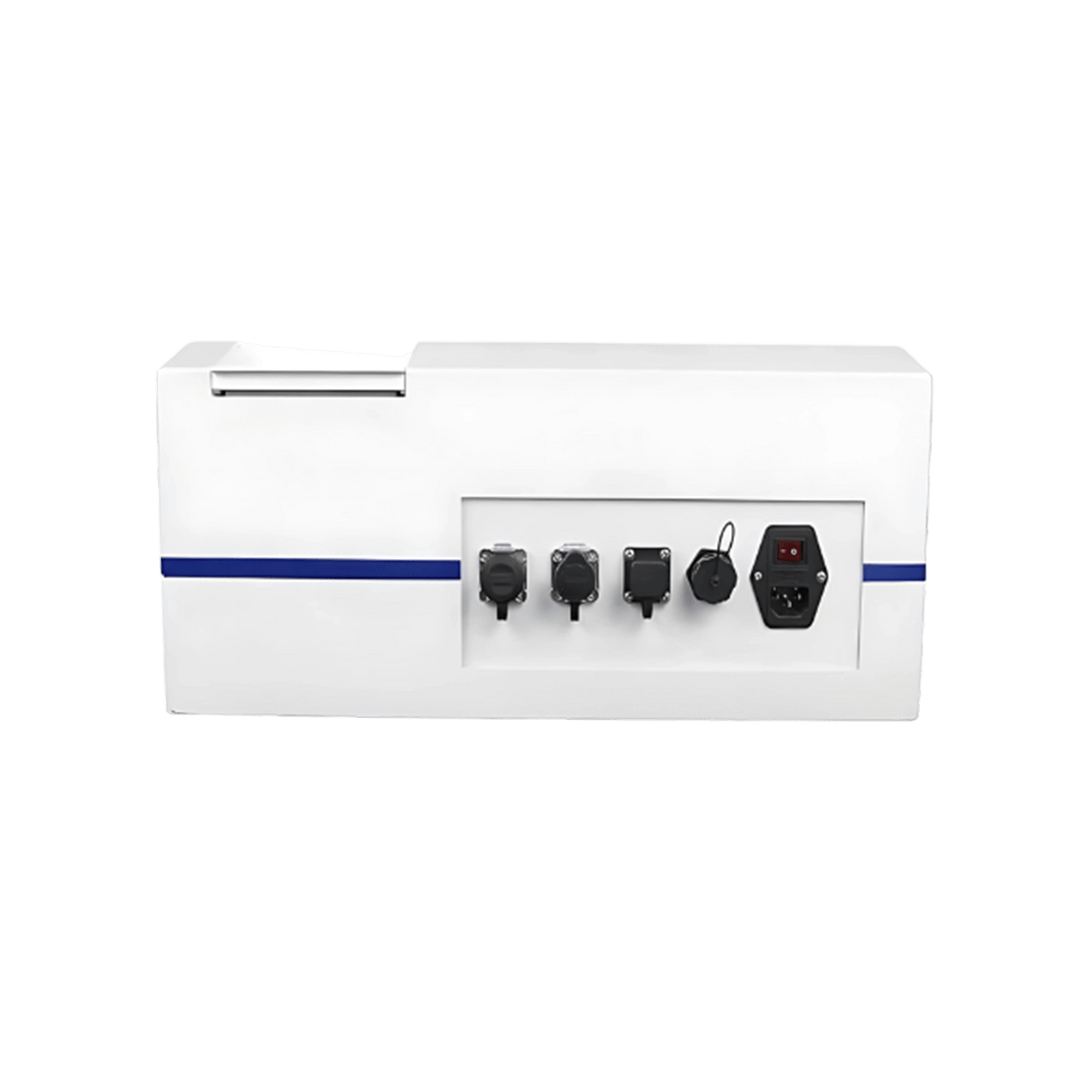

Filter Integrity Tester LIT-A10

Name: Filter Integrity Tester LIT-A10
Brand: Labtron
SKU: LIT-A10
Rating: 4.8 (805 reviews)

Filter Integrity Tester LIT-A10 operates at range of 100 to 10,000 mbar (150 psi), ensuring precise and reliable testing. Its advanced microprocessor-controlled system delivers fast, reliable, and repeatable integrity test procedures efficiently. Offers multiple test modes, including bubble point, diffusion, and pressure hold for comprehensive testing. The real-time graphical test display enables continuous monitoring and assessment of test progress efficiently. Includes user-configurable parameters that allow flexibility in test settings for different membrane and filter types.

Request Quote

Operation Pressure	100 to 10000 mbar (150 psi)
Operation Condition	Ambient Temperature: +5℃ to +40℃ Relative Humidity: 10 to 80%
Test Accuracy	Upstream Volume Test: ±4% Bubble Point Test: ±50mbar Diffusion Flow Test: ±4% Water Immersion Test: ±0.01ml
Test Scope	BP: 100 to 8000mbar DF: 1 to 900ml/min WI: 0.01 to 100ml/min
Audit Trail	Audit trail records are exportable and irreversible
Audit Trail Record Storage	More than or equal to 5 years storage
Reservation	Solution (programs): 1000 sets
Dust and Splash Level	IP54
Print Function	Built-in printer, can control on PC, subject selection available
Historical Record Storage	300000 sets
Operating System	Linux system
Display Screen	High-definition 10-inch color touch screen
Serial Connection	RS232/USB/Support wireless connection
Applicable Environment	Above D level
Power Consumption	120W
Power Supply	100 to 240 VAC, 50HZ
Dimension (W×D×H)	300mm × 480mm × 210mm
Packaging Dimension	710mm × 470mm × 600 mm
Weight	10 kg
Gross Weight	27 kg

High-accuracy pressure sensor integration
Automatic self-test with fault reporting
Stores 1000 pre-set programs
Display curve for diffusion flow
Optimized air inlet control unit
Supports USB data export function
Expandable communication and network interface
Wireless communication functions available
Staubli connectors prevent incorrect connections
Extended gas path up to 100m
Built-in thermal printer included
Multiple switchable pressure units available
Tests up to 12-core filters
Customized Anti-backflow device available

Our Filter Integrity Tester LIT-A10 ensures precise absorbance measurement, spectral scanning, and quantitative analysis required for symmetric and asymmetric membrane test, needle filters, capsule filters, flat filters, cartridge filters, ultrafiltration membrane packages, columns and various irregular filters making it ideal for research applications.

Download catalog for
Filter Integrity Tester LIT-A10 Catalog

Models of Filter Integrity Tester

Labtron Filter Integrity Tester utilize correct pressure regulators for maintaining consistent and accurate testing conditions. They feature user-friendly touchscreen controls for easy navigation and streamlined operations. Their high-sensitivity sensors detect minute leaks, ensuring compliance with stringent industry standards. They offer automated data logging, assuring accurate and tamper-proof record-keeping of test results. Our Filter Integrity Tester provide reproducible results, making them ideal for pharmaceutical, biotech, and food industries.
