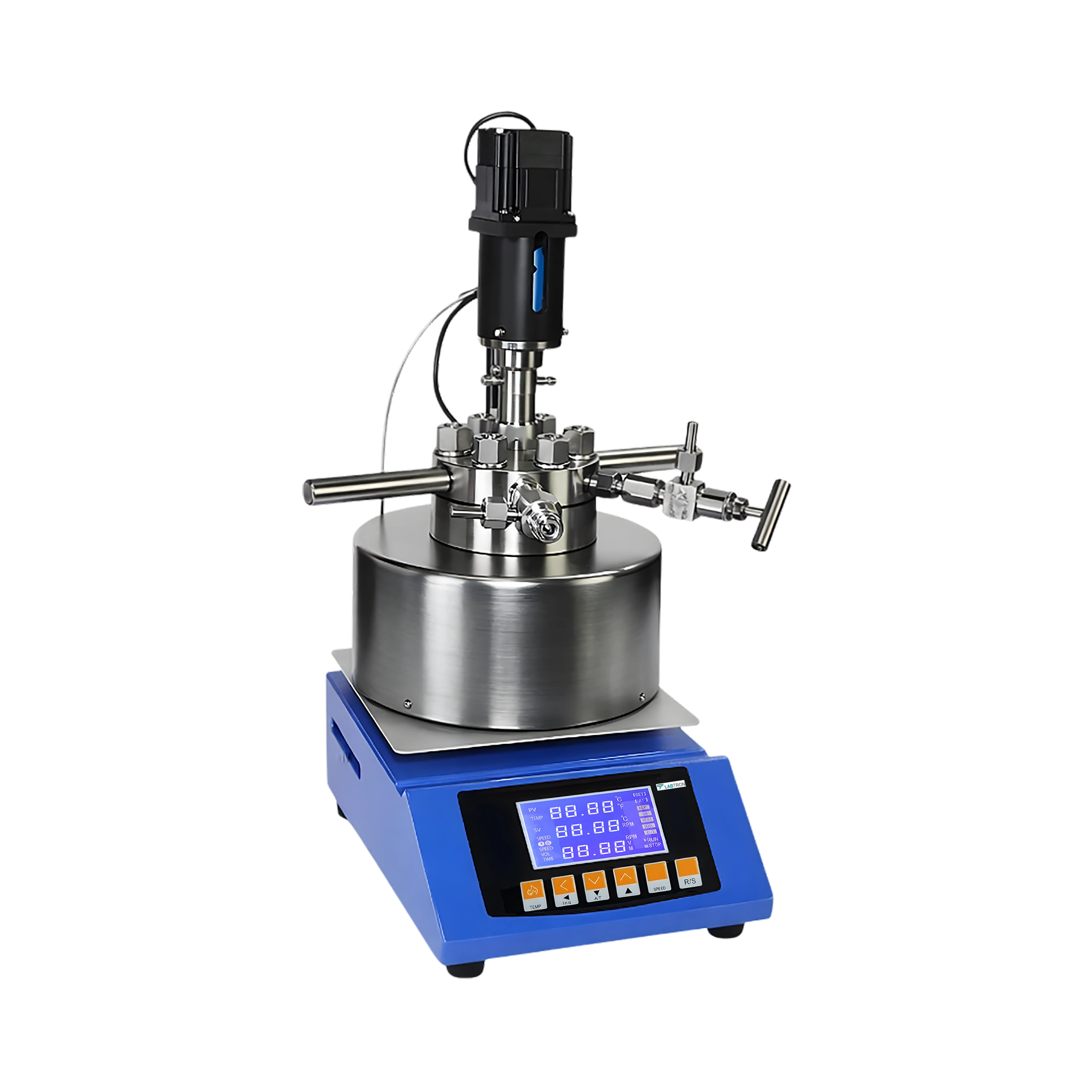

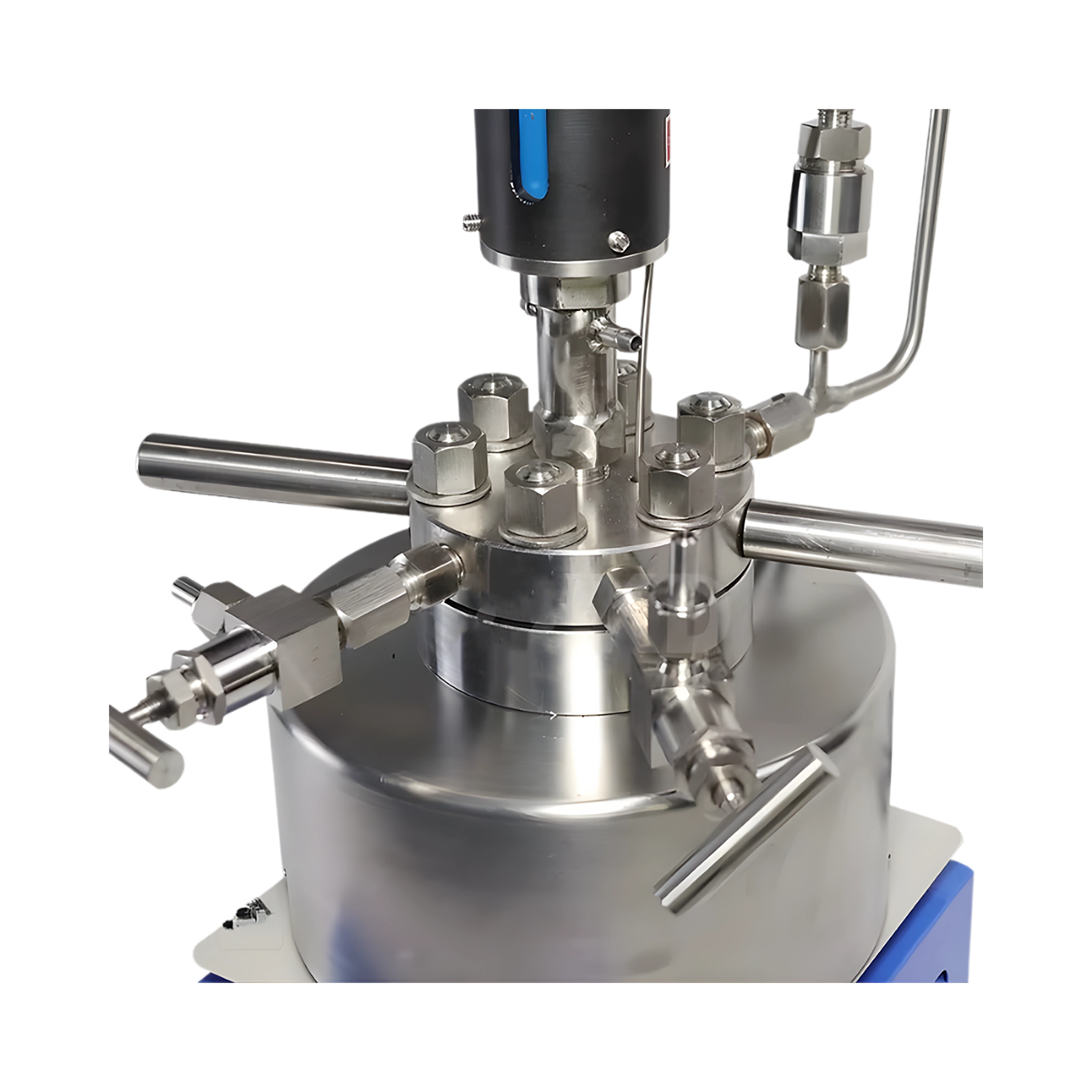

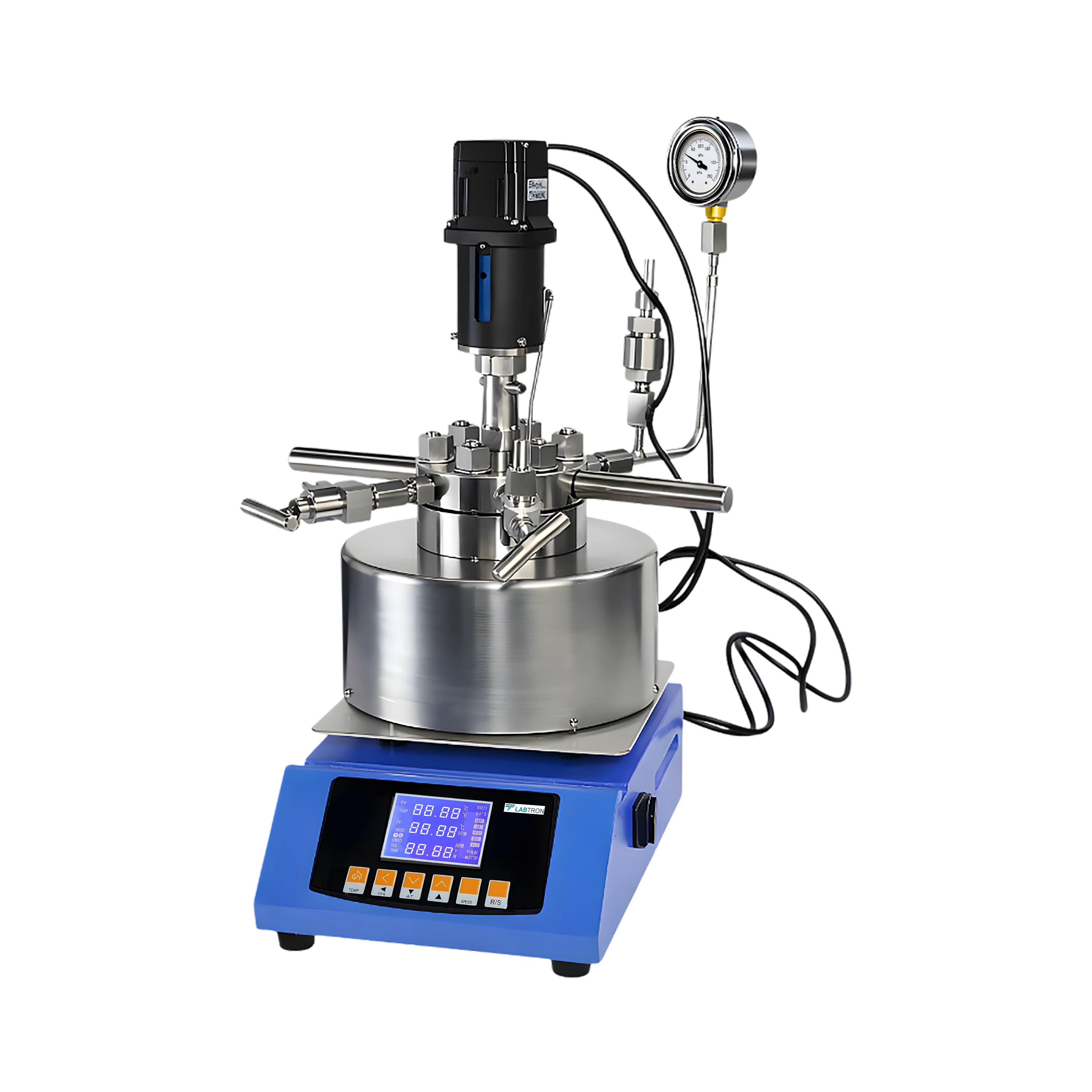

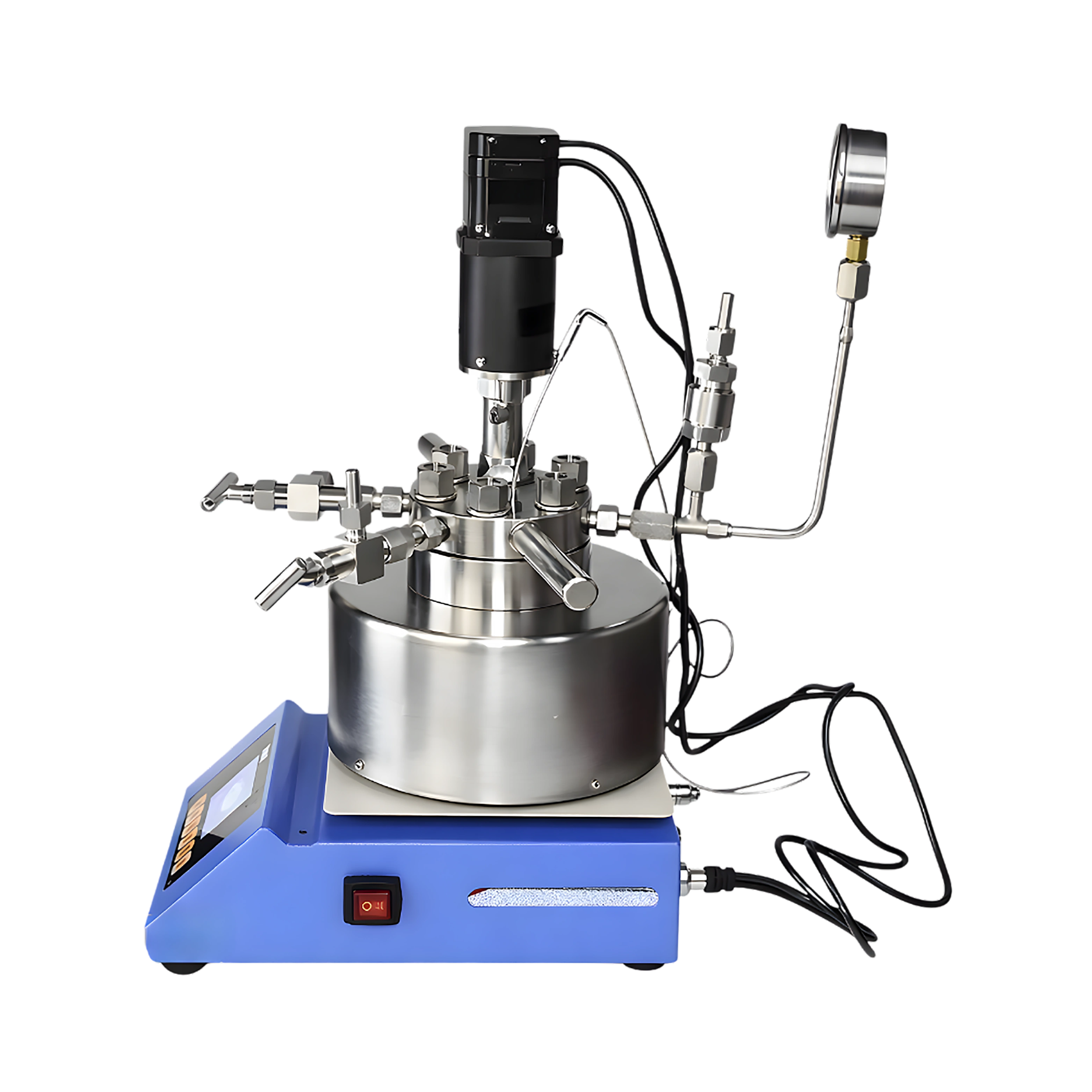

High-pressure Reactor LHPR-A10, designed with a 500 ml capacity, is used for controlled high-pressure and high-temperature reactions. It supports 300 °C operation for precise experimental work in demanding environments. Integrated magnetic-coupling stirring ensures stable, leak-free mixing for uniform reaction performance. Built-in digital display monitoring delivers clear operational data for safe and efficient control. Our high-pressure bioreactor uses modular electrical heating for stable temperature control in advanced lab research.
| Reactor Capacity | 500 ml |
| Max Pressure | 300 bar |
| Max Temperature | 300 °C |
| Heating System | Modular Electrical Heating |
| Temperature Control | Digital PID Controller |
| Stirring Method | Magnetic Coupling Stirring |
| Stirring Speed | Adjustable, High-Stability Control |
| Reactor Material | High-Strength Stainless Steel |
| Sealing System | Leak-Proof Flange Sealing |
| Safety Features | Over-Temperature and Over-Pressure Protection |

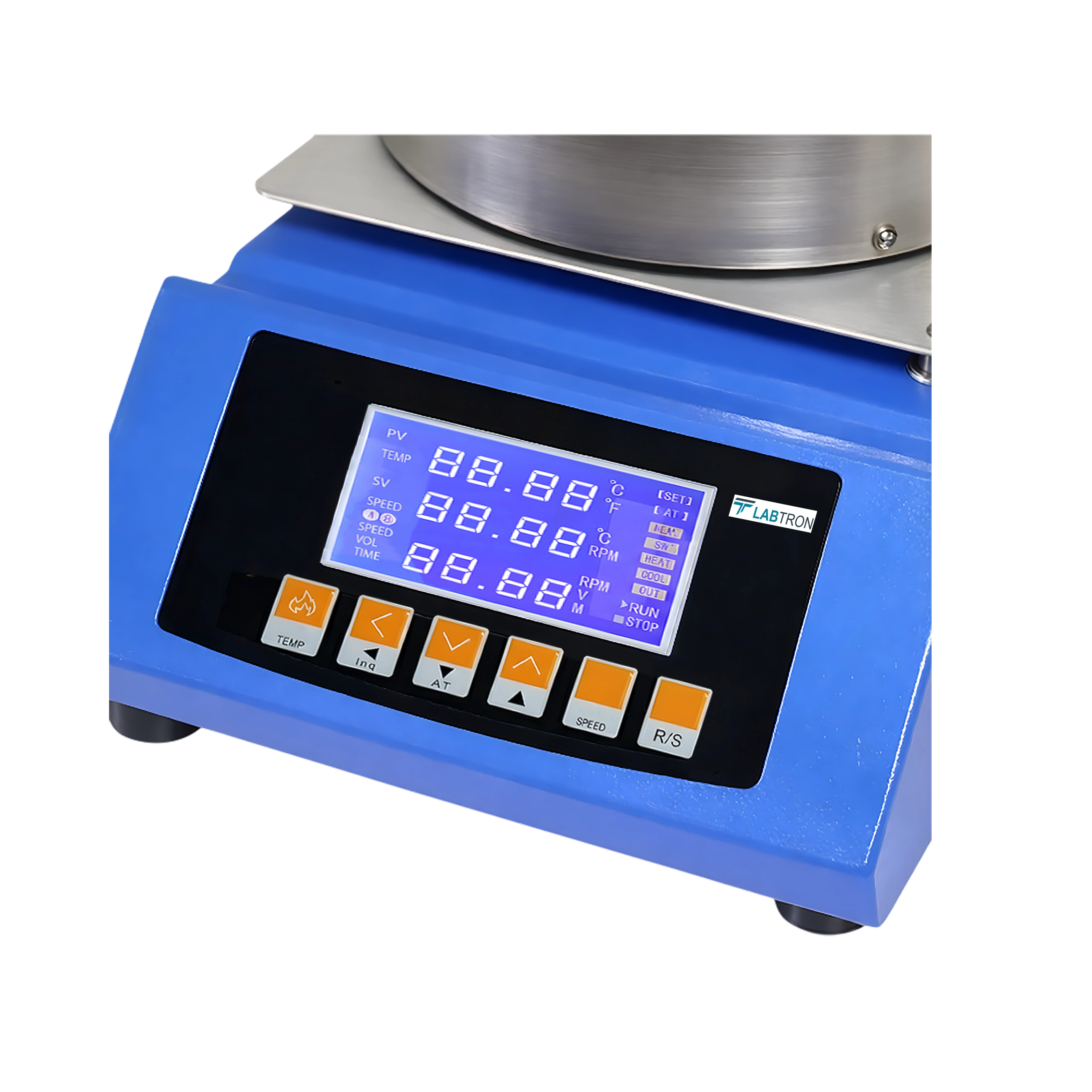

| Monitoring Display | Integrated Digital Display |
| Pressure Gauge | High-Accuracy Analog / Digital Gauge |
| Lining Options | PTFE, PPL |
| Power Supply | Standard AC Electrical Input |
| Dimensions | 570 × 420 × 370 mm |
| Gross Weight | 34 kg |
High-pressure stability
Corrosion-resistant interior
User-friendly interface
Rapid heat transfer
Enhanced sealing integrity
High-pressure Reactor LHPR-A10 is used for advanced reaction processes in chemical laboratories, university research centers, pharmaceutical R&D units, and materials science laboratories.
Accessory Name | Quantity |
| Gas inlet valve | 1 |
| Gas outlet valve | 1 |
| Gas pipeline | 1 |
| Pressure gauge | 1 |
| Pressure relief valve | 1 |
| Heating mantle | 1 |
| Stirring assembly | 1 |
| Brushless motor | 1 |
| Thermometer probe | 1 |
| Connection cables | 1 set |
| Installation fittings | 1 set |
Cooling chiller
Download catalog for
High-pressure Reactor LHPR-A10 Catalog
Available Range :
High-pressure Reactor LHPR-A10 : 500 ml
