| Laser Power | 20 W |
| Laser Wavelength | 1060 nm |
| Marking Range | 200 × 200 mm |
| Marking Depth | Up to 3 mm (depending on material) |
| Minimum Line Width | More than or equal to 0.01 mm |
| Minimum Character Height | More than or equal to 0.15 mm |
| Repeat Accuracy | ± 0.01 mm |
| Average Power Consumption | Up to 300 W |
| Maximum Power Consumption | Less than 500 W |
| Output Beam Quality (M²) | Less than 1.8 |
| Laser Q-Switched Frequency | 20 kHz to 200 kHz |
| Marking Speed | 0 to 30000 mm/s |
| Linear Speed | Up to 300 m/min |
| Beam Quality Resolution | 1 micron |
| Fiber Laser Life | More than 100,000 hours |
| Control Interface | Standard USB |
| Dimension | 400 × 435 × 420 mm |
| Packing Dimension | 630 × 575 × 600 mm |
| Net Weight | 40 kg |
| Gross Weight | 45 kg |
Automatic batch printing
Transparent cassette clips
Auto alarms on errors
High resolution printing
No preheating needed
Air-cooled

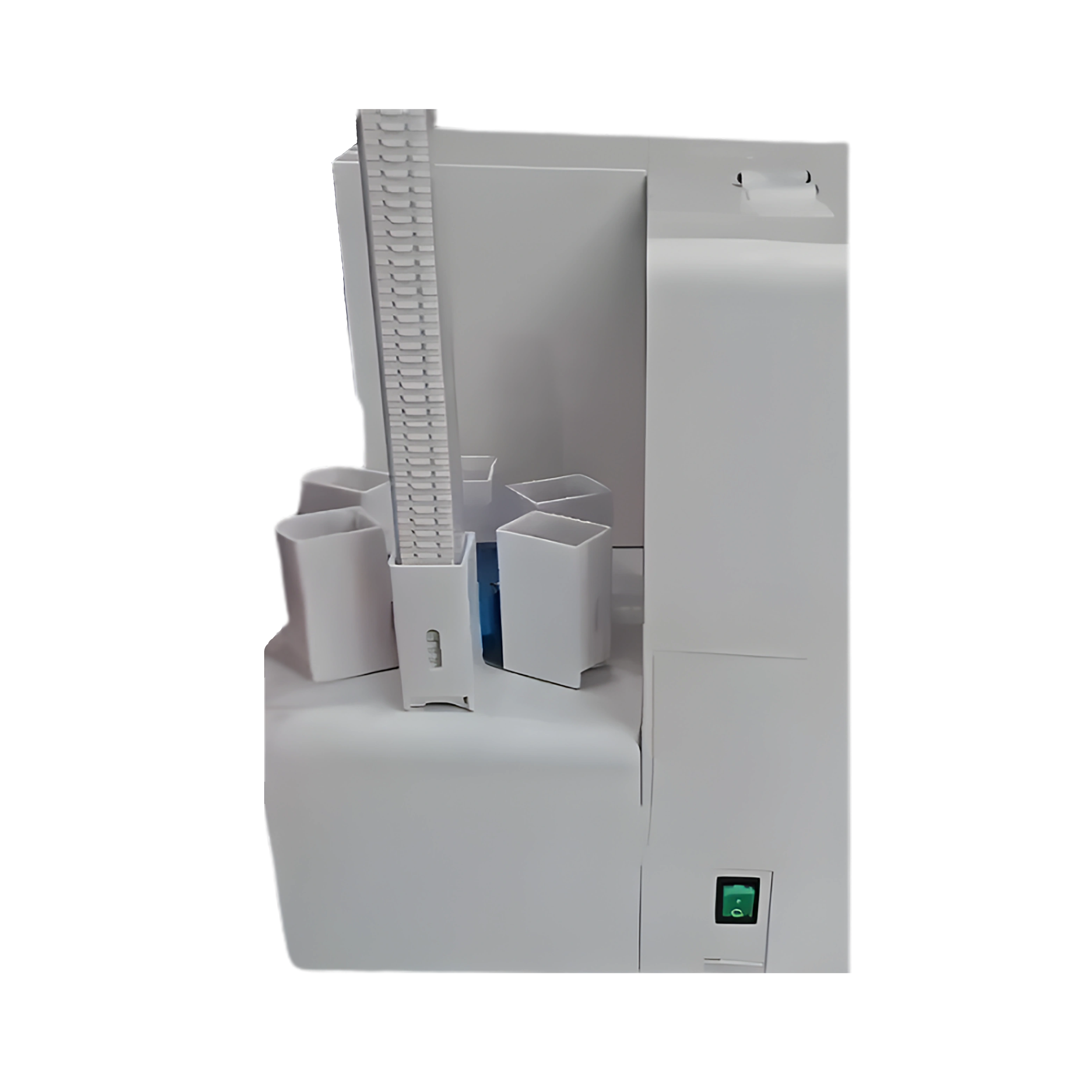

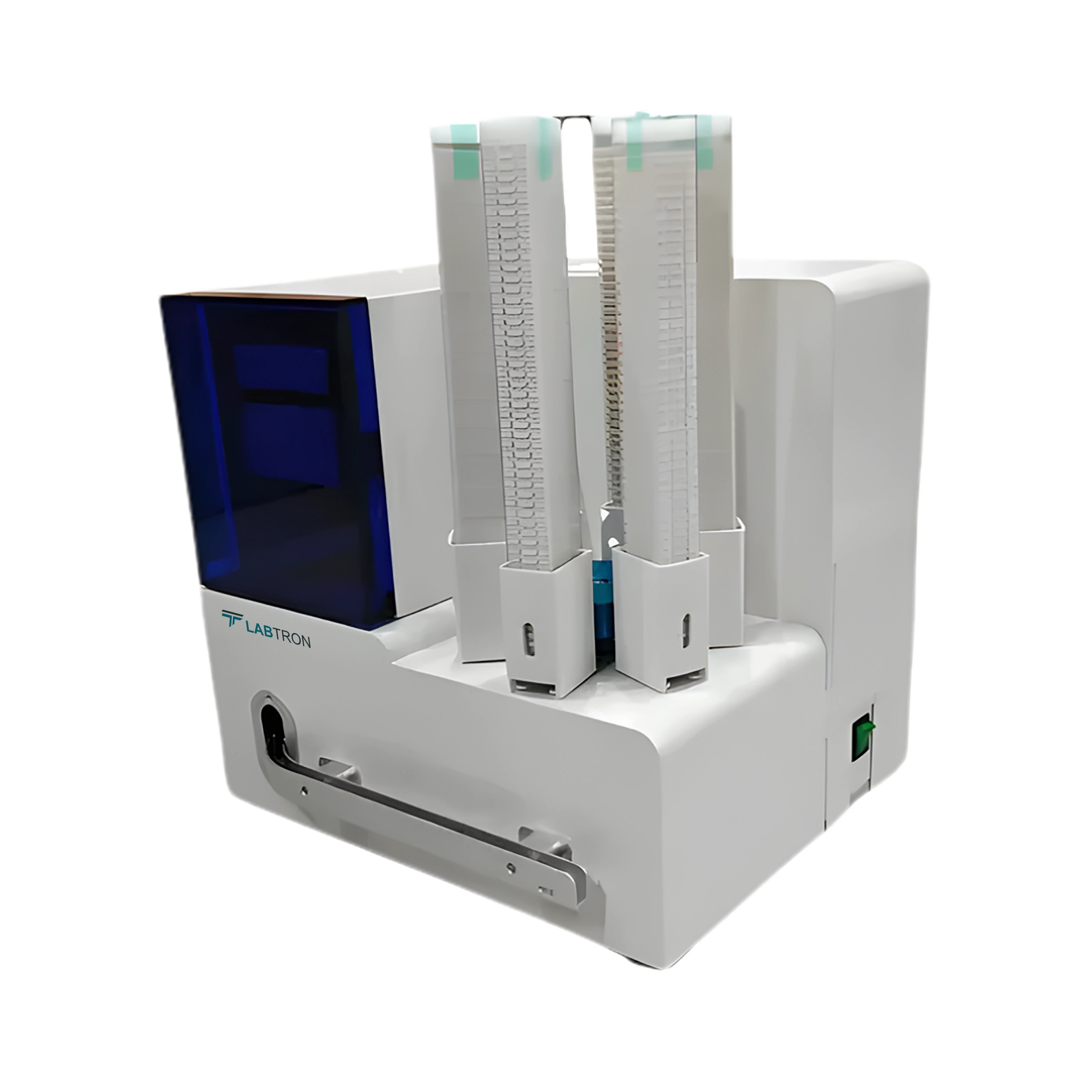

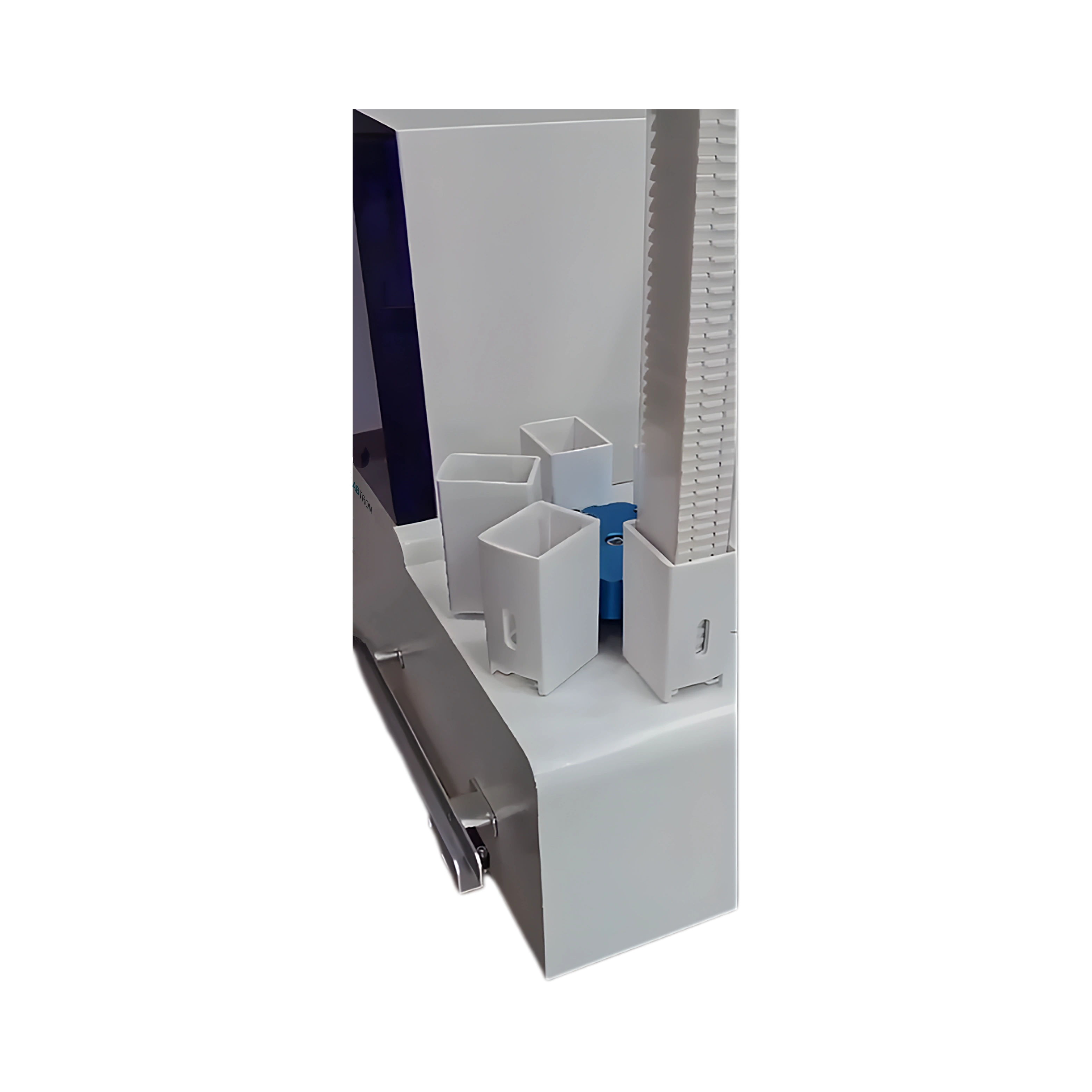

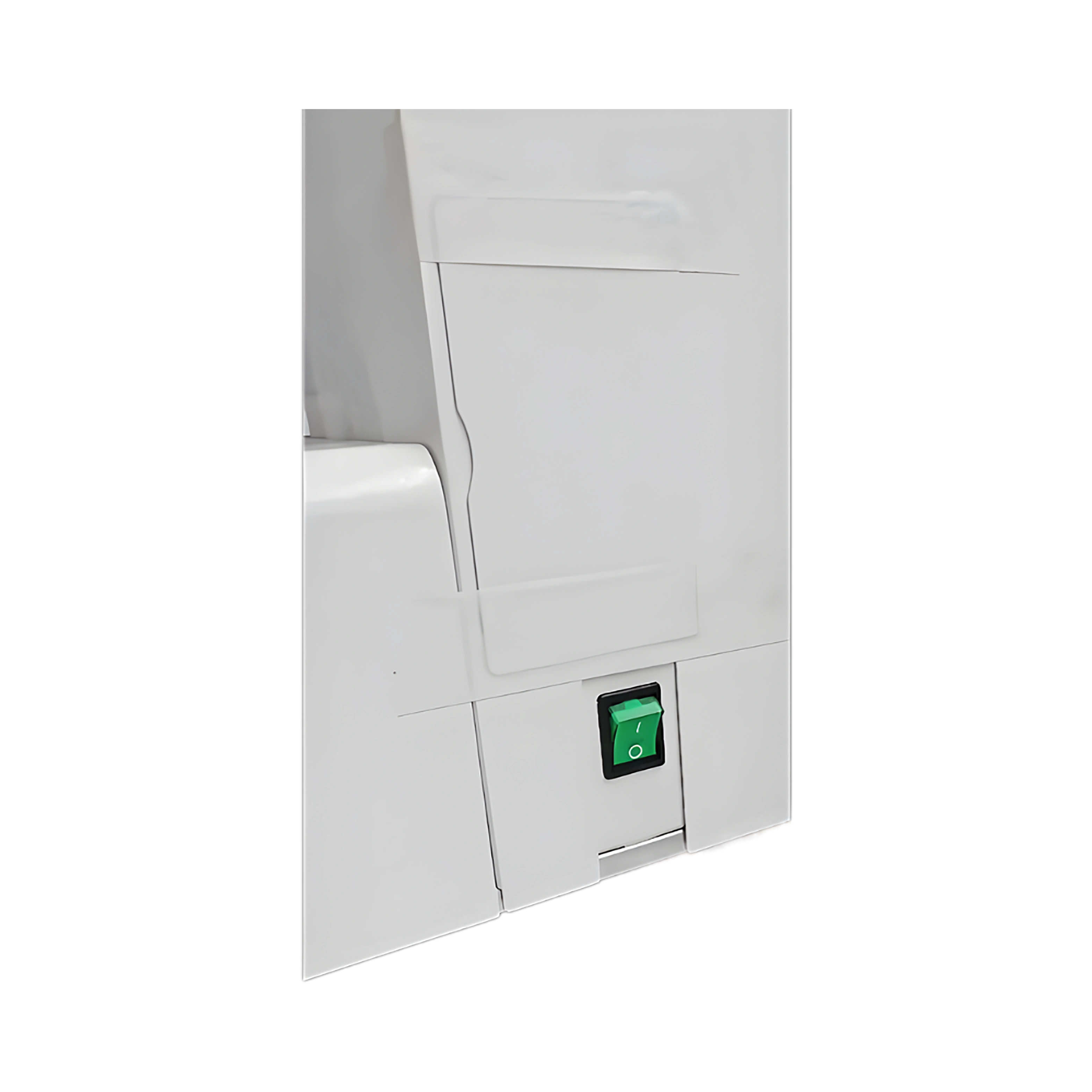

Our Infrared Cassette Printer LIRCP-A20 is used for precise, high-speed laser marking of tissue embedding cassettes in pathology and histology laboratories. It ensures durable, scannable identification for efficient sample tracking and workflow integration.
Name | Quantity |
Data Cable | 1 piece |
Embedding Cassette Loading Slots | 6 pieces |
Embedding Strips (50 embedding boxes per strip) | 6 pieces |
Power Cord | 1 piece |
Download catalog for
Infrared Cassette Printer LIRCP-A20 Catalog
Labtron offers a wide range of Infrared Cassette Printers featuring efficiency, speed, and consistency for professional laboratory environments. These printers are a reliable and permanent solution for marking tissue cassettes used in pathology and histology workflows. They use high-precision infrared laser technology, ensuring clear and durable markings. The printers operate without the need for ink or ribbons, reducing maintenance and operational costs. Our printers are ideal for hospitals, diagnostic labs, and research facilities, enhancing sample traceability and reducing labeling errors.
Labtron’s Infrared Cassette Printer LIRCP-A20 is equipped with a 20W fiber laser operating at a wavelength of 1060 nm. This advanced laser technology allows for high-resolution, permanent markings directly on tissue cassettes without requiring ink or ribbon. This not only reduces consumable costs but also enhances marking durability against solvents, abrasion, and chemical exposure, making it ideal for routine use in histopathology labs.
Our Infrared Cassette Printer LIRCP-A20 is designed to support high-volume workflows with a cassette loading capacity of up to 300 cassettes. It features an automatic batch printing function that streamlines processing, and the cassette system includes six loading slots and strips that can be quickly replenished during operation. Additionally, the printer can auto-detect errors and issue alerts to avoid misprints or workflow interruptions.
Yes, our Infrared Cassette Printer LIRCP-A20 supports both manual data entry and barcode scanning input. This dual-input capability ensures flexibility in lab workflows—whether operators are printing individual samples or processing large batches based on barcode-linked patient data. It also improves traceability and reduces the chance of human error.
Our Infrared Cassette Printer LIRCP-A20 is built for intensive daily use, and has a life expectancy of over 100,000 hours. Its air-cooled design, stable beam quality (M² < 1.8), and precision marking speed of up to 30,000 mm/s make it a robust and reliable solution for long-term laboratory applications.
An Infrared Cassette Printer is a laser-based device designed to print permanent, high-resolution markings directly onto tissue cassettes without the use of ink or ribbons. It uses a 1060 nm wavelength fiber laser to etch information onto the plastic surface, making it ideal for high-volume laboratories that prioritize speed, accuracy, and long-term sample traceability.
Yes, the markings produced by Infrared Cassette Printers are permanent and highly resistant to solvents like xylene, formalin, and alcohol, as well as to high temperatures encountered during tissue processing. This ensures patient data remains intact throughout every stage of histological preparation.
Yes, most of Labtron’s Infrared Cassette Printers support seamless integration with Laboratory Information Systems (LIS) and Hospital Information Systems (HIS). This allows automated data input, barcode printing, and real-time sample tracking, minimizing human error and improving laboratory efficiency.
Our Infrared Cassette Printer can mark alphanumeric text, barcodes (1D/2D), QR codes, and symbols. This makes them ideal for applications requiring detailed sample identification, such as biopsy or surgical pathology laboratories.
