Infrared Thermometer LIFT-D20

Infrared Thermometer LIFT-D20

Infrared Thermometer LIFT-D20 is the IR thermal scanner that measures from -50°C to 600°C, ensuring accurate monitoring across extreme temperature ranges. It integrates over-limit alert that provides immediate notification as temperature readings exceed safe thresholds. The contact-free design enhances user safety in high-temperature conditions. Our infrared thermometer is ideal for inspecting furnaces, steam lines, transformer units, and ventilation ducts.

Infrared Thermometer LIFT-D20_Front View
Infrared Thermometer LIFT-D20_Front View

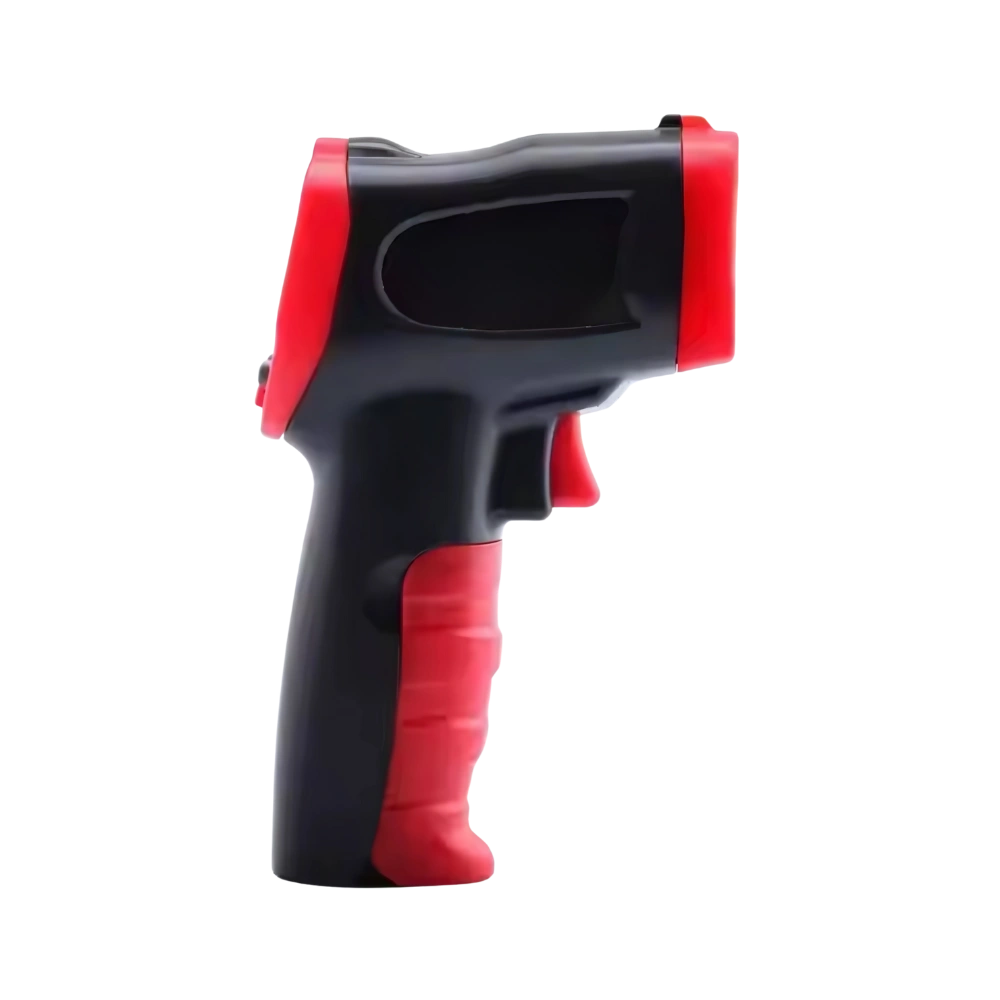

Infrared Thermometer LIFT-D20_Side View
Infrared Thermometer LIFT-D20_Side View
Infrared Thermometer LIFT-D20_Side View
Request Quote
Temperature Range -50 to 600℃ (-58 to 1112°F)
Measurement Accuracy Greater than 0°C: ±1.5°C ; Less than 0°C: ±3°C
Measuring Distance Ratio 12:1
Emissivity 0.1 to 1.0
Response Time 0.5 seconds
Wavelength 5 to 14 μm
Repeatability 1% or 1°C
Resolution 0.1°C
Storage Temperature -20 to 60°C (-14 to 140 °F)
Operating Temperature 0 to 40°C (32 to 104 °F)
Operating Humidity 10 to 90%
Display Colour LCD Display
Low Battery Indication Less than 2.4 V
Power Supply 3 V × AAA batteries
Dimensions (L × W × D) 156 × 91.2 × 40 mm
Weight 0.202 Kg
  • Real-time temperature sensing

  • Power status alert

  • Maximum-minimum monitoring function

  • Backlit LCD display

  • User-friendly interface

Infrared Thermometer LIFT-D20 measures surface temperatures without contact by detecting emitted heat. It is ideal for monitoring boilers, engine parts, circuit breakers, conveyor systems, heating elements, mechanical bearings, chemical processing equipment, and solar panel installations.

Download catalog for
Infrared Thermometer LIFT-D20 Catalog

Available Range :

Infrared Thermometer LIFT-D14 : -50 to 1050℃ (-58 to 1562°F) Infrared Thermometer LIFT-A26 : -50 to 1100℃ (-58 to 2012℉) Infrared Thermometer LIFT-A19 : -50 to 1200℃ (-58 to 2192℉) Infrared Thermometer LIFT-A27 : -50 to 1300℃ (-58 to 2372℉) Infrared Thermometer LIFT-A20 : -50 to 1400℃ (-58 to 2552℉) Infrared Thermometer LIFT-A28 : -50 to 1600℃ (-58 to 2912℉) Infrared Thermometer LIFT-D25 : -50 to 380℃ (-58 to 1742°F) Infrared Thermometer LIFT-A13 : -50 to 380℃ (-58 to 716℉) Infrared Thermometer LIFT-D23 : -50 to 390℃ (-58 to 734°F) Infrared Thermometer LIFT-D15 : -50 to 400℃ (-58 to 752°F) Infrared Thermometer LIFT-A15 : -50 to 400℃ (-58 to 752℉) Infrared Thermometer LIFT-D26 : -50 to 420℃ (-58 to 788°F) Infrared Thermometer LIFT-D10 : -50 to 550°C (-58 to 1022 F) Infrared Thermometer LIFT-D27 : -50 to 550℃ (-58 to 1022°F) Infrared Thermometer LIFT-A14 : -50 to 550℃ (-58 to 1022℉) Infrared Thermometer LIFT-D24 : -50 to 590℃ (-58 to 1094°F) Infrared Thermometer LIFT-D16 : -50 to 600℃ (-58 to 1112°F) Infrared Thermometer LIFT-A16 : -50 to 600℃ (-58 to 1112℉) Infrared Thermometer LIFT-D12 : -50 to 650℃ (-58 to 1202°F) Infrared Thermometer LIFT-D28 : -50 to 750℃ (-58 to 1382°F) Infrared Thermometer LIFT-A25 : -50 to 750℃ (-58 to 1382℉) Infrared Thermometer LIFT-D21 : -50 to 800℃ (-58 to 1472°F) Infrared Thermometer LIFT-A18 : -50 to 800℃ (-58 to 1472℉) Infrared Thermometer LIFT-D11 : -50 to 850℃ (-58 to 1562°F) Infrared Thermometer LIFT-A12 : -50 to 950°C (-58 to 1742°F) Infrared Thermometer LIFT-D22 : -50 to 950℃ (-58 to 1742°F) Infrared Thermometer LIFT-A21 : -50 to1650℃ (-58 to 3002℉) Infrared Thermometer LIFT-A11 : -50 ℃ to 380 ℃ (-58 ℉ to 716 ℉) Infrared Thermometer LIFT-A10 :
Forehead32 ℃ - 42.9 ℃
Object0 ℃ - 60 ℃
Room0 ℃ - 40 ℃
Infrared Thermometer LIFT-D20 | Response Time-0.5 seconds | Emissivity-0.1 to 1.0
Infrared Thermometer LIFT-D20 | Real-time temperature sensing | Power status alert

Models of Infrared Thermometer

Labtron Infrared Thermometer features a device that freezes and displays readings, allowing users to capture and review temperature measurements. These track the highest and lowest temperatures, providing accurate monitoring over time. Their laser pointer is included to enhance accuracy by precisely targeting the measurement area. They have a low battery indicator that alerts users when the battery needs replacement, ensuring uninterrupted operation. Our infrared thermometer has a backlight function that improves readability, making it easy to use in low-light conditions.

Infrared Thermometer LIFT-D28

Infrared Thermometer LIFT-D28

  • Temperature Range : -50 to 750℃ (-58 to 1382°F)
  • Measurement Accuracy : Greater than 0°C: ±1.5°C ; Less than 0°C: ±3°C
  • Measuring Distance Ratio : 12:1
  • Emissivity : 0.1 to 1.0
Infrared Thermometer LIFT-A23

Infrared Thermometer LIFT-A23

  • Temperature Range : -50 to 550℃ (-58 to 1022℉)
  • Measurement Accuracy : Greater than or equal to 100℃ ±2%Less than or equal to 100℃ ±2%
  • Measuring Distance Ratio : 12:1
  • Emissivity (EMS) : 0.95
Infrared Thermometer LIFT-D19

Infrared Thermometer LIFT-D19

  • Temperature Range : -50 to 400℃ (-58 to 752°F)
  • Measurement Accuracy : Greater than 0°C: ±1.5°C ; Less than 0°C: ±3°C
  • Measuring Distance Ratio : 12:1
  • Emissivity : 0.1 to 1.0
Infrared Thermometer LIFT-A19
Infrared Thermometer LIFT-A19
  • Temperature Range : -50 to 1200℃ (-58 to 2192℉)
  • Measurement Accuracy : Greater than or equal to 100℃ ±2%Less than or equal to 100℃ ±2%
  • Measuring Distance Ratio : 50:1
  • Emissivity (EMS) : 0.1 to 1.0
Infrared Thermometer LIFT-A26
Infrared Thermometer LIFT-A26
  • Temperature Range : -50 to 1100℃ (-58 to 2012℉)
  • Measurement Accuracy : Greater than or equal to 100℃ ±2%Less than or equal to 100℃ ±2%
  • Measuring Distance Ratio : 50:1
  • Emissivity (EMS) : 0.1 to 1.0
Infrared Thermometer LIFT-B12

Infrared Thermometer LIFT-B12

  • Temperature Range : -50 to 550℃ (-58 to 1022℉)
  • Measurement Accuracy : Greater than or equal to 100℃ ±2%Less than or equal to 100℃ ±2%
  • Measuring Distance Ratio : 12:1
  • Emissivity (EMS) : 0.1 to 1.0
Infrared Thermometer LIFT-D18

Infrared Thermometer LIFT-D18

  • Temperature Range : -50 to 600℃ (-58 to 1112°F)
  • Measurement Accuracy : Greater than 0°C: ±1.5°C ; Less than 0°C: ±3°C
  • Measuring Distance Ratio : 12:1
  • Emissivity : 0.1 to 1.0
Infrared Thermometer LIFT-D11

Infrared Thermometer LIFT-D11

  • Temperature Range : -50 to 850℃ (-58 to 1562°F)
  • Measurement Accuracy : Greater than or equal to 100°C: ±2% ; Less than or equal to 100°C: ±2°C
  • Measuring Distance Ratio : 12:1
  • Emissivity : 0.1 to 1.0

Infrared Thermometer LIFT-D20 FAQ's
  • Designed Infrared Thermometer LIFT-D20, which offers ±1.5°C or ±1.5%, whichever is greater. This ensures dependable results in most environments. It’s built to handle fluctuations in surface types and ambient temperatures. Even with repeated measurements, it shows minimal variation, making it ideal for quality checks. It is particularly useful when consistency and reliability are essential. Users can trust the readings across multiple uses. The accuracy makes it a go-to device for both professionals and DIY users.

  • Yes, the Infrared Thermometer LIFT-D20 includes a backlit LCD display that ensures clear visibility of readings even in dim environments. This feature is particularly useful in poorly lit areas such as engine compartments, warehouses, or night-time outdoor inspections. It allows users to operate the device confidently without needing additional lighting. The display also shows MAX/MIN values, battery level, and targeting guidance. Paired with non-contact measurement and laser targeting, it enhances usability and safety. The device is built for reliable performance in challenging conditions.

  • Engineered Infrared Thermometer LIFT-D20 delivers accurate readings within just 0.5 seconds. This fast response time is critical for tasks that require immediate feedback. It helps reduce waiting time during inspections and boosts productivity. The efficiency of this thermometer makes it suitable for fast-paced industrial settings. Whether checking engines or circuit boards, you'll get instant results. Its speed ensures that repeated use remains efficient and consistent. It saves both time and effort during large-scale or routine measurements.

  • The Infrared Thermometer LIFT-D20 is designed to function in working environments with temperatures from 0°C to 40°C. It is capable of performing even in humid or semi-outdoor conditions. For storage, it can safely withstand temperatures ranging from -10°C to 60°C. This durability makes it suitable for various field conditions and storage situations. Whether it's a hot warehouse or a cold vehicle toolbox, the thermometer remains operational. It’s engineered to tolerate everyday handling and changing environments. It performs consistently without affecting accuracy or function.

  • Our Infrared Thermometer LIFT-D20 includes a low power indicator that activates below 2.5V. This lets users know when it’s time to replace the batteries, avoiding unexpected shutdowns. It also displays “Hi” or “Lo” when the measured temperature is outside the set range. These indicators help prevent measurement errors and ensure reliable use. Additionally, the display shows alerts like “AH” or “AL” when environmental temperature limits are exceeded. These safety features add to the user-friendly experience. They keep users informed and in control during use.
