| Viewing Head | Butterfly Seidentopf Head,360°rotated, Inclined 45°, IPD: 48 to 75mm, Light distribution: 80:20(80% for eyepiece,and 20% for camera tube) |
| Eyepiece | Wide field eyepiece 10x/20 mm |
| Objectives | Infinity long plan FL objectives 10x/0.25 W.D=10.3 mm 40x/0.65 W.D=5.1 mm Infinity long plan FL phase contrast objectives 20x/0.45 W.D=5.8 mm ( both for bright field and phase contrast) |
| Annular Spot | 20x /40x |
| Nose-Piece | Quadruple Nosepiece |
| Condenser | Long working distance Condenser, N.A0.32, WD 48 mm. |
| Working Stage | Stage size: 180 × 203 mm, Fixed stage Glass holder |
| Coaxial Coarse and Fine Focusing unit | Coarse stroke: 10 mm, Fine stroke per rotation: 0.2 mm, fine division 2 μm. |
| Filter | Green |
| C-Mount | 0.65 × (built-in) |
| Illumination | 5W LED, Input Voltage 100 to 240 |
| Dimension | 515 × 480 × 315 mm |
| Net weight | 7 kg |
| Gross weight | 9 kg |

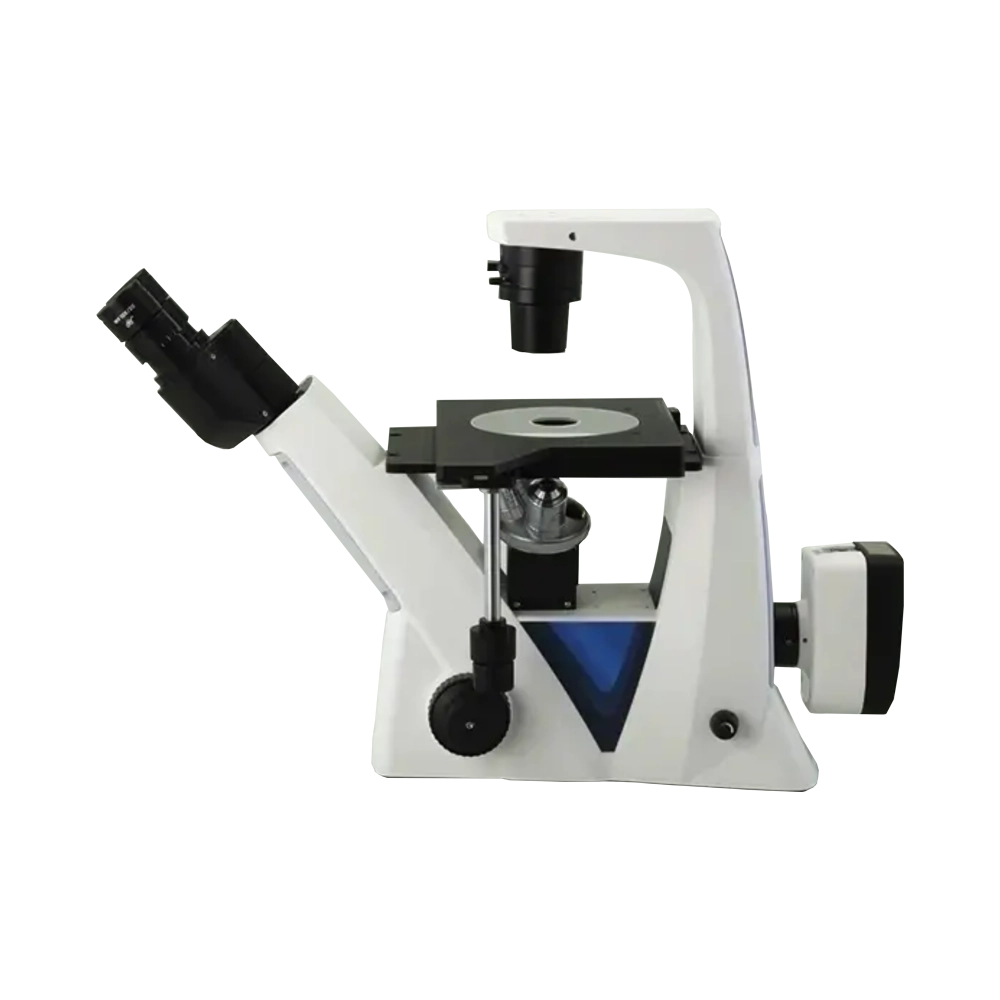

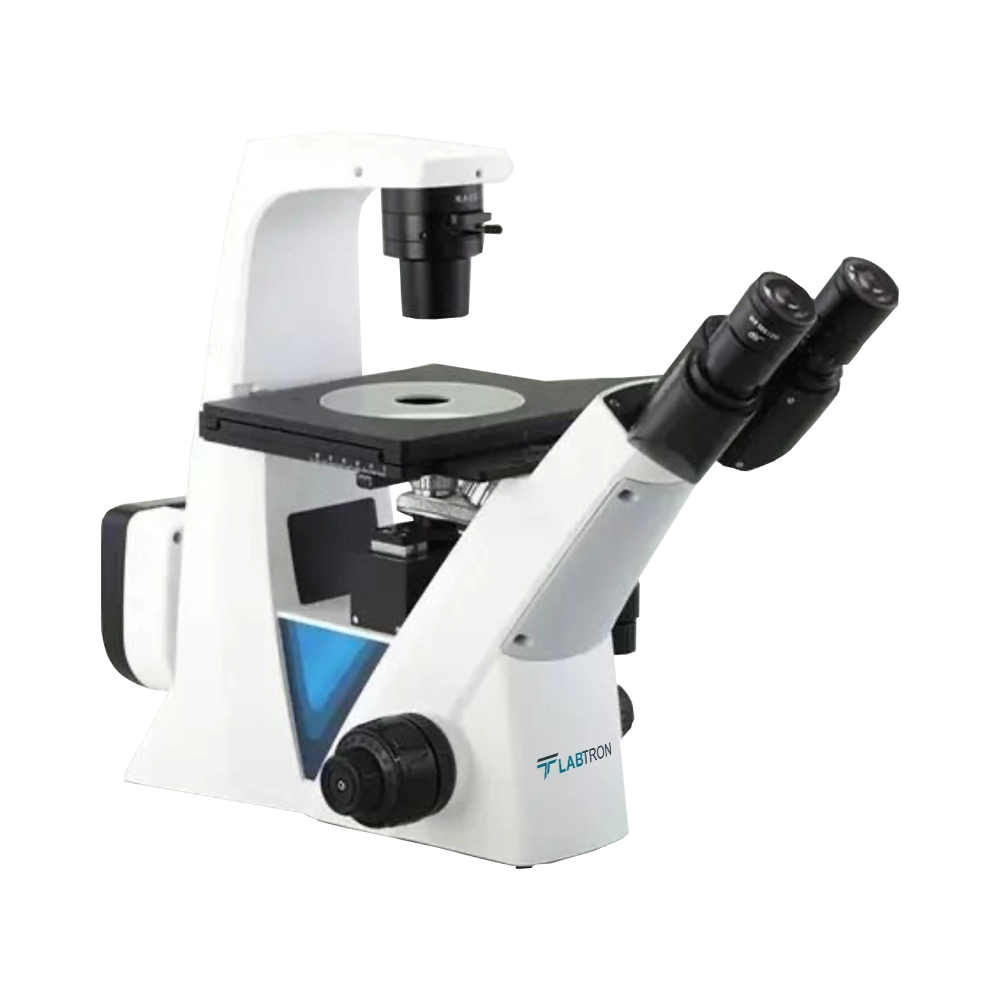

Our Inverted Biological Microscope LIBM-E11 features both bright field and phase contrast objectives. It provides high resolution imaging of specimens, observation of unstained and live cells in cell culture and routine laboratory setting . Its stage offers a stable platform for culture dishes and flasks handling and observation.
Download catalog for
Inverted Biological Microscope LIBM-E12 Catalog
Available Range :
Inverted Biological Microscope LIBM-F11 : 45° Trinocular seidentopf head Interpupillary distance: 48-76 mm, splitting Ratio :100:0 or E80:P20, eyepiece tube diameter:30 mm Inverted Biological Microscope LIBM-E11 : Butterfly Seidentopf Head, 360°rotated, Inclined 45°, IPD: 48 to 75mm, Light distribution: 80:20(80% for eyepiece,and 20% for camera tube) Inverted Biological Microscope LIBM-E10 : 45° inclined trinocular head, 360° rotatable, inter-pupillary range 50mm to 75mm, fixed splitting ratio 20:80 Inverted Biological Microscope LIBM-F10 : 45° Trinocular Tube, Interpupillary Distance: 48-76mm, Splitting Ratio: 100:0 or 80:20, Eyepiece Tube Diameter: 30mm Inverted Biological Microscope LIBM-E12 : Butterfly Seidentopf Head,360°rotated, Inclined 45°, IPD: 48 to 75mm, Light distribution: 80:20(80% for eyepiece,and 20% for camera tube) Inverted Biological Microscope LIBM-C10 : Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm Inverted Biological Microscope LIBM-C12 : Compensation free trinocular head inclined at 45°C, interpupillary distance 50 to 75 mm Inverted portable biological microscope LIBM-D10 : Monocular viewing head Inverted Biological Microscope LIBM-G10 : Seidentopf Binocular Head, Inclined at 45°, Interpupillary Distance 48-75mm Inverted Biological Microscope LIBM-H10 : Seidentopf Tilting Binocular Head, 5° to 35° adjustable, Interpupillary Distance 48-75mm Inverted biological microscope LIBM-A10 : Siedentop binocular viewing head, inclined at 45°, 360° rotation, interpupillary distance adjustable 48 to 75 mm Inverted biological microscope LIBM-B10 : Siedentopf type trinouclar head , inclined at 45°, interpupillary distance 52 to 75 mm, diopter adjustment Inverted Biological Microscope LIBM-A20 : Trinocular head inclined at 30°, interpupillary distance 48 to 75 mmLabtron Inverted Biological Microscopes are specialized to allow observation from below, featuring unique optical design. Their light source is adjustable, allowing users to control illumination for optimal specimen visibility. They are equipped with eyepiece lenses that offer comfortable viewing angles and magnification for extended observation sessions. Their objectives are specially designed to provide various magnifications for detailed visibility. Our Inverted Biological Microscopes are versatile for live-cell imaging, tissue analysis, and studying cellular interactions.
Yes. Labtron’s Inverted Biological Microscope supports USB-C type cable. It's 5 to 12 V low input voltage, ensures efficient performance while maintaining electrical safety. This flexibility of Inverted Biological Microscope allows versatile and convenient connectivity.
Yes . Our Inverted Biological Microscope supports digital imaging technology to produce the real time observation of specimens. The Inverted Biological Microscope with HDMI camera can connect with PC or HDMI monitor. It is located at the back of the microscope, so that does not interfere with the user's operation.
The Inverted Biological Microscope contains a fixed working stage with size of 180 × 203 mm. It comes with a glass holder that ensures a stable and secure platform for specimen observation. This will ensure accuracy and ease of use during microscopy.
Yes. Our Inverted Biological Microscope has built in LED illumination .It operates through power banks, laptops, and vehicle power supply. This adaptability helps to operate microscopes in anywhere and any condition. Its low power consumption is also an advantage and it ensures safe use.
The eyepiece of Inverted Biological Microscope smoothly adjustable, wing-like motion that resembles a butterfly. This design allows for easy interpupillary distance (IPD) adjustments ranging 48 to 75 mm, making it adaptable for different users. Its adjustment without changing focus,making it more ergonomic and comfortable for different users.
