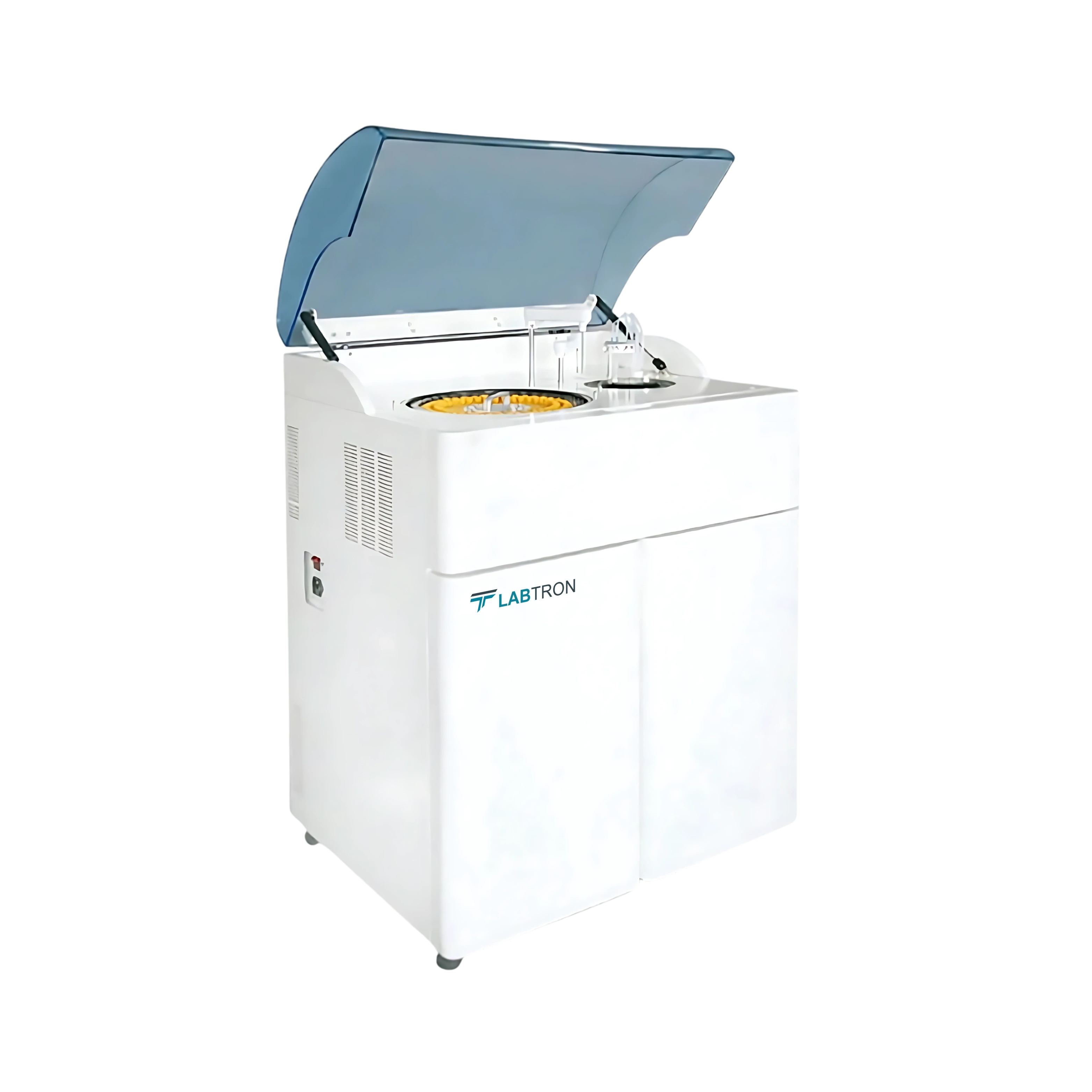

Automatic Biochemistry Analyzer LBCA-A10, supports sample volume from 1 to 100µl. Process up to 400 tests per hour. Referring spectrum of wavelengths 340 to 810 nm for better analysis. Fully integrated, stand-alone system engineered to evaluate biological samples. Focuses on biochemical parameters. Equipped with automated cleaning stations for both sample and reagent probes.
| Sample Volume | 1 to 100 µl , 0.1 µl / step |
| Reagent Position | 2 × 40 |
| Reagent Volume R1 | 1 to 400 µl , 1 µl / step |
| Reagent Volume R2 | 1 to 400 µl , 1 µl / step |
| Wavelength | 340 nm to 810 nm |
| Throughput 1 Reagent | 400 test/h |
| Throughput 2 Reagent | 400 test/h |
| Throughput With Ise | 400 test/h + 120 test/h |
| Reaction Time | 0 to 999 secs |
| Sample Position | 80 |
| Assay Items | 80 assay items |
| Operation | Random access |
| Reading System | Direct reading system |
| Method | End point Kinetic Fixed time Immunoturbidimetric 1 to 2 reagent Multistranded Reagent / serum blank |
| Reagent / Sample Probe | With liquid level sensor collision sensor Teflon coating automatic washing station |
| Cuvette | High quality UV transmitted plastic cuvette |
| Washing | 8 channel automatic washing system for reaction cuvettes |
| Calibration | Linear Non-linear Multi-standard K factor |
| Sample Dilution / Retest | Sample can be diluted and retested if results are out of range or sample is insufficient |
| Light Source | Halogen lamp |
| Absorbance Resolution | 0.0001 A |
| Absorbance Accuracy | ± 0.0003 A ( 0 to 2.5 A ) |
| Repeatability (CV %) | ≤ 2 % |
| Quality Control | Three level programme |
| Bar Code | Optional |
| Printer | Multiple report format |
| Power Supply | 220 V ; 50 Hz 110 V ; 60 Hz |
| Dimensions | 1000 × 850 × 700 mm |
| Weight | 137 kgs |
Automatic Biochemistry Analyzer, used in clinical labs, hospitals, and research environments. Seamlessly evaluate blood sugar, cholesterol, electrolytes, and calcium levels in diverse samples, revolutionizing diagnostics with unparalleled accuracy.
Labtron Automatic Biochemistry Analyzer offers fully automated sample processing and biochemical analysis by eliminating manual intervention. They feature advanced detection system that provide rapid results without compromising on accuracy or reliability. Their maintenance alerts ensure equipment remains in optimal working condition consistently. They require minimal sample volume making them suitable for pediatric and neonatal testing. Our Automatic Biochemistry Analyzer assures rapid and accurate diagnostic in hospitals and research institutions.
