Liquid Nitrogen Freezer LLNF-A10

Name: Liquid Nitrogen Freezer LLNF-A10
Brand: Labtron
SKU: LLNF-A10
Rating: 5 (785 reviews)

Liquid Nitrogen Freezer LLNF-A10 is a single door unit, which is suitable to freeze the small amount of food. This liquid nitrogen cabinet freezer is made using AISI food grade 304 stainless steel, BASF thermal insulation. These freezers were designed using HACCP safety guidelines. It has special door seal design with an automatic heating system.

Request Quote

Type	Single door
Frozen capacity	About 100 kg per hour
Pallet dimension	400 × 600 mm
Effective volume	495 L
Working temperature	-190℃ to +121℃
Accuracy of temperature	± 3 ºC
Temperature uniformity	± 3 ºC
Max cooling rate	0–30℃/min (adjustable)
Material	Entire structure made of USU304 stainless steel
Power	1 kW
Pallet layers	10
Door opening direction	Side door
Insulation material	BASF ultra-low-temperature insulation material with foaming technology; high thermal insulation performance ensuring food hygiene and safety
Freezing medium	Liquid nitrogen (customer provides liquid nitrogen & storage tank)
Power supply	380V, three-phase, 50Hz
Product Dimension	1350 × 900 × 1850 mm
Packaging Dimension	1500 × 1000 × 2100 mm
Net Weight	About 300 kg
Gross Weight	About 350 kg

Small and compact in size
Temperature and cooling curve can be viewed on touch screen
Low power consumption
The temperature inside the cabinet reaches -150ºC within 5 minutes

This liquid nitrogen freezer is used in quick freezing of perishable food items such as fish, meat, fruits and vegetables, fast food items, dairy and fermented products.

Stainless steel AISI 304
Voltage source: 220 V / 60 Hz

Download catalog for
Liquid Nitrogen Freezer LLNF-A10 Catalog

Download manual for
Liquid Nitrogen Freezer LLNF-A10 Manual

Available Range :

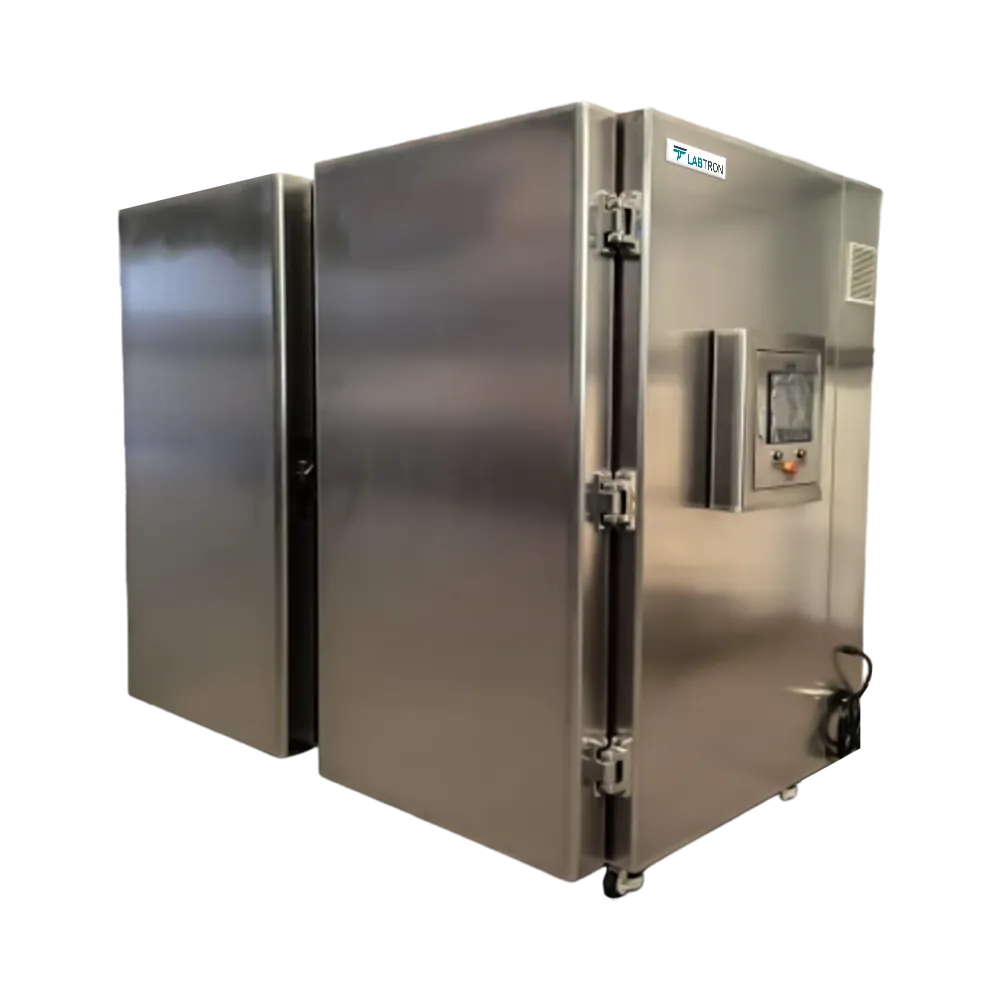

Liquid Nitrogen Freezer LLNF-B10 : Double door Liquid Nitrogen Freezer LLNF-A10 : Single door

Models of Liquid Nitrogen Freezer

Labtron Liquid Nitrogen Freezer is specialized to preserve upto 1000kg of biological samples per hour at ultra-low temperature. They incorporate liquid level indicators to monitor amount of nitrogen, preventing potential sample loss. Their vacuum-sealed walls enhance insulation, minimizing evaporation and operational costs. They feature robust locking mechanism to secure valuable materials against unauthorized access. Our Liquid Nitrogen Freezer is versatile research, medicine, biobanking and cryo-electron microscopy.
