| Maximum Speed | 5500 r/min |
| Maximum RCF | 5220 g |
| Speed Accuracy | ± 30 rpm |
| Time | 0 to 99 min |
| Display | LED |
| Noise | ≤ 65 dB (A) |
| Voltage | AC 220 V & 110 V 50 Hz 5A |
| Dimensions (L × W × H) | 630 × 500 × 420 mm |
| Net Weight | 52 kg |
Voltage Fluctuation Protection
Uniform Force Distribution
Safe Sample Containment
Optimized Airflow Cooling
Low Vibration Structure
Low Speed Centrifuge LLS-G21 is a lab instrument that separates components of a mixture based on density. It does this by spinning samples at relatively low speed, making it ideal for gentle separations like blood cells or large particles.
Rotor Type | Capacity (ml) | Maximum Speed (r/min) | Maximum RCF (×g) |
No. 1 Angle Rotor | 12 × 10/15 ml | 5500 r/min | 5220×g |
No. 2 Swing Rotor | 108 × 5 ml | 4000 r/min | 3040×g |

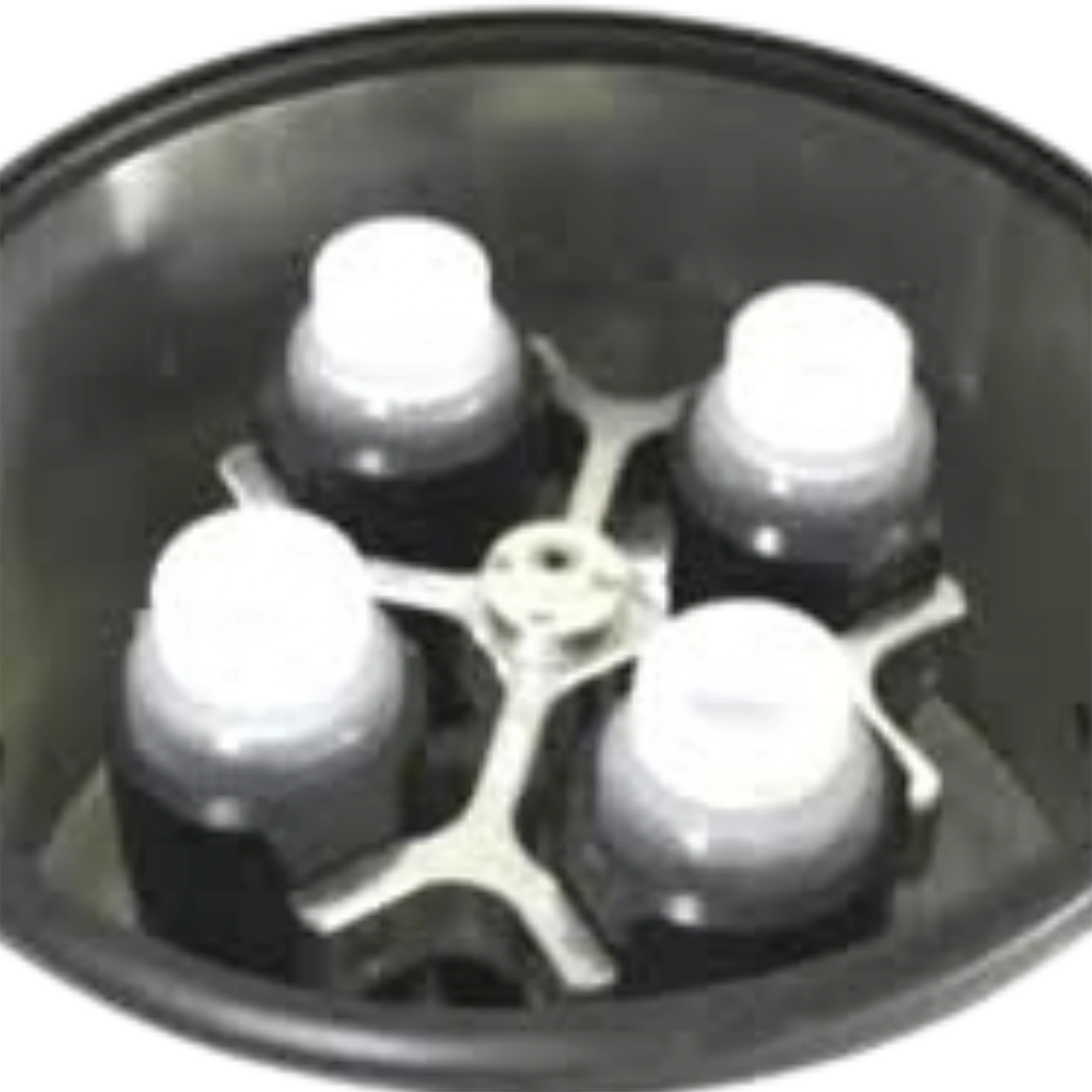

No. 3 Swing Rotor | 4 × 250 ml | 4000 r/min | 3440×g |
No. 4 Swing Rotor | 8/4 × 100 ml | 4200 r/min | 3120×g |

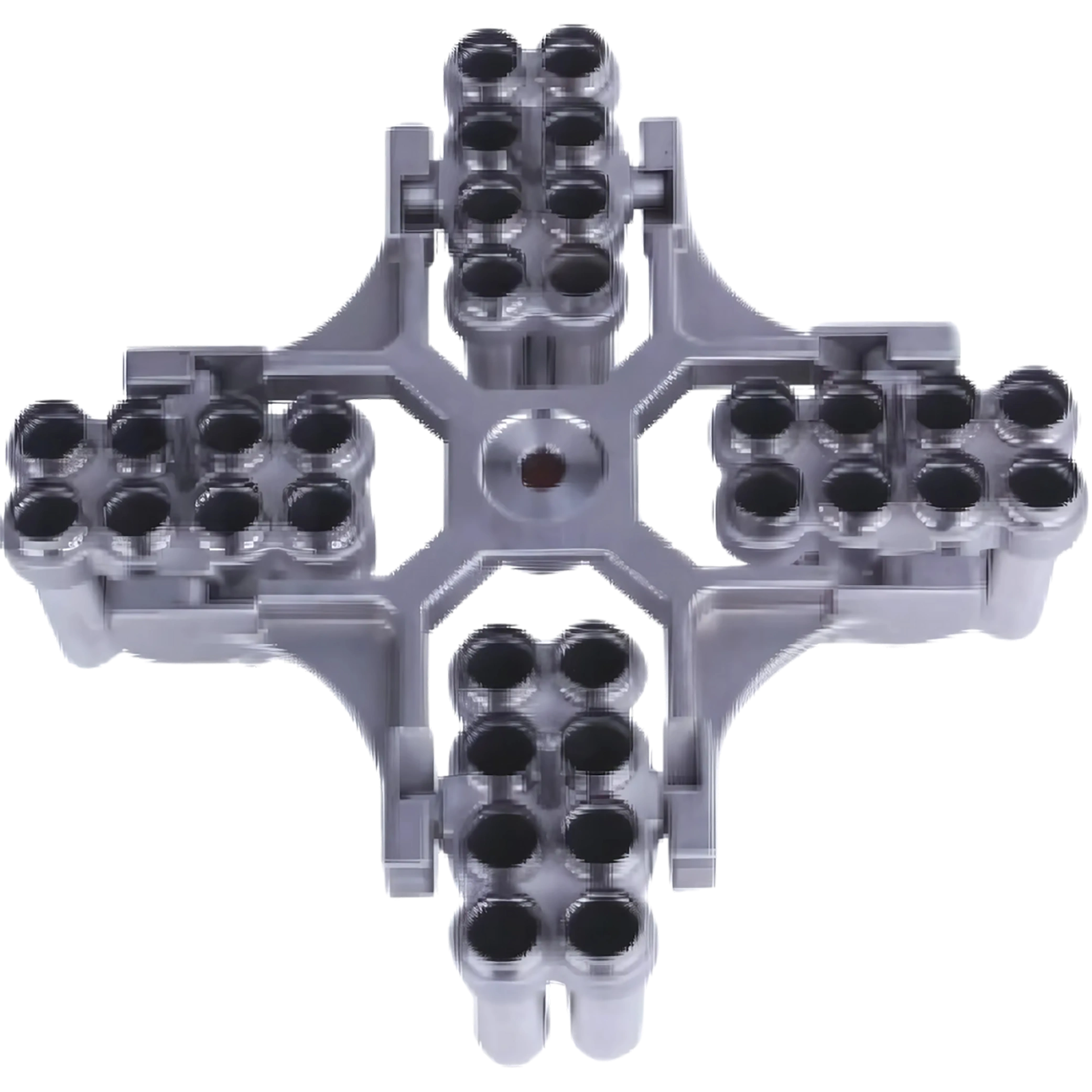

No. 4 Swing Rotor | 32 × 10/15 ml | 4200 r/min | 3120×g |
No. 4 Swing Rotor | 24 × 10/15 ml | 4200 r/min | 3120×g |
No. 5 Swing Rotor | 48 × 7/5 ml | 4200 r/min | 3120×g |
No. 5 Swing Rotor | 72 × 5/2 ml | 4200 r/min | 3120×g |
No. 5 Swing Rotor | 4 × 50 ml | 4200 r/min | 3120×g |
No. 6 Well Plates Rotor | 2 × 2 × 96 holes | 4000 r/min | 2300×g |
No. 7 Swing Rotor | 4 × 500 ml | 4000 r/min | 3600×g |
No. 7 Swing Rotor | 16 × 50 ml | 4000 r/min | 3600×g |
Download catalog for
Low Speed Centrifuge LLS-G21 Catalog
Available Range :
Low Speed Centrifuge LLS-G24 : 16000 r/min Low Speed Centrifuge LLS-G26 : 4000 r/min Crude Oil Test Low Speed Centrifuge LLS-A20 : 4000 rpm Low Speed Centrifuge LLS-G16 : 5000 r/min Low Speed Centrifuge LLS-A13 : 5000 rpm Low-speed Centrifuge LLS-A43 : 5000rpm Low Speed Centrifuge LLS-G18 : 5500 r/min Low Speed Centrifuge LLS-G22 : 6000 r/min Low Speed Centrifuge LLS-A55 : 6000 rpmLabtron Low Speed Centrifuge provide separation of substances of different densities within liquid upto 6000rpm. They are equipped with fixed-angle or swing-out rotors, which determine positioning of specimens and their effective segregation. Their components include motor that drives spindles at controlled, less velocity rotation for efficient partitioning. They include cooling mechanism to maintain integrity during prolonged processes. Our Low Speed Centrifuge isolates proteins from cell lysates, assists sedimentation of bacterial cells and medicine formulation.
The Labtron LLS-G21 supports multiple tube sizes and formats through the use of interchangeable rotors or tube adapters. Standard sizes such as 5 mL, 10 mL, and 15 mL are commonly supported, but custom adapters can often be used for other formats. This flexibility allows users to adapt the centrifuge to a wide range of sample types and volumes. Proper balancing of tubes by both weight and volume is essential to maintain smooth operation and avoid mechanical strain. The ability to switch between tube types enhances the centrifuge’s versatility and utility in multi-purpose laboratories.
The Labtron LLS-G21 is typically powered by a brushless DC motor, which offers several advantages over traditional brushed motors. Brushless motors are more energy-efficient, produce less noise, and require minimal maintenance due to the absence of physical brushes that wear out over time. They provide smooth and stable operation, reducing the likelihood of mechanical vibration and contributing to the overall durability of the instrument. Furthermore, brushless motors generate less heat, which helps protect thermally sensitive samples. Their precise speed control enhances the accuracy of centrifugation protocols, making them ideal for both research and clinical use.
Yes, Labtron’s LLS-G21 is designed for easy cleaning and low maintenance. Its internal chamber and rotor are constructed from corrosion-resistant materials that can be wiped down with mild detergent and water. Removable rotors and tube holders make it easy to clean hard-to-reach areas. Routine maintenance involves inspecting the rotor for cracks or corrosion, ensuring that the lid lock functions properly, and checking for debris in the chamber. Because the centrifuge uses a brushless motor, there is no need to replace motor brushes, reducing the overall maintenance workload. Proper care and regular cleaning can significantly extend the lifespan of the instrument.
Labtron’s LLS-G21 is widely used in clinical and research laboratories for a variety of applications. These include blood component separation (e.g., plasma, serum), urine sedimentation analysis, protein precipitation, cell pelleting, and general sample clarification. It is also employed in food safety testing, environmental monitoring, and veterinary diagnostics. Its gentle yet effective spinning action makes it particularly useful for handling fragile samples that could be damaged by high-speed centrifugation. In academic settings, it is used for teaching basic principles of centrifugal force and separation techniques.
