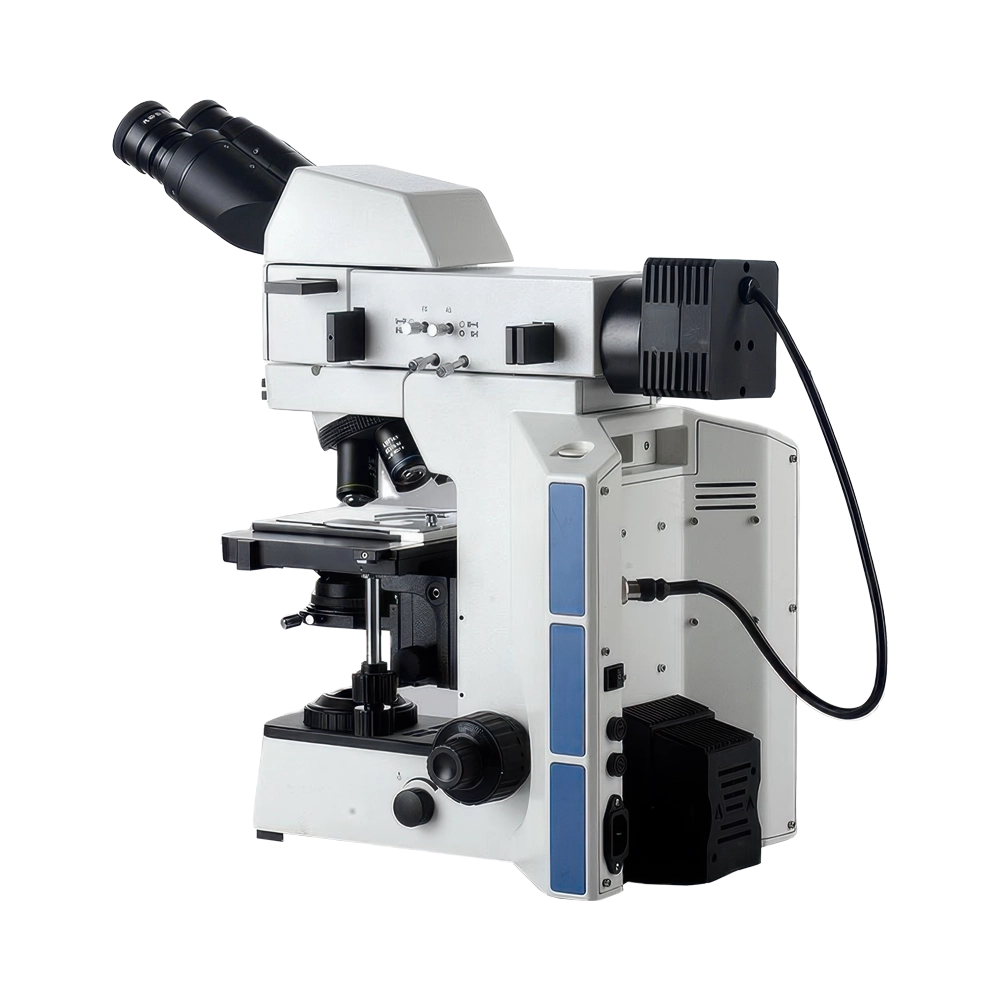

Name: Metallurgical Microscope LMM-A11
Brand: Labtron
SKU: LMM-A11
Rating: 4.9 (929 reviews)

Models of Metallurgical Microscope

Labtron Metallurgical Microscope is specialized to provide detailed analysis of microstructure of metals and other materials at high magnification. They are equipped with mechanical stage to securely hold and maneuver samples during analysis. Their eyepieces often include reticles for accurate measurement of features within unit. They utilize polarizing filters to analyze anisotropic components and observe optical phenomena in metals. Our Metallurgical Microscope is versatile for weld quality assessment, grain size measurement, and heat treatment evaluation.

Metallurgical Microscope LMM-A10

Optical System : Infinite optical system, tube length 180mm, parfocal 45mm
Viewing Head : Siedentopf trinocular, 30° inclination, 54mm to 75mm interpupillary distance
Eyepiece : PL10×/22mm wide field plan eyepiece
Objective Lenses : 5×, 10×, 20×, 50×, 100×, BF, WD ranging from 2.10mm to 10.80mm

Compare Remove

Upright Metallurgical Microscope LMM-B20

Optical System : NIS45 Infinite Color Corrected Optical System (Tube length: 180mm)
Viewing Head : Ergo Tilting Trinocular Head, adjustable 0-35° tilt, interpupillary distance 47mm-78mm
Reflected Illumination : Reflected light 24W/100W halogen lamp, Köhler illumination,6-position turret; Built-in ND6, ND25, and color correction filters
Magnification Range : 50x to 1000x

Compare Remove

Upright Metallurgical microscopes LMM-B11

Optical System : Infinity Optical System (with Bright Field/ Dark Field, DIC, Polarizing units)
Viewing Head : Seidentopf Trinocular Head Inclined at 30°, Interpupillary distance 48 to 75 mm
Reflected Illumination : 24 V, 100 W Halogen Light,Brightness Adjustable, Kohler Illumination With Aspherical CondenserPolarizer & Analyzer, Integrate Board For Polarizer & Analyzer Blue, Green, Yellow Filter, Ground Glass filters
Transmitted Illumination : Swing-Out Condenser N.A.0.9/0.2524V 100 W Halogen Light With Aspherical CondenserBlue Filter

Compare Remove

Metallurgical Microscope LMM-C11

Optical System : UIS optical system
Viewing Head : Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch)
Eyepiece : Wide field WF 10X /18 mm
Objective : Infinite Plan Achromatic Objectives with long working distance (no cover glass) PL 5X/0.12, PL L 10X/0.25, PL L 20X/0.40, PL L 40X/0.60, PL L 80X/0.80

Compare Remove

Metallurgical Microscope LMM-C10

Optical System : Infinity Optical System F= 200 mm
Viewing Head : Siedentopf trinocular head, inclined at 30°, Interpupillary 55-75 mm
Eyepiece : WF10X/25 mm
Objective : M Plan APO HL Objective 2X/0.055 WD= 34.56 mm Focus Length 95mm M Plan APO HL Objective 5X/0.14 WD= 44.50 mm Focus Length 95mm M Plan APO HL Objective 10X/0.28 WD= 34.00 mm Focus Length 95mm M Plan APO HL Objective 20X/0.29 WD= 31.00 mm Focus Length 95mm M Plan APO HL Objective 50X/0.42 WD= 20.50 mm Focus Length 95mm

Compare Remove

Metallurgical microscope LMM-B10

Viewing head : Siedentopf type trinocular head inclined at 30º, Rotable 360 ºinterpupilary distance: 48-76 mm
Eyepiece : WF10X/22 mmWF10X/22 mm (reticle 0.1 mm)
Focusing : Coarse and fine focusing adjustment: Coarse stroke: 25 mm Fine stroke per rotation: 0.2 mmFine division 2 µmTightness adjustment, upper distance limiter
Nosepiece : Quintuple nosepiece

Compare Remove

Upright Metallurgical microscopes LMM-B12

Optical System : Infinity Optical System (with Bright Field/ Dark Field, DIC, Polarizing units)
Viewing Head : Seidentopf Trinocular Head Inclined at 30°, Interpupillary distance 48 to 75 mm
Reflected Illumination : 24 V, 100 W Halogen Light,Brightness Adjustable, Kohler Illumination With Aspherical CondenserPolarizer & Analyzer, Integrate Board For Polarizer & Analyzer Blue, Green, Yellow Filter, Ground Glass filters
Transmitted Illumination : Nil

Compare Remove

Upright Metallurgical Microscope LMM-B30

Optical System : NIS45 Infinite Color Corrected Optical System (Tube length: 180mm)
Viewing Head : Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Motorized Control : Nosepiece control panel with buttonsTwo most used objectives can be pre-set and switchedAuto light intensity adjustment after objective change
Reflected Illumination : Reflected light 24W/100W halogen lamp, Koehler illumination, with 6-position turret; Built-in ND6, ND25 filter and color correction filter

Compare Remove

Optical System	Infinite optical system, tube length 180mm, parfocal 45mm
Viewing Head	Siedentopf trinocular, 30° inclination, 54mm to 75mm interpupillary distance
Eyepiece	PL10×/22mm wide field plan eyepiece
Objective Lenses	5×, 10×, 20×, 50×, 100×, BF, WD ranging from 2.10mm to 10.80mm
Frame and Focusing	Coaxial focus with tension adjustment, moving range: 28mm, precision: 0.002mm. Stage adjustable for 78mm high samples.
Stage	Double layer mechanical stage, size 175mm×145mm
Maximum Sample Height	28mm (transmitted & reflected frame)
Reflected Illumination	5W LED, warm color, Koehler illuminator
Transmitted Illumination	5W LED, warm color
Condenser	N.A. 0.9 swing-out achromatic condenser
Power Supply	100V to 240V, AC50/60Hz
Dimension	570×280×370 mm
Weight	13 kg
