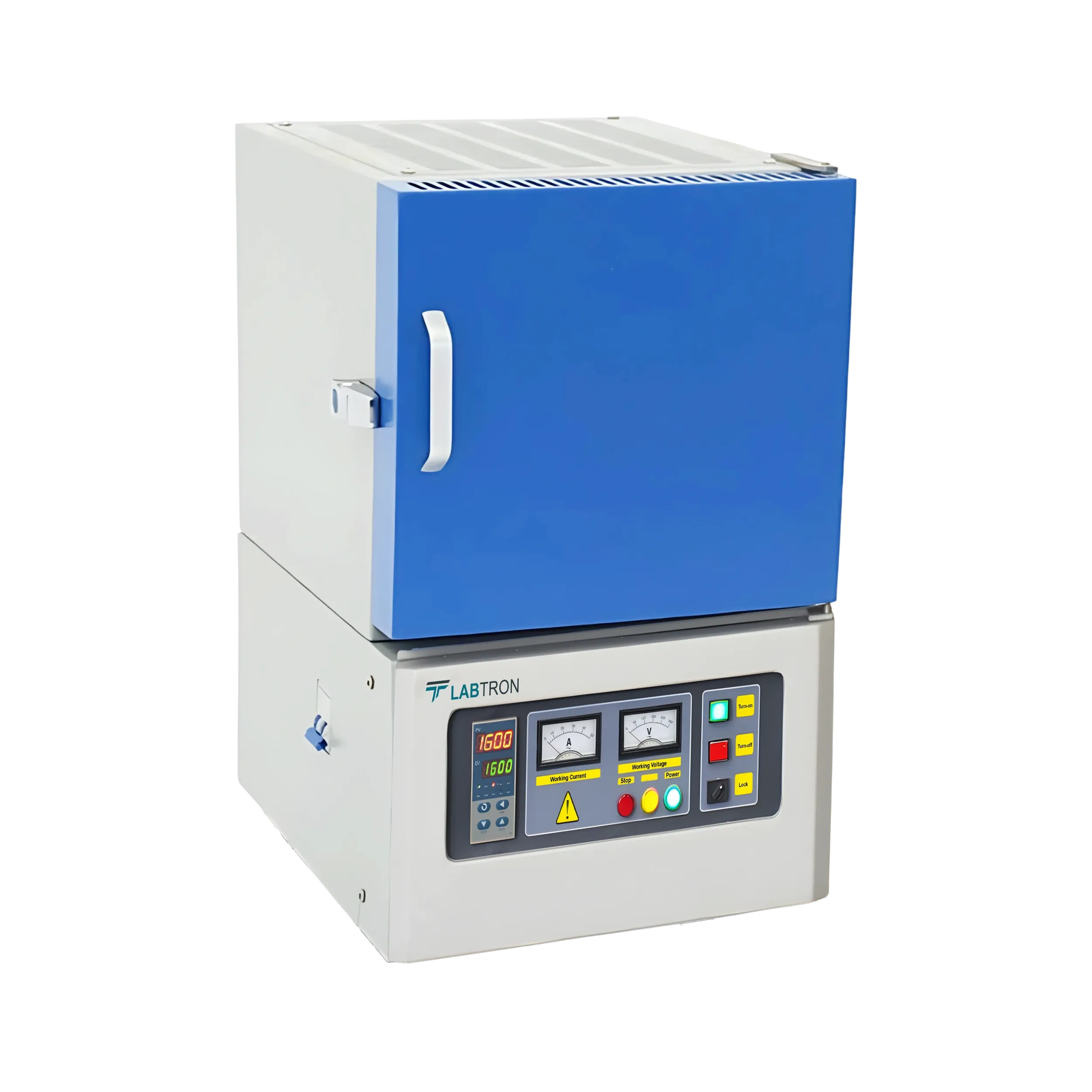

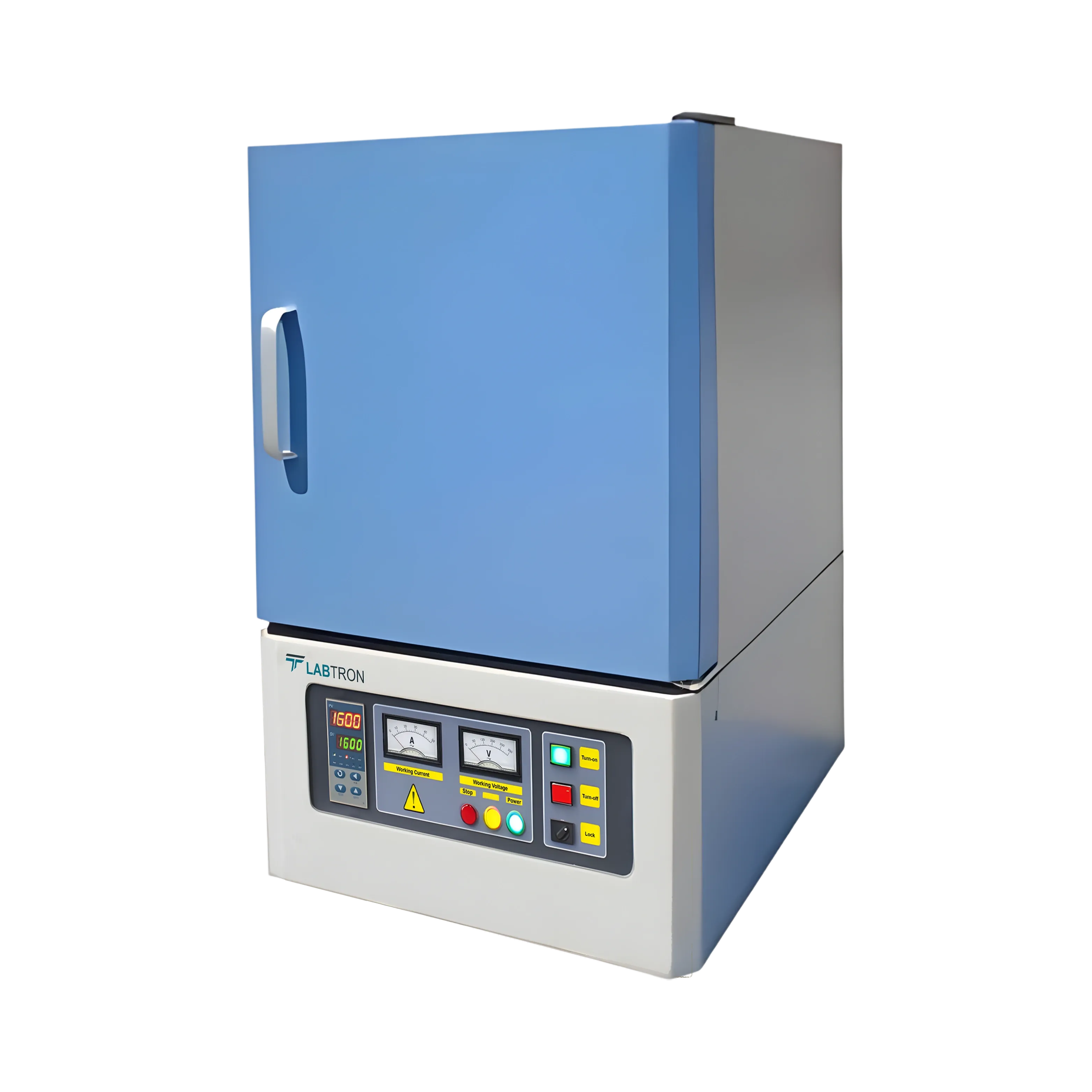

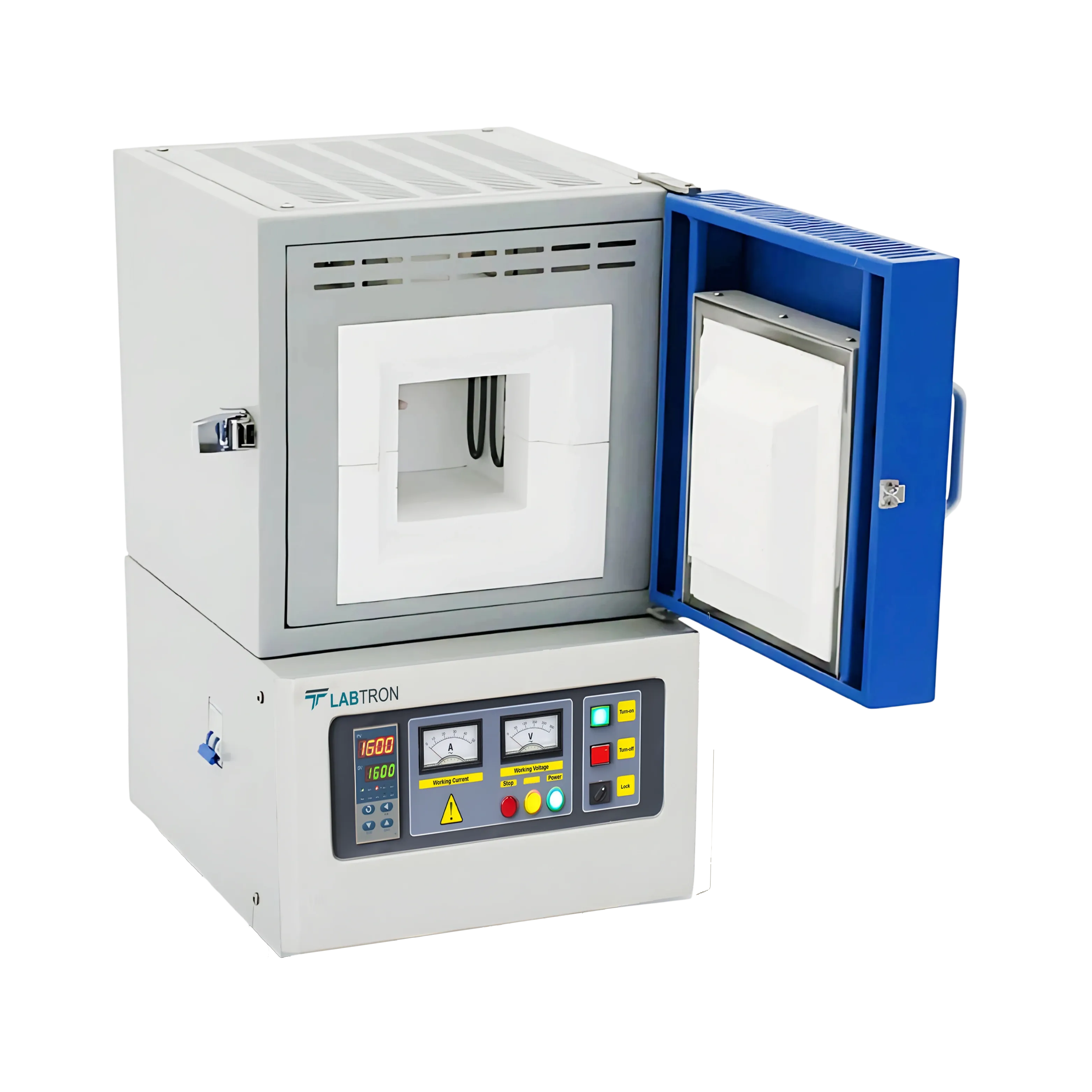

Muffle Furnace LMF-I61 offers a maximum operating temperature of 1600 °C and a spacious 30 L capacity. It includes various features such as auto start scheduling, display of remaining time, step skipping, and burst heating mode. The heating system utilizes premium MoSi2 rods, vertically installed on both side walls. Its lockable sideward door handle ensures safety, while the chimney provides standard exhaust without a fan. Our furnace is designed for precise and efficient high-temperature applications.
| Max. Temperature | 1600 ℃ |
| Capacity | 30 L |
| Program Memories | 30 |
| Thermocouple Type | B Type |
| Display | 7 inch touch screen |
| Heating Program | Stores 12 temperature curves, each with 30 steps |
| Thermal Rate | 0-15 ℃ /min (adjustable) |
| Heating element | High-quality MoSi2 rods |
| Heating Element Placement | Vertically aligned next to side walls |
| Inner Insulation Material | Ceramic Fibre Board |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Material | Steel Sheet |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard without fan |
| Lockable Door Handle | Sidewards |
| Temperature Control Accuracy | ± 1 °C (can vary at low temperatures) |
| Measurement Accuracy | ± 1 °C |
| Inner Volume Temperature Homogenity | ± 10 °C |
| Auto Start at Certain Date | Yes |
| Show Remaining Waiting Time | Yes |
| Skip the Waiting Step | Yes |
| Burst Heating Mode | Yes |
| Max. Current | 34A |
| Power | 13 kW |
| Product Outer Dimension (W × H × D) | 900 × 800 × 1050 mm |
| Gross Dimension (W × H × D) | 1000 × 900 × 1350 mm |
Excellent temperature control

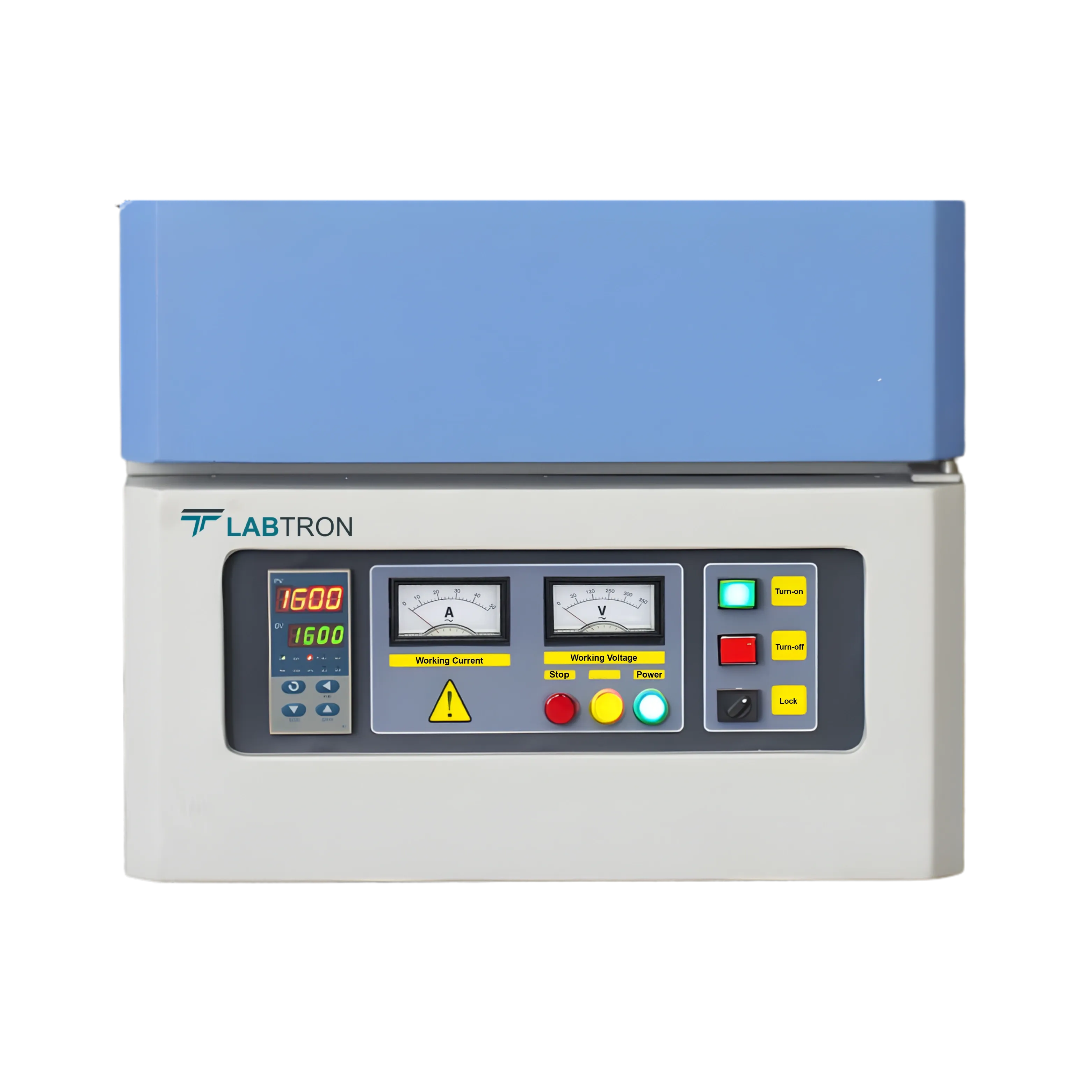

Touchscreen operation
Safe and secure design
Durable and well-insulated
Our Muffle Furnace LMF-I61 is ideal for high-temperature material testing, sintering, and ceramic processing. It is widely used in research labs, metallurgy, and industrial quality control applications.
Heating Elements × 2 pieces
High Temperature Gloves × 1 piece
Crucible Tong × 1 piece
Download catalog for
Muffle Furnace LMF-I61 Catalog
Labtron Muffle Furnace 1600℃ operate in controlled atmosphere, allowing for precise environmental conditions during heating. Their construction includes refractory brick lining for added thermal efficiency and resistance to wear. They have user-friendly control panel that simplifies temperature settings and monitoring during experiments. Their safety features include over-temperature protection to prevent damage to equipment and samples. Our Muffle Furnace 1600℃ used in laboratories for metallurgy, ceramics, glasswork, and material science applications.
